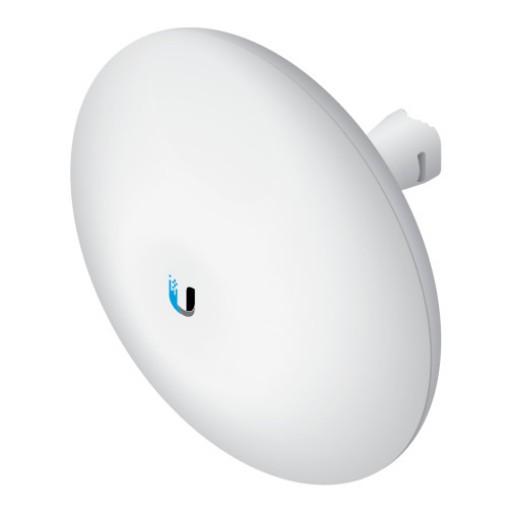

Ubiquiti NBE-5AC-Gen2 5 GHz NanoBeam AC, Gen2 19dBi

https://arcip.com.au/web/image/product.template/2759/image_1920?unique=5ced8d4
The Ubiquiti NBE-5AC-Gen2 is a high-performance 5 GHz NanoBeam AC, Gen2 designed for efficient long-distance wireless links. With an integrated 19dBi antenna, it delivers superior throughput and robust connectivity for Point-to-Point and Point-to-MultiPoint client applications.

170.50 170.5 AUD 170.50 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

Ubiquiti airMAX
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
NBE-5AC-Gen2
Barcode
817882023375
Tags
NBE-5AC-Gen2
Ubiquiti NBE-5AC-Gen2 5 GHz NanoBeam AC, Gen2 19dBi

Features

  • Integrated 19 dBi Directional Antenna for Long-Range Connectivity
  • 5 GHz airMAX ac Technology for High Throughput and Performance
  • Improved Noise Immunity and RF Isolation with InnerFeed Technology
  • Dedicated Management Wi-Fi Radio for Quick Setup via UMobile App
  • Robust Mechanical Design with Enhanced Mounting for Wind Loading
  • Supports Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) Client Modes
  • Passive 24V PoE Support (PoE Adapter Included)
  • Enhanced ESD Protection

Specifications

Wireless
Frequency Band5 GHz
Wireless Standard802.11ac (airMAX ac)
Gain19 dBi
Max. Throughput450+ Mbps
Max. TX Power25 dBm
MIMO2x2
Beamwidth20° (Single Pol.)
System
ProcessorMIPS 74Kc
Memory64 MB DDR2
Networking Interface1x 10/100/1000 Ethernet Port
Power
Power Supply24V, 0.5A Gigabit PoE Adapter (Included)
Power MethodPassive PoE (Pairs 4, 5+; 7, 8 Return)
Max. Power Consumption8.5W
ESD/EMP ProtectionAir: ±24 kV, Contact: ±24 kV
Physical/Environmental
Enclosure MaterialOutdoor UV Stabilized Plastic
MountingPole-Mount (Included)
Wind Loading125 N @ 200 km/h (28.1 lbf @ 125 mph)
Wind Survivability200 km/h (125 mph)
Operating Temperature-40 to 70° C (-40 to 158° F)
Operating Humidity5 to 95% Non-Condensing
Dimensions189 x 189 x 125 mm (7.44 x 7.44 x 4.92")
Weight530 g (1.17 lb)

Professional Overview

The Ubiquiti NBE-5AC-Gen2 5 GHz NanoBeam AC is a sophisticated and highly integrated wireless device meticulously engineered for high-performance Point-to-Point (PtP) bridging and Point-to-MultiPoint (PtMP) client applications. Leveraging Ubiquiti's proprietary airMAX ac technology, this second-generation NanoBeam combines a powerful radio with a high-gain 19 dBi directional antenna into a compact, all-in-one unit. It is an ideal solution for Wireless Internet Service Providers (WISPs) and network integrators who require reliable, long-distance wireless links delivering superior throughput and robust connectivity in challenging outdoor environments.

At its core, the NBE-5AC-Gen2 operates on the 5 GHz frequency band, utilizing 802.11ac standards to achieve real-world throughput exceeding 450+ Mbps. Its innovative InnerFeed™ technology integrates the radio into the antenna's feedhorn, eliminating cable losses and significantly enhancing signal strength and noise immunity. The Gen2 iteration introduces several key improvements, including a dedicated management Wi-Fi radio, which allows for quick and easy setup, alignment, and configuration via the UMobile app on a smartphone or tablet, drastically reducing installation time and complexity. The device runs on Ubiquiti's advanced airOS ac software, offering powerful features like airView for spectrum analysis and TDMA protocol for enhanced spectral efficiency.

Designed for professional outdoor deployment, the NBE-5AC-Gen2 features a robust mechanical design with an improved mounting bracket, ensuring enhanced wind loading resilience and stability against harsh weather conditions. Its durable, UV-stabilized plastic enclosure protects internal components from extreme temperatures, moisture, and prolonged sun exposure, guaranteeing long-term reliability and consistent performance. Power is supplied conveniently via a Gigabit PoE adapter (included), which also provides essential ESD (Electrostatic Discharge) and surge protection, safeguarding the device and extending its operational lifespan in exposed installations.

For network professionals seeking a scalable, cost-effective, and high-performance solution for expanding their wireless networks, the Ubiquiti NBE-5AC-Gen2 stands out. It provides an optimal balance of antenna gain, throughput, and advanced software capabilities, making it indispensable for delivering high-speed internet access to remote clients, establishing reliable backbone links, or extending surveillance networks. Its ease of deployment, rugged durability, and sophisticated management capabilities ensure a dependable foundation for critical wireless communications.
