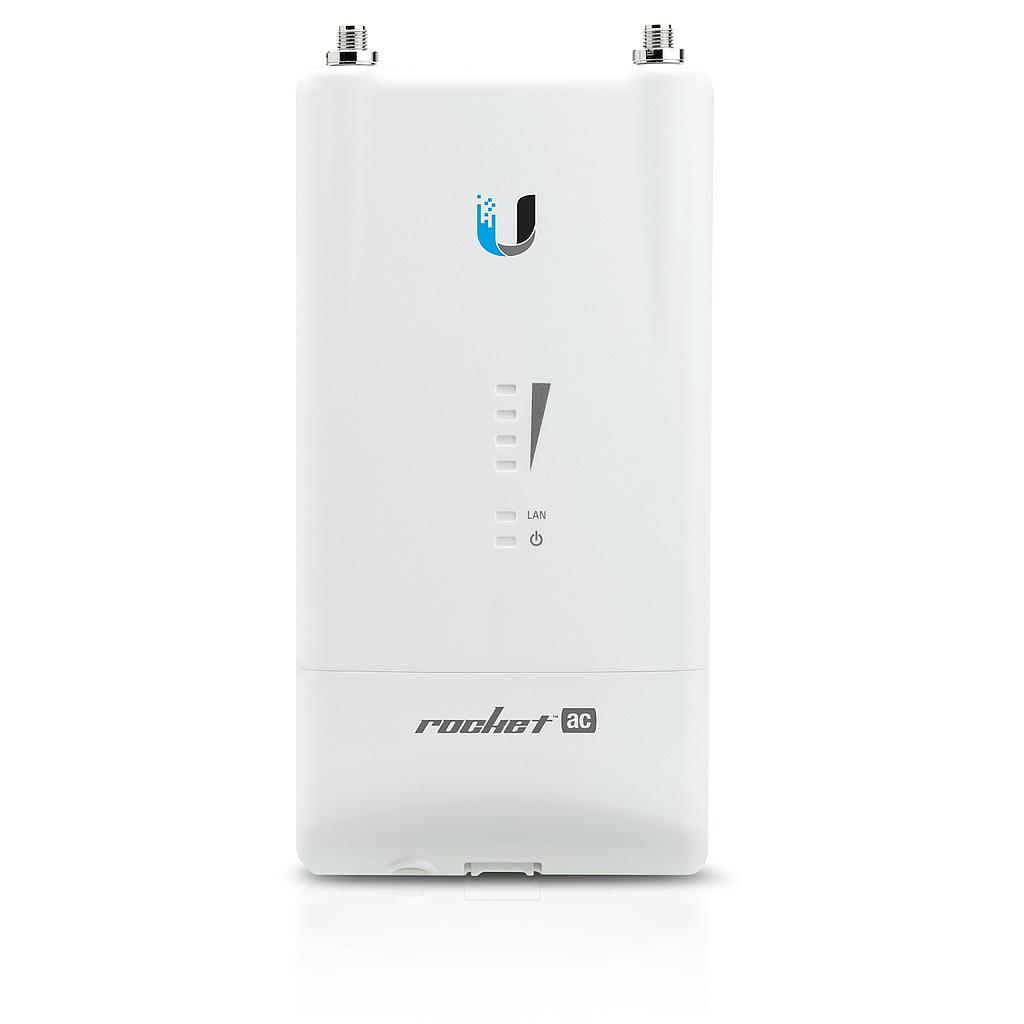

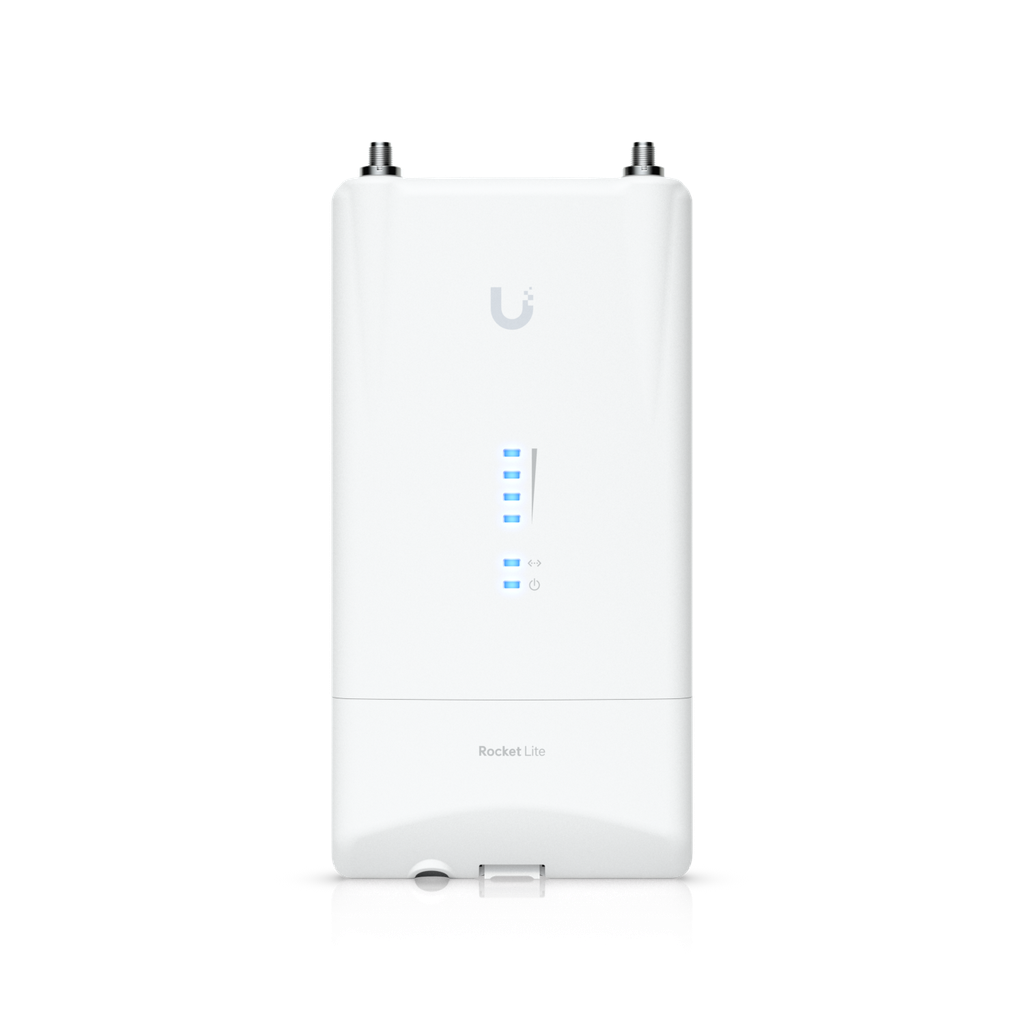

Ubiquiti R5AC-Lite Rocket, AC, Lite

https://arcip.com.au/web/image/product.template/2775/image_1920?unique=5c26101
The Ubiquiti R5AC-Lite Rocket AC Lite is a high-performance 5GHz airMAX AC base station, providing superior throughput and scalability for Point-to-MultiPoint deployments. It offers a cost-effective yet powerful solution for WISPs and network integrators.

223.30 223.3 AUD 223.30 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

Ubiquiti airMAX
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
R5AC-Lite
Barcode
810354025174
Tags
R5AC-Lite
Ubiquiti R5AC-Lite Rocket, AC, Lite

Features

  • High-Performance 5 GHz airMAX ac Technology
  • Cost-Effective Solution for Point-to-MultiPoint (PtMP) AP Deployments
  • Delivers 450+ Mbps Real TCP/IP Throughput (with appropriate antenna)
  • Seamless Integration with Ubiquiti RocketDish and Sector Antennas
  • Gigabit Ethernet Port for High-Speed Data Transfer
  • Advanced airOS ac Software Suite for Robust Control and Analytics
  • Passive 24V PoE Support (PoE Adapter Included)
  • Durable, Weather-Resistant Outdoor Design

Specifications

Wireless
Frequency Band5 GHz
Wireless Standard802.11ac (airMAX ac)
Max. Throughput450+ Mbps
Max. TX Power27 dBm
MIMO2x2
Antenna Interface2x RP-SMA Waterproof (for external antenna)
DFS SupportYes (where applicable)
System
ProcessorMIPS 74Kc
Memory128 MB DDR2
Networking Interface1x 10/100/1000 Ethernet Port
Power
Power Method24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power Supply24V, 0.5A Gigabit PoE Adapter (Included)
Max. Power Consumption8.5W
ESD/EMP ProtectionAir: ±24 kV, Contact: ±24 kV
Physical/Environmental
Enclosure MaterialOutdoor UV Stabilized Plastic
MountingPole-Mount Kit (Included)
Operating Temperature-40 to 80° C (-40 to 176° F)
Operating Humidity5 to 95% Non-Condensing
Dimensions162 x 84 x 44 mm (6.38 x 3.31 x 1.73")
Weight250 g (8.82 oz)

Professional Overview

The Ubiquiti R5AC-Lite Rocket AC is a powerful and versatile 5 GHz airMAX ac base station radio, meticulously engineered for high-performance Point-to-MultiPoint (PtMP) deployments. As part of the 'Lite' series, it offers an exceptional balance of cost-effectiveness and robust capabilities, making it an ideal choice for Wireless Internet Service Providers (WISPs) and network integrators looking to expand their network infrastructure without significant capital expenditure. The R5AC-Lite is designed to pair seamlessly with a variety of Ubiquiti airMAX sector antennas or RocketDish antennas (sold separately), providing flexible solutions for diverse coverage and range requirements.

Leveraging Ubiquiti's proprietary airMAX ac technology, the R5AC-Lite delivers impressive real-world TCP/IP throughput exceeding 450+ Mbps. This high-speed performance is crucial for meeting the demands of modern internet services, including streaming high-definition video, online gaming, and supporting numerous concurrent users. Operating in the 5 GHz frequency band, the R5AC-Lite benefits from less interference compared to the crowded 2.4 GHz spectrum, ensuring cleaner signals and more reliable connections. Its 2x2 MIMO capabilities further enhance link stability and data rates, providing a superior wireless experience.

The R5AC-Lite runs on the advanced airOS ac software suite, offering a comprehensive set of features for spectrum analysis (airView), intelligent channel optimization (airMagic), and robust network management. These tools are critical for managing interference, maximizing spectral efficiency, and ensuring the scalability of PtMP networks. The device is housed in a durable, outdoor UV-stabilized plastic enclosure, engineered to withstand extreme temperatures, moisture, and prolonged sun exposure, guaranteeing long-term reliability and consistent performance in harsh environmental conditions. Power is supplied conveniently via a Gigabit PoE adapter (included), simplifying cabling and reducing installation complexity by delivering both power and data over a single Ethernet cable. Integrated ESD/EMP protection further safeguards the device against electrical surges.

For network professionals seeking a reliable, high-performance, and cost-efficient base station for their 5 GHz wireless networks, the Ubiquiti R5AC-Lite Rocket AC is an indispensable asset. Its combination of advanced airMAX ac technology, robust design, and powerful software features makes it perfect for building scalable WISP networks, extending corporate wireless infrastructure, or facilitating large-scale surveillance camera backhauls. The R5AC-Lite provides a dependable foundation for critical wireless communications, delivering consistent performance and excellent value.

Brand UBIQUITI
