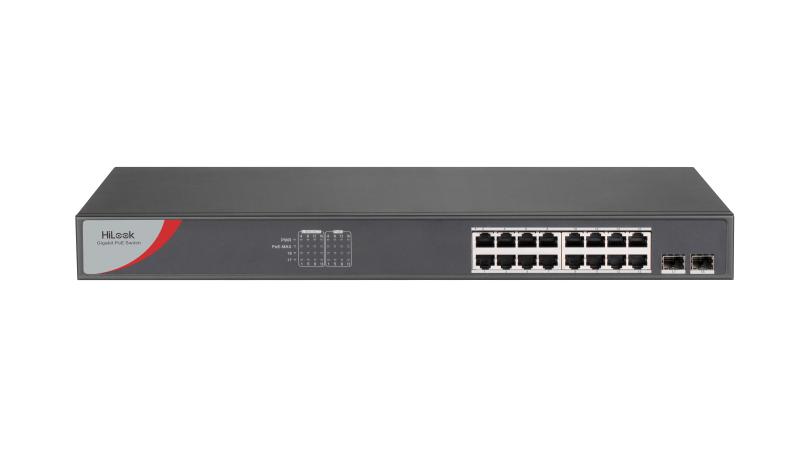

HiLook by Hikvision NS-0518P-125 16-Port Gigabit Unmanaged PoE Switch, 2 SFP, 125 W, 1U Rack

Price:

$ 179.36


HiLook by Hikvision NS-0109P-60 8-Port Fast Ethernet Unmanaged PoE Switch, 60 W
HiLook by Hikvision NS-0109P-60 8-Port Fast Ethernet Unmanaged PoE Switch, 60 W
$ 87.74
$ 87.74
HiLook by Hikvision NS-0106P-35 4-Port Fast Ethernet Unmanaged PoE Switch, 2 Uplinks, 35 W
HiLook by Hikvision NS-0106P-35 4-Port Fast Ethernet Unmanaged PoE Switch, 2 Uplinks, 35 W
$ 69.67
$ 69.67

HiLook by Hikvision NS-0518P-125 16-Port Gigabit Unmanaged PoE Switch, 2 SFP, 125 W, 1U Rack

https://arcip.com.au/web/image/product.template/11263/image_1920?unique=d825bc3
  • 16 x Gigabit PoE ports + 2 x Gigabit SFP fibre uplinks
  • 125 W PoE budget, up to 30 W per port (802.3af/at)
  • 36 Gbps switching capacity, wire-speed forwarding
  • 6 kV surge protection, PoE-MAX indicator
  • Unmanaged, 1U rack mount, built-in 100-240 VAC PSU

$ 179.36 179.36 AUD $ 179.36 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • Network Layer
  • Form Factor
  • Port Speed
  • Ports
  • Uplink
  • PoE Specification

This combination does not exist.

In stock online
Hikvision HiLook PoE Switch Network Switch
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
NS-0518P-125
Tags
NS-0518P-125
HiLook by Hikvision NS-0518P-125 – 16-Port Gigabit Unmanaged PoE Switch, 2 × Gigabit SFP, 125 W PoE Budget, 1U Rack Mount
At a glance

The HiLook NS-0518P-125 is a 16-port Gigabit unmanaged PoE switch with two Gigabit SFP fibre ports for uplinks, in a 1U metal rack-mount case with mounting ears. The 16 PoE ports follow IEEE 802.3af/at with up to 30 W per port and a 125 W total PoE budget, and have 6 kV surge protection. 36 Gbps switching capacity gives wire-speed forwarding on every port. It has a built-in 100–240 VAC power supply. Plug-and-play, no configuration. Hikvision lists this model as discontinued, with the NS-0518P-125(B) as the current revision.

Device type
Unmanaged PoE switch
Ports
16 × GbE PoE + 2 × GbE SFP
PoE budget
125 W total
PoE standard
IEEE 802.3af / 802.3at
Max per port
30 W
Switching capacity
36 Gbps
Power input
100–240 VAC
Form factor
1U rack (ears included)

Key features

  • 16 × Gigabit PoE ports – power and connect up to 16 IP cameras, access points or IP phones at gigabit speed.
  • 2 × Gigabit SFP fibre ports – uplink to the NVR, core switch or another building over fibre with optional Hikvision SFP modules.
  • 125 W PoE budget with up to 30 W per port (IEEE 802.3af/at), enough for a typical mix of fixed cameras plus some PoE+ devices.
  • PoE power management and a PoE-MAX indicator that lights when output power is close to, or at, the budget limit.
  • 6 kV surge protection on the PoE ports, plus a grounding terminal on the rear panel.
  • Wire-speed, store-and-forward switching – 36 Gbps switching capacity, 26.79 Mpps forwarding rate, 4.1 Mbits cache and an 8K MAC address table.
  • IEEE 802.3, 802.3u and 802.3x standards, with PoE end-span power on pins 1/2 (+) and 3/6 (−).
  • 1U rack mount – 440 × 44 × 220.8 mm metal chassis with mounting ears, for a standard 19″ comms rack.
  • Built-in power supply – 100–240 VAC, 50/60 Hz, so no external PoE power brick is required.
  • Unmanaged, plug-and-play – no configuration and no management interface to secure.

Specifications

Network
Ports16 × Gigabit PoE RJ45 ports, 2 × Gigabit SFP fibre optical ports
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding modeStore-and-forward switching
MAC address table8K
Switching capacity36 Gbps
Packet forwarding rate26.79 Mpps
Internal cache4.1 Mbits
ManagementUnmanaged (plug and play)
PoE
PoE standardIEEE 802.3af, IEEE 802.3at
PoE power pinsEnd-span: 1/2 (+), 3/6 (−)
PoE portsPorts 1 to 16
Max. power per port30 W
PoE power budget125 W
Surge protection6 kV
General
HousingMetal
Power supply100–240 VAC, 50/60 Hz, max. 2.5 A
Max. power consumption150 W
Power consumption at idle25 W
Operating temperature0 °C to 45 °C
Storage temperature−40 °C to 85 °C
Humidity5% to 95% (non-condensing)

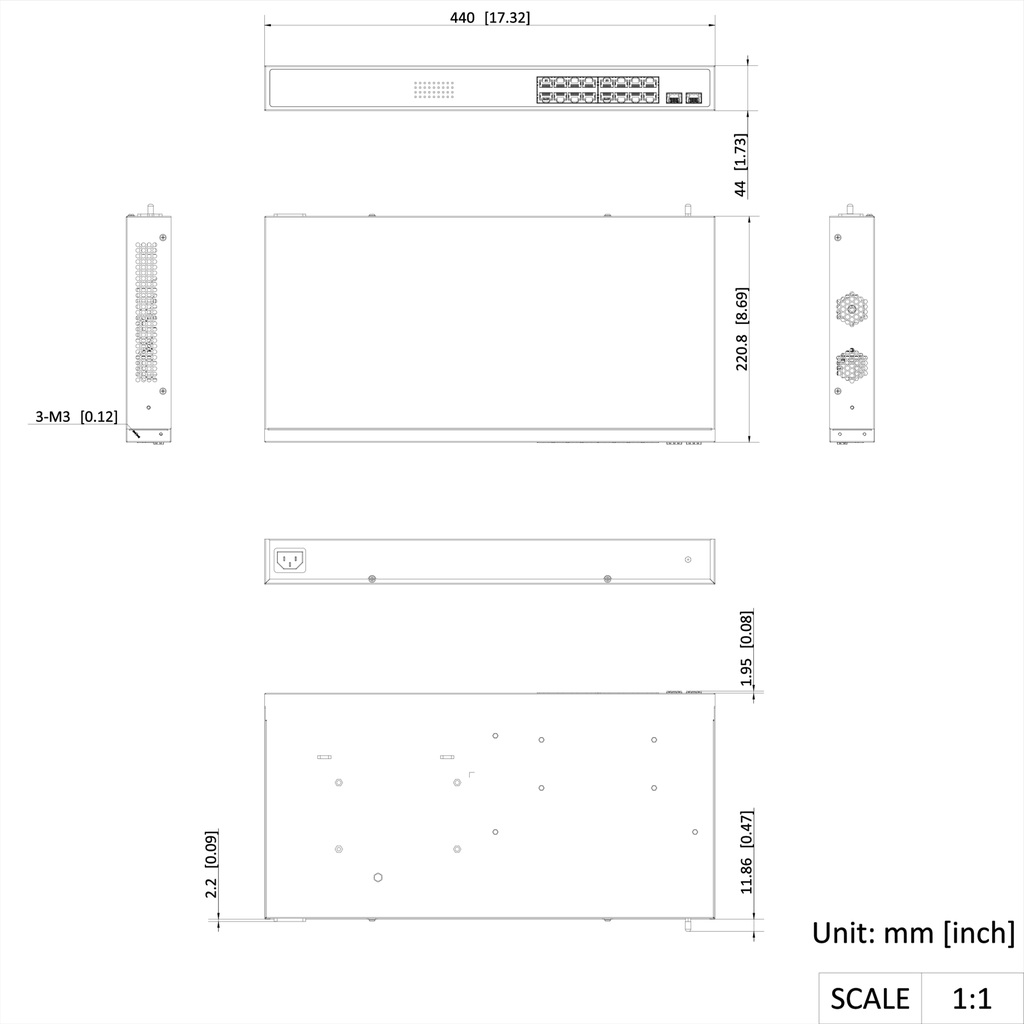

Dimensions (W × H × D)440 × 44 × 220.8 mm
Net weight2.5 kg
InstallationRack (mounting ears supplied)
Approvals
EMCCE-EMC (EN 55032, EN IEC 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035)
SafetyUL 60950-1; CB (IEC 62368-1); CE-LVD (EN 62368-1)
ChemistryCE-RoHS; WEEE; REACH
Optional Accessories
SFP modulesHK-SFP-1.25G-20-1550, HK-SFP-1.25G-20-1310, HK-SFP-1.25G-1310-DF-MM, HK-SFP-1.25G-20-1310-DF (sold separately)

Specifications are from Hikvision’s official global NS-0518P-125 product page and datasheet (attached). Hikvision lists this model as discontinued. SFP modules are not included. This is an unmanaged switch with no VLAN or web management.

Best for

  • CCTV systems with up to 16 PoE IP cameras feeding a rack-mounted NVR.
  • Linking a camera switch to a remote building or the core network over fibre with the SFP ports.
  • Comms racks that need a tidy 1U switch with an internal power supply.
  • Mixed camera, access point and IP phone deployments within a 125 W budget.
  • Upgrading from Fast Ethernet PoE switches to full gigabit for high-resolution cameras.

Who it’s for

Security installers

A simple 16-camera gigabit PoE switch with fibre uplinks and no configuration.

Warehouses & factories

Power cameras across large floors and link back to the office over fibre.

Retail & hospitality

Rack-mount PoE for cameras, Wi-Fi access points and phones.

Schools & campuses

Fibre-linked camera switches in remote buildings.

Strata & property managers

Cover car parks, lobbies and common areas from one rack.

IT teams

A predictable unmanaged access switch for a dedicated camera network.

HiLook PoE Switch FAQ – NS-0518P-125

It has 16 Gigabit PoE ports sharing a 125 W budget, with up to 30 W per port. Add up the maximum consumption of each camera from its datasheet and keep the total under 125 W; the PoE-MAX indicator warns when the limit is near.

No. The NS-0518P-125 is unmanaged and plug-and-play. It has no VLAN or web management settings; if you need VLANs, QoS or monitoring, choose a managed switch.

The two Gigabit SFP fibre ports are for uplinks over fibre, for example to an NVR, a core switch or another building. SFP modules are sold separately; Hikvision lists HK-SFP-1.25G series modules as optional accessories.

No. It has a built-in 100–240 VAC power supply. It uses about 25 W at idle and up to 150 W at full load.

Yes. It is a 1U, 440 mm wide metal chassis with mounting ears for a standard 19″ rack.

Yes. PoE follows IEEE 802.3af and 802.3at, so it powers standards-compliant cameras, access points and phones from any brand.

List the maximum power consumption from each camera’s datasheet, including IR and heater load, and add them together. Keep the total comfortably under 125 W, for example 16 fixed cameras at about 6–7 W each. Higher-draw devices such as PTZ cameras use up the budget faster, so spread them across the system or use a higher-budget switch.

Use Cat5e or Cat6 cable for the gigabit PoE ports, up to the standard 100 m per run. For the SFP ports, choose the SFP module to match your fibre: Hikvision lists single-mode 1310/1550 nm 20 km modules and a multimode 1310 nm module as optional accessories.

Hikvision’s global site lists the NS-0518P-125 as discontinued, with the NS-0518P-125(B) as the current revision. The specifications here are from the official NS-0518P-125 datasheet.

Professional overview

The HiLook by Hikvision NS-0518P-125 is a 16-port Gigabit unmanaged PoE switch with two Gigabit SFP fibre ports, designed as the access switch for medium-sized IP surveillance systems. It mounts in a standard 19″ rack using the supplied ears and has a built-in AC power supply, so a full 16-camera system can be powered from a single 1U unit.

Each of the 16 PoE ports supports IEEE 802.3af and 802.3at with up to 30 W, from a shared 125 W budget, and has 6 kV surge protection. PoE power management and a PoE-MAX indicator help installers stay within the budget. With 36 Gbps switching capacity, 26.79 Mpps forwarding, 4.1 Mbits of cache and an 8K MAC table, every port forwards at wire speed.

The two SFP ports allow fibre uplinks to an NVR, a core switch or a distant building, using optional Hikvision HK-SFP-1.25G modules. The switch follows IEEE 802.3, 802.3u and 802.3x, and carries CE, UL and CB approvals.

The NS-0518P-125 runs from 100–240 VAC, draws about 25 W at idle and up to 150 W at full load, and measures 440 × 44 × 220.8 mm at 2.5 kg. Hikvision lists it as discontinued, replaced by the (B) revision. It comes with the full manufacturer’s warranty. Australian stock from ARC IP Networks.

Brand HiLook
Switching Capacity 36 Gbps
Network Layer Unmanaged
Form Factor Rack mount (1U)
Port Speed Gigabit Ethernet
Ports 18 Ports
Uplink 2 x GbE SFP
PoE Specification Up to PoE+ / 125W Budget
NS-0518P-125_Datasheet.pdf
