Mercusys MS108G 8-Port 10/100/1000 Mbps Desktop Switch

Price:

$ 34.13


TP-Link TL-SG1006PP 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
TP-Link TL-SG1006PP 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
$ 136.68
$ 136.68
TP-Link TL-WR3602BE Roam 7 BE3600 Wi-Fi 7 Travel Router
TP-Link TL-WR3602BE Roam 7 BE3600 Wi-Fi 7 Travel Router
$ 315.06
$ 315.06

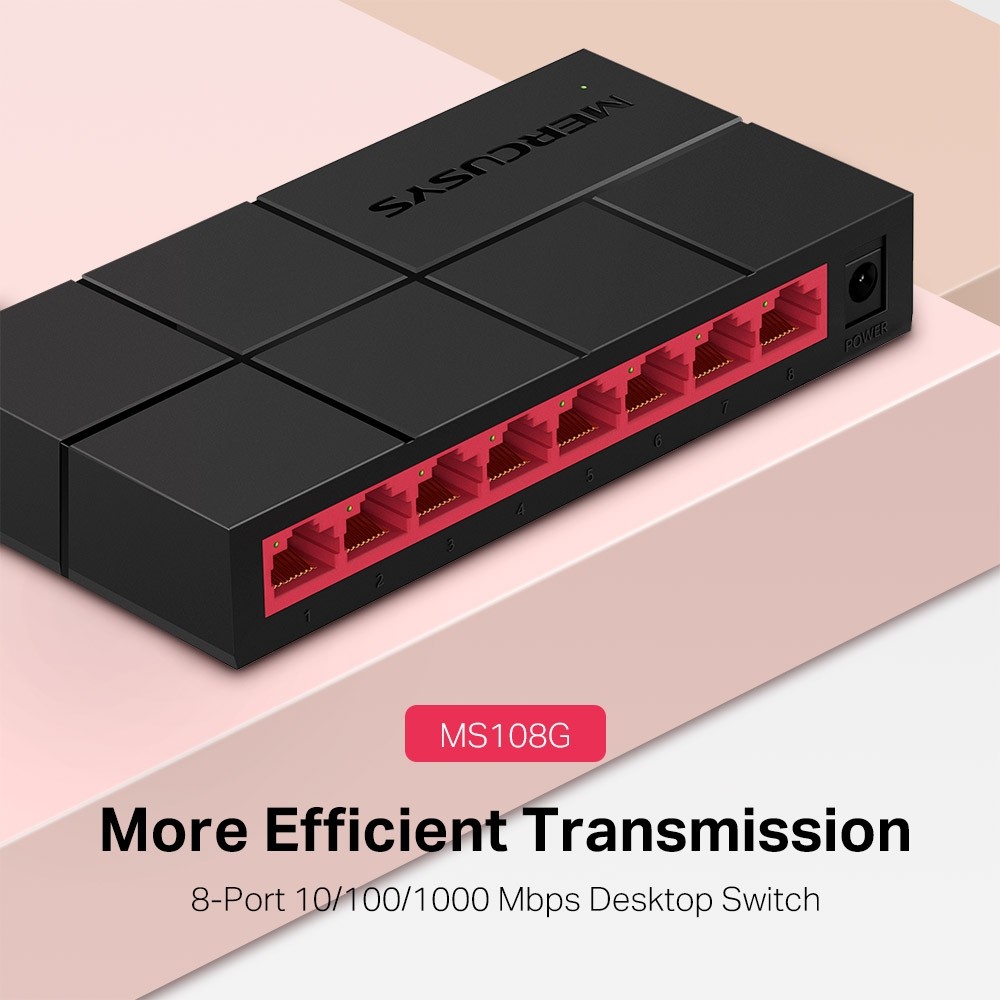

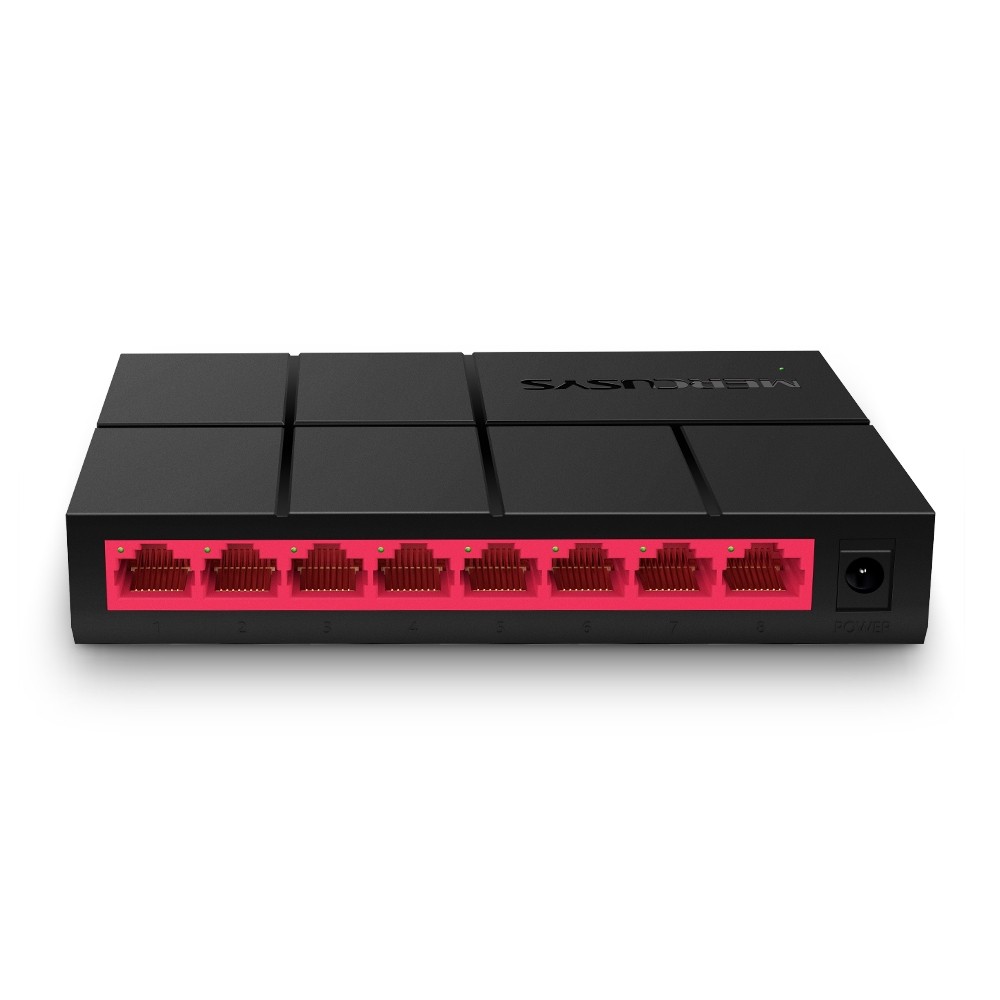

Mercusys MS108G 8-Port 10/100/1000 Mbps Desktop Switch

https://arcip.com.au/web/image/product.template/8129/image_1920?unique=cf7b17c

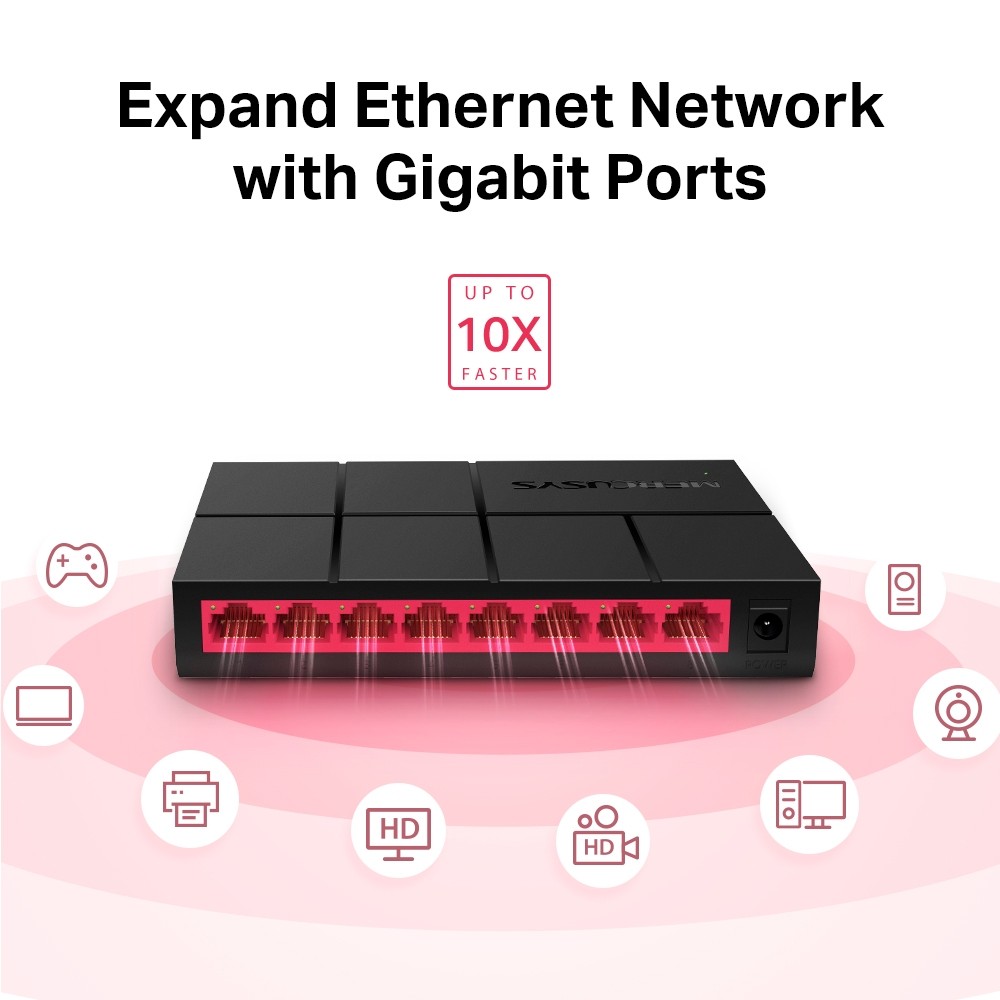

The Mercusys MS108G expands a wired network with eight 10/100/1000 Mbps RJ45 ports, each with auto-negotiation and auto MDI/MDIX. Plug it in, connect a TV, computer, printer, IP camera or console, and it works with no configuration. The red and black square case measures 127 x 60.3 x 22 mm. Mercusys lists store-and-forward switching, 9 KB jumbo frames, Green Ethernet power saving and a 9 V / 0.6 A external supply.

$ 34.13 34.13 AUD $ 34.13 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

Switch Managed Switch TP-Link
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
MS108G
Barcode
6935364099626
Tags

The Mercusys MS108G is an 8-port 10/100/1000 Mbps desktop switch in a compact square case about the size of a smartphone. All eight RJ45 ports auto-negotiate and support auto MDI/MDIX, setup is plug and play with no configuration, and Mercusys lists Green Ethernet power saving, 9 KB jumbo frames and a 9 V / 0.6 A power supply.

MS108G overview

The MS108G is Mercusys's 8-port 10/100/1000 Mbps desktop switch, shown on the Mercusys Australia site as hardware version V1. It adds eight Gigabit RJ45 ports to a home, small office or dormitory network. Mercusys points out that Gigabit ports are 10 times faster than regular 10/100 Mbps Ethernet ports, and lists 4K Ultra HD TVs, computers, printers, IP cameras and game consoles among the devices it is compatible with. Every port supports auto-negotiation and auto MDI/MDIX, so speeds and cable types are sorted out automatically.

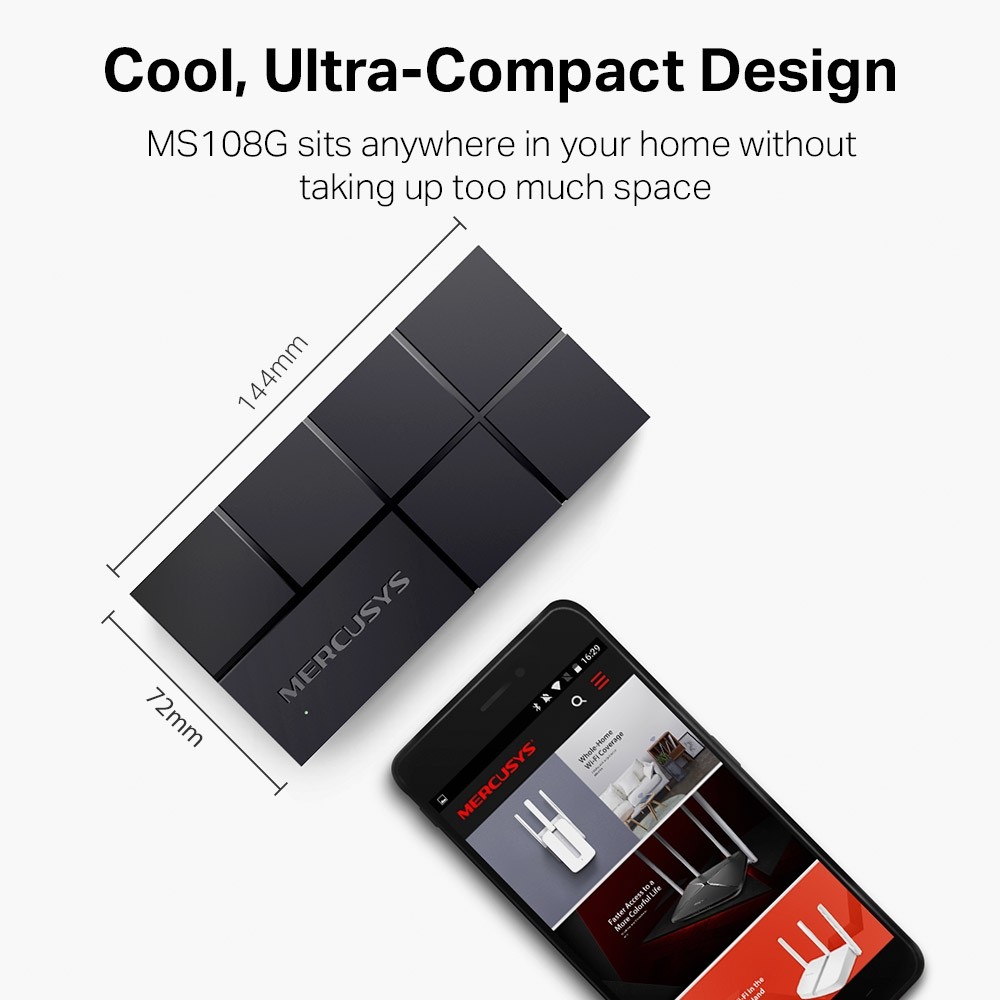

Design is where the MS108G differs from the steel-cased MS108GS. Mercusys describes a sleek, square build in a red and black colour combination for a high-tech look, and says the switch is about the same size as a smartphone, so it can sit anywhere in the home without taking up much space. It measures 127 x 60.3 x 22 mm. Front LEDs show the status of each of the eight Ethernet ports and power, and power comes from an external 9 V / 0.6 A supply.

Installation is plug and play: Mercusys says you just connect the switch to your TV or computer with an Ethernet cable to expand the wired network immediately, with absolutely no configuration. For reliability it lists half and full duplex operation and MAC address learning, and states that every unit undergoes extensive testing before shipment. Mercusys also lists Green Ethernet technology, which it says saves power by up to 82%; it does not state the test conditions behind that figure.

Under the hood the MS108G uses store-and-forward switching with a 64 KB buffer and supports 9 KB jumbo frames. Data rates are 10/100/1000 Mbps at half duplex and 20/200/2000 Mbps at full duplex, and the standards listed are IEEE 802.3, 802.3u and 802.3x, with CSMA/CD.

Key features

Eight Gigabit ports

10/100/1000 Mbps RJ45 with auto-negotiation and auto MDI/MDIX.

Smartphone-sized

Square 127 x 60.3 x 22 mm case in red and black.

Plug and play

Connect and go, with no configuration required.

Green Ethernet

Mercusys quotes power savings of up to 82%.

9 KB jumbo frames

Store-and-forward switching with a 64 KB buffer.

Duplex and MAC learning

Half and full duplex with MAC address learning.

Per-port LEDs

Status lights for all eight ports and power.

IEEE 802.3x

Flow control listed alongside 802.3 and 802.3u.

9 V / 0.6 A supply

External power supply.

MS108G specifications

At a glance

8 x Gigabit RJ45
Auto MDI/MDIX
Plug and play
127 x 60.3 x 22 mm
9 KB jumbo frames
Green Ethernet
Per-port LEDs
9 V / 0.6 A
MS108G full specifications
Specifications
Transfer MethodStore and Forward
Dimensions (W X D X H)127 x 60.3 x 22 mm
Interfaces8 10/100/1000Mbps Ports, Auto-Negotiation,; Auto-MDI/MDIX
External Power Supply9V/0.6A
Standards and ProtocolsIEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
Data Rates10/100/1000Mbps at Half Duplex; 20/200/2000Mbps at Full Duplex
Buffer Capacity64KB
Jumbo Frame9KB
LEDEthernet (1, 2, 3, 4, 5, 6, 7, 8), Power

Source: Mercusys's published specifications for this model (Mercusys Australia product page). throughput figures are Mercusys's lab results. Mercusys may change specifications without notice.

Who the MS108G is for

Home entertainment

  • 4K Ultra HD TVs
  • Game consoles
  • Small enough to sit anywhere

Small offices

  • Computers and printers
  • Eight Gigabit ports
  • No configuration

Dormitories

  • Compact square design
  • Plug and play
  • Green Ethernet

MS108G compared

The MS108G beside Mercusys's other unmanaged Gigabit desktop switches. The MS108GS keeps eight ports in a steel housing, and the MS105G is the five-port option. Figures are from each model's Mercusys Australia page.

SpecificationMS108GMS108GSMS105G
Gigabit RJ45 ports885
Buffer64 KB4 Mbit512 Kbit
Jumbo frame9 KB15 KB16 KB
Power supply9 V / 0.6 A5 V / 0.6 A5 V / 0.6 A
Dimensions127 x 60.3 x 22 mm6.2 x 3.9 x 1.0 in105 x 70 x 24.9 mm

Source: Mercusys Australia product pages for each model.

Buy the MS108G from ARC IP Networks

ARC IP Networks supplies Mercusys products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New Mercusys product from Australian stock.
  • Manufacturer warranty: the full Mercusys manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the MS108G from the ARC IP Networks team.

Last reviewed October 2026.

Eight 10/100/1000 Mbps RJ45 ports, each with auto-negotiation and auto MDI/MDIX.

No. Mercusys describes it as plug and play with no configuration required.

127 x 60.3 x 22 mm, which Mercusys says is about the size of a smartphone.

Yes, up to 9 KB, with store-and-forward switching and a 64 KB buffer.

An external 9 V / 0.6 A supply.

Mercusys lists Green Ethernet technology and says it saves power by up to 82%.

Mercusys lists 4K Ultra HD TVs, computers, printers, IP cameras and game consoles.

IEEE 802.3, 802.3u and 802.3x, with CSMA/CD.

20/200/2000 Mbps at full duplex and 10/100/1000 Mbps at half duplex.
