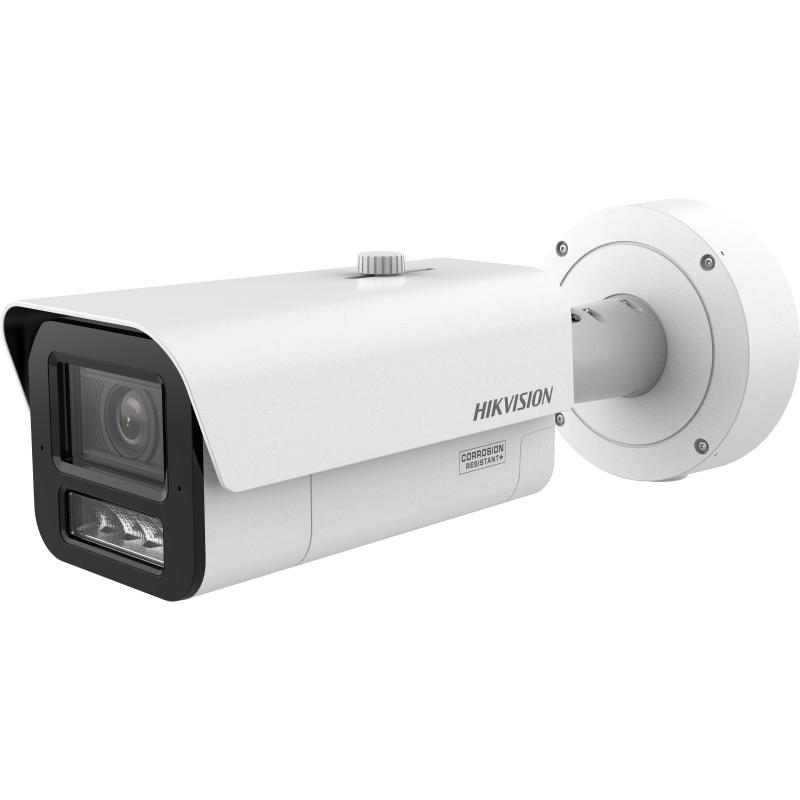

Hikvision iDS-2CD7A46G2/V-XZHSY DeepinViewX 4 MP Motorised Varifocal Bullet Network Camera, 2.8–12 mm, IR 60 m, Perimeter Protection

https://arcip.com.au/web/image/product.template/11220/image_1920?unique=6d43320
  • 4 MP DarkFighter, 1/1.8″ sensor, 140 dB WDR
  • Motorised 2.8–12 mm P-iris lens, 106° to 41.8° view
  • DeepinViewX AI perimeter protection – 90% fewer false alarms (Hikvision)
  • IR + white light up to 60 m, 2 mics + speaker
  • IP67, IK10, NEMA 4X, heater, PoE 802.3at / 12 VDC / 24 VAC

$ 1,235.77 1235.77 AUD $ 1,235.77 incl. GST

Not Available For Sale


  • Brand
  • Network Connectivity
  • Night Vision
  • Resolution
  • Camera Type
  • Lens
  • Smart Features
  • Ingress Protection
  • Power
  • IR Range
  • Audio / Alarm
  • Deep Learning Features

This combination does not exist.

In stock online
Hikvision IP Camera Bullet DeepinView Perimeter Protection DarkFighter 4MP
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
IDS-2CD7A46G2-V-XZHS-Y-2.8-12M
Tags
iDS-2CD7A46G2/V-XZHSY (2.8–12 mm)
Hikvision iDS-2CD7A46G2/V-XZHSY – 4 MP DeepinViewX Motorised Varifocal Bullet Camera, 2.8–12 mm, IR 60 m, Perimeter Protection, NEMA 4X
At a glance

The Hikvision iDS-2CD7A46G2/V-XZHSY is a 4 MP DeepinViewX motorised varifocal bullet camera for perimeter protection. Its 2.8–12 mm lens zooms from a 106° to a 41.8° horizontal view, and a dedicated large-scale AI model classifies people and vehicles, which Hikvision rates at 90% fewer false alarms than conventional AI cameras. DarkFighter, 140 dB WDR, IR plus white light up to 60 m, built-in heater and a NEMA 4X anti-corrosion build suit demanding outdoor sites.

Resolution
4 MP, 2688 × 1520
Lens
2.8–12 mm motorised, P-iris
Field of view
106° to 41.8° horizontal
Night vision
IR + white light 60 m
WDR
140 dB
Frame rate
Up to 120 fps @ 1080p
Protection
IP67, IK10, NEMA 4X
Power
PoE 802.3at / 12 VDC / 24 VAC

Key features

  • 4 MP DarkFighter imaging from a 1/1.8″ progressive scan CMOS: colour down to 0.0005 lux and B/W down to 0.0001 lux at F1.2.
  • Motorised 2.8–12 mm varifocal lens with P-iris – 106° to 41.8° horizontal FOV, with auto, semi-auto or manual focus set remotely.
  • Dedicated large-scale AI model for perimeter protection – line crossing, intrusion, region entrance and region exiting, human/vehicle filtering and combined event alarms. Hikvision rates false alarms at 90% lower than conventional AI cameras.
  • 140 dB WDR for gates, entries and car-park ramps with strong backlight or headlights.
  • IR and white light up to 60 m (850 nm) with Smart Supplement Light.
  • High frame rate – up to 60 fps at 4 MP and up to 120 fps at 1080p in monitoring mode for fast-moving targets.
  • 5 video streams with H.265+, target cropping and e-PTZ patrol / auto tracking.
  • Talk-down ready – 2 built-in microphones, a built-in speaker, audio line in/out and audible warning linkage.
  • Integration – 2 alarm inputs and 2 alarm outputs, RS-485, ONVIF Profile S/G/T/M, and support for the DS-FM2466 alarm box to add 6 inputs and 6 outputs.
  • Rugged, anti-corrosion build – aluminium alloy, IP67, IK10, NEMA 4X, heater and demist, −40 °C to 65 °C.

Specifications

Camera
Image sensor1/1.8″ progressive scan CMOS
Max. resolution2688 × 1520 (4 MP)
Min. illuminationColour: 0.0005 lux @ (F1.2, AGC ON); B/W: 0.0001 lux; 0 lux with IR/light
Shutter time1 s to 1/100,000 s
Day & nightIR cut filter; blue glass module (less ghosting)
WDR140 dB
SNR≥ 52 dB
Image enhancementBLC, HLC, 3D DNR, distortion correction, defog, EIS
Lens (2.8–12 mm model)
Focal length2.8 to 12 mm, motorised varifocal
Field of viewHorizontal 106° to 41.8°, vertical 55.4° to 23.6°, diagonal 130° to 48.1°
ApertureF1.47 to F2.5, P-iris
FocusAuto, semi-auto, manual
DORI wideDetect 64.7 m, Observe 25.7 m, Recognise 12.9 m, Identify 6.5 m
DORI teleDetect 151.7 m, Observe 60.2 m, Recognise 30.3 m, Identify 15.2 m
Illuminator
Supplement light typeIR + white light
RangeUp to 60 m (2.8–12 mm model)
Smart supplement lightYes
IR wavelength850 nm
Video & Audio
Main stream (monitoring mode)Up to 50/60 fps at 2688 × 1520; up to 100/120 fps at 1920 × 1080
Main stream (smart mode)25/30 fps at 2688 × 1520 down to 1280 × 720
Streams5 (main, sub, third, fourth, fifth)
Video compressionMain: H.265+/H.265/H.264+/H.264; sub: H.265/H.264/MJPEG
Video bit rate32 Kbps to 8 Mbps
e-PTZPatrol and auto tracking
Audio compressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Smart / Deep Learning
Perimeter protectionLine crossing, intrusion, region entrance, region exiting; human/vehicle filtering; combined event alarm
VCA rangeUp to 100 m daytime / 80 m night-time (Hikvision standard test conditions)
Basic eventsMotion detection with human/vehicle filter, video tampering, vibration detection, video quality diagnosis, exceptions
Smart eventsScene change, audio exception, defocus
LinkageFTP/NAS/memory card upload, notify centre, email, alarm output, recording, capture, audible warning
Network & Interface
Ethernet1 × RJ45 10/100/1000 Mbps
Protocols / APIONVIF (Profile S, G, T, M), ISAPI, SDK, ISUP, OTAP
Simultaneous live viewUp to 20 channels
On-board storagemicroSD/SDHC/SDXC up to 1 TB; NAS (NFS, SMB/CIFS); ANR
Alarm2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
Audio2 built-in microphones, 1 built-in speaker, 1 line in, 1 line out
RS-485 / power outRS-485 (half duplex); 12 VDC max. 100 mA (-Y)
Video output1 Vp-p CVBS (debugging only)
General
Power12 VDC ±20%, max. 21.5 W; 24 VAC ±20%, max. 21 W; PoE IEEE 802.3at Type 2 Class 4, max. 23.1 W
MaterialAluminium alloy body
ProtectionIP67, IK10; NEMA 4X anti-corrosion (-Y, moderate protection)
Heater / demistYes / Yes
Operating conditions−40 °C to 65 °C, humidity 95% or less (non-condensing)

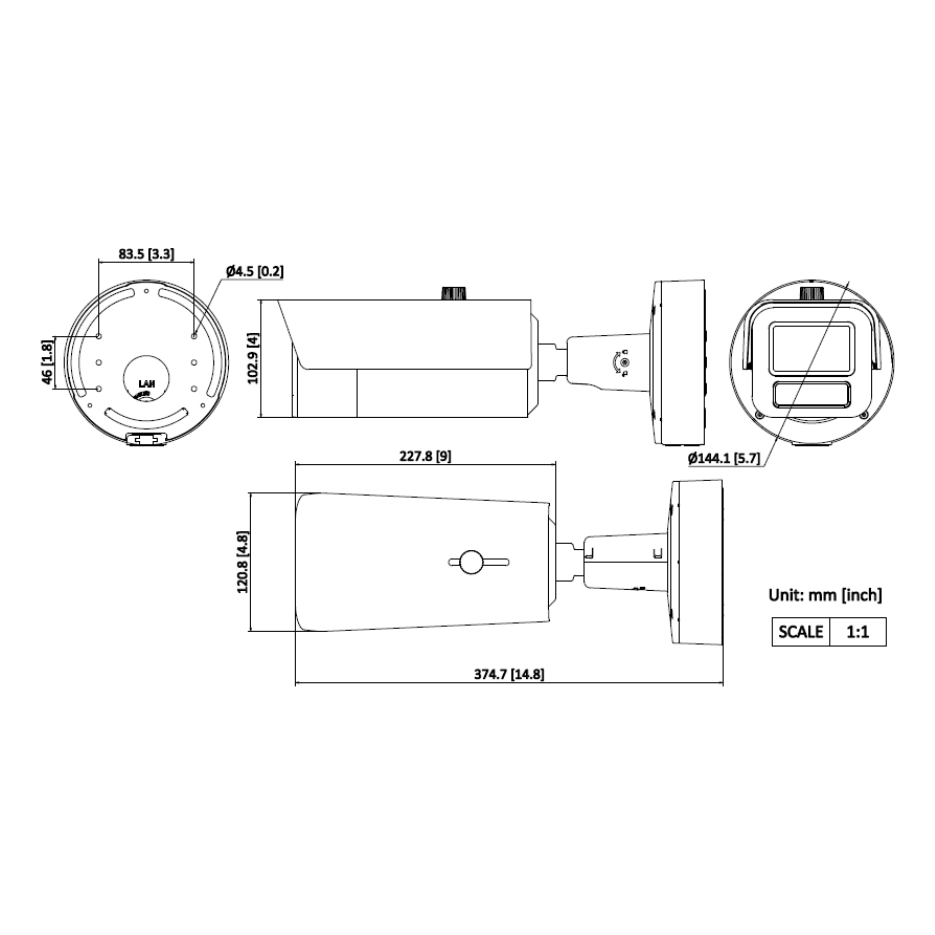

Camera dimensionsØ 140 × 377.4 mm (-Y)
Camera weightApprox. 2280 g

Specifications are from Hikvision’s official IDS-2CD7A46G2/V-XZHS(Y) datasheet. Figures shown are for this product’s 2.8–12 mm lens; the 8–32 mm model in the same series has different FOV, IR and DORI values.

Best for

  • Perimeter fences and boundaries where you need to zoom the view to suit the distance, from wide coverage to a tighter 41.8° view.
  • Gates, driveways and car-park entries with strong backlight, thanks to 140 dB WDR.
  • Sites with fast-moving vehicles, using the high-frame-rate monitoring mode (up to 120 fps at 1080p).
  • Monitored sites that need live audio talk-down and audible warnings.
  • Coastal, industrial and cold-climate sites needing NEMA 4X, a heater and −40 °C operation.

Who it’s for

Security integrators

Remote zoom and focus speeds up commissioning; AI filtering keeps alarm loads low.

Monitoring centres

Human/vehicle-only alarms plus two-way audio for intervention.

Industrial & utilities

Corrosion-resistant perimeter protection for plant, substations and depots.

Logistics yards

Watch fence lines, gates and trailers with IR and white light up to 60 m.

Commercial property

Car parks and building perimeters with adjustable coverage.

Councils & transport

ONVIF S/G/T/M support for open VMS integration.

DeepinViewX FAQ – iDS-2CD7A46G2/V-XZHSY

It is a 4 MP DeepinViewX motorised varifocal bullet camera for perimeter protection. This model has the 2.8–12 mm lens, IR and white light up to 60 m, built-in audio, a heater and NEMA 4X anti-corrosion protection.

A dedicated large-scale AI model runs line crossing, intrusion and region entrance/exit rules and only alarms on humans or vehicles. Hikvision rates false alarms at 90% lower than conventional AI cameras by filtering out leaves, lights, animals and flags.

The horizontal field of view adjusts from 106° at 2.8 mm to 41.8° at 12 mm. Hikvision DORI figures give identification at 6.5 m wide and 15.2 m at full zoom, with detection out to 151.7 m.

On this 2.8–12 mm model, IR and white light reach up to 60 m. The camera also delivers colour down to 0.0005 lux with DarkFighter technology.

Yes. The -P models are DeepinView ANPR cameras for licence plate capture, while this /V-XZHSY model is a DeepinViewX perimeter protection camera with the large-scale AI model, 2 built-in mics and a speaker.

It runs from PoE 802.3at (max. 23.1 W), 12 VDC (max. 21.5 W) or 24 VAC (max. 21 W), giving flexibility for long cable runs and existing AC-powered camera positions.

The -Y build adds NEMA 4X anti-corrosion protection, which Hikvision classes as moderate protection for areas around 2 km from the coastline or affected by acid rain. Hikvision recommends pairing it with -Y anti-corrosion brackets.

Professional overview

The Hikvision iDS-2CD7A46G2/V-XZHSY is a 4 MP DeepinViewX bullet camera with a motorised 2.8–12 mm varifocal lens, built for perimeter protection on commercial, industrial and critical-infrastructure sites. A 1/1.8″ progressive scan CMOS captures 2688 × 1520 video, and the remotely adjustable lens lets installers set anything from a 106° wide view to a 41.8° tighter view without climbing back up the pole.

Image quality is driven by DarkFighter technology, with colour down to 0.0005 lux and B/W down to 0.0001 lux, plus 140 dB WDR for harsh backlight. IR and white light reach up to 60 m on this lens version. In monitoring mode the camera streams up to 60 fps at full resolution and up to 120 fps at 1080p, and it offers five streams with H.265+, target cropping and e-PTZ patrol and auto tracking.

The DeepinViewX large-scale AI model is dedicated to perimeter protection: line crossing, intrusion, region entrance and region exiting rules trigger only on humans and vehicles, and can be combined for more precise alarms. Hikvision quotes a VCA range up to 100 m by day and 80 m at night under its test conditions, and a 90% reduction in false alarms compared with conventional AI cameras. Linked actions include audible warnings through the built-in speaker, alarm outputs, recordings and notifications.

The aluminium alloy body is rated IP67 and IK10, with NEMA 4X anti-corrosion protection, a heater and demist, and operation from −40 °C to 65 °C. Two microphones, a speaker, 2 alarm inputs and outputs and RS-485 support integration, and power can come from 802.3at PoE, 12 VDC or 24 VAC. It comes with the full Hikvision manufacturer’s warranty. Australian stock from ARC IP Networks.

Brand Hikvision
Network Connectivity Wired (RJ45 1000M)
Night Vision IR + White Light (DarkFighter)
Resolution 4 MP
Camera Type Bullet
Lens 2.8–12 mm motorised varifocal
Smart Features DeepinView Perimeter Protection
Ingress Protection IP67, IK10, NEMA 4X
Power PoE 802.3at / 12 VDC / 24 VAC
IR Range 60 m
Audio / Alarm 2 mics + speaker + audio in/out + 2×2 alarm I/O + RS-485
Deep Learning Features Line Crossing / Intrusion / Region Entrance & Exit
iDS-2CD7A46G2_V-XZHSY_Datasheet.pdf
