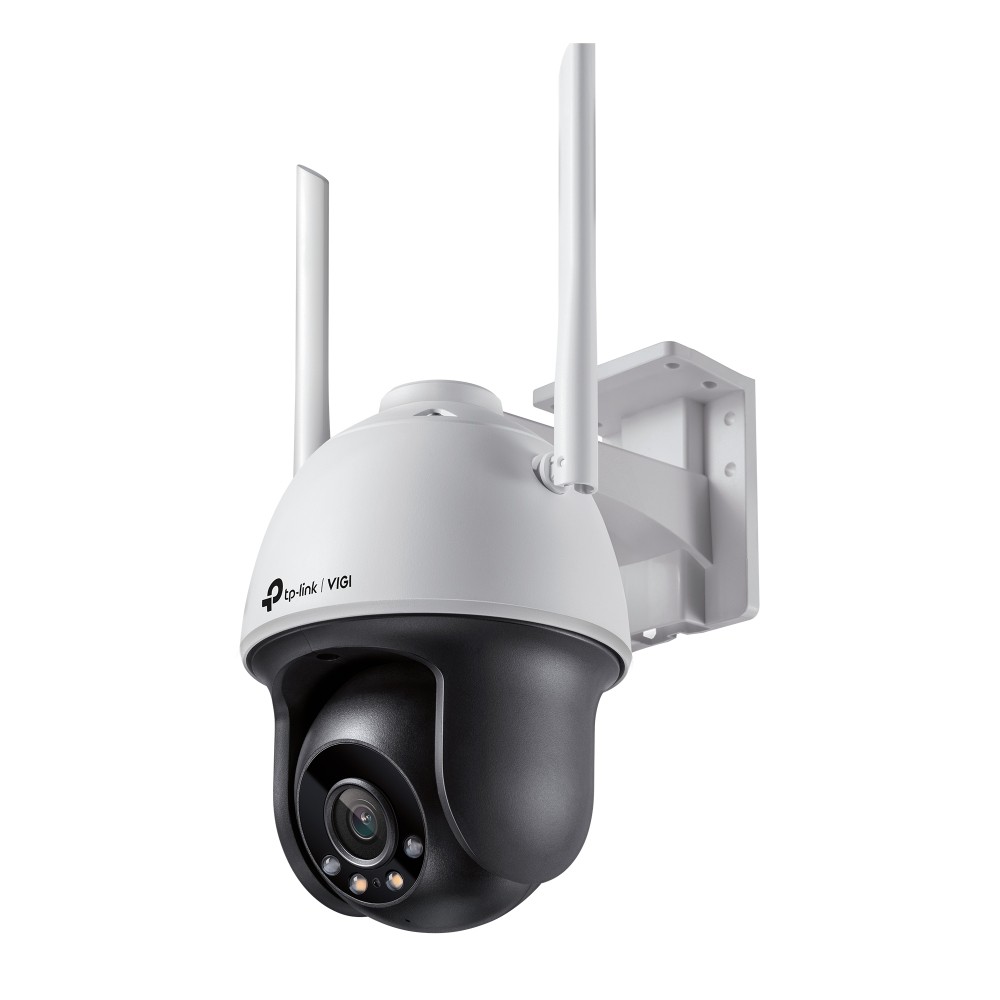

TP-Link VIGI C540-W(4mm) 4MP Outdoor Full-Colour Wi-Fi Pan Tilt Network Camera

https://arcip.com.au/web/image/product.template/8240/image_1920?unique=5e33c26

The TP-Link VIGI C540-W(4mm) is a 4MP outdoor full-colour Wi-Fi pan tilt network camera. It connects over 2.4 GHz 802.11b/g/n (WPA/WPA2-PSK) or a 10/100M RJ45 port and runs from a 12 V DC adapter (included). The 4 mm F1.6 lens covers 79° horizontally with DORI detection to 80 m, the head tilts 0 to 120° with 300 presets, 8 patrols and auto tracking, and two white and two IR LEDs reach 30 m. It adds two-way audio, a microSD slot for up to 512 GB and an IP66 rating. Supplied by ARC IP Networks with the full manufacturer's warranty.

$ 188.60 188.6 AUD $ 188.60 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
IP Camera TP-Link VIGI
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
VIGI C540-W(4MM)
Barcode
4897098683798
Tags

The TP-Link VIGI C540-W(4mm) is a 4MP outdoor full-colour pan tilt camera with 2.4 GHz Wi-Fi, so it can connect wirelessly through its two external antennas or by Ethernet, and is powered by the included 12 V adapter. Its 4 mm F1.6 lens has a 79-degree horizontal view; the head tilts 0 to 120 degrees and pans up to 350 degrees, with 300 presets, patrols and automatic tracking, plus white and IR LEDs to 30 m, two-way audio, microSD and IP66.

VIGI C540-W(4mm) overview

The C540-W is the Wi-Fi version of VIGI's 4MP outdoor full-colour pan tilt camera. TP-Link says you just power up the camera and transmission starts over its 2x2 MIMO antennas. The radio is IEEE 802.11b/g/n on 2.4 GHz, with 20 or 40 MHz bandwidth, rated at 11 Mbps (802.11b), 54 Mbps (802.11g) and 150 Mbps (802.11n), and supports WPA/WPA2-PSK security and AP or AP Client mode. Two 2.4 GHz welded dipole omni-directional antennas with 2.0 dBi gain are fitted, and there is also a 10/100M RJ45 port for a wired link.

Instead of PoE, the C540-W runs from 12 V DC through a 5.5 mm coaxial plug, with maximum consumption of 15.5 W; a power adapter is in the box along with waterproof cable attachments and mounting accessories. It is IP66 rated, works from -30 to 60 degrees C, measures 120 x 172 x 198 mm excluding antennas and weighs 0.62 kg. TP-Link says it can be secured to a ceiling, pole or wall.

Pan and tilt are motorised. The PTZ table lists pan 0 to 350 degrees and tilt 0 to 120 degrees, with pan speed configurable from 1 to 55 degrees per second and tilt from 1 to 40 degrees per second (preset speeds 55 and 40 degrees per second), and manual control at 8 to 35 degrees per second. Up to 300 presets and 8 patrols of 8 presets each can be stored, with power-off memory, park action and 3D positioning, and TP-Link mentions auto tracking alongside customised patrol routes. The fixed 4 mm F1.6 lens covers 79 degrees horizontally, 43 degrees vertically and 93 degrees diagonally, with DORI distances of 80 m detect, 33 m observe, 16 m recognise and 8 m identify.

Two white LEDs and two 850 nm IR LEDs, both to 30 m, back TP-Link's claim of clear, colourful 24-hour detail. The 1/3-inch CMOS sensor records up to 2560 x 1440, with main-stream options down to 1920 x 1080 in H.265+, H.265, H.264+ or H.264 at 256 Kbps to 4 Mbps. Listed smart events are area intrusion, line-crossing, people and vehicle detection, region entering and exiting, object abandoned and removal, abnormal sound and scene change. Active Defence warns intruders with sound and light, and the built-in microphone and speaker carry two-way audio. Footage can go to a microSD card of up to 512 GB, and the camera is managed through the VIGI app, VIGI Security Manager, a VIGI NVR or the web UI.

Key features

2.4 GHz Wi-Fi

802.11b/g/n up to 150 Mbps, WPA/WPA2-PSK, two 2 dBi antennas.

Ethernet as well

10/100M RJ45 port.

Motorised pan tilt

Tilt 0-120°, pan up to 350°, pan speed up to 55°/s.

300 presets, 8 patrols

Power-off memory, park action and 3D positioning.

Auto tracking

Alongside customised patrol routes.

4 mm F1.6 lens

79° horizontal, 43° vertical, 93° diagonal; detect 80 m.

Colour night vision

Two white LEDs and two IR LEDs to 30 m.

Two-way audio, microSD

Built-in mic and speaker; cards up to 512 GB.

IP66, 12 V DC

Adapter included, max 15.5 W.

VIGI C540-W(4mm) specifications

At a glance

2.4 GHz Wi-Fi + RJ45
4MP (2560 x 1440)
4 mm F1.6, 79° horizontal
Tilt 120°, pan up to 350°
300 presets, auto tracking
White + IR LEDs, 30 m
Two-way audio, microSD 512 GB
IP66, 12 V DC adapter
VIGI C540-W(4mm) full specifications
Camera
Image Sensor1/3” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Aperture4 mm: F1.6
Lens MountM12
Minimum Illumination0.005 Lux; 0 Lux with IR/White Light
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/ Scheduled/ Auto
Digital Noise Reduction3D DNR
WDRDWDR
Weatherproof RatingIP66
IR Working Distance30m
Pan/Tilt RangePan: 0° to 350°, Tilt: 0° to 120°
Illumination Distance30 m
Lens
TypeFixed Focal Lens
Focal Length4 mm
ApertureF1.6
FOV4mm: Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
Lens MountM12
DORI Distance4 mm: Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft)
Ptz
Pan/tilt RangePan: 0° to 350°, Tilt: 0° to 120°
Pan/tilt SpeedPan Speed: Configurable from 1° to 55°/s; Preset Speed: 55°/s Tilt Speed: Configurable from 1° to 40°/s, Preset Speed 40°/s
Manual Control SpeedConfigurable from 8° to 35°/s
Presets300
Patrol Scan8 patrols, up to 8 presets for each patrol
Power-off MemoryYes; Auto restore to previous PTZ and lens status after power failure
Park ActionYes; Preset; Patrol Scan
3D PositioningYes
Angle Adjustment (Manual)
RangePan: 0° to 348° Tilt: 0° to 120°
Illuminator
IR LEDQuantity: 2 Range: 30m Wavelength: 850nm
White LEDQuantity: 2 Range: 30m
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
Video
Max. Resolution2560 X 1440
Main StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080
Sub-StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 TypeMain Profile/High Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic RangeDWDR
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
Audio
Audio CommunicationTwo-Way Audio
Audio InputYes
Audio OutputYes
Audio CompressionYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
Network
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wireless Rate11 Mbps (802.11b) 54 Mbps (802.11g) 150 Mbps (802.11n)
Wireless SecurityWPA/WPA2-PSK
ONVIFYes
APIONVIF
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, Web UI
Web BrowserGoogle Chrome 57 and above Firefox 52 and above Safari 11 and above Microsoft Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Frequency2.4 GHz
Wireless
Standards and ProtocolsIEEE 802.11b/g/n
WiFi ChannelsUN: 1-13 US: 1-11
Frequency2.4 GHz
Wireless Transmit PowerHigh
Auto Wireless ChannelN/A
Wireless StatisticsN/A
Throughput MonitoringN/A
Radio BandwidthAuto: N/A 20M: Yes 40M: Yes
Wireless Rate11 Mbps (802.11b) 54 Mbps (802.11g) 150 Mbps (802.11n)
Wireless SecurityWPA/WPA2-PSK
Wireless ModeAP, AP Client
Alarm And Event Management
Smart EventArea Intrusion Detection; Line-Crossing Detection; People Detection; Vehicle Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; Abnormal Sound Detection; Scene Change Detection
Basic EventMotion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts); Video Tampering Detection; Exception ( Illegal Login)
Alarm LinkageMemory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage MethodN/A
Output NotificationMessage Push
Interfaces
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio InputBuilt-in Microphone
Audio OutputBuilt-in Speaker
AlarmN/A
Reset ButtonYes
PowerDC Power Port
ButtonReset Button
On-board StorageBuilt-In Memory Card Slot, Support MicroSD Card, Up to 512 GB
Built-in MicrophoneYes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in SpeakerYes
AudioN/A
General
Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
Dimensions( H X W X D )120 × 172 × 198 mm
MaterialPlastic
General FeaturesTwo Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight0.62 Kg
Gross Weight1.21 Kg
Max. Power Consumption12V DC: Max 15.5W
Power Supply12V DC ± 5%, 5.5mm Coaxial Power Plug
AntennaQuantity: 2 Type: 2.4GHz Welded Dipole Omni-Directional Antenna Gain: 2.0dBi
ProtectionIP66
Product Dimensions (L x W x H)120 × 172 × 198 mm (excluding antennas)
CertificationsCE, RCM, BSMI, VCCI, NCC, JRF, KC
Video/Image
Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
Frame Rate & ResolutionsMain Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080 Sub-Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240
Video StreamingMain Stream Sub-Stream
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image EnhancementBLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit RateMain Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps
Smart Feature-Set
Smart EventArea Intrusion Detection, Line-Crossing Detection, Human Detection
Basic EventMotion Detection, Camera Tampering Detection, Exception ( illegal login)
Linkage MethodTrigger Notification: ONVIF, HTTPS
Region of Interest1 Region

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Power Adapter Mounting Accessories

Source: TP-Link's published package contents.

Who the VIGI C540-W(4mm) is for

Simple wiring

  • 2.4 GHz Wi-Fi link
  • Power adapter included
  • RJ45 if cabling is available

Covering more ground

  • Motorised pan and tilt
  • Patrol routes
  • Automatic tracking

Active deterrence

  • Sound and light warnings
  • Two-way audio
  • Push notifications

VIGI C540-W(4mm) compared

The C540-W shares the C540 family's 4MP full-colour pan tilt design. Here it is set against the 4G version, from each model's VIGI page.

VIGI C540-W(4mm)VIGI C540-4G(4mm)
Connection2.4 GHz Wi-Fi + RJ454G LTE (Nano-SIM) + RJ45
Horizontal FOV79°80°
Pan / tilt0-350° / 0-120°0-348° / 0-120°
Tilt speed1 to 40°/s8 to 44°/s
Main-stream bit rate256 Kbps to 4 Mbps256 Kbps to 3 Mbps
Live view3 main + 3 sub-streams2 main + 2 sub-streams
Weather ratingIP66IP66

Source: TP-Link Australia product pages for each model.

Buy the VIGI C540-W(4mm) from ARC IP Networks

ARC IP Networks supplies TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the VIGI C540-W(4mm) from the ARC IP Networks team.

Last reviewed October 2026.

By 2.4 GHz Wi-Fi (IEEE 802.11b/g/n) through two external antennas, or by Ethernet through its 10/100M RJ45 port.

No. VIGI lists 2.4 GHz only.

PoE is not listed. It runs from 12 V DC with a maximum of 15.5 W, and a power adapter is included.

Tilt is 0 to 120 degrees. The PTZ table lists pan as 0 to 350 degrees, while the manual angle section of the same page lists 0 to 348 degrees.

300 presets and 8 patrols, each with up to 8 presets.

79 degrees horizontal, 43 degrees vertical and 93 degrees diagonal from the 4 mm F1.6 lens.

Yes. Two white LEDs reach 30 m, and two 850 nm IR LEDs also reach 30 m.

Yes, it has a built-in microSD slot that supports cards up to 512 GB.

It is rated IP66, operates from -30 to 60 degrees C, and includes waterproof cable attachments.

Need more than one VIGI C540-W(4mm) for a VIGI Wi-Fi camera installation?

Ask ARC IP Networks for volume and project pricing on TP-Link VIGI products.

Brand TP-Link

Accurate Shipping Costs

Our online shipping calculator is designed to provide a final, accurate shipping cost based on the items in your cart and your delivery postcode. Shipping costs are calculated at checkout based on your order and delivery postcode. The final cost is calculated based on several factors which are automatically accounted for by our system, including:

  • The stock location of the item(s) across our warehouses.
  • Orders with multiple items that may require special packaging.
  • The weight and dimensions of the order (including heavy or oversized items).
  • The delivery courier servicing your specific region.

Delivery Times




Standard Processing


Most orders placed by 2pm AEDT are dispatched for next working day delivery. Larger orders may require 1-2 additional business days for processing. If timing is critical, please contact us to discuss expedited options (additional charges may apply).


Delivery Timeframes


Region

Processing Time

Express Delivery

Standard Delivery

VIC, NSW, SA, QLD Metro, TAS

1-2 business days

1-2 business days

2-4 business days

NT, WA, QLD Rural

1-2 business days

1-2 business days

3-5 business days

New Zealand

1-2 business days

2-3 business days

4-10 business days

Please note: Processing times may extend during peak periods such as Christmas and end of financial year.

Free Warehouse Pickup



Save on shipping costs with free pickup from our ARC IP Networks Blackburn warehouse. Simply place your order online or by phone, and collect during business hours (Monday to Friday). Please allow time for picking and packing. For urgent orders, call 1300 100 440 to confirm your order is ready.

ARC IP Networks Pickup Address: 6 George Street, Blackburn, VIC 3130


Insurance & Tracking



All ARC IP Networks shipments are fully insured and trackable. Once dispatched, you'll receive an email with your tracking number and courier website details. If your item is confirmed lost or damaged by our courier, we'll arrange a replacement in consultation with you.


International Shipping



ARC IP Networks ships to New Zealand. Please note:


  • Import duties and taxes vary by country
  • Buyers are responsible for all customs charges
  • Contact your local customs authority before ordering
  • We'll provide required documentation for smooth customs clearance
  • Buyers cover all shipping costs for returns due to refused duties/taxes


Delivery Requirements


Signature Required


All deliveries must be signed for. If you won't be home, contact our Sales Support team to arrange Authority to Leave. Important: Authority to Leave voids shipping insurance if parcels are lost or stolen.


Delivery Restrictions


We do not deliver to PO Boxes or Parcel Lockers as our couriers cannot access them. Orders sent to these addresses will be returned, incurring redelivery fees.


Shipping Issue Resolution


ARC IP Networks works closely with our shipping partners to resolve any delivery issues quickly and fairly:


  1. Confirmation: We verify expected delivery dates with our shipping partners
  2. Investigation: Issues outside normal timeframes trigger formal investigations
  3. Communication: We keep you updated throughout the resolution process
  4. Resolution: Confirmed lost items are replaced or refunded after investigation completion


Please note: Refunds for lost, missing, or delayed orders cannot be processed until shipping partner investigations are complete. This does not affect your rights under the Australian Consumer Law, and refunds or replacements will be provided where required once loss or damage is confirmed.

Warranty & Faulty Products

ARC IP Networks complies with the Australian Consumer Law (ACL).

If a product is faulty, damaged, not of acceptable quality, or does not perform as advertised, you are entitled to a repair, replacement, or refund in accordance with ACL.

Manufacturer Warranty Returns

For faults developing after 14 days within the warranty period:

  • Contact ARC IP Networks first at info@arcip.com.au or 1300 100 440
  • We will assess the issue and coordinate with manufacturers, authorised service centres, or distributors on your behalf
  • Where required, a manufacturer RMA may be arranged
  • ARC IP Networks manages the return process and next steps

Dead on Arrival (DOA)

Products that arrive faulty or damaged must be reported within 14 days of delivery.

ARC IP Networks will arrange assessment, replacement, or refund as appropriate.

Change of Mind & Non-Faulty Returns

Change-of-mind returns must be requested within 14 days of delivery. For change-of-mind returns, the product must be unused, unopened, in its original packaging, and returned with all accessories and documentation. These conditions apply only to change-of-mind returns and do not limit or exclude your rights under the Australian Consumer Law. Some products are not eligible for change-of-mind returns, including:

  • Ex-demo products
  • Clearance or markdown items
  • Special-order items
  • Products clearly marked “No Change-of-Mind Returns”

Important

This does not affect your rights under Australian Consumer Law.

If a product is faulty, not of acceptable quality, or does not meet advertised specifications, it remains eligible for return regardless of category.

Refunds & Processing Timeframes

  • Approved refunds are processed within 7 business days of receiving returned goods
  • Refunds are issued to the original payment method, unless otherwise agreed
  • Replacement or repair may be offered where appropriate
  • Store credit may be offered only with customer consent

Handling fees and non-returnable service charges may not be refundable where permitted by law.


Restocking Fees

For approved change-of-mind or non-faulty returns, a 15% restocking fee applies.

  • Any applicable restocking fee will be clearly communicated prior to return approval
  • The fee will be deducted from the refund amount
  • Restocking fees do not apply to returns made under the Australian Consumer Law, including faulty, damaged, or misrepresented goods.

Return Shipping Costs

  • Change-of-mind returns: The customer is responsible for return shipping costs.
  • Faulty or defective products: ARC IP Networks covers return shipping under Australian Consumer Law.

Non-Warranty Repairs

For issues not covered by warranty:

  • ARC IP Networks will provide a quote before proceeding
  • Customers are responsible for all shipping and service costs
  • No repairs are undertaken without customer approval

Return Methods

Returns may be made:

  • In-store at ARC IP Networks – 6 George Street, Blackburn VIC 3130
  • Or by shipment as instructed by our support team

Proof of purchase is required for all returns.

Enquire About this Product


Any questions about this product? Fill out the form below, and we'll get back to you soon!
