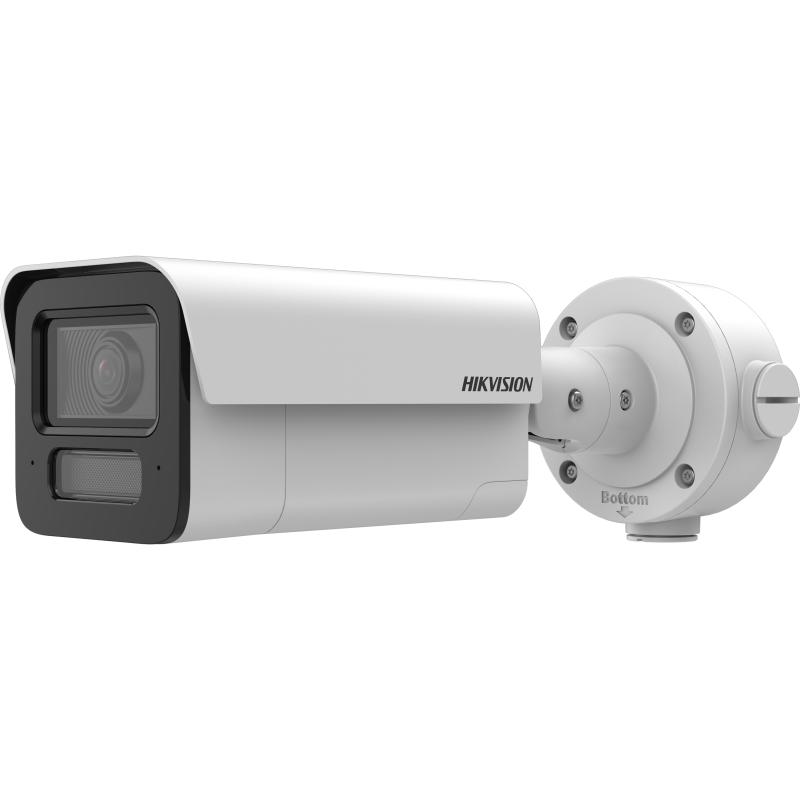

Hikvision iDS-2CD5T87G2/V-XHSY DeepinViewX 8 MP Fixed Bullet Network Camera, 2.8 mm, IR 80 m, Guanlan AI Perimeter Protection

https://arcip.com.au/web/image/product.template/11218/image_1920?unique=6d43320
  • 8 MP (3840 × 2160) 1/1.8″ sensor, F1.0 2.8 mm lens, 104° view
  • Guanlan large-scale AI perimeter protection – 90% fewer false alarms (Hikvision)
  • DarkFighter 2.0, IR up to 80 m + white light up to 60 m
  • 2 mics + speaker for talk-down, alarm I/O, RS-485
  • IP67, IK10, NEMA 4X, heater, PoE 802.3at

$ 1,144.50 1144.5 AUD $ 1,144.50 incl. GST

Not Available For Sale


  • Brand
  • Network Connectivity
  • Night Vision
  • Resolution
  • Camera Type
  • Lens
  • Smart Features
  • Ingress Protection
  • Power
  • IR Range
  • Audio / Alarm
  • Deep Learning Features

This combination does not exist.

In stock online
Hikvision IP Camera 8MP Bullet DeepinView Perimeter Protection DarkFighter
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
IDS-2CD5T87G2-V-XHSY
Tags
iDS-2CD5T87G2/V-XHSY
Hikvision iDS-2CD5T87G2/V-XHSY – 8 MP DeepinViewX Fixed Bullet Camera, 2.8 mm, IR 80 m & White Light 60 m, Guanlan AI Perimeter Protection
At a glance

The Hikvision iDS-2CD5T87G2/V-XHSY is an 8 MP (3840 × 2160) DeepinViewX fixed-lens bullet camera built for perimeter protection. A dedicated large-scale AI model filters out leaves, lights, animals and flags, which Hikvision rates at 90% fewer false alarms than conventional AI cameras. DarkFighter 2.0 and an F1.0 aperture keep colour detail down to 0.0005 lux, while hybrid IR (up to 80 m) and white light (up to 60 m) cover the night. The -H heater, -S audio/alarm interfaces and -Y NEMA 4X anti-corrosion finish make it ready for exposed outdoor sites.

Resolution
8 MP, 3840 × 2160
Lens
2.8 mm fixed, F1.0
Field of view
104° horizontal
Night vision
IR 80 m / white light 60 m
AI
Guanlan perimeter protection
Audio
2 mics + speaker
Protection
IP67, IK10, NEMA 4X
Power
PoE 802.3at / 12 VDC

Key features

  • 8 MP 4K imaging from a 1/1.8″ progressive scan CMOS at up to 25/30 fps, so faces, clothing and vehicles stay sharp when you zoom into recorded footage.
  • Dedicated large-scale AI model for perimeter protection – line crossing, intrusion, region entrance and region exiting, triggered only by humans and vehicles. Hikvision rates false alarms at 90% lower than conventional AI cameras.
  • DarkFighter 2.0 with an F1.0 lens – colour down to 0.0005 lux, and 0 lux with the built-in lights on.
  • Hybrid supplement light – 850 nm IR up to 80 m plus white light up to 60 m, with Smart Supplement Light to prevent over-exposure close to the camera.
  • Guanlan AI Encoding – Hikvision states storage use can drop by around 50% while keeping key targets such as people and vehicles in high quality.
  • Active deterrence and two-way audio – 2 built-in microphones and a built-in speaker for audible warnings and talk-down, plus line-in/line-out.
  • Rich deep-learning toolset – multi-target-type detection (face, body, vehicle), face capture, heat map, regional people counting and on/off-duty detection.
  • AI Open Platform – load up to 4 custom model packages (16 target types, 4 classes each) for site-specific detection tasks.
  • Built for harsh sites – IP67, IK10, NEMA 4X anti-corrosion (-Y), front-window heater and demist, rated for −40 °C to 60 °C (-H model).
  • Efficient streaming – H.265+ main stream, four streams in total, ROI and SVC, so you can record high quality while viewing remotely on a low-bandwidth link.

Specifications

Camera
Image sensor1/1.8″ progressive scan CMOS
Max. resolution3840 × 2160 (8 MP)
Min. illuminationColour: 0.0005 lux @ (F1.0, AGC ON); 0 lux with light
Shutter time1 s to 1/100,000 s
Day & nightIR cut filter; blue glass module (less ghosting)
WDR130 dB
SNR≥ 52 dB
Image enhancementBLC, HLC, 3D DNR, distortion correction, defog, EIS
Lens (2.8 mm model)
Focal length2.8 mm fixed
ApertureF1.0
Field of viewHorizontal 104°, vertical 54°, diagonal 127°
DORI (EN 62676-4)Detect 61 m, Observe 24 m, Recognise 12 m, Identify 6 m
Illuminator
Supplement light typeIR + white light
RangeIR up to 80 m; white light up to 60 m
Smart supplement lightYes
IR wavelength850 nm
Video & Audio
Main stream25 fps (50 Hz) / 30 fps (60 Hz) at 3840 × 2160 down to 1280 × 720
Additional streamsSub-stream, third stream and fourth stream
Video compressionMain: H.265+/H.265/H.264+/H.264; sub: H.265/H.264/MJPEG
Video bit rate32 Kbps to 16 Mbps
AI encodingYes (Guanlan)
Region of interest8 fixed regions per stream
Audio compressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Environment noise filteringYes
Smart / Deep Learning
Perimeter protectionLine crossing, intrusion, region entrance, region exiting; human/vehicle target filtering; combined event alarm
VCA range (2.8 mm)3 m to 70 m daytime; 3 m to 50 m night-time (Hikvision standard test conditions)
Multi-target-type detectionSimultaneous human body, face and vehicle detection and capture; line-crossing counting by target type
Face captureUp to 60 faces simultaneously
Other functionsHeat map, regional people counting, on/off duty detection, AcuSeek search (with AcuSeek NVR/servers)
Smart eventsScene change, audio exception, defocus, loitering, people gathering, fast moving, parking, unattended baggage, object removal
LinkageFTP/NAS/memory card upload, notify centre, email, alarm output, recording, capture, audible warning
Network & Interface
Ethernet1 × RJ45 10/100 Mbps
Protocols / APIONVIF (Profile S, G, T, M), ISAPI, SDK, ISUP, OTAP
Simultaneous live viewUp to 20 channels
On-board storagemicroSD/SDHC/SDXC up to 1 TB; NAS (NFS, SMB/CIFS); ANR
Alarm1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Audio2 built-in microphones; 1 built-in speaker; 1 line in, 1 line out (3.5 mm)
RS-4851 (half duplex, HIKVISION, Pelco-P, Pelco-D)
Power output12 VDC, max. 100 mA
ClientsiVMS-4200, Hik-Connect, HikCentral
General
Power12 VDC ±20%, 1.6 A, max. 19.2 W; PoE IEEE 802.3at Type 2 Class 4, max. 22.8 W
MaterialAluminium alloy body
ProtectionIP67, IK10; NEMA 4X anti-corrosion (-Y, moderate protection)
Heater / demistYes / Yes
Operating conditions−40 °C to 60 °C (-H model), humidity 95% or less (non-condensing)

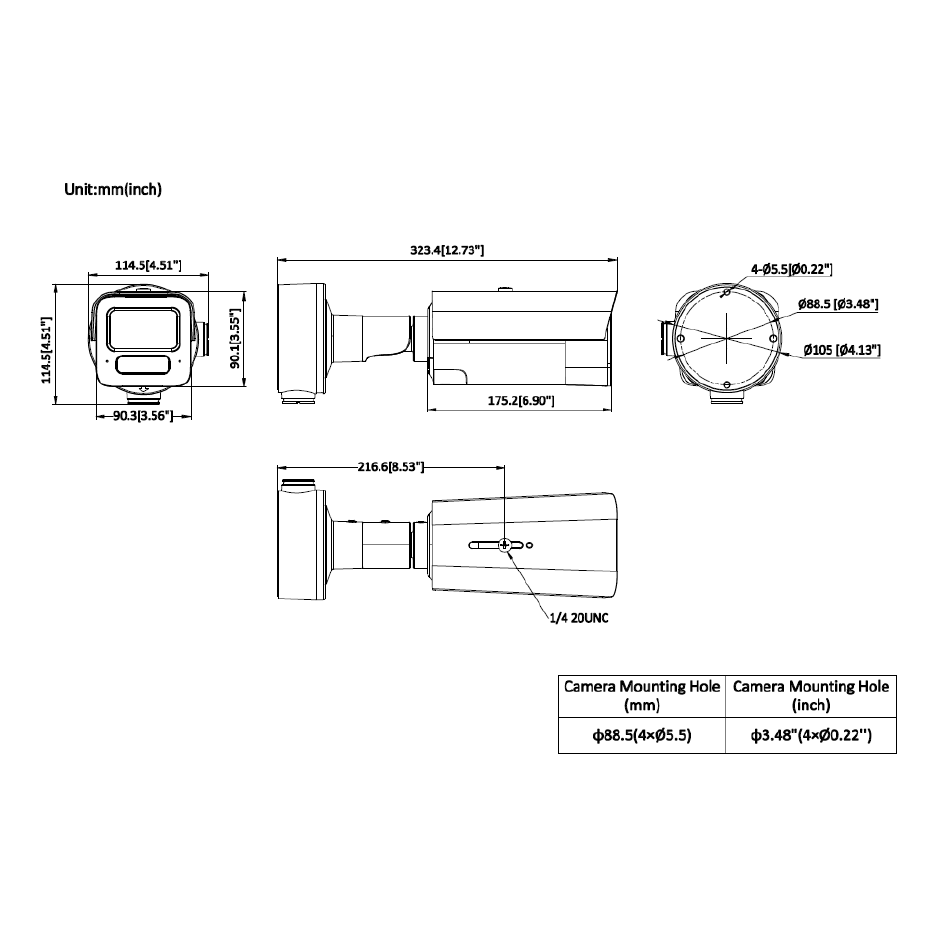

Camera dimensions323.4 × 114.5 × 114.5 mm
Camera weightApprox. 1400 g

Specifications are from Hikvision’s official datasheet for the iDS-2CD5T87G2/V-X(H)S(Y) series. This product is the 2.8 mm model with heater (-H), audio/alarm interfaces (-S) and NEMA 4X anti-corrosion protection (-Y).

Best for

  • Fence lines, yards and car parks where wind-blown vegetation, headlights and animals cause constant false alarms on ordinary motion detection.
  • Wide coverage close to buildings – the 2.8 mm lens gives a 104° horizontal view for driveways, loading docks and building frontages.
  • Monitored sites that need audio talk-down and audible warnings to stop intruders before they reach the building.
  • Coastal and industrial locations that need NEMA 4X corrosion resistance and a heater for cold, wet mornings.
  • Sites with limited storage or upload bandwidth, using H.265+ and Guanlan AI Encoding to cut recording size.

Who it’s for

Security integrators

A perimeter camera with on-board deep learning that keeps alarm-response calls focused on real people and vehicles.

Monitoring centres

Fewer nuisance events per site, plus a built-in speaker for live audio intervention.

Construction & logistics

Protect yards, plant and stock at night with IR and white light coverage.

Commercial property

Cover car parks and building perimeters with 8 MP detail and people counting analytics.

Farms & rural sites

Rugged, corrosion-resistant housing with heater for exposed outdoor installs.

Councils & utilities

ONVIF Profile S/G/T/M support for integration into existing VMS platforms.

DeepinViewX FAQ – iDS-2CD5T87G2/V-XHSY

It is an 8 MP DeepinViewX fixed-lens bullet camera designed for perimeter protection. It combines a 1/1.8″ sensor, an F1.0 2.8 mm lens, hybrid IR/white light and a dedicated large-scale AI model that classifies humans and vehicles to reduce false alarms.

The camera runs line crossing, intrusion, region entrance and region exiting rules and only alarms on the target types you choose (human and/or vehicle). Hikvision states its dedicated large-scale AI model reduces false alarms by 90% compared with conventional AI cameras, by filtering out leaves, lights, animals and flags.

The IR illuminator reaches up to 80 m and the white light up to 60 m. For the 2.8 mm model Hikvision quotes a perimeter-protection VCA range of 3–70 m in daytime and 3–50 m at night under standard test conditions, and DORI identification at 6 m.

H adds a heater for −40 °C operation, S adds audio and alarm interfaces (built-in mics and speaker, line in/out, alarm I/O, RS-485), and Y adds NEMA 4X anti-corrosion protection, rated by Hikvision as moderate protection suitable for areas about 2 km from the coast.

It accepts PoE (IEEE 802.3at, Class 4) with a maximum draw of 22.8 W, or 12 VDC (max. 19.2 W). Use an 802.3at PoE+ switch or NVR port – a standard 802.3af port does not supply enough power.

Yes. It has 2 built-in microphones and a built-in speaker, plus line-in and line-out, so an operator can issue live warnings and the camera can play an audible warning when an event triggers.

The camera supports ONVIF Profile S, G, T and M, so core video and events work with ONVIF-compliant recorders. Advanced DeepinView functions such as AcuSeek search and full smart-event metadata are best used with Hikvision NVRs, HikCentral or iVMS-4200.

Professional overview

The Hikvision iDS-2CD5T87G2/V-XHSY is an 8 MP fixed-lens bullet camera from the DeepinViewX range, designed specifically for perimeter protection. A 1/1.8″ progressive scan CMOS captures 3840 × 2160 video at up to 30 fps through a fast F1.0, 2.8 mm lens with a 104° horizontal field of view. It suits fence lines, building frontages, car parks, yards and loading areas where wide coverage and reliable intrusion alerts matter more than long-range zoom.

Low-light performance comes from DarkFighter 2.0, with colour imaging down to 0.0005 lux and a 130 dB WDR for scenes with strong backlight. When the scene goes fully dark, hybrid illumination takes over: 850 nm IR up to 80 m and white light up to 60 m, managed by Smart Supplement Light. Video is encoded in H.265+, with four streams, 8 ROI regions per stream and Guanlan AI Encoding, which Hikvision says can cut storage use by around 50% while keeping people and vehicles sharp.

The core of the camera is Hikvision’s dedicated large-scale AI model for perimeter protection. Line crossing, intrusion, region entrance and region exiting rules can be limited to humans and vehicles, and combined into multi-condition alarms. Hikvision rates the result at 90% fewer false alarms than conventional AI cameras. Beyond perimeter rules, the camera supports multi-target-type detection, face capture, heat maps, regional people counting, on/off-duty detection and the AI Open Platform for custom models.

The XHSY build is aimed at tough sites. It has an aluminium alloy body rated IP67 and IK10, NEMA 4X anti-corrosion protection, a front-window heater with demist, and an operating range of −40 °C to 60 °C. Two microphones, a speaker, alarm I/O and RS-485 support active deterrence and integration, and it runs from 802.3at PoE or 12 VDC. It comes with the full Hikvision manufacturer’s warranty. Australian stock from ARC IP Networks.

Brand Hikvision
Network Connectivity Wired (RJ45 100M)
Night Vision Hybrid IR 80 m + White Light 60 m (DarkFighter 2.0)
Resolution 8 MP (4K)
Camera Type Bullet
Lens 2.8 mm fixed
Smart Features DeepinView Perimeter Protection (Guanlan AI)
Ingress Protection IP67, IK10, NEMA 4X
Power PoE 802.3at / 12 VDC
IR Range Up to 80 m
Audio / Alarm 2 mics + speaker + audio in/out + 1/1 alarm I/O + RS-485
Deep Learning Features Perimeter Protection / Face Capture / People Counting
iDS-2CD5T87G2_V-XHSY_Datasheet.pdf
Download
