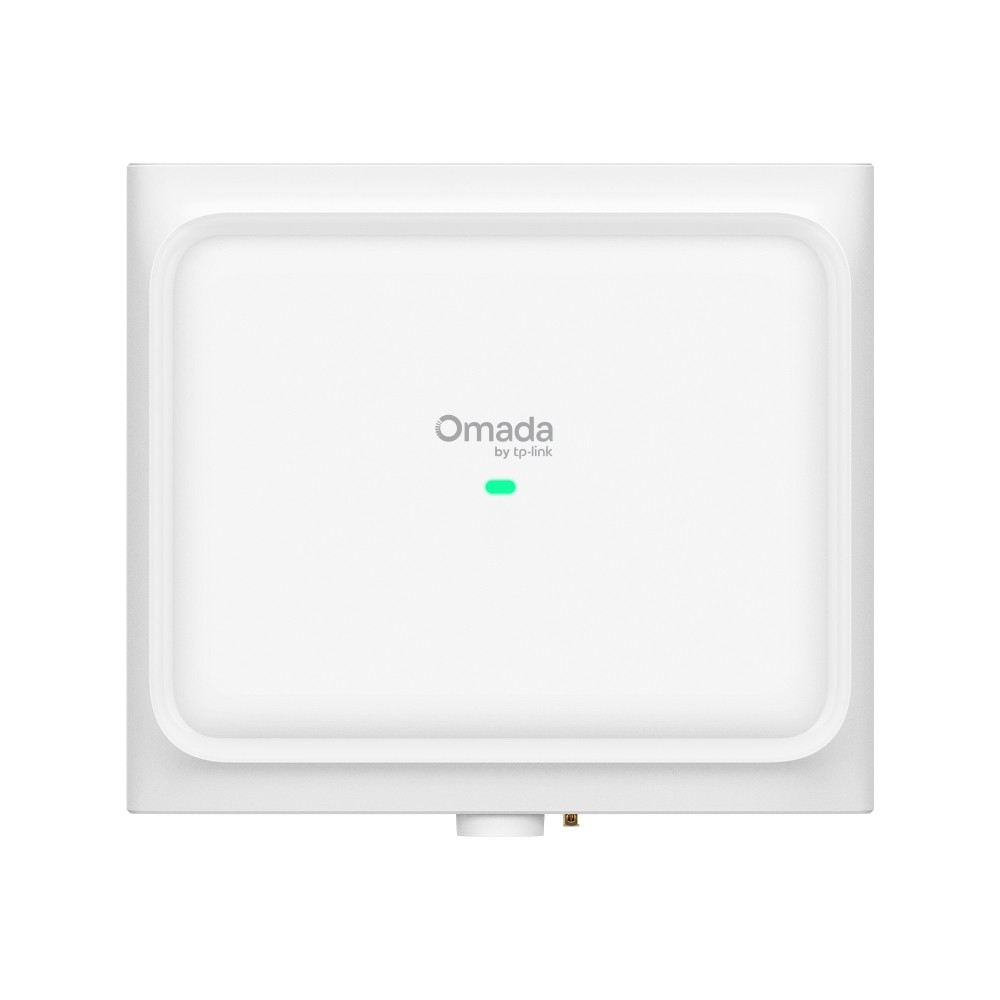

TP-Link EAP772-Outdoor Omada BE9300 Wi-Fi 7 Tri-Band Indoor/Outdoor Access Point

Price:

$ 650.67


Yealink SP92-D-C/A SP92 Speakerphone – AI Noise Cancellation, Ø 50mm Speaker, Bluetooth 5.3, Up to 4 m Pickup
Yealink SP92-D-C/A SP92 Speakerphone – AI Noise Cancellation, Ø 50mm Speaker, Bluetooth 5.3, Up to 4 m Pickup
$ 143.50
$ 148.10 (3% OFF)
TP-Link ES206GP Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+
TP-Link ES206GP Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+
$ 76.43
$ 76.43

TP-Link EAP772-Outdoor Omada BE9300 Wi-Fi 7 Tri-Band Indoor/Outdoor Access Point

https://arcip.com.au/web/image/product.template/8080/image_1920?unique=874d354

The TP-Link EAP772-Outdoor is described by TP-Link as Omada's first tri-band, six-stream omnidirectional outdoor Wi-Fi 7 access point, for hotels, business parks, yards, farms and business outbuildings. It delivers up to 688 Mbps on 2.4 GHz, 2882 Mbps on 5 GHz and 5765 Mbps on 6 GHz, with 320 MHz channels, MLO, 4K-QAM and OFDMA, and TP-Link lists 300 square metres of recommended omnidirectional coverage and 380+ concurrent clients. The fully sealed IP68 enclosure is dustproof and rated for submersion to 1.5 m for up to one hour, with a -30 to 70 °C operating range. One 2.5 Gbps port takes 802.3at PoE+, and the unit includes a GNSS receiver used for 6 GHz AFC, Bluetooth 5.2 and Omada SDN management.

$ 650.67 650.67 AUD $ 650.67 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • WiFi Standard

This combination does not exist.

WiFi 7 Outdoor Access Point TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
EAP772-OUTDOOR
Barcode
1210002602280
Tags

The TP-Link EAP772-Outdoor is an Omada BE9300 tri-band omnidirectional Wi-Fi 7 indoor/outdoor access point. It delivers 688 Mbps on 2.4 GHz, 2882 Mbps on 5 GHz and 5765 Mbps on 6 GHz with 320 MHz channels and MLO, has an IP68 enclosure rated for submersion to 1.5 m for one hour, 300 square metres of recommended coverage, one 2.5 Gbps 802.3at PoE+ port, a built-in GNSS receiver and Bluetooth 5.2.

EAP772-Outdoor overview

The EAP772-Outdoor is TP-Link's Omada tri-band omnidirectional indoor/outdoor Wi-Fi 7 access point, which TP-Link calls Omada's first tri-band six-stream omnidirectional outdoor AP. In Australia it is listed as BE9300, with signal rates of 688 Mbps on 2.4 GHz, 2882 Mbps on 5 GHz and 5765 Mbps on 6 GHz; TP-Link's global datasheet describes it as BE11000 for the US and BE9300 for the EU. TP-Link positions it for hotels, business parks, yards, farms and other business outbuildings. It supports IEEE 802.11be/ax/ac/n/g/b/a, with 4K-QAM, OFDMA, MU-MIMO, Multi-Link Operation and 320 MHz channels. TP-Link notes that maximum signal rates are physical rates and actual throughput varies.

Outdoor 6 GHz is the headline. TP-Link explains that the 6 GHz band is unlocked for outdoor use by AFC (automated frequency coordination), giving true tri-band omnidirectional coverage, and notes that AFC availability varies by region or country. To support this, the EAP772-Outdoor includes a GNSS L1 receiver that tracks GPS, Galileo, GLONASS and BeiDou signals, with integrated 3 dBi antennas and -164 dBm tracking sensitivity. Wi-Fi antennas are 2 x 4 dBi on 2.4 GHz and 2 x 6 dBi each on 5 GHz and 6 GHz, and TP-Link says the 2.4 GHz antennas are dual-polarised for better anti-interference capability. Recommended omnidirectional coverage is 300 square metres (3,200 sq ft), and TP-Link lists 380+ concurrent clients.

The enclosure is built for the harshest conditions. TP-Link describes it as industry-leading IP68: fully sealed, completely dustproof and able to be submerged in water up to 1.5 metres deep for up to one hour, exceeding the IP67 standard. The datasheet adds windproof class 16 and a grounding terminal, and the operating range is -30 to 70 °C with 10 to 90% non-condensing humidity. The main unit measures 230 x 207.5 x 69.7 mm and weighs 1.41 kg, and pole and wall mounting kits are included together with a waterproof kit.

Power and data arrive on one cable through a single 10M/100M/1000M/2.5G multi-gigabit RJ45 port powered by 802.3at PoE+. TP-Link says the 2.5G PoE+ port provides high throughput for applications such as smooth live streaming and 4K video. Maximum consumption is 21.5 W on PoE. Unlike the indoor EAP772, there is no DC power input, so it needs an 802.3at PoE+ switch port or injector. Wireless functions include 24 SSIDs (eight per band), band steering, load balance, airtime fairness, beamforming, rate limits, WMM QoS, automatic channel assignment and statistics by SSID, AP or client. Security covers captive portal, access control, MAC filtering, client isolation, SSID-to-VLAN mapping, rogue AP detection, 802.1X and WPA, WPA2, WPA3 Personal/Enterprise and OWE.

For management, Omada SDN identifies the EAP772-Outdoor automatically for one-click adoption, and it works with Omada cloud-based, hardware and software controllers and the Omada app. Cloud access requires an Omada controller and zero-touch provisioning requires the Omada Cloud-Based Controller. Omada mesh, 802.11k/v/r seamless roaming and captive portal work with a controller. It also supports standalone web management, SSH and SNMP (the AU page lists v1/v2c; the datasheet lists v1/v2c/v3), and the datasheet lists Omada Controller and Omada Essential V5.15.24 and above and Omada App V4.20 and above. It is CE and FCC certified.

Key features

Tri-band outdoor Wi-Fi 7

688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) + 5765 Mbps (6 GHz).

6 GHz outdoors with AFC

AFC enables outdoor 6 GHz use where it is available in the region.

Built-in GNSS receiver

GPS, Galileo, GLONASS and BeiDou L1 reception with integrated antennas.

IP68 enclosure

Fully sealed and dustproof; submersible to 1.5 m for up to one hour.

300 m² recommended coverage

True tri-band omnidirectional coverage with 380+ concurrent clients.

2.5G PoE+ port

One 2.5 Gbps RJ45 port powered by 802.3at PoE+; 21.5 W maximum.

Dual-polarised 2.4 GHz antennas

Better anti-interference on the busiest band.

Omada SDN

One-click adoption, mesh, 802.11k/v/r roaming and zero-touch provisioning.

EAP772-Outdoor specifications

At a glance

BE9300 Wi-Fi 7
Tri-band 2.4/5/6 GHz
IP68 weatherproof
300 m² recommended
1 x 2.5G PoE+ port
GNSS receiver
-30 to 70 °C
Omada SDN
EAP772-Outdoor full specifications
Hardware Features
Interface1× 2.5G Ethernet (RJ-45) Port (Support 802.3at PoE)
ButtonReset
Power Supply802.3at PoE
Max. Power Consumption21.5W (for PoE)
Dimensions ( W x D x H )9.1× 8.2 × 2.8 in (230 × 207.5 × 69.7 mm)
Antenna2.4 GHz: 2× 4 dBi; 5 GHz: 2× 6 dBi; 6 GHz: 2× 6 dBi
GNSSL1 (1575.42 MHz) receiver, supporting GPS, Galileo, GLONASS, and BeiDou signals Receive sensitivity: -164dBm (tracking) GPS antennas: Integrated 3dBi omnidirectional antennas
BluetoothBLE 5.2
Weatherproof EnclosureIP68
MountingPole/Wall Mounting (Kits included)
Management Features
Omada AppYes
Centralised ManagementOmada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller
Cloud AccessYes. Require the use of an Omada controller.
Email AlertsYes
Management MAC Access ControlYes
SNMPv1, v2c
System Logging Local/Remote SyslogYes
SSHYes
Web-based ManagementYes
L3 ManagementYes
Multi-site ManagementYes
Management VLANYes
Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller
Wireless Features
Coverage300m 2 (3,200ft 2 ) Recommended Omnidirectional Coverage
Concurrent Clients380+
Wireless StandardsIEEE 802.11be/ax/ac/n/g/b/a
Frequency2.4 GHz, 5 GHz, 6 GHz
Signal Rate688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) + 5765 Mbps (6 GHz)
Wireless Functions4k-QAM; OFDMA; Multiple SSIDs: 24 (8 for each band); Enable/Disable Wireless Radio; Automatic Channel Assignment; Transmit Power Control (Adjust Transmit Power on dBm); QoS (WMM); MU-MIMO; MLO; 320MHz; Omada Mesh; Seamless Roaming(802.11k/v/r); Band Steering; Load Balance; Airtime Fairness; Beamforming; Rate Limit; Reboot Schedule; Wireless Schedule; Wireless Statistics based on SSID/AP/Client; Static IP/Dynamic lP
Wireless SecurityCaptive Portal Authentication; Access Control; Wireless Mac Address Filtering; Wireless Isolation Between Clients; SSID to VLAN Mapping; Rogue AP Detection; 802.1X Support; WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE
Transmission PowerCE: Indoor Mode: Outdoor Mode:; FCC: Indoor Mode: Outdoor Mode:< 25 dBm (2.4 GHz); < 25 dBm (5 GHz); < 25 dBm (6 GHz)
Others
CertificationCE, FCC
System RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
EnvironmentOperating Temperature: -30–70 ℃ (-22–158 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • Access Point EAP772-Outdoor
  • Waterproof Kit
  • Mounting Kits
  • Installation Guide

Source: TP-Link's published package contents.

Who the EAP772-Outdoor is for

Hotels and business parks

  • Tri-band omnidirectional coverage
  • 380+ concurrent clients
  • 300 m² recommended coverage

Exposed outdoor sites

  • IP68, submersible to 1.5 m for 1 hour
  • Windproof class 16
  • -30 to 70 °C operation

Omada-managed sites

  • Mesh and 802.11k/v/r roaming
  • Zero-touch provisioning
  • Cloud, hardware or software controller

EAP772-Outdoor compared

The EAP772-Outdoor shares the BE9300 tri-band Wi-Fi 7 platform and 2.5G port with the indoor EAP772, but adds an IP68 enclosure and GNSS receiver for outdoor 6 GHz, and runs from PoE only.

SpecificationEAP772-OutdoorEAP772
Signal rate (AU page)688 + 2882 + 5765 Mbps688 + 4324 + 5765 Mbps
Ethernet port1 x 2.5G (PoE in)1 x 2.5G (PoE in)
Power802.3at PoE only802.3at PoE or 12 V DC
Max power (PoE)21.5 W25.44 W
Coverage300 m² recommended140 m² (lab)
EnclosureIP68, -30 to 70 °CIndoor, 0 to 40 °C
GNSSYesNot listed
Weight1.41 kg0.7 kg

Source: TP-Link Australia product pages for each model.

Buy the EAP772-Outdoor from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the EAP772-Outdoor from the ARC IP Networks team.

Last reviewed October 2026.

A BE9300 tri-band (2.4/5/6 GHz) Wi-Fi 7 omnidirectional access point for indoor or outdoor use, with an IP68 enclosure. TP-Link calls it Omada's first tri-band six-stream omnidirectional outdoor AP.

688 Mbps on 2.4 GHz, 2882 Mbps on 5 GHz and 5765 Mbps on 6 GHz on the AU product page. These are maximum physical rates; actual throughput varies.

TP-Link says AFC enables outdoor use of the 6 GHz band, and notes that AFC availability varies by region or country. The built-in GNSS receiver supports this.

IP68: fully sealed, dustproof and able to be submerged to 1.5 m for up to one hour, according to TP-Link. It operates from -30 to 70 °C.

By 802.3at PoE+ on its 2.5 Gbps Ethernet port, with a maximum of 21.5 W. It has no DC input and no PoE injector is listed in the box.

TP-Link lists 300 square metres (3,200 sq ft) of recommended omnidirectional coverage and 380+ concurrent clients.

Both are BE9300 tri-band Wi-Fi 7 APs with a 2.5G port. The outdoor model adds IP68 protection, GNSS and pole/wall mounting, runs from PoE only and lists 2882 Mbps on 5 GHz versus 4324 Mbps on the EAP772.

Yes. Omada mesh and 802.11k/v/r seamless roaming are supported with an Omada controller.

Pole and wall mounting kits are included. The unit is 230 x 207.5 x 69.7 mm and weighs 1.41 kg.

The EAP772-Outdoor, a waterproof kit, mounting kits and an installation guide.

Need more than one EAP772-Outdoor for an outdoor Wi-Fi 7 site?
