Hikvision IDS-7732NXI-M4-16P-X DeepinMind 32-Channel 1.5U PoE NVR, 8K Output, Facial Recognition

Price:

3,459.87


Hikvision DS-96256NXI-S24R AcuSense 256-Channel S Series NVR, 24-Bay RAID, 8K Output, Facial Recognition
Hikvision DS-96256NXI-S24R AcuSense 256-Channel S Series NVR, 24-Bay RAID, 8K Output, Facial Recognition
17,585.70
17,585.70
Hikvision DS-2CD2387G3-LIS2UY-SRB-BLK ColorVu 3.0 Smart Hybrid Light 8 MP Fixed Turret Network Camera, 2.8 mm F1.0, Active Red/Blue Strobe Deterrence, Black
Hikvision DS-2CD2387G3-LIS2UY-SRB-BLK ColorVu 3.0 Smart Hybrid Light 8 MP Fixed Turret Network Camera, 2.8 mm F1.0, Active Red/Blue Strobe Deterrence, Black
679.80
679.80

Hikvision IDS-7732NXI-M4-16P-X DeepinMind 32-Channel 1.5U PoE NVR, 8K Output, Facial Recognition

https://arcip.com.au/web/image/product.template/9753/image_1920?unique=12e6e76

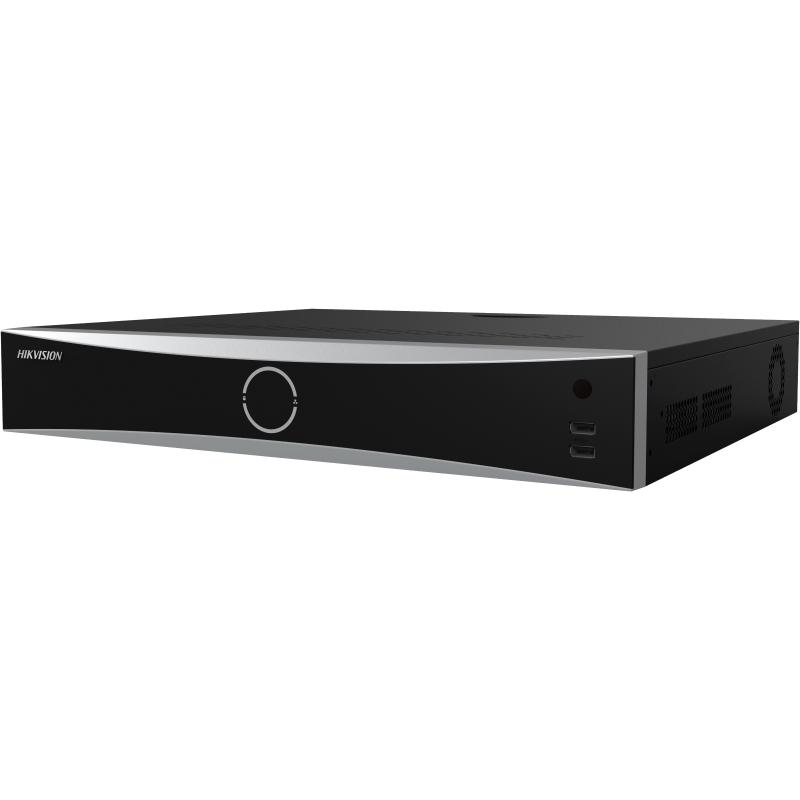

The Hikvision iDS-7732NXI-M4/16P/X is a 32-channel 1.5U rack-mount NVR with dual DeepinMind AI engines. It supports up to 32 MP camera inputs, 16 built-in PoE ports (200 W budget), and 320 Mbps incoming bandwidth. Intelligent features include 32-ch facial recognition, 24-ch perimeter protection, 12-ch video structuralization, and AcuSearch forensic search. The 8K HDMI output drives large-format control-room displays, while four internal SATA bays support up to 16 TB per drive. H.265+ compression reduces storage by up to 75%. RCM-certified, ships without HDD.

3,459.87 3459.87 AUD 3,459.87 incl. GST

Not Available For Sale


  • Brand
  • HDD Bays
  • AI Features
  • Video Output
  • PoE Ports
  • NVR Channels
  • Max Camera Resolution

This combination does not exist.

In stock online
Hikvision NVR 8K PoE NVR DeepinMind 32-Channel Facial Recognition Perimeter Protection
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
IDS-7732NXI-M4-16P-X
Hikvision IDS-7732NXI-M4-16P-X — DeepinMind 32-Channel 1.5U PoE NVR, 8K HDMI Output, Deep Learning Facial Recognition & Perimeter Protection
Key Features
  • 32-Channel IP Video Input — accepts cameras up to 32 MP resolution with 320 Mbps incoming bandwidth
  • 16 Built-in PoE Ports — IEEE 802.3 af/at compliant, up to 200 W total PoE budget, plug-and-play camera connection
  • 8K HDMI Output — HDMI 1 supports 8K (7680 × 4320) @ 30 Hz or dual 4K independent outputs for control-room flexibility
  • Deep Learning AI Engine — dual-engine architecture; each engine independently runs facial recognition, perimeter protection or video structuralization
  • Up to 24-Channel Perimeter Protection — line crossing, intrusion, region entrance/exit detection by NVR at 24 × 2 MP or 16 × 4 MP
  • Facial Recognition — 32-ch face-picture comparison or 16-ch live-stream recognition; library of up to 100,000 persons; 48 pictures/second comparison speed
  • 12-Channel Video Structuralization — person/vehicle attribute extraction (clothing colour, vehicle brand, plate number) across up to 12 × 2 MP channels
  • AcuSearch Smart Search — target-based forensic search across all channels; up to 691,200 targets/day by NVR or camera
  • 4-Bay HDD Storage — four SATA 3.5″ bays plus one eSATA, up to 16 TB per drive; 16-channel synchronous playback
  • H.265+ Compression — reduces storage consumption by up to 75% compared with H.264; dual-stream recording saves bandwidth
  • Stream over TLS Encryption — secure transmission, double-verification for playback and downloading
  • RCM & Multi-Region Certified — CE, FCC, UL, RCM, UKCA, BIS and more for global and Australian deployment
Specifications
Video & Audio
IP Video Input32-ch, up to 32 MP resolution
Incoming Bandwidth320 Mbps
Outgoing Bandwidth400 Mbps
Video Output ModeHDMI1/VGA1 simultaneous output; HDMI1/HDMI2 independent output
HDMI 1 Output8K (7680 × 4320)/30 Hz; 4K (3840 × 2160)/60 Hz; 4K/30 Hz; 2K (2560 × 1440)/60 Hz; 1920 × 1080/60 Hz
HDMI 2 Output4K (3840 × 2160)/60 Hz; 4K/30 Hz; 2K/60 Hz; 1080p/60 Hz
VGA Output1920 × 1080/60 Hz
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω); PAL: 704 × 576 / NTSC: 704 × 480
Audio Output1-ch, RCA (Linear, 1 kΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 kΩ)
Recording & Decoding
Decoding FormatH.265/H.265+/H.264/H.264+
Decoding Capability2-ch@32 MP (30 fps) / 2-ch@24 MP / 4-ch@16 MP / 8-ch@8 MP / 16-ch@4 MP / 32-ch@2 MP (all at 30 fps)
Synchronous Playback16-ch
Recording Resolution32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
HDD & Storage
SATA4 SATA interfaces, 3.5-inch HDD
eSATA1 eSATA interface
Maximum CapacityUp to 16 TB per HDD
Network
Network Interface1 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet
Remote Connections128
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF v2.2, OTAP
APIONVIF (Profile S/G); SDK; ISAPI
Camera Access ProtocolONVIF v2.5, RTSP
PoE
PoE Interfaces16 × RJ-45 10/100 Mbps self-adaptive
PoE Power Budget≤ 200 W
PoE StandardIEEE 802.3 af/at
Intelligent Analytics
AI Engines2, each engine independently runs one intelligent algorithm; engine mode adjustable
AI by NVRFacial recognition, perimeter protection, video structuralization, AcuSearch
AI by CameraFacial recognition, perimeter protection, video structuralization, AcuSearch, motion detection 2.0, ANPR, people counting, VCA
Perimeter Protection (NVR)24-ch @ 2 MP or 16-ch @ 4 MP or 8-ch @ 8 MP (without Large Model)
Facial Recognition (Live Stream)Up to 16-ch 2 MP (8-ch per engine) or 8-ch 4 MP or 4-ch 8 MP
Face Picture Comparison (Camera)32-ch (24-ch per engine); 48 pictures/second comparison speed
Face Picture LibraryUp to 16 libraries; 100,000 in list library; 10,000 in stranger library; 5,000,000 in face capture (≤ 20 GB total)
Video StructuralizationUp to 12-ch 2 MP (6-ch per engine) or 8-ch 4 MP or 4-ch 8 MP
AcuSearch (NVR)Up to 8-ch, up to 691,200 targets/day
ANPRAll channels (by camera); vehicle brand, colour, type; plate number, colour, type
Interface
USBFront: 2 × USB 2.0; Rear: 1 × USB 3.0
Serial1 × RS-232; 2 × RS-485 (half-duplex)
Alarm In/Out16 / 4
General & Environmental
Power Supply100–240 VAC, 50–60 Hz
Power Consumption≤ 50 W (without HDD, PoE off)
Working Temperature−10 to 55°C
Working Humidity10 to 90% (non-condensing)

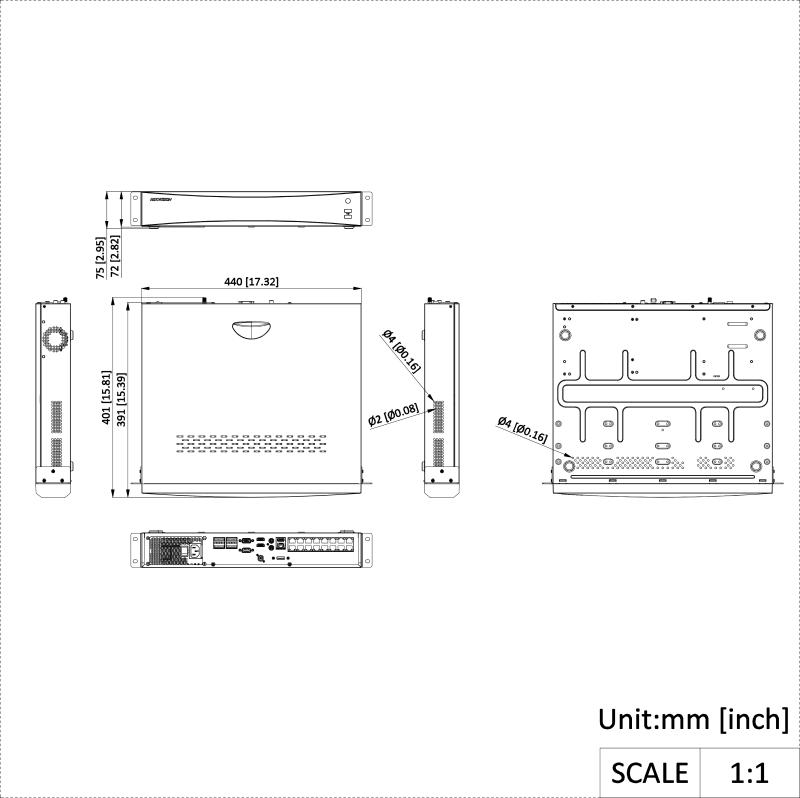

Dimensions (W × D × H)445 × 400 × 71 mm
Form Factor1.5U Rack-mount
CertificationsCE, FCC, IC, CB, KC, UL, RoHS, REACH, WEEE, RCM, UKCA, LOA, BIS
Frequently Asked Questions

What is the Hikvision IDS-7732NXI-M4-16P-X and what series does it belong to?

The IDS-7732NXI-M4-16P-X is a 32-channel 1.5U rack-mount Network Video Recorder from Hikvision’s DeepinMind series. DeepinMind NVRs integrate a dual deep learning engine directly on the recorder, enabling facial recognition, perimeter protection, video structuralization and AcuSearch forensic search without relying solely on camera-side processing. The unit supports up to 32 MP camera inputs and delivers 8K HDMI output.

How many PoE ports does the IDS-7732NXI-M4-16P-X have, and what is the total PoE budget?

The IDS-7732NXI-M4-16P-X has 16 built-in PoE ports (RJ-45 10/100 Mbps, IEEE 802.3 af/at) with a total PoE power budget of up to 200 W. Cameras connect plug-and-play, eliminating the need for a separate PoE switch for the first 16 channels. An additional 16 channels can connect via the 1 Gbps uplink port.

How many channels of facial recognition does this NVR support?

The IDS-7732NXI-M4-16P-X supports up to 16-ch facial recognition for live video streams (8-ch per engine) or up to 32-ch face-picture comparison (24-ch per engine at 48 pictures/second). The face picture library holds up to 100,000 persons in the list library, 10,000 in the stranger library, and up to 5,000,000 captured face pictures (total ≤ 20 GB). Stranger alert, allow-list matching and face capture search are all supported.

How many hard drives can the IDS-7732NXI-M4-16P-X accommodate and what is the maximum storage?

The NVR has four internal SATA 3.5-inch HDD bays plus one eSATA expansion port. Each bay supports drives up to 16 TB, giving a theoretical maximum internal raw capacity of 64 TB across all four bays. The unit ships without HDDs (No HDD), so drives must be sourced separately. Up to 16 channels can be played back simultaneously.

What perimeter protection capacity does the DeepinMind engine provide on the IDS-7732NXI-M4-16P-X?

By NVR processing (without Large Model), perimeter protection covers 24-ch at 2 MP, 16-ch at 4 MP, or 8-ch at 8 MP. With the Large Model enabled, capacity adjusts to 12-ch at 2 MP, 8-ch at 4 MP, or 4-ch at 8 MP. All cameras connected by camera-side AI use perimeter protection regardless of count (powered by Large Model). Line crossing, intrusion, region entrance, and region exit events are all supported.

What certifications does the IDS-7732NXI-M4-16P-X hold, and is it suitable for Australian installations?

Yes. The IDS-7732NXI-M4-16P-X holds RCM certification (required for sale in Australia and New Zealand) along with CE, FCC, IC, CB, KC, UL, RoHS, REACH, WEEE, UKCA, LOA and BIS. The universal power supply (100–240 VAC, 50–60 Hz) is compatible with the Australian 240 V mains without an adapter.

Professional Overview

The Hikvision iDS-7732NXI-M4/16P/X DeepinMind NVR represents the enterprise tier of Hikvision’s intelligent recording line. Its dual deep learning engines run independently, allowing large-scale deployments to operate facial recognition on one set of channels while simultaneously running perimeter protection or video structuralization on another — all without offloading to an external server. With 32 camera channels, 16 built-in PoE ports, and 320 Mbps incoming bandwidth, the unit scales effortlessly from mid-size commercial premises through to campus and critical-infrastructure environments.

Storage flexibility is a core design principle. Four internal SATA bays accept drives up to 16 TB each, and the rear eSATA port allows external expansion. H.265+ compression cuts storage consumption by up to 75% versus H.264, while the dual-stream recording architecture lets operators balance bandwidth and resolution across local and remote connections. Sixteen channels of synchronous playback combined with AcuSearch target-based forensic search ensure that relevant footage can be located and reviewed within seconds even from days of multi-channel recordings.

The 8K HDMI output (HDMI 1) and independent dual-4K output mode (HDMI 1 and HDMI 2 independently) give control-room operators the ability to drive large-format displays or multi-monitor video walls without a dedicated decoding appliance. POS integration overlays transaction data on live view and recordings, making the iDS-7732NXI-M4/16P/X equally at home in retail loss-prevention roles. ANPR (all channels via camera AI) captures plate numbers, colours and types, linking vehicle events directly to the facial-recognition and perimeter-protection timeline for comprehensive situational awareness.

RCM-certified for the Australian market and backed by universal 100–240 VAC power supply, the iDS-7732NXI-M4/16P/X is ready for rack installation alongside existing network infrastructure. Stream-over-TLS encryption and double-verification for playback and downloading satisfy modern cybersecurity audit requirements. Supplied without HDD, integrators can specify the appropriate surveillance-grade drives for the project’s retention requirements. Australian stock from ARC IP Networks.

AI Features Facial Recognition or Perimeter Protection or Video Structuralization
Brand Hikvision
HDD Bays 4-Bay
Video Output 8K HDMI
PoE Ports 16 PoE Ports
NVR Channels 32-Channel
Max Camera Resolution 32 MP
IDS-7732NXI-M4-16P-X_Datasheet.pdf
