Mercusys MA86XH AXE5400 Wi-Fi 6E High-Gain Wireless USB Adapter

https://arcip.com.au/web/image/product.template/11276/image_1920?unique=6fa8c04

The Mercusys MA86XH is an AXE5400 tri-band Wi-Fi 6E high-gain wireless USB adapter. It lists signal rates of 2402 Mbps on 6 GHz, 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, with two external high-gain antennas, MU-MIMO and WPA3 support when the router also supports them. It connects over USB 3.0, installs with a pre-loaded internal driver and supports Windows 11 and 10, with the 6 GHz band currently available only on Windows 11. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 74.39 74.39 AUD $ 74.39 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
MA86XH
Barcode
6957939003494

The Mercusys MA86XH is an AXE5400 tri-band Wi-Fi 6E USB adapter for Windows 11 and 10 PCs. It lists signal rates of 2402 Mbps on 6 GHz, 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, uses two external high-gain antennas with beamforming, supports MU-MIMO, OFDMA and WPA3, connects over USB 3.0 and installs with a pre-loaded internal driver. Mercusys notes the 6 GHz band is currently only available on Windows 11.

MA86XH overview

The MA86XH is Mercusys's AXE5400 Wi-Fi 6E high-gain wireless USB adapter, a way to give a desktop or laptop PC tri-band Wi-Fi 6E through a USB port. Mercusys says it arms your PC with Wi-Fi 6E and the 6 GHz band to unlock a Wi-Fi 6E router's full potential, handling HD video streaming, gaming and web browsing. The listed wireless standards are IEEE 802.11ax on 6 GHz, IEEE 802.11a/n/ac/ax on 5 GHz and IEEE 802.11b/g/n on 2.4 GHz, and Mercusys lists full support for 802.11ax/ac/a/b/g/n for backward compatibility. Signal rates are 2402 Mbps on 6 GHz, 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. Mercusys notes these are maximum physical rates derived from the IEEE 802.11 standard, and that actual throughput and coverage vary with network conditions, access point limitations and the environment, including building materials, obstacles and traffic. Its page summarises the bands as 6 GHz for stronger interference resistance, 5 GHz for faster speed and 2.4 GHz for stronger penetration.

Two external high-gain antennas with beamforming extend your router's reach with enhanced directional precision, which Mercusys says gives faster, more stable connections over longer distances. Working with a MU-MIMO and OFDMA compatible router, the PC receives data at the same time as other devices on the network, for minimal lag in video and games. Mercusys notes that Wi-Fi 6/6E, OFDMA, MU-MIMO and 1024-QAM require the access point to support the same features, and that 160 MHz channels may not all be available on 5 GHz or 6 GHz in some regions because of regulatory restrictions. Official reception sensitivity figures are -58 dBm (HE160 MCS11) and -82 dBm (HE160 MCS0) on 6 GHz, -61 dBm and -85 dBm on 5 GHz, and -64 dBm (HE40 MCS11) and -92 dBm (HE40 MCS0) on 2.4 GHz.

The adapter plugs into a USB 3.0 port. Mercusys notes that USB 3.0 transfers data up to 10 times faster than USB 2.0 and is backwards compatible, and that combined with 802.11ax Wi-Fi it suits HD streaming, online gaming and large file downloads. Installation uses a pre-loaded internal driver, so you plug the MA86XH in and install from the adapter itself rather than from a CD. Supported operating systems are Windows 11 and Windows 10, 32-bit and 64-bit. Mercusys adds two conditions: the 6 GHz band is currently only available on Windows 11, and functionality may be restricted on some operating systems and platforms, so drivers may need updating after an operating system update; the latest drivers are in the Mercusys download centre.

Security support covers WPA, WPA2, WPA-PSK, WPA2-PSK and WPA3-SAE. Mercusys describes WPA3 as protecting your devices and personal information from brute-force attacks, with forward secrecy and 128-bit encryption, and notes that WPA3 requires the access point to support it and may require a driver update from the Mercusys website. The adapter measures 77 x 45.2 x 12.4 mm. In the box are the AXE5400 Wi-Fi 6E High-Gain Wireless USB Adapter (MA86XH) and a quick installation guide. ARC IP Networks supplies the MA86XH from Australian stock with the full manufacturer's warranty.

Key features

AXE5400 tri-band Wi-Fi 6E

2402 Mbps on 6 GHz, 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.

6 GHz band

Wi-Fi 6E access to the 6 GHz band, currently available on Windows 11.

Two high-gain antennas

External antennas with beamforming for longer-range, more stable connections.

MU-MIMO and OFDMA

Receives data alongside other devices when the router supports these features.

USB 3.0 interface

Up to 10 times faster than USB 2.0 and backwards compatible.

Pre-loaded internal driver

Plug in and install from the adapter, no CD drive needed.

WPA3-SAE security

WPA3 alongside WPA/WPA2, when the access point also supports it.

Windows 11 and 10

32-bit and 64-bit Windows 11 and Windows 10 are supported.

MA86XH specifications

At a glance

AXE5400 Wi-Fi 6E
2402 Mbps (6 GHz)
2402 Mbps (5 GHz)
574 Mbps (2.4 GHz)
2 high-gain antennas
USB 3.0
WPA3-SAE
Windows 11/10
MA86XH full specifications
Wireless
Wireless StandardsIEEE 802.11 ax 6 GHz; IEEE 802.11 a/n/ac/ax 5 GHz; IEEE 802.11 b/g/n 2.4 GHz
Signal Rate2402 Mbps on 6 GHz; 2402 Mbps on 5 GHz; 574 Mbps on 2.4 GHz
Reception Sensitivity6 GHz:; 11ax HE160 MCS11: -58 dBm; 11ax HE160 MCS0: -82 dBm; 5 GHz:; 11ax HE160 MCS11: -61 dBm; 11ax HE160 MCS0: -85 dBm; 2.4 GHz:; 11ax HE40 MCS11: -64 dBm; 11ax HE40 MCS0: -92 dBm
Wireless SecurityWPA/WPA2/WPA-PSK/ WPA2-PSK/WPA3-SAE
Hardware
Dimensions (W X D X H)77 × 45.2 × 12.4 mm; (3.03 × 1.78 × 0.49 in)
InterfacesUSB 3.0
Antenna Type2 External High Gain Antennas
Others
System RequirementsWindows 11/10 (32/64 bit)

Source: Mercusys's published specifications for this model (Mercusys Australia product page). throughput figures are Mercusys's lab results. Mercusys may change specifications without notice.

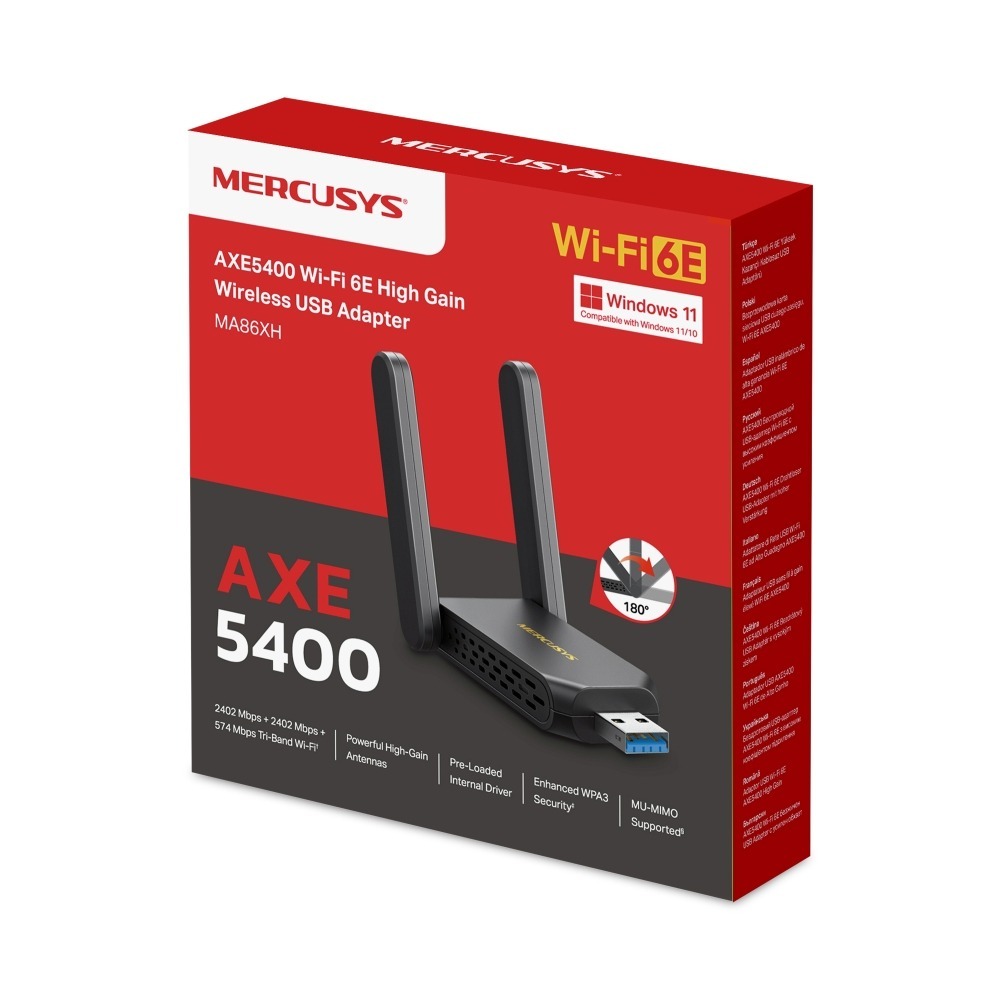

What's in the box

  • AXE5400 Wi-Fi 6E High-Gain Wireless USB Adapter (MA86XH)
  • Quick Installation Guide

Source: Mercusys's published package contents.

Who the MA86XH is for

PCs paired with a Wi-Fi 6E router

  • Tri-band including 6 GHz (Windows 11)
  • MU-MIMO and OFDMA with compatible routers
  • Streaming, gaming and large downloads

Desktops without built-in Wi-Fi 6E

  • Plugs into a USB 3.0 port
  • Pre-loaded driver for easy installation
  • High-gain antennas for distance from the router

MA86XH compared

The MA86XH and MA72XH are both Mercusys high-gain USB 3.0 adapters with two external antennas in the same 77 x 45.2 x 12.4 mm body. The MA86XH adds the 6 GHz band and doubles the 5 GHz signal rate.

SpecificationMA86XHMA72XH
Wi-Fi classAXE5400 Wi-Fi 6E (tri-band)AX1800 Wi-Fi 6 (dual-band)
6 GHz2402 MbpsNot supported
5 GHz2402 Mbps1201 Mbps
2.4 GHz574 Mbps574 Mbps
Antennas2 external high-gain2 external high-gain
InterfaceUSB 3.0USB 3.0
SecurityWPA/WPA2/WPA3-SAEWPA/WPA2/WPA3-SAE
Operating systemsWindows 11/10 (6 GHz on Windows 11)Windows 11/10

Source: Mercusys Australia product pages for each model.

Buy the MA86XH from ARC IP Networks

ARC IP Networks supplies genuine Mercusys products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine Mercusys: new Mercusys product from Australian stock.
  • Manufacturer warranty: the full Mercusys manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the MA86XH from the ARC IP Networks team.

Last reviewed October 2026.

It is an AXE5400 adapter: 2402 Mbps on 6 GHz, 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. These are maximum physical signal rates; real throughput depends on your router and environment.

No. Mercusys states the 6 GHz band is currently only available on Windows 11. On Windows 10 the 5 GHz and 2.4 GHz bands are available.

Windows 11 and Windows 10, 32-bit and 64-bit. Mercusys notes drivers may need updating after an operating system update.

No. The MA86XH has a pre-loaded internal driver, so you plug it in and install from the adapter. Updated drivers are on the Mercusys download centre.

It uses a USB 3.0 interface. Mercusys notes USB 3.0 is up to 10 times faster than USB 2.0 and backwards compatible.

Yes. It supports 802.11ax/ac/a/b/g/n. Wi-Fi 6E, OFDMA and MU-MIMO features need a router that supports them.

Yes, WPA3-SAE alongside WPA/WPA2. WPA3 requires the access point to support it and may need a driver update.

Two external high-gain antennas with beamforming, which Mercusys says extend your router's reach for more stable connections over longer distances.

77 x 45.2 x 12.4 mm, the same size as the Mercusys MA72XH.

The AXE5400 Wi-Fi 6E High-Gain Wireless USB Adapter (MA86XH) and a quick installation guide.
