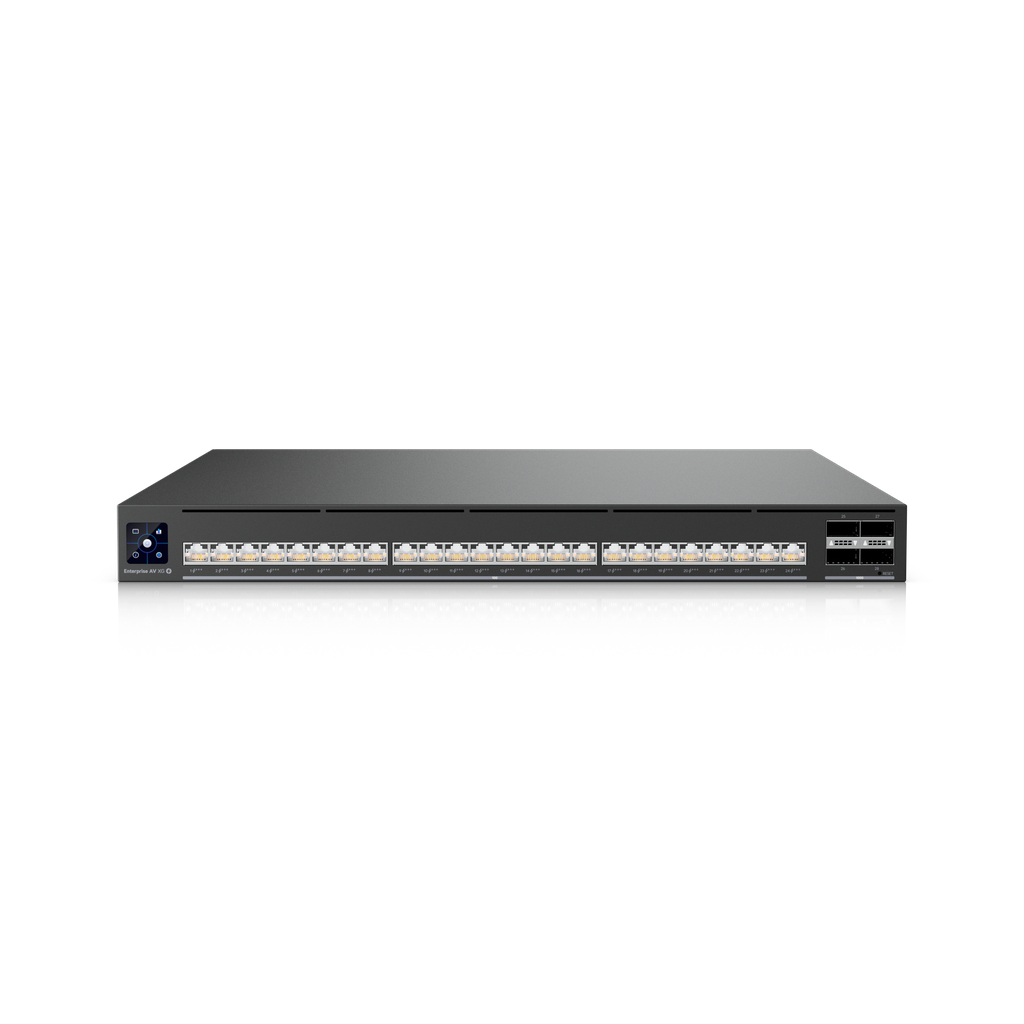

Ubiquiti EAV-XG-24-PoE UniFi Switch Enterprise Audio/Video XG 24 PoE — 24x10G PoE+++, 4x100G QSFP28, 2150W

https://arcip.com.au/web/image/product.template/10229/image_1920?unique=20e9d34
Enterprise Audio/Video switch with (24) 10G PoE+++ ports and (4) 100G QSFP28 uplinks. Supports PTP timing, SMPTE ST 2110, SDVoE and AES67 audio with a high-precision OCXO clock and optional GPS grandmaster input for deterministic media syncing. Dual hot-swappable 1,200W PSUs deliver a 2,150W PoE budget. Ships under Ubiquiti's deal-registration program via ARC IP Networks.

8,226.35 8226.35 AUD 8,226.35 incl. GST

Not Available For Sale


  • Switching Capacity
  • Network Layer
  • Form Factor
  • Port Speed
  • Ports
  • Network Connectivity
  • Uplink
  • PoE Specification
  • Brand

This combination does not exist.

UniFi Switch Layer 3 PTP Rackmount Managed Switch Ubiquiti 10G SFP+ EAV Enterprise Audio Video Premium IoT Aggregation 100G 100G QSFP28 22-Port Hot-Swap PSU SMPTE ST 2110 SDVoE AES67 OCXO GPS Grandmaster Broadcast
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
EAV-XG-24-PoE
Ubiquiti UniFi Switch Enterprise Audio/Video XG 24 PoE — (24) 10G PoE+++ Ports, (4) 100G QSFP28 Uplinks, 2,150W PoE Budget, SMPTE ST 2110 / SDVoE / AES67
💼

Deal Registration Required

The Ubiquiti EAV-XG-24-PoE ships under Ubiquiti’s deal-registration program for project pricing and deployment support. Please contact ARC IP Networks before ordering to register the deal, confirm lead time, and unlock project pricing.

EAV-XG-24-PoE
EAV-XG-24-PoE
EAV-XG-24-PoE
Key Features
  • (24) 10G RJ45 ports, every port PoE+++ (802.3bt, up to 90W per port)
  • (4) 100G QSFP28 uplinks (100G/40G) for aggregation-grade backhaul
  • 2,150W total PoE availability in shared mode with dual hot-swappable 1,200W PSUs
  • Deterministic AV timing: PTP with high-precision OCXO clock and GPS grandmaster input (SMA)
  • Broadcast and pro-AV standards: SMPTE ST 2110, SDVoE, AES67 audio
  • 1,280 Gbps switching capacity, 640 Gbps non-blocking throughput, 810 Mpps forwarding
  • (2) hot-swappable PSUs + (4) hot-swappable fan modules, 1.3" touchscreen LCM
  • Layer 3: 512 IPv4 static routes, 1,000 VLANs, 32,000 MAC table
Interfaces
10 GbE RJ45 (PoE+++)24 — 10G/5G/2.5G/1G/100M/10M
100G QSFP284 — 100G/40G
1 GbE RJ451 (management)
Console / SMA1 / 1 (GPS grandmaster input)
Performance
Switching Capacity1,280 Gbps
Non-Blocking Throughput640 Gbps
Forwarding Rate810 Mpps
VLANs / MAC Table1,000 / 32,000
IPv4 Static Routes512
Packet Buffer8 MB
PoE
PoE StandardPoE+++ 802.3bt (90W max per port) on all 24 ports
Total PoE Budget2,150W (200-240V AC shared) / 1,850W (100-120V) / 1,050W (redundant)
Power Supplies(2) hot-swappable 1,200W AC/DC modules
Hardware
Form FactorRack Mount, 1U full-depth (442.4 x 480 x 43.7 mm)
Weight9.85 kg (9.95 kg with brackets)
Max Power Consumption150W excl. PoE / 2,400W incl. PoE
Cooling(4) hot-swappable fan modules
Display1.3" touchscreen
Operating Range-5 to 40°C, 10-90% RH
CertificationsCE, FCC, IC
Professional Overview

The Ubiquiti EAV-XG-24-PoE is the flagship of the UniFi Enterprise Audio/Video line: a 1U, full-depth 24-port 10G switch engineered specifically for professional AV-over-IP deployments. All 24 RJ45 ports deliver multi-gigabit rates from 10M to 10G with PoE+++ (802.3bt) on every port, powering cameras, encoders, decoders and amplified endpoints at up to 90W each from a 2,150W shared PoE budget backed by dual hot-swappable 1,200W supplies.

What separates the EAV-XG from general-purpose switches is its timing architecture. A high-precision OCXO oscillator drives PTP timing, and a dedicated SMA input accepts an external GPS grandmaster reference, enabling the deterministic synchronisation that SMPTE ST 2110 broadcast video, SDVoE distribution and AES67 networked audio demand. For venues, studios, stadiums and command centres, this means frame-accurate video walls and sample-accurate audio without a separate timing appliance.

Backhaul is handled by four 100G QSFP28 uplinks (also supporting 40G), giving the platform 1,280 Gbps of switching capacity, 640 Gbps of non-blocking throughput and an 810 Mpps forwarding rate. Layer 3 capability covers 512 IPv4 static routes and 1,000 VLANs with a 32,000-entry MAC table, so AV traffic can be segmented and routed at line rate alongside control networks.

Serviceability is enterprise-grade throughout: hot-swappable PSUs and four hot-swappable fan modules, a 1.3" touchscreen for on-device status, SGCC steel enclosure, and support for standard 19" four-post racks. The EAV-XG-24-PoE ships under Ubiquiti’s deal-registration program — contact ARC IP Networks to register your project and confirm lead time on Australian stock.

ARC IP Networks, authorised Ubiquiti reseller in Australia — Australian stock, manufacturer warranty, fast shipping, trade pricing.
ARC IP Networks is an authorised Ubiquiti reseller in Australia — Australian stock, full manufacturer warranty, fast shipping and trade pricing. Call 1300 100 440 or read more about buying from an authorised reseller.

Ubiquiti EAV-XG-24-PoE: Layer 3 switch

The Switch Enterprise Audio/Video XG 24 PoE is a Layer 3 UniFi switch offering 200-240V AC Shared Mode: 2,150W with (2) 1,200W modules 100-120V AC Shared Mode: 1,850W with (2) 1,200W modules 200-240V AC Redundant Mode: 1,050W with (2) 1,200W modules 100-120V AC Redundant Mode: 850W with (2) 1,200W modules of PoE, 640 Gbps of non-blocking throughput, 1,280 Gbps switching capacity.

Port layout is 1 × Gigabit RJ45, 24 × 10 GbE RJ45, 4 × 100G QSFP28.

Ports and PoE

InterfaceCount & speeds
Gigabit RJ451 (1G/100M/10M)
10 GbE RJ4524 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
100G QSFP284 (100G/40G)
Total PoE availability200-240V AC Shared Mode: 2,150W with (2) 1,200W modules 100-120V AC Shared Mode: 1,850W with (2) 1,200W modules 200-240V AC Redundant Mode: 1,050W with (2) 1,200W modules 100-120V AC Redundant Mode: 850W with (2) 1,200W modules
Max. PoE outputUp to PoE+++

Per-port PoE classes: PoE (802.3af) up to 15.4W; PoE+ (802.3at) up to 30W; PoE++ (802.3bt) up to 60W; 24 ports at PoE+++ up to 90W.

Total PoE availability is 200-240V AC Shared Mode: 2,150W with (2) 1,200W modules 100-120V AC Shared Mode: 1,850W with (2) 1,200W modules 200-240V AC Redundant Mode: 1,050W with (2) 1,200W modules 100-120V AC Redundant Mode: 850W with (2) 1,200W modules, which is the budget shared across all powered ports — not a per-port figure. Add up the draw of everything you intend to power before committing; our access point comparison lists the consumption of each UniFi AP.

Switching performance

Non-blocking throughput640 Gbps
Switching capacity1,280 Gbps
Forwarding rate810 Mpps
Supported VLANs1,000
MAC address table32,000
IPv4 static routes512
Packet buffer8 MB

Because it supports IPv4 static routes it can route between VLANs itself rather than sending all inter-VLAN traffic up to the gateway — see the UniFi cloud gateway range if you also need the routing and firewall layer.

Who the EAV-XG-24-PoE suits

  • Large AV-over-IP deployments — stadiums, campuses, broadcast and production facilities
  • Networks carrying uncompressed video that need deep buffers and non-blocking throughput
  • Sites cabled for 10 GbE to the endpoint with 100G uplinks
  • Projects going through Ubiquiti deal registration — contact us for project pricing

Physical, power and mounting

Form factorRack Mount (1U, Full-Depth)
Dimensions442.4 x 480 x 43.7 mm (17.4 x 18.9 x 1.7")
WeightWithout mounting brackets: 9.85 kg (21.7 lb) With mounting brackets: 9.95 kg (21.9 lb)
Supported rack depth482.6 mm (19") four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
Power supply(2) Hot-swappable AC/DC 1,200W power modules
Power method(2) Universal input, 100–240V AC, 50/60 Hz
Max. power consumption150W (Excluding PoE Output) 2,400W (Including PoE Output)
Heat dissipation512 BTU/hr (Excluding PoE Output)
Operating temperature-5 to 40° C (23 to 104° F)
Display1.3" touchscreen
EnclosureSGCC steel

Two power figures are quoted: the switch itself, and the total including PoE output. Size the circuit and any UPS on the higher figure.

Frequently Asked Questions

What is the EAV-XG-24-PoE?

The Switch Enterprise Audio/Video XG 24 PoE is a UniFi managed switch with 200-240V AC Shared Mode: 2,150W with (2) 1,200W modules 100-120V AC Shared Mode: 1,850W with (2) 1,200W modules 200-240V AC Redundant Mode: 1,050W with (2) 1,200W modules 100-120V AC Redundant Mode: 850W with (2) 1,200W modules of total PoE availability, 640 Gbps of non-blocking throughput.

What ports does the EAV-XG-24-PoE have?

Gigabit RJ45: 1 (1G/100M/10M); 10 GbE RJ45: 24 (All PoE+++) (10G/5G/2.5G/1G/100M/10M); 100G QSFP28: 4 (100G/40G).

How much PoE can the EAV-XG-24-PoE deliver?

200-240V AC Shared Mode: 2,150W with (2) 1,200W modules 100-120V AC Shared Mode: 1,850W with (2) 1,200W modules 200-240V AC Redundant Mode: 1,050W with (2) 1,200W modules 100-120V AC Redundant Mode: 850W with (2) 1,200W modules in total across all powered ports. That is a shared budget, not a per-port figure, so total up the draw of everything you plan to power.

What PoE classes does it support?

up to 15.4W; up to 30W; up to 60W; 24 ports at up to 90W.

Is the EAV-XG-24-PoE a Layer 3 switch?

Yes. It supports 512 IPv4 static routes, so it can route between VLANs without sending that traffic to the gateway.

How is the EAV-XG-24-PoE mounted?

Rack Mount (1U, Full-Depth).

How much power does the EAV-XG-24-PoE use?

150W (Excluding PoE Output) 2,400W (Including PoE Output).

Does it need a separate UniFi controller?

UniFi switches are adopted and managed by a UniFi controller — a Cloud Gateway, Dream Machine, CloudKey or UniFi hosting. The switch itself does not host the controller.

Is the EAV-XG-24-PoE available in Australia?

Yes. ARC IP Networks is an authorised Ubiquiti reseller holding Australian stock with full manufacturer warranty and fast domestic shipping.

Buy the Ubiquiti EAV-XG-24-PoE in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying the EAV-XG-24-PoE from Australian stock, with full manufacturer warranty and fast shipping nationwide.

  • Authorised Ubiquiti reseller — genuine Australian stock, not grey import
  • Full manufacturer warranty with local RMA support
  • Competitive Australian pricing, monitored against the local market daily
  • Fast dispatch Australia-wide, or collect from our warehouse
  • Trade and project pricing for installers, MSPs and multi-site rollouts

Browse the full UniFi switch range, plus cloud gateways, access points and the Protect camera range. More on buying from an authorised Ubiquiti reseller in Australia.

Switching Capacity 1,280 Gbps
Network Layer Layer 3
Form Factor Rack Mount (1U)
Port Speed (24) 10G PoE+++ + (4) 100G QSFP28 + (1) GbE
Ports 24 Ports
Network Connectivity Wired
Uplink 4 x 100G QSFP28
PoE Specification PoE+++ 802.3bt / 2,150W Budget
Brand UBIQUITI
