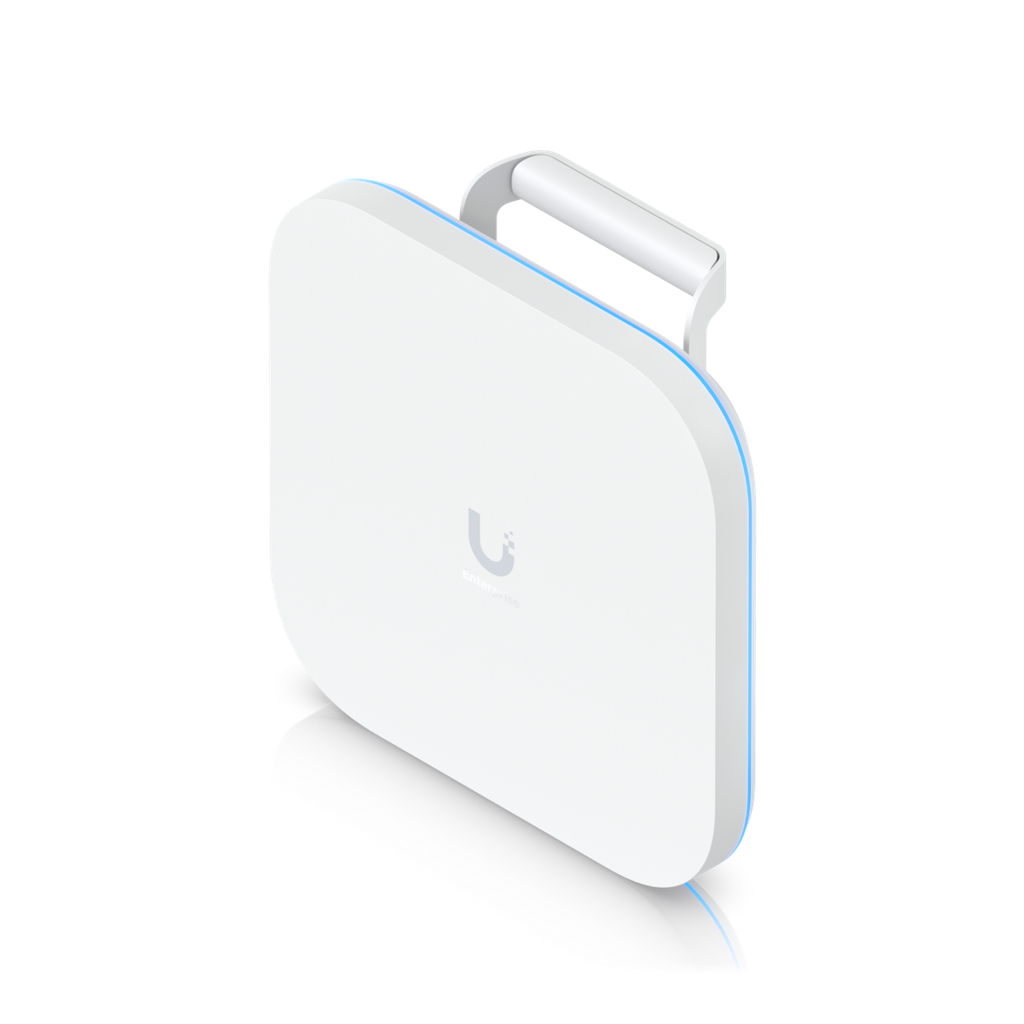

Ubiquiti UniFi E7 Campus — Indoor/Outdoor Enterprise WiFi 7 Access Point with 10 Spatial Streams, PRISM Active RF Filtering, Directional Antennas, 10 GbE Uplink and IP67 (Door Kit) Weatherproofing

https://arcip.com.au/web/image/product.template/9722/image_1920?unique=58986b5
UniFi E7 Campus is Ubiquiti's indoor/outdoor enterprise WiFi 7 AP with 10 spatial streams (4×4 6 GHz + 4×4 5 GHz + 2×2 2.4 GHz), PRISM™ active RF filtering for noise rejection, integrated directional antennas (12 dBi 6 GHz, 12 dBi 5 GHz, 9 dBi 2.4 GHz) and 1,000+ client capacity over 465 m² coverage. 10 GbE primary + 1 GbE redundant uplink, PoE++ powered, IPX6 weatherproof (IP67 with included Waterproof Door Kit), articulating wall/pole mount included. Australian stock from ARC IP Networks.

1,894.75 1894.75 AUD 1,894.75 incl. GST

Not Available For Sale


  • Form Factor
  • WiFi Standard
  • Frequency Band
  • Max Throughput
  • PoE Requirement
  • Max Clients
  • Coverage Area
  • AP Features
  • IP Rating
  • MIMO Configuration

This combination does not exist.

PoE++ 10GbE Indoor Outdoor UniFi Access Point 6 GHz Ubiquiti MU-MIMO WIFi 7 Enterprise IP67 High Density Directional Antenna Campus PRISM
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
E7-Campus
Ubiquiti UniFi E7 Campus — Indoor/Outdoor Enterprise WiFi 7 Access Point with 10 Spatial Streams, PRISM™ Active RF Filtering, Directional Antennas, 10 GbE Uplink and IP67 (Door Kit) Weatherproofing

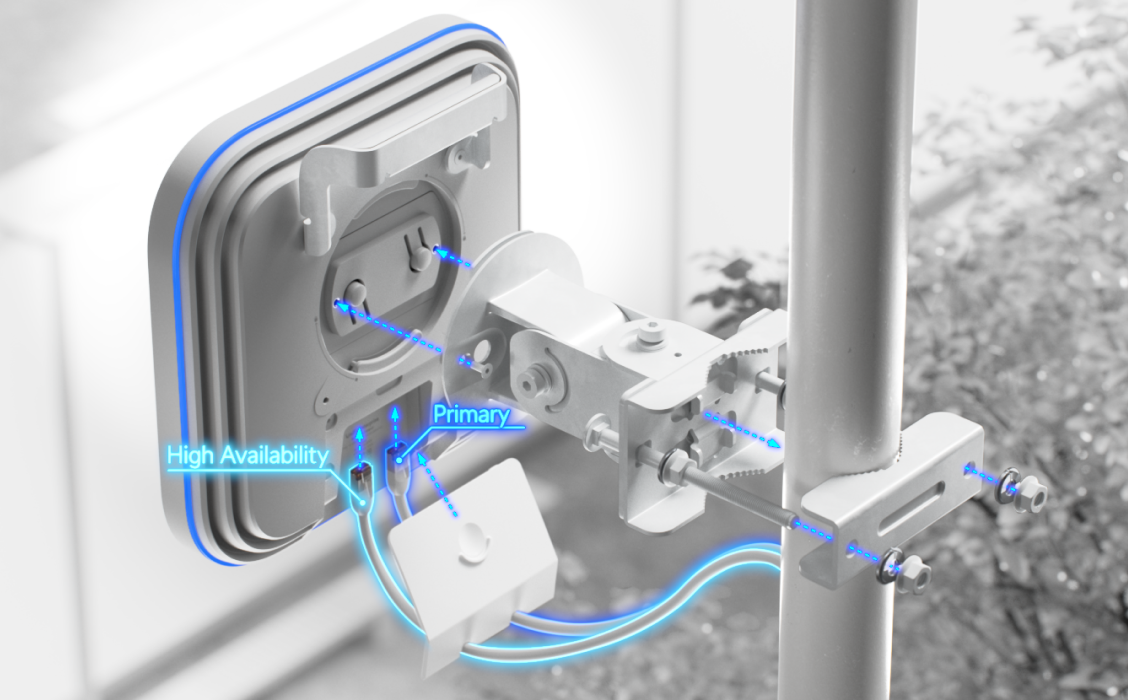

E7-Campus Deployment

E7-Campus Coverage Pattern

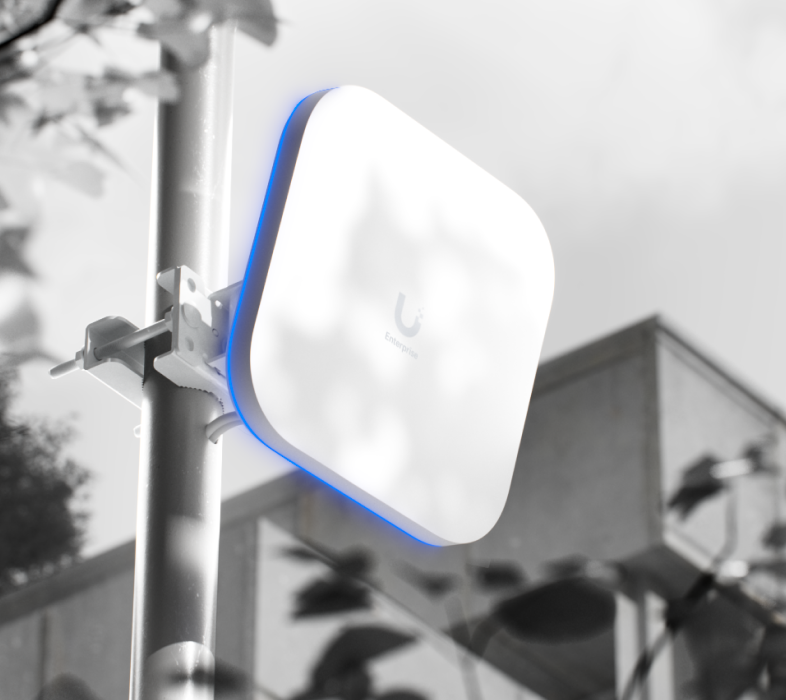

E7-Campus Antenna

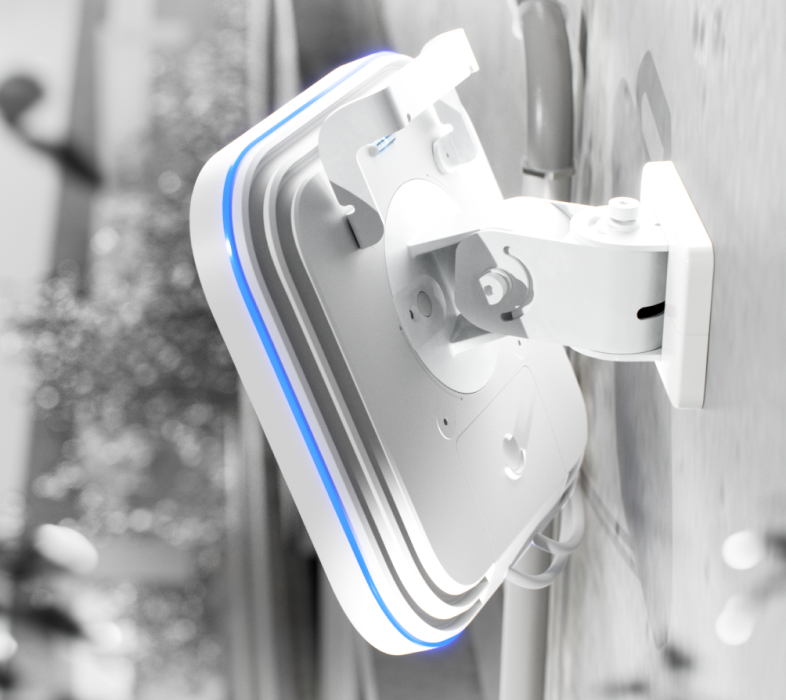

E7-Campus Mounting

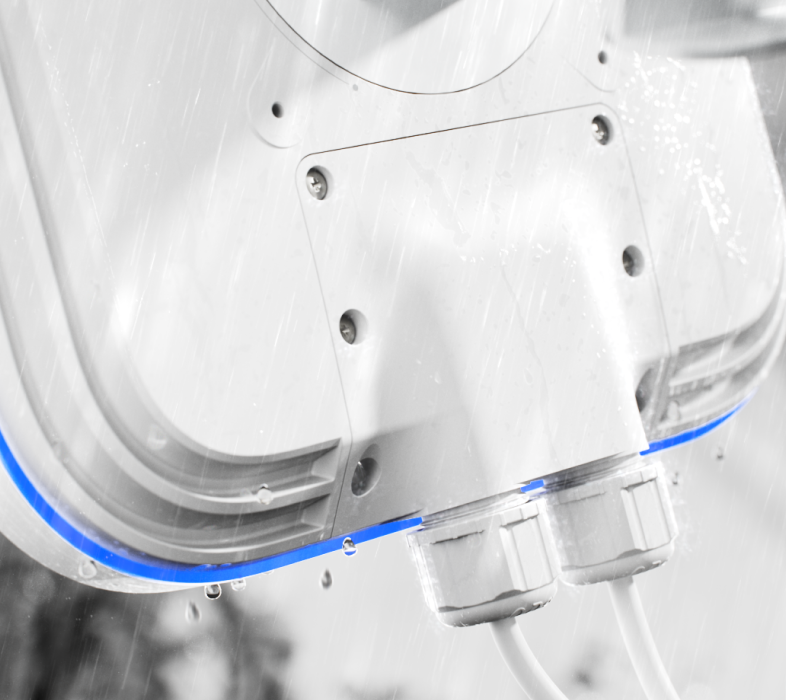

E7-Campus Side

E7-Campus Deployment Scene

Features

  • Indoor/outdoor enterprise WiFi 7 access point designed to blanket large campus environments — university grounds, business parks, school yards, hospital precincts, retail centres and outdoor venues — with a single high-throughput AP.
  • 10 spatial streams: 4×4 MU-MIMO on 6 GHz, 4×4 on 5 GHz and 2×2 on 2.4 GHz for full backwards compatibility, with 8 BSSIDs per radio.
  • PRISM™ active RF filtering — Ubiquiti's noise-rejection technology suppresses external interference so the AP keeps performing in congested RF environments typical of dense campus deployments.
  • Integrated directional antennas: 12 dBi at 90° × 50° on 6 GHz, 12 dBi at 100° × 55° on 5 GHz and 9 dBi at 90° × 80° on 2.4 GHz — engineered for the wide-arc coverage that campus walkways and quadrangles need.
  • Peak WiFi throughput: 11.5 Gbps on 6 GHz (320 MHz channel), 8.6 Gbps on 5 GHz (240 MHz) and 688 Mbps on 2.4 GHz.
  • Designed for 1,000+ concurrent clients and approximately 465 m² (5,000 ft²) of coverage per AP.

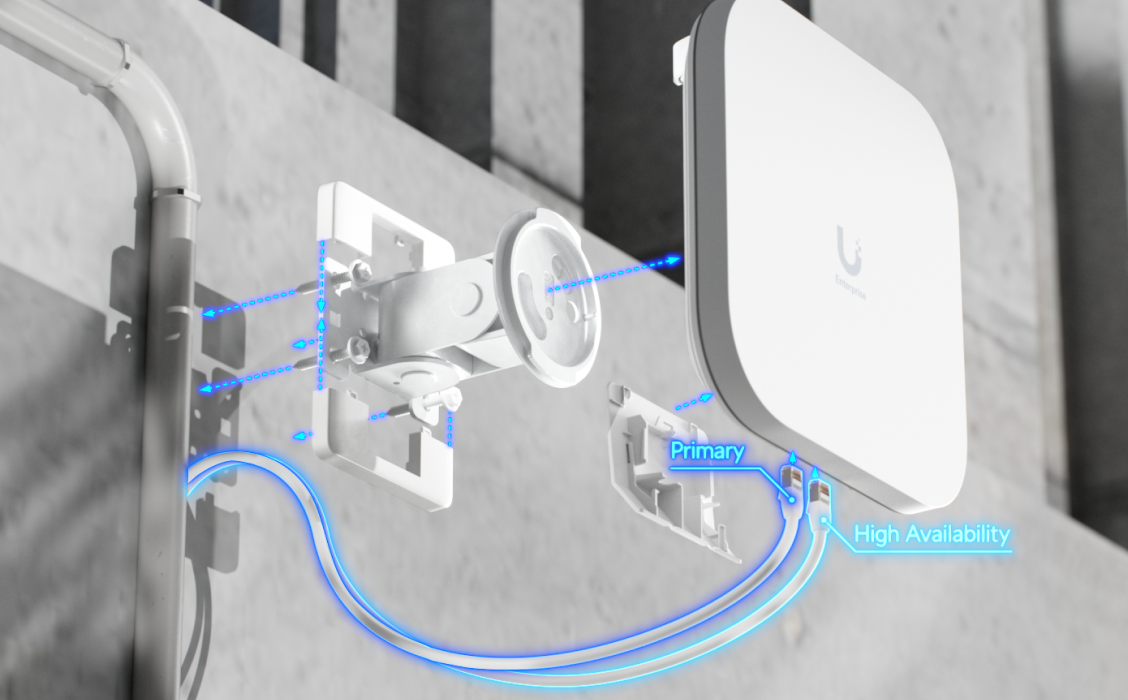

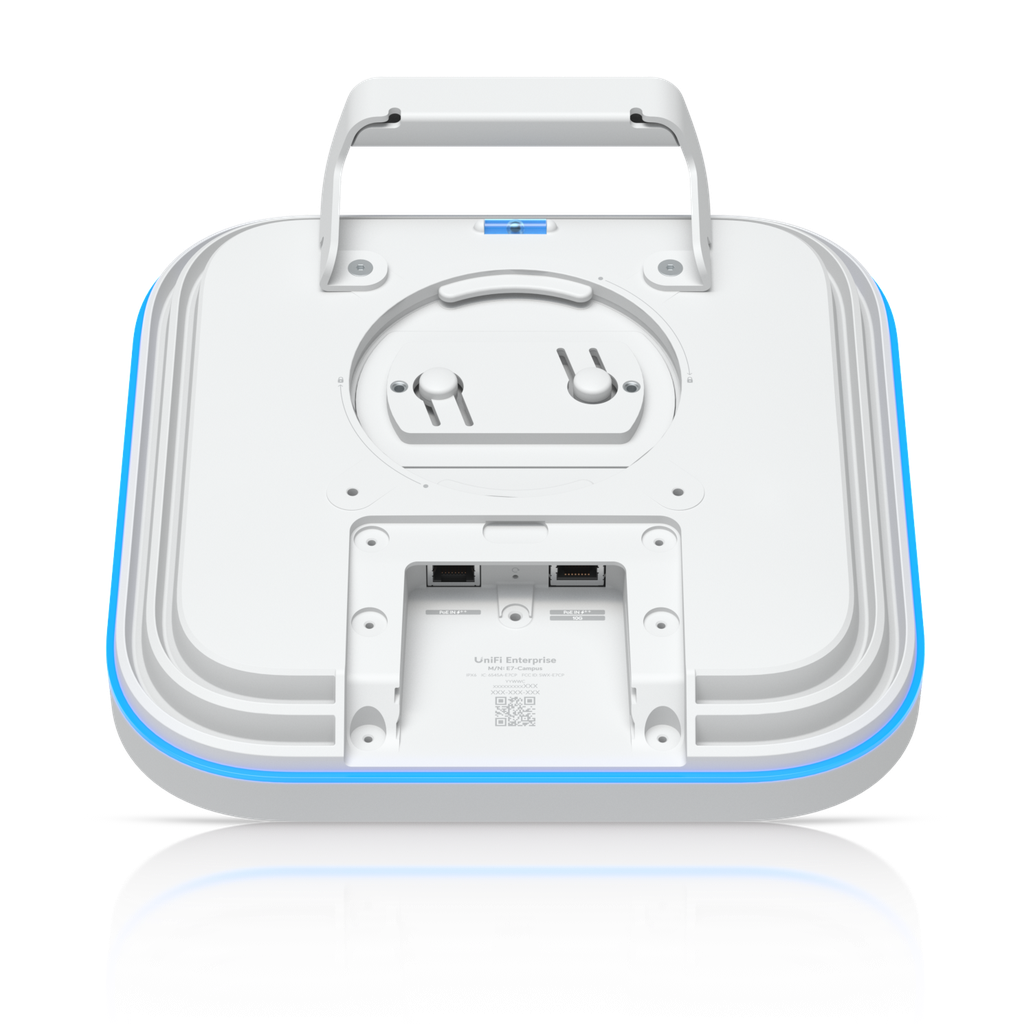

  • 10 GbE primary RJ45 uplink with a redundant 1 GbE secondary port — survive a switch port or cable failure without dropping coverage.
  • PoE++ (802.3bt) powered at up to 44W consumption (42.5–57V DC) — single-cable installation.
  • IPX6 weatherproof out of the box, upgradeable to IP67 with the included Waterproof Door Kit.

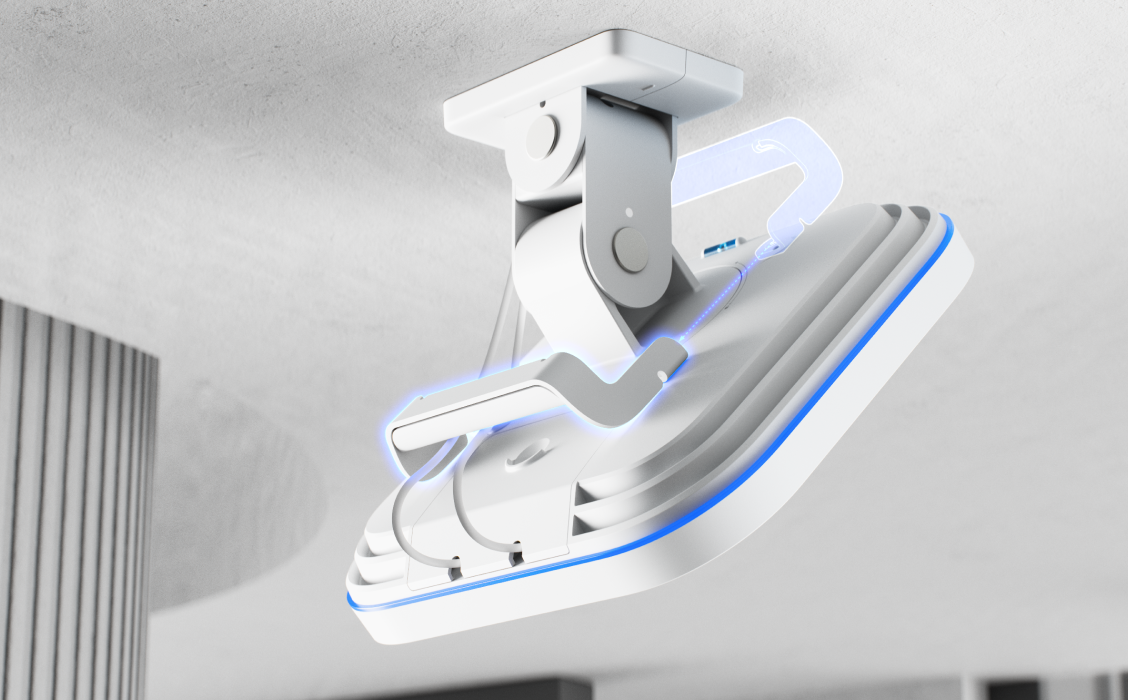

  • Articulating wall and pole mount included (pole diameter 25–63.5 mm); VESA mount optional.
  • Wind loading rated to 164.75 N at 200 km/h; -30 to 60 °C ambient operation; 5–95% non-condensing humidity.
  • Stainless-steel and aluminium-alloy mount hardware; UV-stabilised polycarbonate and aluminium-alloy enclosure.
  • Centrally managed through UniFi Network 9.0.114 or later — zero per-AP licensing.
  • Certifications: FCC, IC.

Specifications

Overview
Dimensions (Device)250 × 250 × 45.5 mm
Dimensions (Articulating Mount)⌀104 × 149.4 mm
WiFi StandardWiFi 7 (802.11be)
Spatial Streams10 (4×4 6 GHz + 4×4 5 GHz + 2×2 2.4 GHz)
Coverage Area465 m²
Max. Client Count1,000+
Uplink1 × 10 GbE RJ45 + 1 × 1 GbE RJ45
MountingWall, Pole (mounts included); VESA optional
WeatherproofingIPX6 standard; IP67 with included Waterproof Door Kit
Power MethodPoE++
Radio Performance
6 GHz MIMO4×4 DL/UL MU-MIMO
5 GHz MIMO4×4 DL/UL MU-MIMO
2.4 GHz MIMO2×2 DL/UL MU-MIMO
6 GHz Rate11.5 Gbps (BW 320)
5 GHz Rate8.6 Gbps (BW 240)
2.4 GHz Rate688 Mbps (BW 40)
6 GHz AntennaDirectional 12 dBi, 90° × 50°
5 GHz AntennaDirectional 12 dBi, 100° × 55°
2.4 GHz AntennaDirectional 9 dBi, 90° × 80°
6 GHz Tx Power30 dBm (36 dBm EIRP)
5 GHz Tx Power30 dBm
2.4 GHz Tx Power23 dBm
Max. BSSIDs8 per radio
Channel BandwidthHT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 MHz
Modulation Coverage802.11be MCS0-MCS13 NSS1/2/3/4 (7.3 Mbps – 11.4 Gbps); 802.11ax up to 4.8 Gbps; 802.11ac up to 3.4 Gbps; 802.11n up to 600 Mbps
Hardware
Max. Power Consumption44W
Supported Voltage Range42.5–57V DC
Networking Interface(1) 10 GbE RJ45 + (1) GbE RJ45
Weight (Device)2.2 kg
Weight (with articulating mount)3.1 kg
Wind Loading164.75 N at 200 km/h
Pole Mount Diameter25–63.5 mm
AntennasInternal with directional patterns
ManagementEthernet
Enclosure MaterialUV-stabilised polycarbonate, aluminium alloy
Mount MaterialStainless steel, aluminium alloy
System LEDR/G/B
Ambient Operating Temperature-30 to 60 °C
Ambient Operating Humidity5 to 95% non-condensing
CertificationsFCC, IC
Software
UniFi Network9.0.114 and later
Mobile AppiOS 10.20.0+ / Android 10.21.3+

Professional Overview

The UniFi E7 Campus is Ubiquiti's indoor/outdoor enterprise WiFi 7 access point engineered for wide-arc campus environments — university grounds and lecture quads, business parks, school playgrounds, hospital precincts, council halls, large retail centres and outdoor hospitality venues. Where the E7 Audience sectorises a stadium tribune with narrow-beam antennas, the E7 Campus spreads coverage across a much wider aperture — 12 dBi internal directional patterns at 90° × 50° (6 GHz), 100° × 55° (5 GHz) and 9 dBi at 90° × 80° (2.4 GHz) — designed to blanket walkways, plazas and large rooms rather than focus into a wedge.

The radio architecture is tri-band 10-stream: 4×4 MU-MIMO on 6 GHz, 4×4 on 5 GHz and 2×2 on 2.4 GHz, with up to 8 BSSIDs per radio. Peak rates reach 11.5 Gbps on 6 GHz (320 MHz channel), 8.6 Gbps on 5 GHz (240 MHz) and 688 Mbps on 2.4 GHz, and the AP supports 1,000+ concurrent clients over approximately 465 m² (5,000 ft²) of coverage. Crucially, the Campus also carries Ubiquiti's PRISM™ active RF filtering technology — designed to actively reject external noise and adjacent-AP interference, which is the failure mode that limits ordinary outdoor APs in dense municipal environments.

On the wired side, a primary 10 GbE RJ45 uplink is backed by a redundant 1 GbE secondary port, so a single switch port or cable failure does not blackout outdoor coverage during a teaching day or event. The AP is powered by PoE++ (802.3bt, 42.5–57V DC, up to 44W consumption) from any UniFi PoE++ switch. Mounting is by an included articulating wall/pole mount (25–63.5 mm pole diameters) with a VESA option, and the enclosure is rated for outdoor exposure: IPX6 standard, upgradable to IP67 by fitting the included Waterproof Door Kit, with a wind loading specification of 164.75 N at 200 km/h.

Build quality is uprated for permanent outdoor service: a UV-stabilised polycarbonate radome over an aluminium-alloy chassis with stainless-steel and aluminium-alloy mount hardware, rated for -30 to 60 °C ambient operation and 5–95% non-condensing humidity. Certifications cover FCC and IC. Management is entirely through UniFi Network 9.0.114 or later — no per-AP licence, full RF planning, fast roaming, RADIUS and rogue AP detection. Australian stock from ARC IP Networks.

Form Factor Indoor/Outdoor (Wall / Pole Mount)
WiFi Standard WiFi 7
Frequency Band Tri-Band (2.4/5/6 GHz)
Max Throughput 11.5 Gbps (6 GHz) / 8.6 Gbps (5 GHz) / 688 Mbps (2.4 GHz)
PoE Requirement PoE++ (802.3bt)
Max Clients 1,000+
Coverage Area 465 m²
AP Features PRISM RF Filtering, Directional Antennas (12 dBi), 10 GbE Uplink, Redundant 1 GbE, Articulating Mount, Wind 200 km/h
IP Rating IPX6 standard, IP67 with Door Kit
MIMO Configuration 4x4 (6 GHz) + 4x4 (5 GHz) + 2x2 (2.4 GHz)
