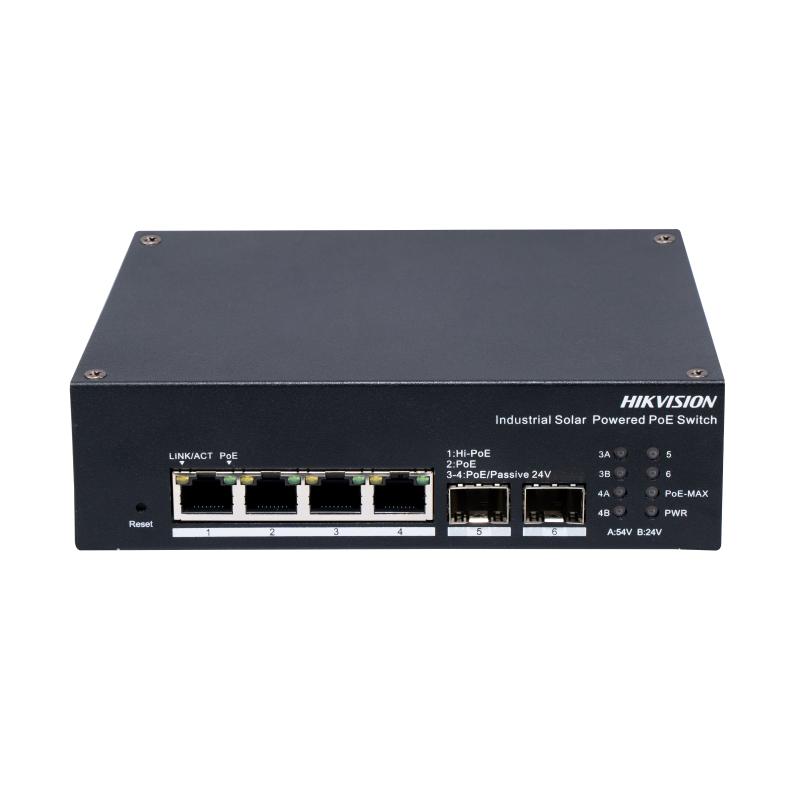

Hikvision DS-3T1506HP-EI-UPS 4-Port Gigabit Industrial Solar Hi-PoE Switch

https://arcip.com.au/web/image/product.template/9986/image_1920?unique=0503dfe

308.66 308.66 AUD 308.66 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
DS-3T1506HP-EI-UPS
At a glance

The Hikvision DS-3T1506HP-EI-UPS is a 4-port gigabit industrial Hi-PoE switch built for solar and battery-backed sites. It runs from a mains adapter or a 12–24 V DC battery, keeping cameras powered through a mains or solar outage — a true uninterruptible feed. Port 1 gives 90 W Hi-PoE, and battery health is monitored remotely. The battery is supplied separately (there is no internal battery).

Device type
Smart-managed PoE switch
Ports
4 × gigabit PoE + 2 × gigabit SFP fibre + 1 × RS485
PoE budget
120 W on 54 V DC, or 60 W on a 12–24 V battery input
PoE standard
Port 1: 802.3af/at/bt; ports 2–4: 802.3af/at (ports 3–4 also 24 V passive PoE)
Power per port
Port 1: up to 90 W Hi-PoE; ports 2–4: up to 30 W
Management
Smart managed (Layer 2+) — web GUI + Hik-Connect + Hik-Partner Pro cloud
Switching capacity
14 Gbps switching
MAC address table
2 K
Long-range PoE
Up to 300 m (varies with camera and cable)
PoE watchdog
Yes — auto-reboots an unresponsive camera
Power input
54 V DC mains adapter, OR a 12–24 V DC solar/battery source (battery sold separately)
Construction
Metal IP30, fanless, DIN-rail / wall / desktop
Operating temperature
−40 to 75 °C
Dimensions / weight
158 × 44 × 130 mm, 0.7 kg
Surge protection
6 kV on PoE ports
Compliance
RCM approved (AS/NZS CISPR 32:2015)
Warranty
Australian warranty via ARC IP Networks

Key Features

4 Gig PoE + 2 SFP
Solar / Battery Ready
−40 to 75 °C
Remote Battery Monitor

Why choose the DS-3T1506HP-EI-UPS

The Hikvision DS-3T1506HP-EI-UPS exists for sites off the grid or prone to power cuts — a solar-powered camera pole, a remote gate, a site where the cameras must stay up when the mains drops. It runs from a normal 54 V DC adapter or directly from a 12–24 V DC battery, and when the primary source fails the connected battery keeps the cameras running with no interruption — that is the "UPS" in the name. It is important to be clear: there is no battery inside; you connect your own solar battery to its DC terminals. It then monitors that battery’s health remotely (voltage and current, reported via Hik-Connect and Hik-Partner Pro over its RS485 port) and can run a power-saving schedule. Port 1 delivers 90 W Hi-PoE; ports 3–4 also offer 24 V passive PoE for wireless bridges. Fanless IP30 aluminium, −40 to 75 °C, DIN-rail or wall mount. Supplied and supported by ARC IP Networks, an authorised Australian Hikvision reseller, with genuine stock, Australian warranty and local support.

No internal battery. The battery-backup function uses an external 12–24 V DC battery you supply; the switch keeps cameras powered through an outage and monitors the battery remotely.

Best for

  • Business networks: VLANs put cameras on their own segment.
  • Reliability: PoE watchdog reboots a frozen camera without a site visit.
  • Remote sites: manage and monitor from the Hik-Partner Pro cloud.
  • Loop protection: STP/RSTP guards against accidental cabling loops.

Who it’s for

Installers

Genuine AU stock, warranty, and the right PoE budget for the job.

Small business

A complete camera system on one switch.

Trade & industrial

Yards, workshops and sites that need rugged or Hi-PoE.

Multi-site operators

Remote management and monitoring where fitted.

How it compares

All Hikvision PoE switches share 300 m long-range transmission and 6 kV surge protection. The choice comes down to port count, gigabit vs Fast Ethernet, Hi-PoE, and managed vs unmanaged.

FeatureDS-3E1326P-EI(B)24-portDS-3E1526P-EI24-portDS-3T1512HP-SI-8P4F8-portDS-3T1506HP-EI-UPSThis switch
PoE ports242484
Port speedFast EthernetGigabitGigabitGigabit
PoE budget370 W total370 W totalup to 300 W120 W on 54 V DC, or 60 W on a 12–24 V battery input
Hi-PoE (90 W)YesYes
ManagementSmart managedSmart managedSmart managedSmart managed
PoE watchdogYesYesYesYes
Fibre SFPYesYesYesYes
Industrial (−40–75°C)YesYes
MountingRackRackDIN-railDIN-rail

PoE watchdog is available on the smart-managed (-EI) models only. Hi-PoE ports deliver up to 90 W (802.3bt).

Complete your system

Pair this switch with Hikvision or HiLook PoE cameras and an NVR for a complete system. Count each camera’s wattage against the PoE budget, and leave a port or two spare for growth.

Browse cameras →

Part of the Hikvision range

Authorised Australian Hikvision reseller — explore the range and guides:

RecordersCamerasBullet camerasWhere to buy

Frequently asked questions

It has a 120 W on 54 V DC, or 60 W on a 12–24 V battery input PoE budget. A typical HiLook or Hikvision turret draws about 6.5 W, so the budget comfortably runs its full complement of ports — roughly 4 standard cameras. High-draw cameras (PTZ, heated housings) use more, so count their wattage against the budget rather than the port count.

Yes. Port 1: up to 90 W Hi-PoE; ports 2–4: up to 30 W. The 802.3bt Hi-PoE ports supply up to 90 W, enough for pan-tilt-zoom cameras, heated housings and other high-draw devices that standard 30 W PoE cannot run.

A camera occasionally locks up and stops sending video while still drawing power. The PoE watchdog detects this and power-cycles that port automatically to reboot the camera — so a frozen camera fixes itself instead of needing a site visit.

Managed switches let you separate cameras onto their own VLAN (away from the office network), protect against cabling loops, prioritise video traffic and monitor the switch remotely. For a simple standalone camera system an unmanaged switch is fine; for a business network, or where the cameras share infrastructure with other systems, managed is worth it. This model is managed from a web page or the Hik-Partner Pro cloud.

Standard Ethernet stops at 100 m. In long-range mode this switch can power and connect a camera up to 300 m away over a single cable run — useful for a far gate or car park. Hikvision notes the reach varies with the camera model and cable condition.

In places a standard switch would fail — roadside cabinets, factory floors, unheated plant rooms, exposed poles. Its fanless metal body runs −40 to 75 °C with no moving parts, and it mounts on a DIN rail alongside other industrial equipment.

No. The “UPS” means it runs from an external battery you supply — connect a 12–24 V DC solar or backup battery to its DC terminals and it keeps the cameras powered through a mains or solar outage. It monitors that battery’s health remotely, but there is no battery inside the unit.

Yes. It is a standard PoE switch and works with any IEEE 802.3af/at/bt powered camera — Hikvision, HiLook or third-party — and connects to any NVR or network over its uplink or fibre SFP ports.

Yes — it is RCM approved to AS/NZS CISPR 32:2015, supplied as genuine Australian stock with warranty and support from ARC IP Networks.
