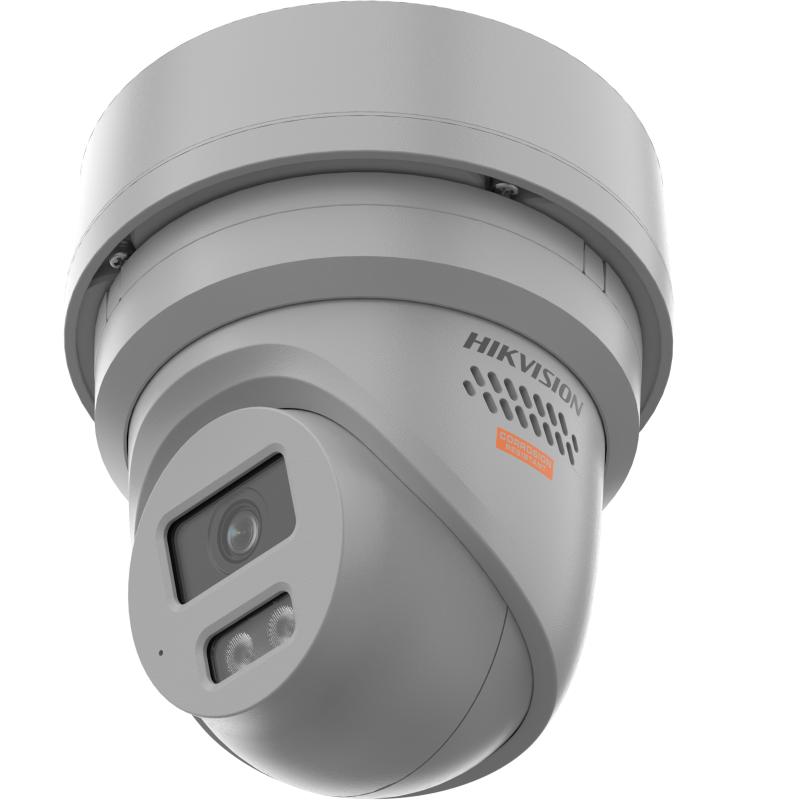

Hikvision DS-2XC3386G0H-LISU/SL (PA) 8 MP Polymer Anti-Corrosion AcuSense Fixed Turret Network Camera, 2.8 mm F1.0, Smart Hybrid Light, Strobe & Audio Alarm, IP68, NEMA 4X, C5

Price:

$ 531.61


Hikvision iDS-2CD7546G2-XZHSY DeepinView 4 MP PTRZ Motorised Varifocal Dome Network Camera, 2.8–12 mm, IR 40 m, NEMA 4X
Hikvision iDS-2CD7546G2-XZHSY DeepinView 4 MP PTRZ Motorised Varifocal Dome Network Camera, 2.8–12 mm, IR 40 m, NEMA 4X
$ 1,451.59
$ 1,451.59
Hikvision DS-1258ZJ-L-428CPY Polymer Anti-Corrosion Wall Mount Bracket for DS-2XC3386G0H / DS-2XC3346G0H (PA) Turret Cameras
Hikvision DS-1258ZJ-L-428CPY Polymer Anti-Corrosion Wall Mount Bracket for DS-2XC3386G0H / DS-2XC3346G0H (PA) Turret Cameras
$ 40.00
$ 40.00

Hikvision DS-2XC3386G0H-LISU/SL (PA) 8 MP Polymer Anti-Corrosion AcuSense Fixed Turret Network Camera, 2.8 mm F1.0, Smart Hybrid Light, Strobe & Audio Alarm, IP68, NEMA 4X, C5

https://arcip.com.au/web/image/product.template/11231/image_1920?unique=d825bc3
  • 8 MP (3840 × 2160), 2.8 mm F1.0 fixed lens
  • Polymer housing, top-level anti-corrosion: NEMA 4X + C5
  • Smart Hybrid Light: IR + white light up to 30 m
  • AcuSense human/vehicle classification, strobe + audio alarm, two-way audio
  • IP68, IK10, PoE 802.3af (max. 9.5 W) / 12 VDC

$ 531.61 531.61 AUD $ 531.61 incl. GST

Not Available For Sale


  • Brand
  • Network Connectivity
  • Night Vision
  • Resolution
  • Camera Type
  • Lens
  • Smart Features
  • Ingress Protection
  • Power
  • IR Range
  • Audio / Alarm

This combination does not exist.

In stock online
Hikvision IP Camera 8MP AcuSense Smart Hybrid Light Turret Active Deterrence Anti-Corrosion
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
DS-2XC3386G0H-LISU-SL-PA
Tags
DS-2XC3386G0H-LISU/SL (PA)
Hikvision DS-2XC3386G0H-LISU/SL (PA) – 8 MP Polymer Anti-Corrosion AcuSense Fixed Turret, 2.8 mm F1.0, Smart Hybrid Light, Strobe & Audio Alarm, IP68, IK10, NEMA 4X, C5
At a glance

The Hikvision DS-2XC3386G0H-LISU/SL (PA) is an 8 MP (4K) fixed turret built in a polymer anti-corrosion housing for coastlines, docks, chemical plants and other harsh sites. Hikvision rates it at its top level of anti-corrosion protection (NEMA 4X and C5). A 2.8 mm F1.0 lens and Smart Hybrid Light (IR + white light up to 30 m) give clear images day and night, AcuSense deep learning filters alarms to people and vehicles, and a built-in strobe light, speaker and microphone let it warn off intruders and support two-way audio.

Resolution
8 MP, 3840 × 2160
Lens
2.8 mm fixed, F1.0
Light
Smart Hybrid Light, up to 30 m
AI
AcuSense human/vehicle
Deterrence
Strobe light + audio alarm
Housing
Polymer, top-level anti-corrosion
Protection
IP68, IK10, NEMA 4X, C5
Power
PoE 802.3af / 12 VDC

Key features

  • Top-level anti-corrosion protection – a polymer body rated NEMA 4X (NEMA 250-2018) and C5, which Hikvision recommends for coastlines, docks, chemical plants and similar sites where professional anti-corrosion protection is a must.
  • 8 MP (4K) image quality – 3840 × 2160 from a 1/1.8″ progressive scan CMOS sensor, up to 20 fps (50 Hz) or 24 fps (60 Hz).
  • F1.0 aperture – colour down to 0.002 lux and black-and-white down to 0.0001 lux, with 0 lux when the supplement light is on.
  • Smart Hybrid Light – IR (850 nm) and white light with a range of up to 30 m, so you can record in black and white quietly or switch to colour when an event happens.
  • AcuSense deep learning – line crossing, intrusion, region entrance and region exiting with alarm triggering by specified target types (human and vehicle), which cuts nuisance alarms from leaves, rain and animals.
  • Active deterrence (/SL) – flashing white light and an audible warning through the built-in speaker to warn intruders off in real time.
  • Two-way audio – built-in microphone and speaker plus line-in and line-out terminals, with environment noise filtering.
  • 120 dB WDR – clear imaging against strong backlight such as open roller doors, glass entrances and headlights.
  • Extra analytics – face capture, people counting, queue management, heat map, regional people counting and on/off duty detection.
  • IP68 and IK10 – dust tight, protected against continuous immersion and vandal resistant, with an operating range of −30 °C to 60 °C.
  • Low power – IEEE 802.3af PoE (Class 3, max. 9.5 W) or 12 VDC (max. 9 W), so a standard PoE switch or NVR port is enough.

Specifications

Camera
Image sensor1/1.8″ progressive scan CMOS
Max. resolution3840 × 2160
Min. illuminationColour: 0.002 lux @ (F1.0, AGC ON), 0 lux with light; B/W: 0.0001 lux @ (F1.0, AGC ON), 0 lux with IR
Shutter time1/3 s to 1/100,000 s
Day & nightIR cut filter
Lens (this product: 2.8 mm)
Lens typeFixed focal lens, 2.8 mm
Field of viewHorizontal 108.8°, vertical 56.4°, diagonal 134.3°
ApertureF1.0, fixed iris
Lens mountM16
Depth of field3.3 m to ∞
DORI (2.8 mm)Detect 89.2 m, Observe 35.4 m, Recognise 17.8 m, Identify 8.9 m
Illuminator
Supplement light typeIR, white light
Supplement light rangeUp to 30 m
IR wavelength850 nm
Flashing lightWhite light
Video
Main stream50 Hz: 20 fps; 60 Hz: 24 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-stream50 Hz: 20 fps (704 × 576, 640 × 480); 60 Hz: 24 fps (704 × 480, 640 × 480)
Third / fourth stream10 fps, up to 1920 × 1080 / 1280 × 720
Video compressionMain: H.264/H.264+/H.265/H.265+; sub: H.265/H.264/MJPEG
Video bit rate32 Kbps to 16 Mbps
ROI5 fixed regions for main stream
Target croppingYes
Audio
Audio typeMono
Audio compressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Sampling rate8/16/32/48 kHz
Environment noise filteringYes
Smart Functions
Perimeter protectionLine crossing, intrusion, region entrance, region exiting; alarm triggering by target type (human and vehicle)
Face captureDetects up to 10 faces simultaneously
Other analyticsPeople counting, queue management, heat map, regional people counting, on/off duty detection
Smart eventsUnattended baggage, object removal, scene change, audio exception, defocus detection
Basic eventsMotion detection (human/vehicle), video tampering, exceptions, alarm in/out
LinkageNotify surveillance centre, email, alarm output, recording, audible warning, white light flashing
Network & Interface
Ethernet1 × RJ45 10/100 Mbps
APIONVIF (Profile S, G, T), ISAPI, SDK, ISUP
Simultaneous live viewUp to 20 channels
Network storageNAS (NFS, SMB/CIFS), ANR
ClientsiVMS-4200, Hik-Connect, HikCentral
Audio1 built-in microphone, 1 built-in speaker, 1 line in, 1 line out
Alarm1 input, 1 output (max. 24 VDC, 1 A)
SecurityHTTPS, 802.1X, TLS 1.2, TPM 2.0 (FIPS 140-2 level 2), IP filter, watermark
General
Power12 VDC ±25%, 0.75 A, max. 9 W (reverse polarity protection); PoE IEEE 802.3af Class 3, max. 9.5 W
MaterialPolymer

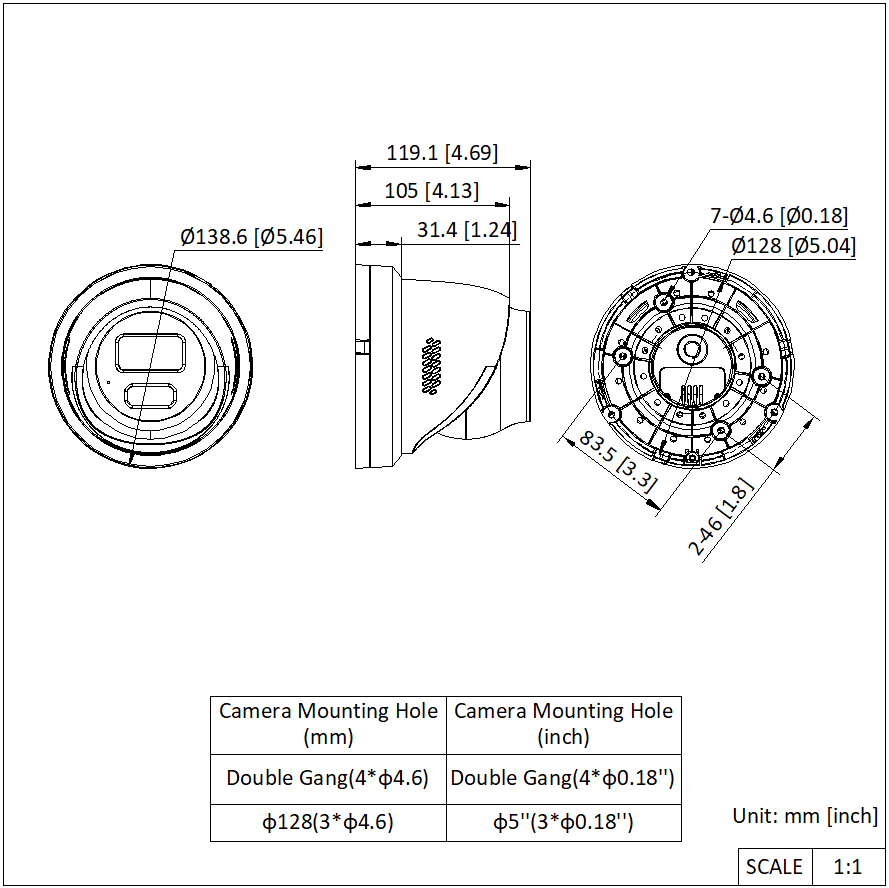

Dimensions138.63 × 138.63 × 132.74 mm
WeightApprox. 670 g
Operating conditions−30 °C to 60 °C, humidity 95% or less (non-condensing)
ProtectionIP68 (IEC 60529-2013), IK10 (IEC 62262:2002)
Anti-corrosionNEMA 4X (NEMA 250-2018), C5 – top-level protection
ApprovalsCE, RCM (AS/NZS CISPR 32), CB

Specifications are from Hikvision’s official product page and datasheet for the DS-2XC3386G0H-LISU/SL (PA). Values shown are for the 2.8 mm model.

Best for

  • Coastal properties, marinas, ports and docks exposed to salt spray.
  • Chemical plants, wastewater treatment sites and industrial areas with corrosive air.
  • Car parks and perimeters that need 4K detail with colour evidence at night.
  • Sites that want the camera to warn intruders off with strobe light and audio, not just record them.
  • Projects where an existing 802.3af PoE switch or NVR must power the camera.

Who it’s for

Security installers

A drop-in 4K turret for harsh sites, powered from a standard PoE port.

Marine & port operators

Polymer housing with NEMA 4X and C5 ratings for salt-laden air.

Industrial facilities

Top-level anti-corrosion protection for chemical and processing plants.

Councils & utilities

ONVIF Profile S/G/T for integration with existing video management systems.

Monitoring centres

AcuSense human/vehicle filtering and two-way audio for talk-down.

Property managers

Visible deterrence with strobe light and audible warning.

Anti-Corrosion Turret FAQ – DS-2XC3386G0H-LISU/SL (PA)

It is an 8 MP polymer anti-corrosion fixed turret camera with a 2.8 mm F1.0 lens, Smart Hybrid Light up to 30 m, AcuSense human/vehicle classification and a built-in strobe light and audio alarm. It is designed for corrosive environments such as coastlines, docks and chemical plants.

Hikvision rates this model at its top level of anti-corrosion protection. The polymer body carries NEMA 4X (NEMA 250-2018) and C5 ratings, and Hikvision lists coastlines, docks and chemical plants as typical applications for this level.

The (PA) version uses a polymer housing. Hikvision describes it as a polymer 8 MP anti-corrosion fixed turret; the body material in the datasheet is polymer rather than metal.

Smart Hybrid Light provides IR and white light with a range of up to 30 m. With the 2.8 mm lens the DORI distances are detect 89.2 m, observe 35.4 m, recognise 17.8 m and identify 8.9 m.

Yes. It uses IEEE 802.3af PoE (Class 3, max. 9.5 W), so a standard PoE port is enough. It can also run on 12 VDC (max. 9 W).

Yes. The /SL model has a flashing white light and a built-in speaker for audible warnings, plus a built-in microphone for two-way audio. Line-in and line-out terminals connect external audio devices.

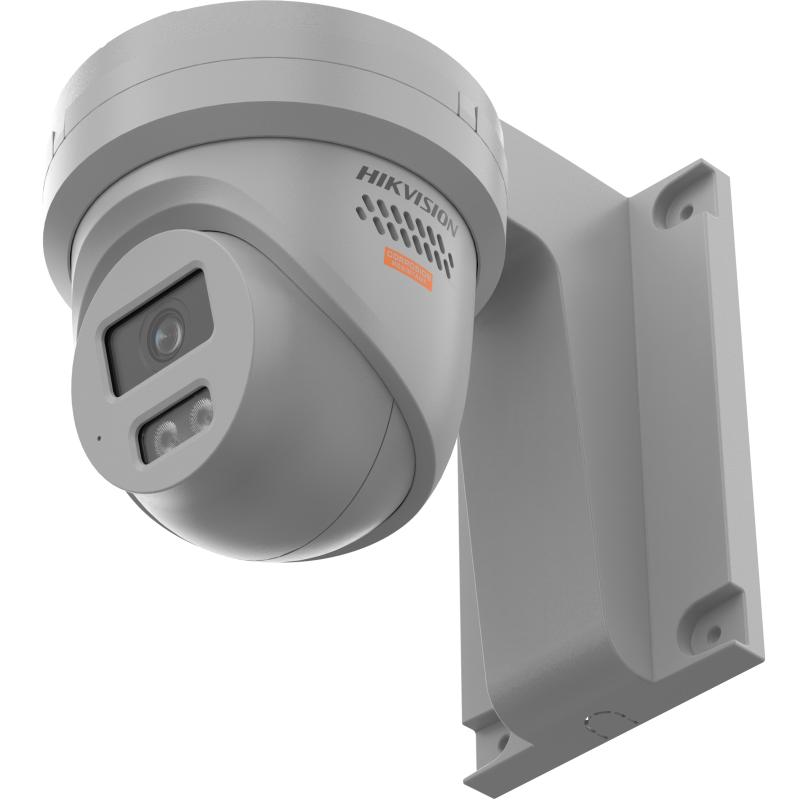

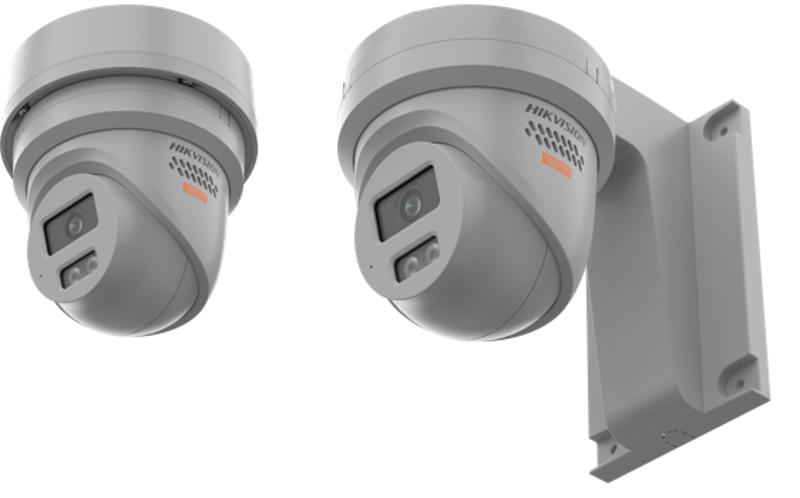

Hikvision lists the DS-1258ZJ-L-428CPY polymer anti-corrosion wall bracket as a matching accessory for the DS-2XC3386G0H-LISU/SL (PA), so the bracket and camera share the same corrosion-resistant material.

Professional overview

The Hikvision DS-2XC3386G0H-LISU/SL (PA) is an 8 MP fixed turret camera from Hikvision’s Explosion-Proof and Anti-Corrosion Series. It pairs a 1/1.8″ progressive scan CMOS sensor with a 2.8 mm F1.0 lens, producing a 3840 × 2160 image with a 108.8° horizontal field of view. It is built for places where ordinary cameras corrode quickly: shorelines, marinas, ports, docks, chemical and processing plants, and wastewater sites.

The housing is polymer and is rated NEMA 4X (NEMA 250-2018) and C5, which Hikvision classes as top-level anti-corrosion protection. It is also rated IP68 for dust and water and IK10 for impact, and operates from −30 °C to 60 °C. Power is either IEEE 802.3af PoE (Class 3, max. 9.5 W) or 12 VDC (max. 9 W), so the camera works with standard PoE switches and NVRs.

Smart Hybrid Light combines 850 nm IR and white light with a range of up to 30 m. The F1.0 aperture keeps colour down to 0.002 lux, and 120 dB WDR handles strong backlight. AcuSense deep learning drives line crossing, intrusion, region entrance and region exiting rules with alarm triggering by human and vehicle target types, and the camera adds face capture, people counting, queue management and heat map functions.

When a rule triggers, the /SL model can flash its white light and play an audible warning through the built-in speaker, and the built-in microphone supports two-way audio for talk-down. The camera supports ONVIF Profile S, G and T, ISAPI, Hik-Connect and HikCentral, and pairs with the DS-1258ZJ-L-428CPY polymer anti-corrosion wall bracket. It comes with the full Hikvision manufacturer’s warranty. Australian stock from ARC IP Networks.

Brand Hikvision
Network Connectivity Wired
Night Vision Smart Hybrid Light (IR + White Light)
Resolution 8 MP
Camera Type Turret
Lens 2.8 mm fixed
Smart Features AcuSense Human/Vehicle Classification + Strobe & Audio Alarm
Ingress Protection IP68, IK10, NEMA 4X, C5
Power PoE (802.3af) / 12 VDC
IR Range Up to 30 m (Smart Hybrid Light)
Audio / Alarm Mic + speaker + audio in/out + 1/1 alarm I/O
DS-2XC3386G0H-LISU_SL-PA_Datasheet.pdf
