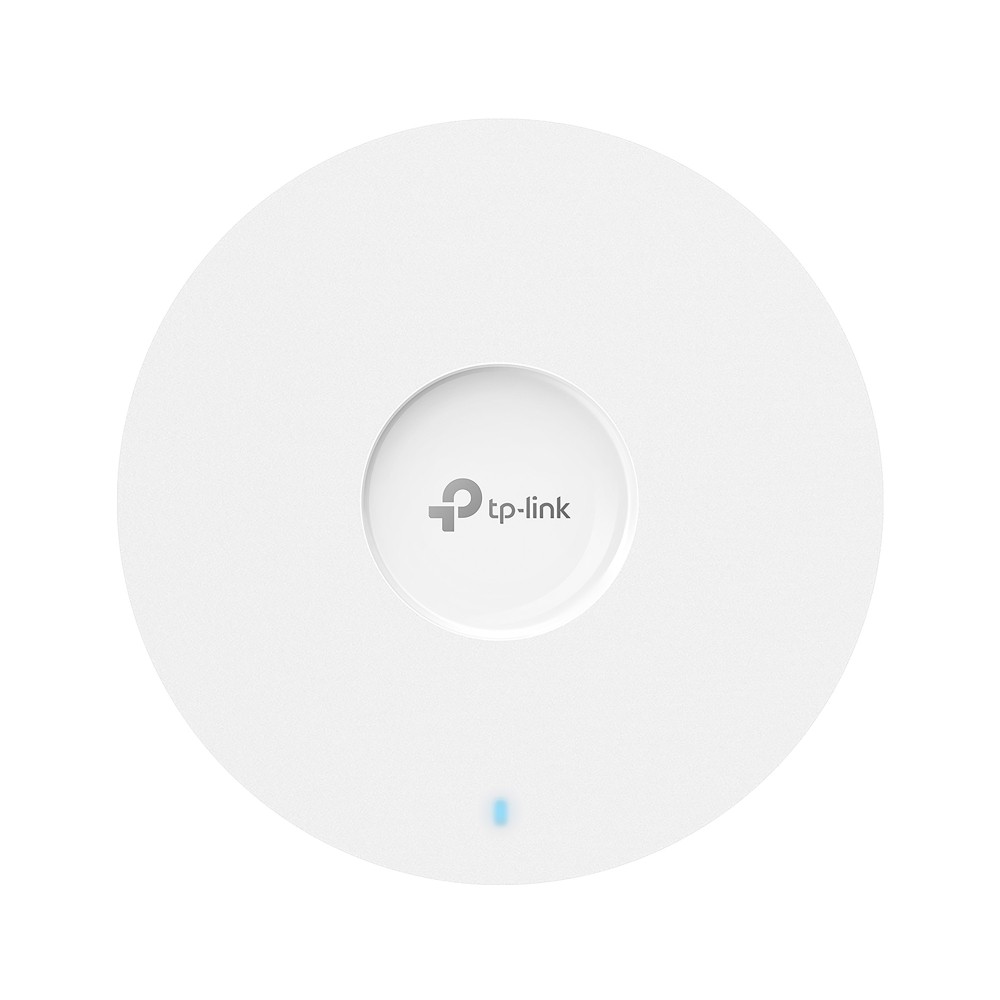

TP-Link EAP683 UR Omada AX6000 Wi-Fi 6 Ultra-Range Dual-Band Ceiling Access Point

Price:

$ 437.54


Yealink BH76-P-CH-UC-C/A BH76 Plus Bluetooth Headset with Wireless Charging Stand – Hybrid Noise Cancellation, 5 Mics, Bluetooth 5.3
Yealink BH76-P-CH-UC-C/A BH76 Plus Bluetooth Headset with Wireless Charging Stand – Hybrid Noise Cancellation, 5 Mics, Bluetooth 5.3
$ 307.43
$ 332.00 (7% OFF)
TP-Link TL-SG1016 16-Port Gigabit Rackmount Switch
TP-Link TL-SG1016 16-Port Gigabit Rackmount Switch
$ 149.17
$ 149.17

TP-Link EAP683 UR Omada AX6000 Wi-Fi 6 Ultra-Range Dual-Band Ceiling Access Point

https://arcip.com.au/web/image/product.template/8076/image_1920?unique=874d354

The TP-Link EAP683 UR is an Omada AX6000 dual-band ceiling mount Wi-Fi 6 access point in TP-Link's ultra-range series. Its 4x4 MIMO dual-band internal antennas with high transmission power provide robust, extensive coverage of up to 185 square metres, and the radios reach up to 4804 Mbps on 5 GHz with HE160 (160 MHz) channels and 1148 Mbps on 2.4 GHz, supporting 510+ concurrent clients. A 2.5 Gbps PoE+ port provides the multi-gigabit uplink and accepts 802.3at PoE, with 12 V / 2 A DC as an alternative (adapter not included). It offers up to 16 SSIDs, captive portal, band steering and airtime fairness, and is managed through OC200, OC300, software or cloud-based Omada controllers.

$ 437.54 437.54 AUD $ 437.54 incl. GST

Not Available For Sale


  • Brand
  • WiFi Standard

This combination does not exist.

WiFi 6 Access Point TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
EAP683 UR
Barcode
8885020621938
Tags

The TP-Link EAP683 UR is an Omada AX6000 ultra-range Wi-Fi 6 ceiling mount access point with 4x4 radios on both bands: up to 4804 Mbps on 5 GHz using 160 MHz channels and up to 1148 Mbps on 2.4 GHz. TP-Link lists 185 square metres of coverage and 510+ concurrent clients. It has one 2.5 Gbps PoE+ port (802.3at) with a 12 V / 2 A DC option (adapter not included), Bluetooth, and Omada SDN with mesh and seamless roaming.

EAP683 UR overview

The EAP683 UR is TP-Link's Omada AX6000 ceiling mount Wi-Fi 6 access point, the most powerful dual-band model in this group of Omada ceiling APs. It supports IEEE 802.11ax/ac/n/g/b/a on 2.4 GHz and 5 GHz, with signal rates of up to 4804 Mbps on 5 GHz and up to 1148 Mbps on 2.4 GHz. The 5 GHz radio supports HE160 160 MHz channels, which together with four spatial streams is how it reaches the 4804 Mbps figure. TP-Link notes that maximum wireless signal rates are physical rates from the IEEE 802.11 specifications, and that actual throughput, coverage and number of connected devices will vary.

UR stands for ultra-range. TP-Link describes the antenna design as 4x4 MIMO dual-band internal antennas with high transmission power that offer robust and extensive wireless coverage. The internal omni antennas are rated at 4 x 4 dBi on 2.4 GHz and 4 x 5 dBi on 5 GHz. TP-Link lists coverage of up to 185 square metres (2,000 sq ft) and 510+ concurrent clients, both based on laboratory testing. Wi-Fi 6 features include 1024-QAM, the 4x longer OFDM symbol, OFDMA, MU-MIMO and beamforming, plus band steering, load balance and airtime fairness to spread clients efficiently across the two bands.

The wired uplink is one 2.5 Gbps PoE+ port, so the access point is not limited to Gigabit backhaul when it is connected to a 2.5G switch port. It is powered by 802.3at PoE, or by 12 V / 2 A DC; the power adapter is not included, so most installs will use an 802.3at PoE+ switch or injector. Maximum power consumption is 20.43 W (EU) or 23.69 W (US). The housing measures 220 x 220 x 32.5 mm, and ceiling and wall mounting kits are included. Bluetooth is listed as supported. It is rated for 0 to 40 °C operation with 10 to 90% non-condensing humidity, and carries CE and FCC certification.

Wireless functions include up to 16 SSIDs (eight per band), automatic channel assignment, transmit power control, WMM QoS, rate limits, reboot and wireless schedules, and statistics by SSID, AP or client. Security covers captive portal authentication, access control, wireless MAC filtering, client isolation, SSID-to-VLAN mapping, rogue AP detection, 802.1X and WPA, WPA2 and WPA3 Personal/Enterprise. Captive portal authentication, Omada mesh and seamless roaming are features that work with an Omada controller.

For management, the EAP683 UR offers HTTP/HTTPS web management, SSH, SNMP v1/v2c/v3, local and remote syslog, L3 and multi-site management, a management VLAN, management MAC access control and LED on/off control. TP-Link lists centralised management through the Omada OC300 and OC200 hardware controllers, the Omada Software Controller and the Omada Cloud-Based Controller, plus the Omada app. Cloud access requires one of those controllers, and zero-touch provisioning requires the Omada Cloud-Based Controller. In the box are the EAP683 UR, ceiling/wall mounting kits and an installation guide.

Key features

AX6000 Wi-Fi 6

Up to 4804 Mbps on 5 GHz and 1148 Mbps on 2.4 GHz.

4x4 on both bands

4x4 MIMO dual-band internal antennas with high transmission power.

160 MHz channels

HE160 on 5 GHz, with OFDMA, MU-MIMO and 1024-QAM.

Ultra-range coverage

Up to 185 square metres (2,000 sq ft), based on laboratory testing.

510+ concurrent clients

Listed by TP-Link for busy offices and venues.

2.5G PoE+ port

One 2.5 Gbps port powered by 802.3at PoE; 12 V / 2 A DC option (adapter not included).

Bluetooth

Bluetooth support built in.

Omada SDN

OC200, OC300, software or cloud-based controller management with mesh and roaming.

EAP683 UR specifications

At a glance

AX6000 Wi-Fi 6
4804 + 1148 Mbps
4x4 + 4x4 streams
160 MHz (HE160)
1 x 2.5G PoE+ port
510+ clients
Up to 185 m²
Omada SDN
EAP683 UR full specifications
Hardware Features
Interface1× 2.5 Gigabit PoE+ Port
ButtonReset
Power Supply802.3at PoE; 12 V / 2 A DC Note:Power adapter is not included.
Max. Power ConsumptionEU: 20.43W; US: 23.69W
Dimensions ( W x D x H )8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
AntennaInternal Omni; 2.4 GHz: 4× 4 dBi; 5 GHz: 4× 5 dBi
BluetoothYes
MountingCeiling /Wall Mounting (Kits included)
Management Features
Omada AppYes
Centralised ManagementOmada Hardware Controller (OC300); Omada Hardware Controller (OC200); Omada Software Controller; Omada Cloud-Based Controller
Cloud AccessYes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email AlertsYes
LED ON/OFF ControlYes
Management MAC Access ControlYes
SNMPv1, v2c, v3
System Logging Local/Remote SyslogLocal/Remote Syslog
SSHYes
Web-based ManagementHTTP/HTTPS
L3 ManagementYes
Multi-site ManagementYes
Management VLANYes
Zero-Touch ProvisioningYes. Require the use of Omada Cloud-Based Controller.
Wireless Features
Coverage185㎡(2000ft²)
Concurrent Clients510+
Wireless StandardsIEEE 802.11ax/ac/n/g/b/a
Frequency2.4 GHz and 5 GHz
Signal Rate5 GHz: Up to 4804 Mbps; 2.4 GHz: Up to 1148 Mbps
Wireless Functions1024-QAM; 4× Longer OFDM Symbol; OFDMA; Multiple SSIDs (Up to 16 SSIDs, 8 for each band); Enable/Disable Wireless Radio; Automatic Channel Assignment; Transmit Power Control (Adjust Transmit Power on dBm); QoS(WMM); MU-MIMO; HE160 (160 MHz Bandwidth); Seamless Roaming; Omada Mesh; Band Steering; Load Balance; Airtime Fairness; Beamforming; Rate Limit; Reboot Schedule; Wireless Schedule; Wireless Statistics based on SSID/AP/Client
Wireless SecurityCaptive Portal Authentication; Access Control; Wireless Mac Address Filtering; Wireless Isolation Between Clients; SSID to VLAN Mapping; Rogue AP Detection; 802.1X Support; WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission PowerCE:; FCC:
Others
CertificationCE, FCC
System RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
EnvironmentOperating Temperature: 0–40 ℃ (32–104 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • EAP683 UR
  • Ceiling/Wall Mounting Kits
  • Installation Guide

Source: TP-Link's published package contents.

Who the EAP683 UR is for

Multi-gigabit Wi-Fi 6

  • 4804 Mbps on 5 GHz
  • 2.5G PoE+ uplink
  • 160 MHz channels

Large open floors

  • Ultra-range 4x4 antennas
  • Up to 185 m² per AP (lab tested)
  • Band steering and airtime fairness

Omada-managed networks

  • OC200, OC300, software or cloud controller
  • Mesh and seamless roaming
  • Zero-touch provisioning

Buy the EAP683 UR from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the EAP683 UR from the ARC IP Networks team.

Last reviewed October 2026.

It is an AX6000 Wi-Fi 6 access point with up to 4804 Mbps on 5 GHz using 160 MHz channels and up to 1148 Mbps on 2.4 GHz. These are maximum physical rates; actual throughput varies.

Ultra-range. It uses 4x4 MIMO dual-band internal antennas with high transmission power for extended coverage, which TP-Link lists as up to 185 square metres (2,000 sq ft).

One 2.5 Gbps PoE+ port. Connect it to a 2.5G switch port to use the full uplink speed.

By 802.3at PoE+, or by a 12 V / 2 A DC adapter, which is not included. Maximum consumption is 20.43 W (EU) or 23.69 W (US).

TP-Link lists 510+ concurrent clients. Actual capacity depends on the wireless environment and client traffic.

Wi-Fi 6 (IEEE 802.11ax), dual band on 2.4 GHz and 5 GHz.

Yes, Omada mesh and seamless roaming are supported with an Omada controller.

TP-Link lists the Omada OC300 and OC200 hardware controllers, the Omada Software Controller and the Omada Cloud-Based Controller. Zero-touch provisioning needs the Cloud-Based Controller.

The EAP683 UR, ceiling/wall mounting kits and an installation guide.
