Hikvision DS-2CD6944G1-IHSUY PanoVu 16 MP 180° Panoramic Multi-Sensor Network Camera, 4 × 2.8 mm, IR 20 m, Heater, NEMA 4X

https://arcip.com.au/web/image/product.template/11228/image_1920?unique=d825bc3
  • 16 MP (4800 × 2688) 180° spliced panorama, 185° × 110°
  • Four 2.8 mm F1.0 lenses, DarkFighter, IR up to 20 m
  • Up to 60 fps, remote motorised pan/tilt
  • Human/vehicle perimeter protection, people density
  • Heater (−40 °C), IP67, IK10, NEMA 4X, PoE 802.3at

$ 4,045.10 4045.1 AUD $ 4,045.10 incl. GST

Not Available For Sale


  • Brand
  • Network Connectivity
  • Night Vision
  • Resolution
  • Camera Type
  • Lens
  • Smart Features
  • Ingress Protection
  • Power
  • IR Range
  • Audio / Alarm

This combination does not exist.

In stock online
Panoramic Hikvision IP Camera DarkFighter 16MP PanoVu
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
DS-2CD6944G1-IHSUY
Tags
DS-2CD6944G1-IHSUY (2.8 mm)

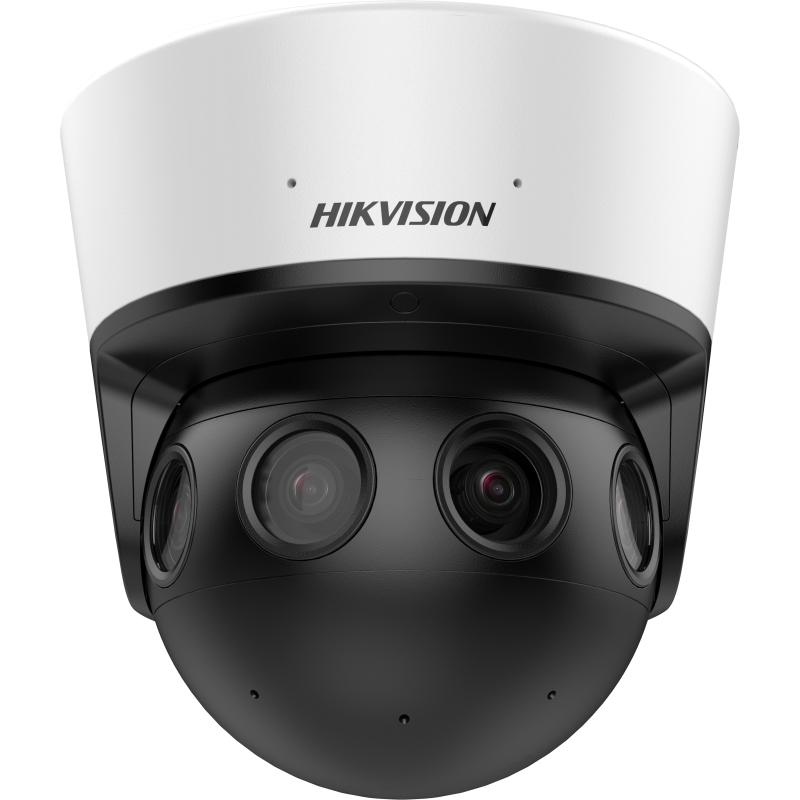

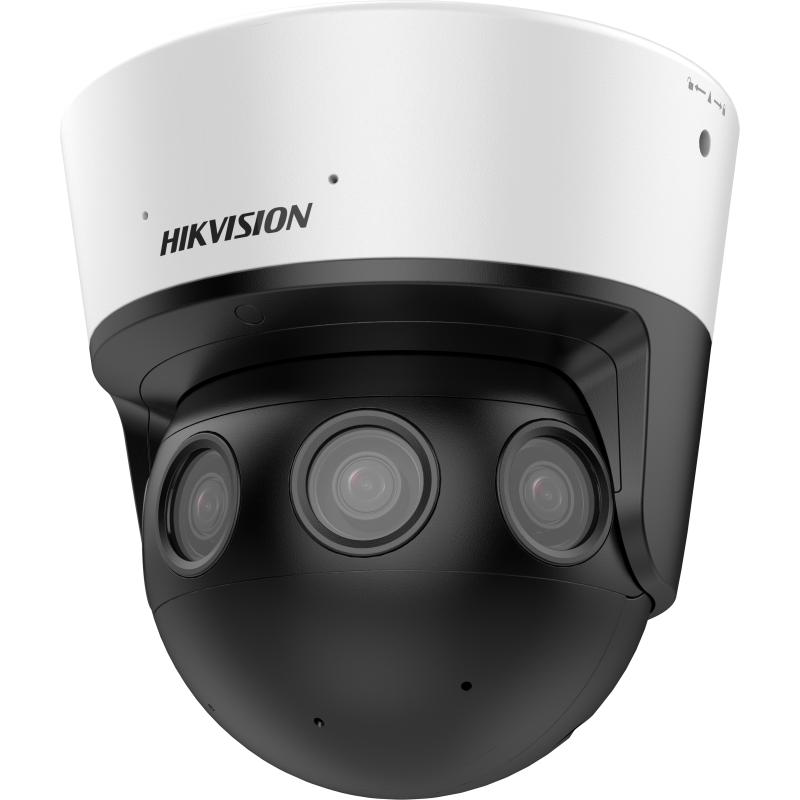

Hikvision DS-2CD6944G1-IHSUY – 16 MP PanoVu 180° Panoramic Multi-Sensor Camera, 4 × 2.8 mm F1.0, IR 20 m, Heater, IP67, IK10, NEMA 4X
At a glance

The Hikvision DS-2CD6944G1-IHSUY is a 16 MP PanoVu panoramic camera with four 2.8 mm F1.0 lenses that are spliced into one seamless 180° image (185° × 110° panorama) at 4800 × 2688. It replaces several fixed cameras on large open areas such as car parks, plazas, stadium concourses, logistics yards and transport hubs. DarkFighter keeps colour detail in dim light, remote motorised pan and tilt makes aiming easy, and a heater, IP67, IK10 and NEMA 4X protection let it run from −40 °C.

Resolution
16 MP, 4800 × 2688
Coverage
180° spliced (185° × 110°)
Lenses
4 × 2.8 mm, F1.0
IR range
Up to 20 m
Frame rate
Up to 60 fps panorama
AI
Perimeter + people density
Protection
IP67, IK10, NEMA 4X
Power
PoE 802.3at / 12 VDC / 24 VAC

Key features

  • 180° spliced panorama – four lenses combined into a single 4800 × 2688 image covering 185° horizontally and 110° vertically, showing the full panoramic view covered by the camera.
  • 16 MP for video walls – high resolution so more detail is visible when the panorama is shown large or digitally zoomed.
  • Smooth high frame rate – up to 50 fps (50 Hz) or 60 fps (60 Hz) in panorama mode at full resolution.
  • DarkFighter low light – F1.0 lenses with colour down to 0.002 lux and black and white down to 0.0005 lux, plus four 850 nm IR LEDs reaching up to 20 m.
  • Remote motorised pan and tilt – aim the camera after installation (pan 0° to 340°, tilt 0° to 90°).
  • Deep-learning perimeter protection – line crossing, intrusion, region entrance and region exiting filtered to humans and/or vehicles.
  • People density detection – in panorama mode, monitor crowding across the whole scene.
  • Built-in heater – ultra-low-temperature start-up to −40 °C.
  • Rugged and corrosion resistant – IP67, IK10 and NEMA 4X anti-corrosion protection.
  • Rich interfaces – Gigabit Ethernet, 2 built-in microphones, audio in/out, 2 alarm inputs and 2 outputs, RS-485 and microSD up to 1 TB.

Specifications

Camera
Image sensor1/1.8″ progressive scan CMOS
Max. resolution4800 × 2688
Min. illuminationColour: 0.002 lux @ (F1.0, AGC ON); B/W: 0.0005 lux @ (F1.0, AGC ON)
Shutter time1/25 s to 1/100,000 s
Day & nightIR cut filter
Angle adjustmentPan 0° to 340°, tilt 0° to 90° (motorised)
WDRDigital WDR
SNR≥ 52 dB
Image enhancementBLC, HLC, 3D DNR, distortion correction, defog
Lens
Lens typeFixed focal, 2.8 mm, four lenses
Single-lens field of viewHorizontal 111.1°, vertical 57.6°, diagonal 138.5°
Panorama field of viewHorizontal 185°, vertical 110°
ApertureF1.0
Lens mountM16
DORI (2.8 mm)Detect 61.5 m, Observe 24.4 m, Recognise 12.3 m, Identify 6.2 m
Illuminator
Supplement light typeIR, four IR LEDs
Supplement light rangeUp to 20 m
IR wavelength850 nm
Video & Audio
Main stream (panorama)50 fps (50 Hz) / 60 fps (60 Hz) at 4800 × 2688
Main stream (original mode)50/60 fps at 2688 × 1520 down to 1280 × 720
Sub-streamPanorama: 25/30 fps at 1920 × 1080; original: 25/30 fps at 1280 × 720
Video compressionMain: H.265+/H.265/H.264+/H.264; sub: H.265/H.264/MJPEG
Video bit rate32 Kbps to 64 Mbps
ROI4 fixed regions per stream
Audio compressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Environment noise filteringYes
Smart Functions
Perimeter protectionLine crossing, intrusion, region entrance, region exiting; human/vehicle filter
People densityYes (panorama mode only)
Basic eventsMotion detection, alarm input/output, exceptions, audio exception detection
LinkageUpload to FTP/NAS/memory card, notify surveillance centre, email, alarm output, recording, capture, audible warning
Network & Interface
Ethernet1 × RJ45 10/100/1000 Mbps
APIONVIF (Profile S, G), ISAPI, SDK, ISUP
Simultaneous live viewUp to 4 channels
StoragemicroSD/SDHC/SDXC up to 1 TB; NAS (NFS, SMB/CIFS); ANR
Audio2 built-in microphones; 1 line in, 1 line out
Alarm2 inputs, 2 outputs (max. 12 VDC, 1 A)
RS-4851 (half duplex; HIKVISION, Pelco-P, Pelco-D)
SecurityTPM 2.0 (FIPS 140-2 level 2), TLS 1.2/1.3, AES128/256
General
Power12 VDC ±20%, max. 26.4 W; 24 VAC ±20%, max. 24 W; PoE IEEE 802.3at Class 4, max. 25 W
MaterialAluminium alloy and plastic

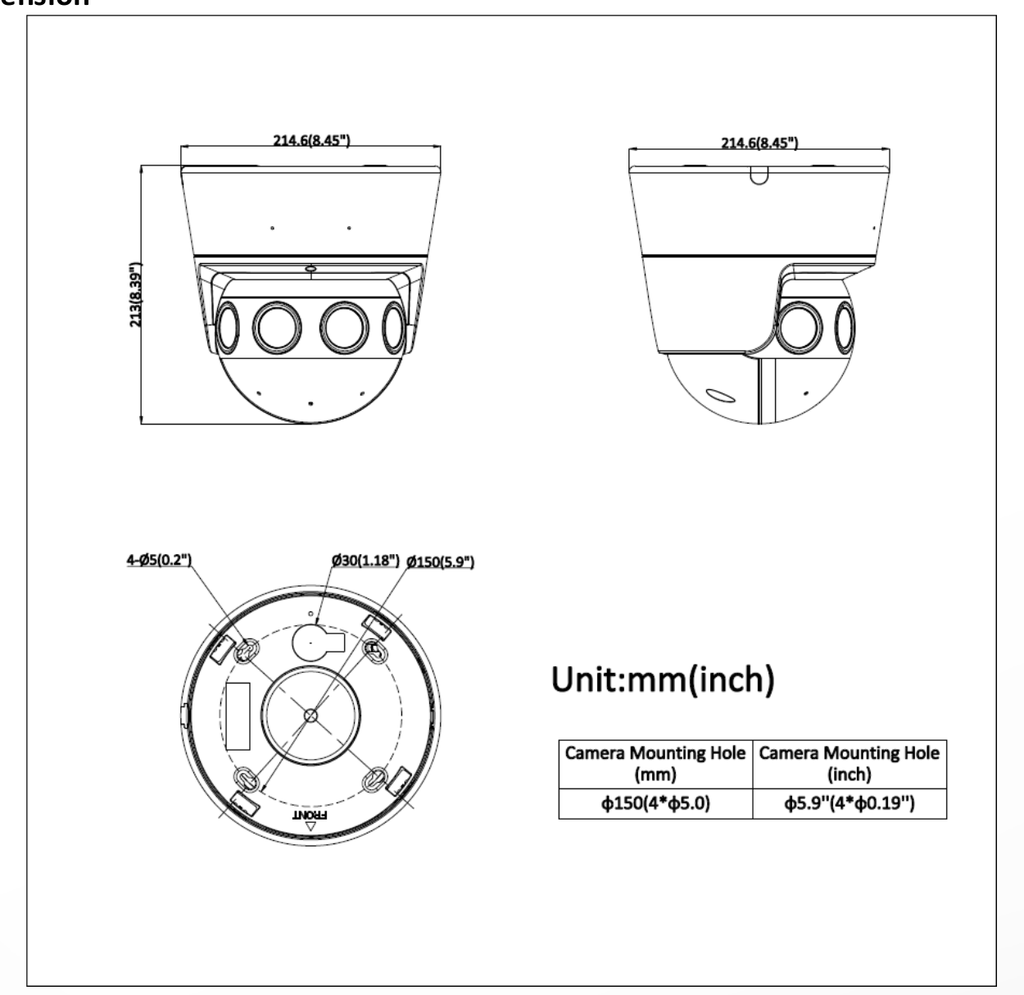

DimensionsØ 214.6 × 213 mm
WeightApprox. 4.2 kg
Operating conditions−40 °C to 60 °C, humidity 95% or less (non-condensing); heater built in
ProtectionIP67, IK10
Anti-corrosionNEMA 4X (NEMA 250-2018), moderate protection

Specifications are from Hikvision’s official Australian product page and datasheet for the DS-2CD6944G1-IHS(U)Y. This product is the -IHSUY (2.8 mm) model with built-in microphones.

Best for

  • Large car parks, plazas and forecourts where one camera can replace several fixed cameras.
  • Stadium concourses, transport hubs and event spaces that need crowd overview and people density monitoring.
  • Logistics yards and container areas that need continuous 180° coverage from a building corner or pole.
  • Video walls in control rooms, where 16 MP gives more usable detail per screen.
  • Cold, exposed or coastal sites, thanks to the heater, IP67, IK10 and NEMA 4X rating.

Who it’s for

Control rooms

A seamless 180° overview that operators can follow without switching cameras.

Councils & city safety

Monitor public spaces and crowd density with one device.

Security integrators

Fewer poles, cables and licences for wide-area coverage.

Transport & venues

Concourses, platforms and entry plazas in high resolution.

Logistics & ports

Corrosion-resistant panoramic coverage of yards and docks.

System designers

ONVIF Profile S/G, ISAPI, alarm I/O and RS-485 for integration.

PanoVu FAQ – DS-2CD6944G1-IHSUY

It is a 16 MP PanoVu 180° panoramic camera with four 2.8 mm F1.0 lenses spliced into one 4800 × 2688 image. It adds DarkFighter low light, IR up to 20 m, remote motorised pan and tilt, deep-learning perimeter protection and a heater for −40 °C operation.

The spliced panorama covers 185° horizontally and 110° vertically, so a single camera on a wall or corner can watch the whole space in front of it. Each lens alone covers 111.1° horizontally.

In panorama mode the main stream runs at up to 50 fps (50 Hz) or 60 fps (60 Hz) at 4800 × 2688, giving smooth video of moving people and vehicles.

Yes. Deep-learning perimeter protection supports line crossing, intrusion, region entrance and region exiting, with alarms limited to humans and/or vehicles. People density detection is also available in panorama mode.

It accepts PoE IEEE 802.3at (Class 4), max. 25 W, 12 VDC (max. 26.4 W) or 24 VAC (max. 24 W).

Yes. It has a built-in heater with start-up and operation from −40 °C to 60 °C, and is rated IP67, IK10 and NEMA 4X for moderate anti-corrosion protection.

Yes. The -U model has 2 built-in microphones, plus line-in and line-out terminals for external audio devices.

Professional overview

The Hikvision DS-2CD6944G1-IHSUY is a 16 MP PanoVu panoramic camera that uses four 2.8 mm lenses to create one seamless 180° image. The spliced panorama measures 4800 × 2688 and covers 185° horizontally by 110° vertically, presenting the full view covered by all four lenses in one image. It is built for large open spaces – car parks, plazas, stadium concourses, transport hubs, logistics yards and campus grounds – where several conventional cameras would otherwise be needed.

Each lens has an F1.0 aperture, and DarkFighter technology captures colour down to 0.002 lux, with black and white down to 0.0005 lux. Four 850 nm IR LEDs illuminate up to 20 m. The camera records the full panorama at up to 60 fps, and H.265+ compression with bit rates up to 64 Mbps preserves detail for control-room video walls. Remote motorised pan and tilt lets the installer fine-tune aiming after the camera is mounted.

Deep-learning perimeter protection classifies humans and vehicles for line crossing, intrusion, region entrance and region exiting rules, and people density detection in panorama mode helps operators spot crowding. Two built-in microphones, audio in/out, 2 alarm inputs and outputs, RS-485 and Gigabit Ethernet support integration with access control, sirens and VMS platforms. TPM 2.0 provides hardware-level security.

The housing is made from aluminium alloy and plastic, rated IP67 and IK10 with NEMA 4X anti-corrosion protection, and its built-in heater allows start-up from −40 °C. It runs on 802.3at PoE+, 12 VDC or 24 VAC and records locally to microSD up to 1 TB. It comes with the full Hikvision manufacturer’s warranty. Australian stock from ARC IP Networks.

Brand Hikvision
Network Connectivity Wired (RJ45 1000M)
Night Vision IR (DarkFighter)
Resolution 16 MP (4800 × 2688)
Camera Type Panoramic Multi-Sensor
Lens 4 × 2.8 mm fixed, 180° panorama
Smart Features Perimeter Protection (human/vehicle) + People Density
Ingress Protection IP67, IK10, NEMA 4X
Power PoE 802.3at / 12 VDC / 24 VAC
IR Range Up to 20 m
Audio / Alarm 2 mics + audio in/out + 2/2 alarm I/O + RS-485
DS-2CD6944G1-IHSUY_Datasheet.pdf
