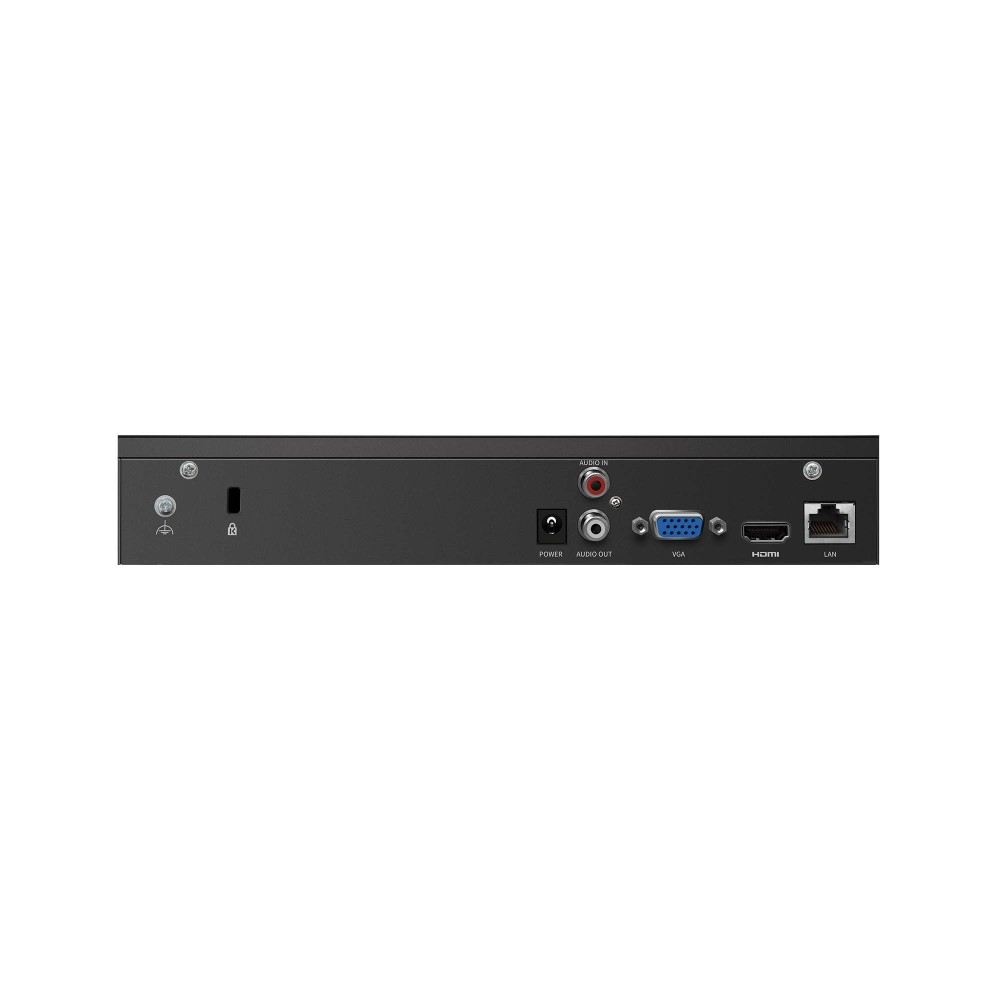

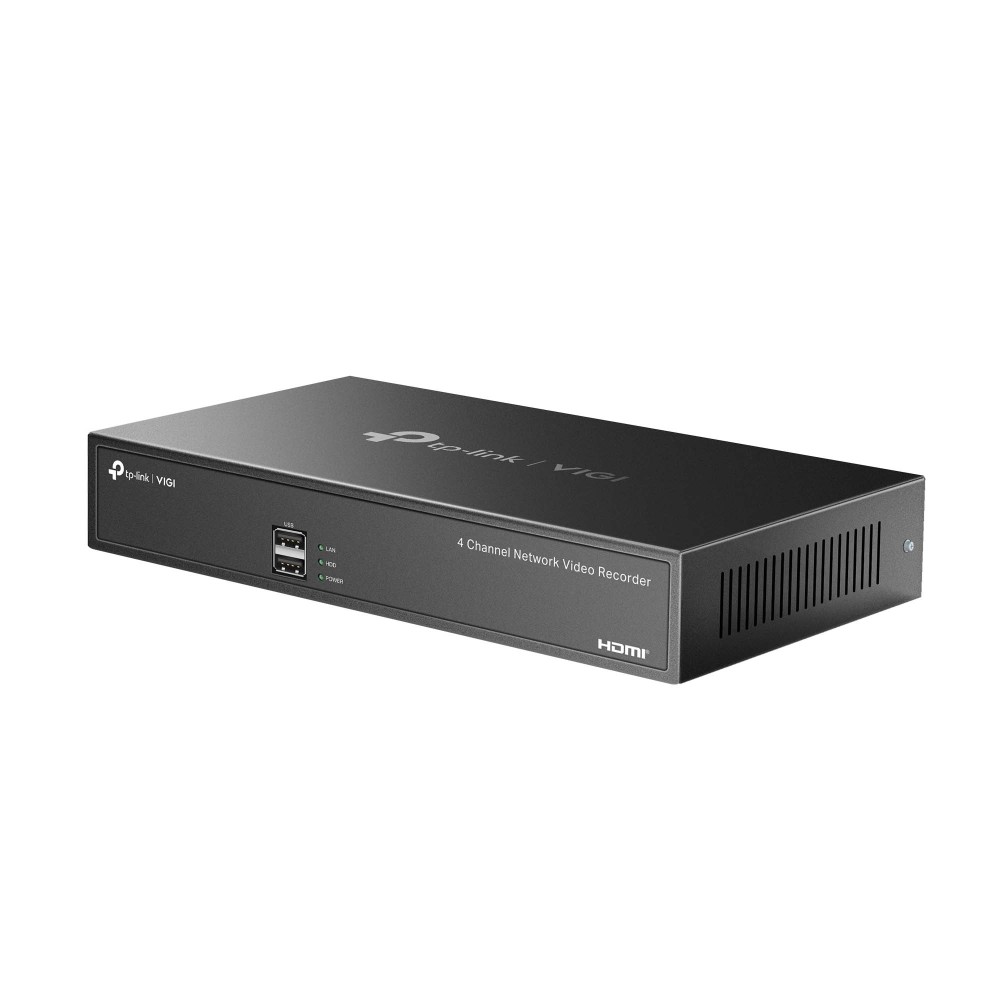

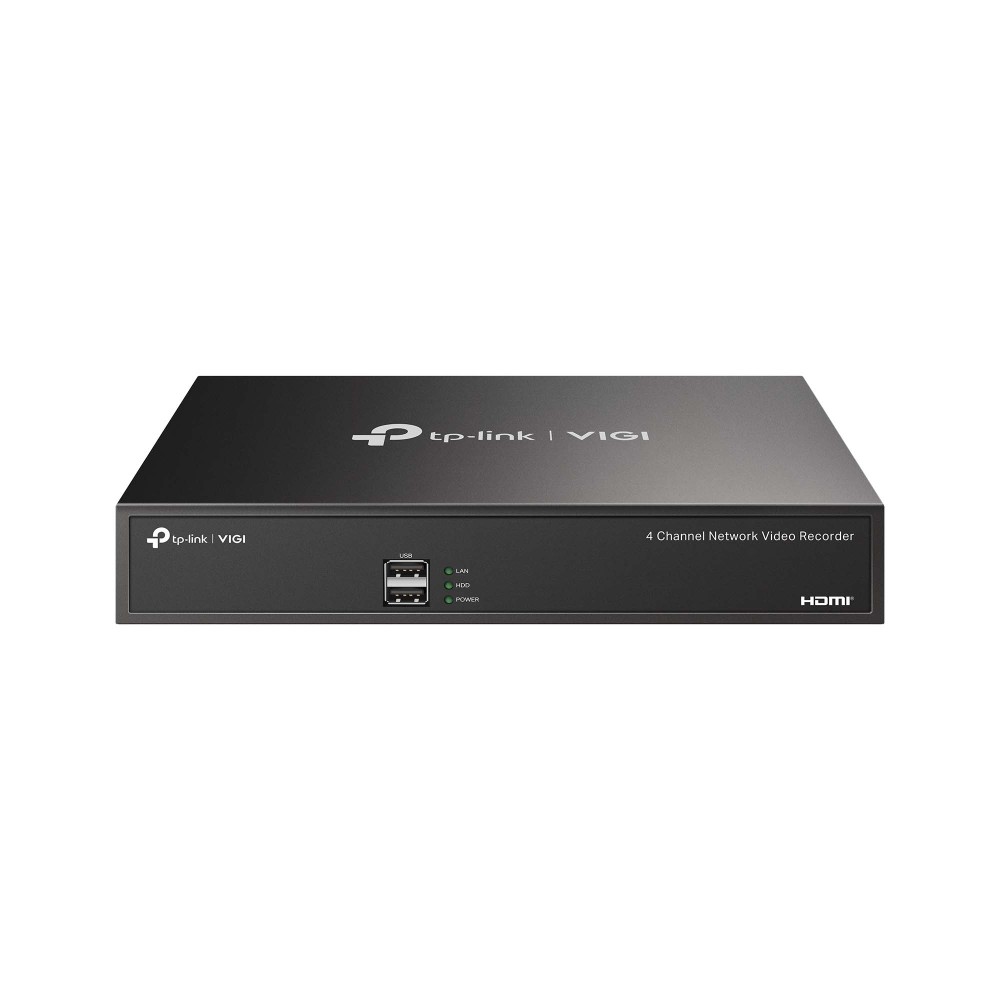

TP-Link VIGI NVR1004H 4 Channel Network Video Recorder

https://arcip.com.au/web/image/product.template/9315/image_1920?unique=d8838c4

The TP-Link VIGI NVR1004H is a compact 4-channel network video recorder with 80 Mbps incoming and 60 Mbps outgoing bandwidth. It records up to 8MP, plays back four channels synchronously, and stores footage on one SATA hard drive of up to 10 TB (hard drive not included). HDMI output reaches 3840 x 2160 at 30 Hz alongside a 1080p VGA output, and it has one 10/100 Mbps Ethernet port, two USB 2.0 ports and audio in and out. It has no PoE ports and runs from a 12 V DC adapter. Supplied by ARC IP Networks with the full manufacturer's warranty.

$ 143.97 143.97 AUD $ 143.97 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TL-NVR1004H
Barcode
8885020620412

The TP-Link VIGI NVR1004H is a 4-channel network video recorder without PoE ports: cameras connect through your own network or PoE switch to its single 10/100 Mbps Ethernet port. It has 80 Mbps incoming and 60 Mbps outgoing bandwidth, one SATA bay supporting a hard drive of up to 10 TB (drive not included), 4K HDMI and VGA outputs that work simultaneously, H.265+ compression and one-click Auto Initialise.

VIGI NVR1004H overview

The VIGI NVR1004H is a 4-channel recorder in TP-Link's VIGI network video recorder range, presented under the line "Security Never Shuts Down". It accepts four channels of IP video with 80 Mbps of incoming and 60 Mbps of outgoing bandwidth, and record resolutions run from 8MP, 5MP, 4MP and 3MP down through 1080p, UXGA, 720p, VGA and the CIF formats. TP-Link lists decoding capability at 25 fps as two channels at 8MP, four at 4MP or eight at 2MP, and at 30 fps as four channels at 3MP or two at 5MP. Up to four channels play back synchronously; TP-Link notes that fewer than four, or none, may play simultaneously if the total resolution exceeds 16MP.

Unlike the NVR1004H-4P and NVR1104H-4P, this model has no PoE ports. Its rear panel carries one RJ-45 10/100 Mbps self-adaptive Ethernet port, HDMI and VGA outputs, one audio input and one audio output, and a DC jack; there are two USB 2.0 ports. Cameras therefore connect through your existing network, with power supplied by a separate PoE switch or injectors. The recorder itself runs from a 12 V 1.5 A DC adapter and TP-Link lists maximum power consumption as 4.25 W without a disk. It measures 246.2 x 148.2 x 45 mm and weighs 0.59 kg (0.95 kg gross).

Storage is one SATA interface supporting a hard drive of up to 10 TB; TP-Link states the HDD is not included. Record modes are manual, scheduled and motion-detection recording, with instant, regular, tag and event playback, and regular or video clip backup. Playback controls include play, pause, stop, fast forward and backward, frame-by-frame, full screen, video clip and clip export, digital zoom, recording lock and audio on and off. Video compression covers H.265+, H.265, H.264+ and H.264, and audio G.711A, G.711U and G.726. For first-time setup, TP-Link says a single click on Auto Initialise sets up basic IPC and hard disk parameters, greatly reducing configuration time.

The HDMI output reaches 3840 x 2160 at 30 Hz, with 1080p and lower modes, while VGA reaches 1920 x 1080 at 60 Hz, and the two run simultaneously. Multi-view layouts are one or four windows. Alarm features, which TP-Link notes require the use of a camera, include motion detection, video tampering, scene change, line-crossing, intrusion, region entering and exiting, loitering, object abandoned or removed, vehicle and human detection, abnormal sound detection and Smart Frame. Anomaly alarms cover video loss, offline and IP conflict, disk and login exceptions, with recording, white light alarm, buzzer, log and audible alarm as linkage actions. There are no physical alarm inputs or outputs. Interoperability is listed as ONVIF and CGI, with remote access from Android and iOS phones and Chrome, Firefox and Edge browsers.

Key features

4-channel recording

Four IP channels with 80 Mbps incoming and 60 Mbps outgoing bandwidth.

Up to 8MP recording

Record resolutions from 8MP down to QCIF.

One SATA bay

Supports a hard drive of up to 10 TB; HDD not included.

4K HDMI plus VGA

HDMI up to 3840 x 2160 at 30 Hz, simultaneous with 1080p VGA.

4-channel synchronous playback

Fewer, or none, if total resolution exceeds 16MP.

H.265+ compression

H.265+, H.265, H.264+ and H.264 video compression.

Auto Initialise

One click sets up basic IPC and hard disk parameters.

Smart detection alarms

Line-crossing, intrusion, human and vehicle detection (camera required).

No PoE, low power

12 V DC adapter; 4.25 W maximum without a disk.

VIGI NVR1004H specifications

At a glance

4-channel NVR
80 Mbps incoming
1 SATA, up to 10 TB
4K HDMI + VGA
Up to 8MP recording
H.265+
No PoE ports
246.2 x 148.2 x 45 mm
VIGI NVR1004H full specifications
Video and Audio
IP Video Input4-Channel
Incoming Bandwidth80 Mbps
Outgoing Bandwidth60 Mbps
HDMI Output Resolution1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output Resolution1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output ModeHDMI/VGA Simultaneous Output
Multi-View Display1/4
Decoding
Audio CompressionG.711A/G.711U/G.726
Video CompressionH.265+/H.265/ H.264+/H.264
Record Resolution8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous Playback4-Channel
Capability25fps:; 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP; 30fps:; 4-ch @ 3MP, 2-ch @ 5MP
Record Management
Record ModeManual Recording; Scheduling Recording; Motion Detection Recording
Playback ModeInstant Playback; Regular Playback; Tag Playback; Event Playback
Backup ModeRegular Backup; Video Clip Backup
Playback FunctionPlay; Pause; Stop; Fast Forward; Fast Backward; Play By Frame; Full Screen; Video Clip; Export Clip; Digital Zoom; Lock Recording; Audio On/Off
Network
ProtocolUPnP (Plug and Play), NTP (Network Timing)
Mobile Phone AccessAndroid, iOS
Web BrowserChrome (57+), Firefox (52+), Edge (91+)
InteroperabilityONVIF, CGI
External Interface
Network Interface1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface2× USB 2.0
Audio Interface1, Audio In; 1, Audio Out
Alarm In/OutN/A
Serial InterfaceN/A
Power1× DC Jack
Reset Button1
SpeakerN/A
eSATAN/A
HDMI1
VGA1
Hard Disk
SATA1 SATA Interface
CapacityUp to 10 TB Capacity for Each HDD
Alarm
General AlarmMotion Detection; Video Tampering; Scene Change Detection; Line-Crossing Detection; Intrusion Detection; Region Entering Detection; Region Exiting Detection; Loitering Detection; Object Abandoned/Removal Detection; Vehicle Detection; Human Detection; Abnormal Sound Detection; Smart Frame; Note: The alarm function requires the use of a camera.
Anomaly AlarmVideo Loss; Offline and IP Conflict; Disk Exception; Login Exception; Note: The alarm function requires the use of a camera.
Alarm LinkageRecording; White Light Alarm; Buzzer; Log; Audible Alarm; Note: The alarm function requires the use of a camera.
General
Storage Temperature-40–70 °C
Storage Humidity10%~90% RH Non-Condensing
Working TemperatureNVR: -10–55 °C; Power Adapter: 0–40 °C
Working Humidity10%~90% RH Non-Condensing
Dimensions( W X D X H )246.2 × 148.2 × 45 mm
External Power SupplyDC 12V/1.5A
Net Weight0.59 kg
Gross Weight0.95 kg
Max. Power Consumption4.25 W (Without Disk)
CertificationsCE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Video Recorder
  • Power Adapter
  • HDD Screws
  • Mouse
  • Rubber Feet
  • Quick Installation Guide

Source: TP-Link's published package contents.

Who the VIGI NVR1004H is for

Small camera systems

  • Up to four IP cameras
  • One or four window live view
  • Four-channel synchronous playback

Sites with an existing PoE switch

  • No built-in PoE ports
  • One 10/100 Mbps Ethernet port
  • ONVIF and CGI interoperability

VIGI NVR1004H compared

TP-Link's VIGI range has three 4-channel recorders. All accept four IP channels at 80 Mbps incoming and 60 Mbps outgoing, record up to 8MP and take one SATA drive of up to 10 TB. The NVR1004H has no PoE, while the NVR1004H-4P and NVR1104H-4P each add four PoE+ ports, as listed on each model's TP-Link product page.

FeatureVIGI NVR1004HVIGI NVR1004H-4PVIGI NVR1104H-4P
PoE portsNone4 x 10/100 Mbps PoE+4 x 10/100 Mbps PoE+
PoE budget-53 W, 30 W max per port53 W, 30 W max per port
Power supply12 V DC, 1.5 A53.5 V DC, 1.31 A53.5 V DC, 1.31 A
Max power4.25 W without disk4.25 W / 13.10 W with disk4.82 W / 14.23 W with disk
Built-in speakerNoNoYes
Dimensions246.2 x 148.2 x 45 mm246.2 x 148.2 x 45 mm200.3 x 200.3 x 43 mm
SATA1, up to 10 TB1, up to 10 TB1, up to 10 TB, side access

Source: TP-Link Australia product pages for each model.

Buy the VIGI NVR1004H from ARC IP Networks

ARC IP Networks supplies TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the VIGI NVR1004H from the ARC IP Networks team.

Last reviewed October 2026.

Four IP video channels, with 80 Mbps of incoming and 60 Mbps of outgoing bandwidth.

No. It has a single 10/100 Mbps Ethernet port, so cameras need power from a separate PoE switch or injector. The NVR1004H-4P and NVR1104H-4P are the 4-channel models with four PoE+ ports.

No. TP-Link states the HDD is not included. The single SATA bay supports a drive of up to 10 TB.

8MP. TP-Link lists decoding at 25 fps as two channels at 8MP or four at 4MP.

Yes. HDMI supports 3840 x 2160 at 30 Hz, and VGA supports up to 1920 x 1080 at 60 Hz. Both outputs work simultaneously.

Up to four synchronously, but fewer, or none, if the total resolution exceeds 16MP.

TP-Link lists ONVIF and CGI interoperability.

TP-Link notes the alarm function requires the use of a camera; detections such as line-crossing, intrusion and human and vehicle detection are listed.

No. Alarm in/out and serial interface are listed as N/A for this model.

The recorder, power adapter, HDD screws, mouse, rubber feet and a quick installation guide.

Need more than one VIGI NVR1004H for a multi-site camera rollout?

Ask ARC IP Networks for volume and project pricing on TP-Link VIGI products.
