Cisco's Webex room devices are sized by room. The Room Bar (CS-BAR-T-K9) suits huddle rooms of up to 5 people within 3 metres; the Room Bar Pro (CS-BARPRO-K9) and Board Pro G2 (Board Pro 55 G2, Board Pro 75 G2) cover small to medium rooms; Room Kit EQ (CS-KIT-EQ-K9) is built for boardrooms and training rooms with up to three screens. The Room Navigator is the touch controller and booking panel. On RoomOS they join Webex natively with video interoperability for Microsoft Teams, Zoom and Google Meet, or run Microsoft Teams Rooms on Android.
Quick pick: huddle room → CS-BAR-T-K9 (table Navigator) or CS-BAR-W-K9 (wall Navigator); laptop-only meeting space → CS-BAR-L-UK9 Room Bar BYOD; boardroom → CS-KIT-EQ-K9; collaborative project room → Board Pro 55 G2. ARC IP Networks is a Cisco Registered Partner and supplies new, genuine Cisco with a GST tax invoice.
Webex room devices at a glance
| Device | In one line | Room size (per Cisco) | Best for |
|---|---|---|---|
| Room Bar | 12MP 120° camera, stereo speakers, 4-element mic array | Up to 5 people within 3 metres | Huddle rooms, small offices |
| Room Bar BYOD | Room Bar hardware run from a laptop over USB-C | Small spaces | Any meeting app on the laptop |
| Room Bar Pro | Dual 48 MP cameras, 16-element mic array, 3 HDMI outputs | Small to medium, within 4 metres | Meeting rooms for more than 5 |
| Board Pro 55 G2 | 55" 4K touch board, dual 48MP cameras, two pens | Small to medium, within 4 metres | Project rooms, classrooms |
| Board Pro 75 G2 | 75" 4K touch board, no radio | Small to medium, within 4 metres | Larger collaborative rooms |
| Room Kit EQ | Codec EQ, Quad Camera, Room Navigator, up to 3 screens | Large rooms | Boardrooms, training rooms |
| Room Kit EQX | Integrated wall system for dual 65" to 75" screens | Medium to large | Flagship boardrooms |
Room sizes are where Cisco optimises the built-in microphones; external microphones extend coverage. "Best for" is ARC IP Networks advice.
Key specifications
From Cisco's data sheets. Warranty is the limited liability warranty Cisco states for each product.
Swipe the table sideways to compare all models →
| Device | Camera | Microphones | Screens | In the box and warranty |
|---|---|---|---|---|
| Room Bar | 12MP, 120° horizontal | 4-element beamforming | 2 x HDMI out, 4K | Table Navigator, 1-year |
| Room Bar Pro | Dual 48 MP, 112° wide + 70° tele | 16-element, up to 8 IP mics | 3 x HDMI out, 4K | Table Navigator, 90-day |
| Board Pro 55 G2 | Dual 48MP, 112° + 70° | 14-element | 55" 4K touch + 2 x HDMI out | Two pens, 90-day |
| Room Kit EQ | Quad Camera, 83° + 50° tele, 7x zoom | Up to 8 Cisco IP mics | 3 x HDMI out, 4K | Table Navigator, 90-day |
| Room Kit EQX | Integrated Quad Camera | Up to 8 IP mics | 3 x HDMI out, 4K | Six speakers + bass, 1-year |
Source: Cisco Room Bar, Room Bar Pro, Board Pro G2 and Room Kit EQ / EQX data sheets.
Webex, Microsoft Teams and Zoom: what Cisco actually says
This is the question most Australian buyers ask first, because many offices run Teams or Zoom rather than Webex. Cisco describes two modes for the Room Bar, Room Bar Pro, Board Pro G2 and Room Kit EQ:
- Cisco Rooms on RoomOS: the device joins Webex meetings natively and has video interoperability for Microsoft Teams, Zoom and Google Meet.
- Microsoft Teams Rooms on Android: the device runs as a native Teams Rooms system. Cisco notes the Board Pro G2 and Room Kit EQ can still join full-featured Webex meetings in this mode.
The Room Navigator is certified as a Microsoft Teams Rooms Console and Teams Panel. For rooms that only ever use a laptop, the Room Bar BYOD is simpler: the laptop hosts the meeting over one USB-C cable, so Cisco describes it as working with any meeting the laptop runs.
Cloud-registered devices are managed in Webex Control Hub. Cisco also supports on-premises registration to Cisco Unified CM (12.5 or later) or Expressway for the Room Bar, Board Pro G2 and Room Kit EQ. For the Room Bar and Room Bar Pro, Cisco lists registration under a Cisco Device Subscription, monthly or on 1 to 5-year terms, and we quote it with the hardware.
Huddle and small rooms: Room Bar and Room Bar BYOD

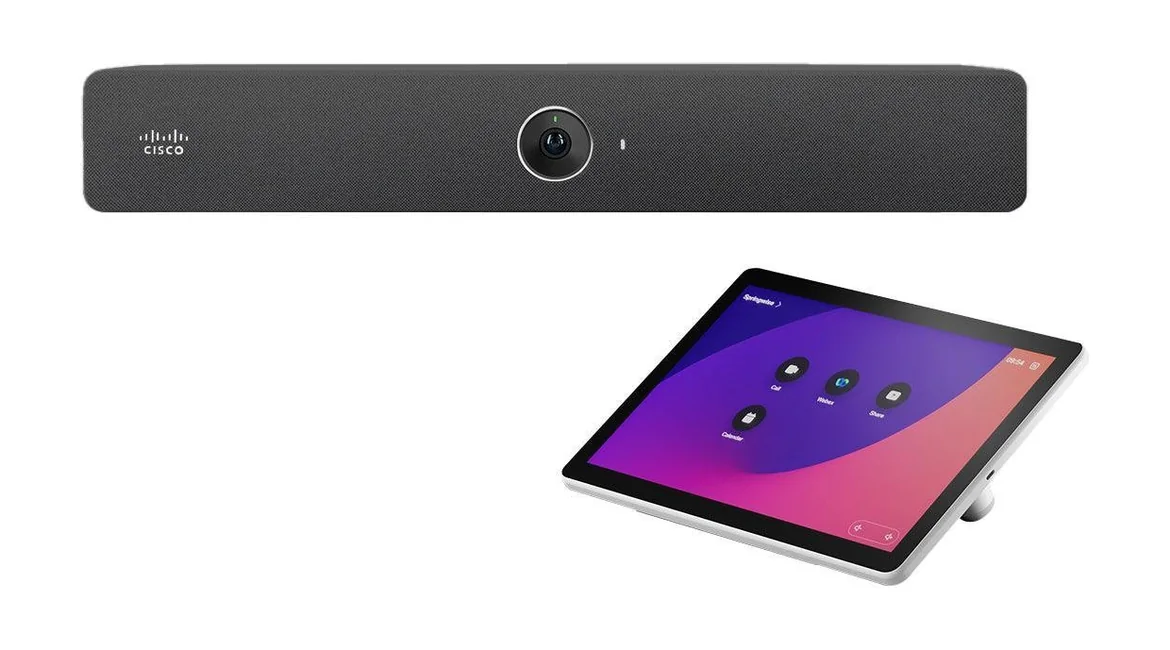

The Room Bar packs a 12MP wide-angle camera with auto framing and speaker tracking, stereo speakers and a beamforming microphone array into a 53.4 cm bar. Cisco optimises it for up to 5 people within 3 metres, and recommends an external microphone above that. Two HDMI outputs drive one or two screens, and wireless sharing works through the Webex app, Miracast and Apple AirPlay. The bundles differ only in the Room Navigator: CS-BAR-T-K9 includes the table-stand version and CS-BAR-W-K9 the wall-mount version, both in First Light (white); CS-BAR-T-C-K9 is the Carbon Black table version. The CS-BAR-NR-K9 is the no-radio model; Cisco notes Bluetooth and Miracast are not available on it. A camera privacy cover is in the box, which helps with privacy expectations in shared offices.

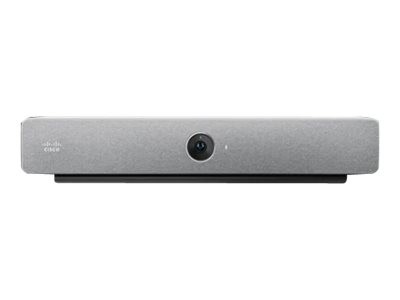

The CS-BAR-L-UK9 Room Bar BYOD drops the Navigator and connects to a laptop over USB-C. Cisco states it can be upgraded to the full Room Bar experience later by adding a Room Navigator. Cisco covers the Room Bar with a 1-year limited liability warranty.
Medium rooms: Room Bar Pro or Board Pro G2

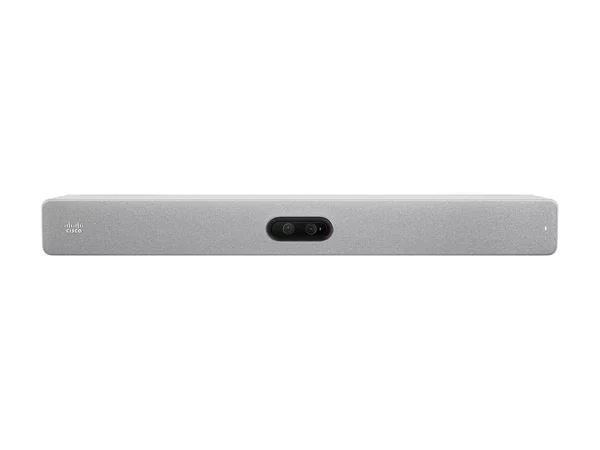

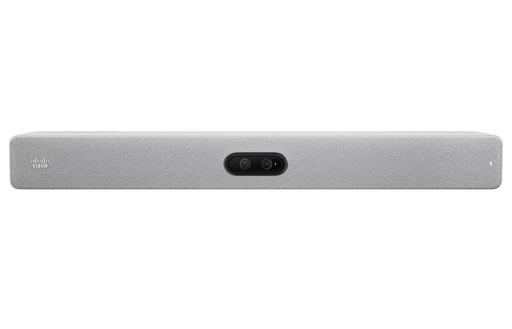

The Room Bar Pro pairs a 112° wide-angle and a 70° tele lens, both 48 MP, reaching participants up to 7 metres away in a two-person frame, with a 16-element microphone array that covers people within 4 metres. It has three HDMI outputs and two PoE ports for AV peripherals, connects up to 8 Cisco IP microphones, and adds presenter tracking with a Cisco PTZ 4K Camera. Cisco states a 90-day limited liability warranty.

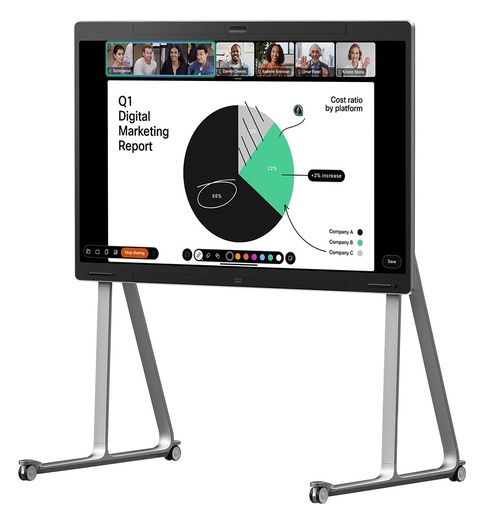

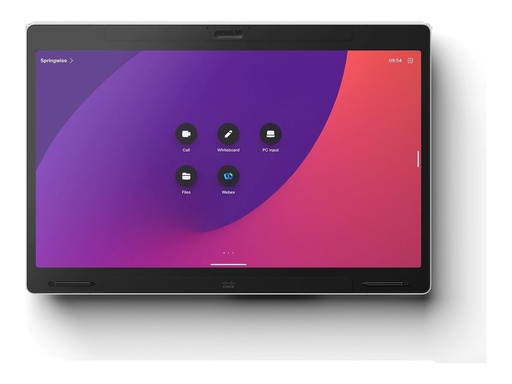

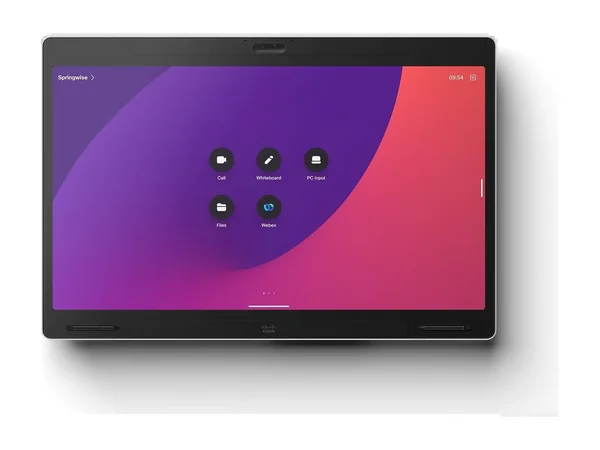

The Board Pro G2 is a video system and digital whiteboard in one: a 4K multi-touch display (55" or 75" no-radio), dual 48MP cameras, a 14-element microphone array and two active pens with Webex Whiteboard, or Microsoft Whiteboard in Teams Rooms mode. Cisco recommends external table or ceiling microphones where people sit more than 4 metres away. It suits project rooms, university tutorial rooms and design teams. Cisco states a 90-day limited liability warranty.
Boardrooms and training rooms: Room Kit EQ and EQX

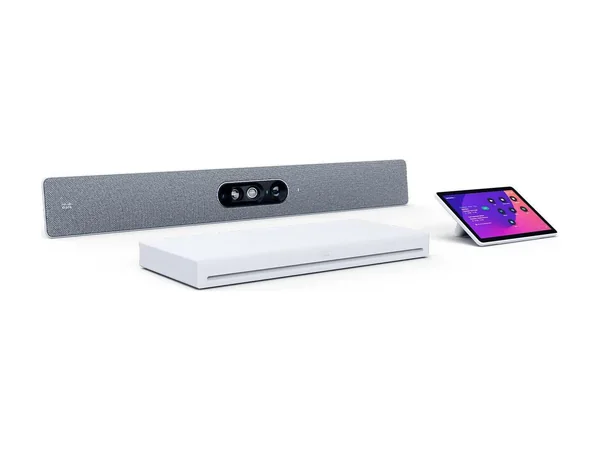

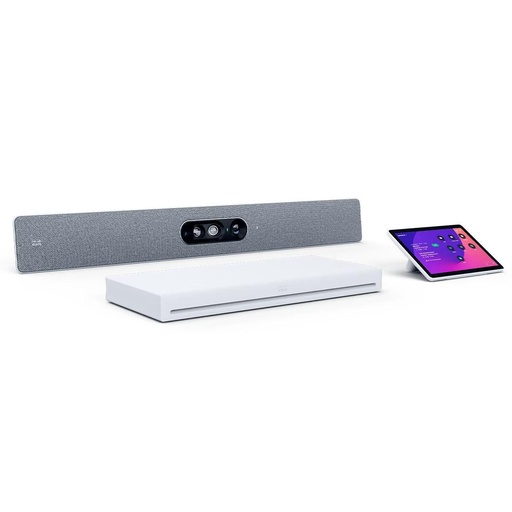

Room Kit EQ (CS-KIT-EQ-K9) bundles the AI-powered Codec EQ, the Quad Camera and a table-stand Room Navigator. It drives up to three screens, and four PoE++ ports with a 90W budget power cameras, the Navigator and Cisco IP microphones. It connects up to 8 Cisco IP microphones and up to 3 Room Vision PTZ cameras over IP, which suits council chambers, boardrooms and training rooms. Integrators can buy the Codec EQ on its own.
Room Kit EQX (CS-KIT-EQX-K9) is the complete wall system: Codec EQ, an integrated Quad Camera, six loudspeakers, a bass unit and a Room Navigator in one frame. You supply dual 65" to 75" screens. Cisco states a 1-year limited liability warranty for EQX and 90 days for Room Kit EQ.

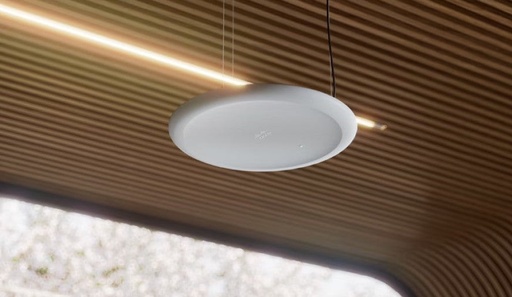

For bigger rooms, add the Ceiling Microphone Pro (64-element array, 3.5 m radius, one PoE cable, no external DSP) or the Table Microphone Pro. Plan PoE for these with what PoE switch do I need.
Room Navigator: control and room booking

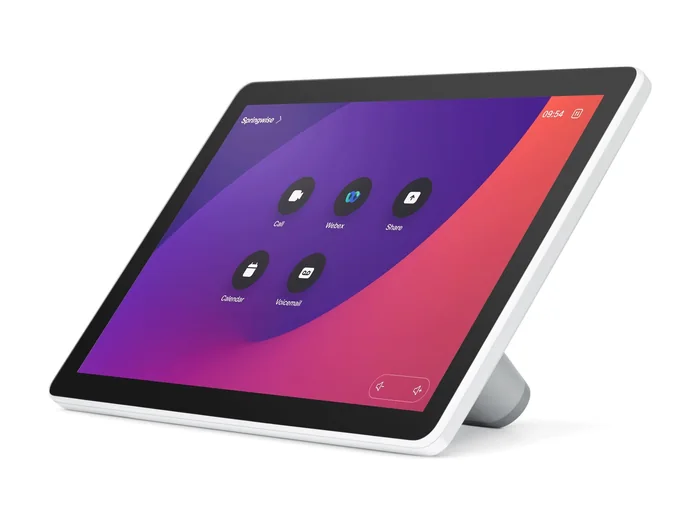

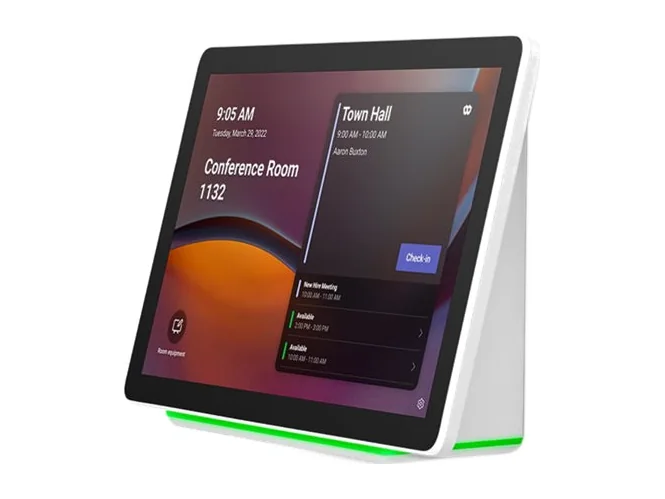

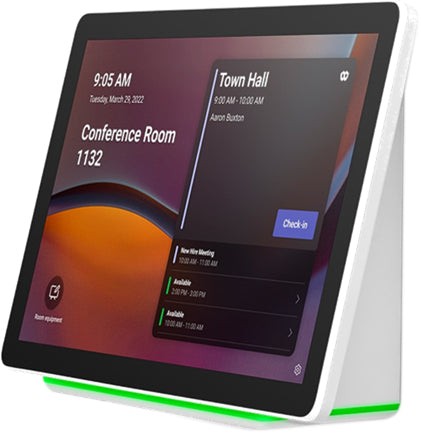

The Room Navigator is a 10.1" touch panel powered by a single PoE cable. Inside the room it starts meetings, shares content and controls the video device; outside, the wall-mount version (CS-T10-WM-L-K9) shows availability with a 360-degree LED and supports check-in to release no-show rooms. Both versions have temperature, humidity and air quality sensors. Cisco states room booking is licence-free when the Navigator is paired with a Cisco video device; a standalone booking panel registered to Webex Cloud needs a Room Navigator licence. Spare table units: First Light and Carbon Black.
Which Webex device for which Australian room?
ARC IP Networks suggestions.
| Room | Device | Add |
|---|---|---|
| Huddle room, 2 to 5 people | CS-BAR-T-K9 or CS-BAR-W-K9 | Nothing extra |
| Hot-desk pod or laptop-only room | CS-BAR-L-UK9 | Room Navigator later if needed |
| Law or accounting meeting room, more than 5 | CS-BARPRO-K9 | Table Microphone Pro |
| School classroom or university tutorial room | CS-BRDP55-K9 | Wall or floor stand |
| Agency or engineering project room | CS-BRDP75-NR-K9 | Ceiling Microphone Pro |
| Boardroom or council chamber | CS-KIT-EQ-K9 | Ceiling or table microphones |
| Flagship boardroom, dual screens | CS-KIT-EQX-K9 | Your dual 65" to 75" screens |
Why buy Cisco from ARC IP Networks
- Cisco Registered Partner: genuine Cisco supplied through Cisco's authorised Australian distribution.
- New only: every unit is new, genuine Cisco stock.
- Every product page built from Cisco's own data sheets, with the warranty stated for each model.
- Licensing help: we quote the Cisco DNA, Catalyst, Meraki or Webex licence your hardware needs.
- GST tax invoice on every order, with trade and project pricing for installers and integrators.
See the full range on our Cisco Australia hub, or read where to buy Cisco in Australia. Questions? Call 1300 100 440 or email info@arcip.com.au.
Shop Webex room devices
Live Australian pricing (inc. GST) and availability are on each product page.
Common questions
Straight answers from the ARC IP Networks team. Last reviewed October 2026.
Yes. On RoomOS 11 or later the Room Bar joins Webex meetings natively with video interoperability for Microsoft Teams, Zoom and Google Meet, and it can also run Microsoft Teams Rooms on Android.
The Room Bar has one 12MP 120° camera and suits up to 5 people within 3 metres. The Room Bar Pro has dual 48 MP cameras (112° wide and 70° tele), a 16-element microphone array covering people within 4 metres, three HDMI outputs and support for up to 8 Cisco IP microphones.
The Room Bar BYOD (CS-BAR-L-UK9) is a Room Bar that connects to a laptop with one USB-C cable, so the laptop hosts the meeting in any app. It has no Room Navigator by default; adding one upgrades it to the full Room Bar experience.
An all-in-one video device and interactive whiteboard with a 55" or 75" 4K multi-touch display, dual 48MP cameras, a 14-element microphone array and two active pens. It runs Cisco Rooms for Webex or Microsoft Teams Rooms on Android.
Room Kit EQ (CS-KIT-EQ-K9) is Cisco's kit for large conference rooms and boardrooms: Codec EQ, Quad Camera and Room Navigator, up to three screens and up to 8 Cisco IP microphones. Room Kit EQX adds integrated speakers in a wall frame for your own dual screens.
Cisco lists product registration for the Room Bar and Room Bar Pro under a Cisco Device Subscription, monthly or on 1 to 5-year terms. Room Navigator booking is licence-free when paired with a Cisco video device.
It is a 10.1" PoE touch panel that controls the video device in the room or works as a room booking panel outside it, and it is certified as a Microsoft Teams Rooms Console and Teams Panel.
ARC IP Networks is a Cisco Registered Partner and supplies new, genuine Cisco with a GST tax invoice. We quote the device subscription with the hardware. Call 1300 100 440 or email info@arcip.com.au.
Fitting out Webex meeting rooms?
Tell us the room sizes, seat counts and whether you meet on Webex, Teams or Zoom. ARC IP Networks will match the right Room Bar, Board Pro or Room Kit, add microphones and Navigators, and quote it with trade pricing for AV integrators. Call 1300 100 440 or email info@arcip.com.au.
