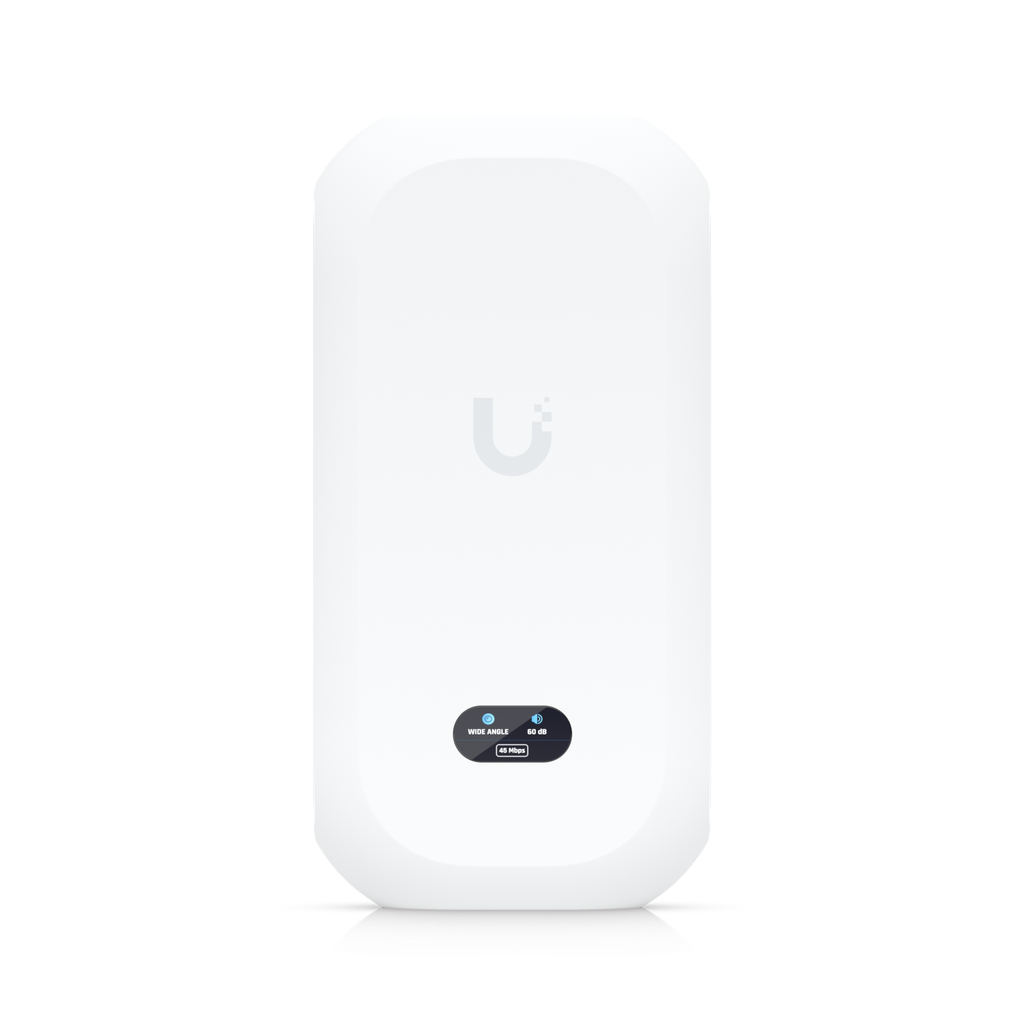

Ubiquiti UVC-AI-Theta-Hub UniFi Protect AI Theta Remote Processing Hub

https://arcip.com.au/web/image/product.template/10116/image_1920?unique=3edd69c
The Ubiquiti UVC-AI-Theta-Hub is the remote processing hub for a UniFi Protect AI Theta deployment. It has one video port for an AI Theta lens and one audio port for the optional AI Theta Audio module, and is compatible with both Standard and Professional Theta lenses, with one lens cable included. Advanced AI runs on a quad-core Arm Cortex-A53, detecting people and reading licence plates — plate recognition is supported with the Long-Distance and Wide-Angle lenses. It is a 140 x 70 x 38 mm aluminium alloy unit weighing 330 g, has a 0.96" colour status display, and draws a maximum of 12.5W over PoE while supplying 5V DC at 1A per port.

350.35 350.35 AUD 350.35 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • Ports
  • Power Method
  • Camera

This combination does not exist.

UniFi Camera PoE Ubiquiti UniFi Protect AI Camera
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UVC-AI-Theta-Hub
Tags
UVC-AI-Theta-Hub
Ubiquiti UniFi Protect AI Theta Hub — Remote Processing Hub with Lens and Audio Ports, Advanced AI and 0.96" Display

What the UVC-AI-Theta-Hub Is

The Ubiquiti UVC-AI-Theta-Hub is the remote processing hub for a UniFi Protect AI Theta deployment. It has one video port for an AI Theta lens and one audio port for the optional AI Theta Audio module, and is compatible with both Standard and Professional Theta lenses, with one lens cable included. Advanced AI runs on a quad-core Arm Cortex-A53, detecting people and reading licence plates — plate recognition is supported with the Long-Distance and Wide-Angle lenses. It is a 140 x 70 x 38 mm aluminium alloy unit weighing 330 g, has a 0.96" colour status display, and draws a maximum of 12.5W over PoE while supplying 5V DC at 1A per port.

UVC-AI-Theta-Hub deployment

UVC-AI-Theta-Hub in-use

UVC-AI-Theta-Hub dimensions
UVC-AI-Theta-Hub in-the-box

Key Features

  • (1) video and (1) audio port for connecting a lens and audio module
  • Supports AI Theta Standard and Professional Lenses, with (1) included cable for connecting a lens
  • Advanced AI: Detect people, read license plates, and more*
  • 0.96" color display for device status and configuration
  • Connect and power using PoE
  • Supports optional AI Theta Audio module for two-way audio
  • *License plate recognition supported with Long-Distance and Wide-Angle lenses.

Technical Specifications

Overview

Dimensions140 x 70 x 38 mm
MountingWall, ceiling mount (Included)

Performance

Networking InterfaceGbE RJ45 port / Theta audio port / Theta lens port
Video — Image SettingsColor, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay

Hardware

ProcessorQuad-core Arm® Cortex®-A53 based chip
Enclosure MaterialAluminum alloy
Mounting MaterialAluminum alloy
WeightUVC-AI-Theta-Hub: 330 g / UVC-AI-Theta-Hub Mount: 35 g
Power MethodPoE
Supported Voltage Range37—57V DC
Max. Power Consumption12.5W
Power Output5V DC, 1A per port
LCM Display0.96" display
Button(1) Factory reset
Ambient Operating Temperature-20 to 40° C
Ambient Operating Humidity10 to 90% noncondensing
CertificationsFCC, IC, CE

Professional Overview

The AI Theta architecture separates the camera from the brain. Instead of one sealed camera doing everything, a small remote lens sits where the view is and a hub does the processing somewhere convenient — inside a ceiling, in a cabinet, behind a wall. This is that hub, and it is the piece every Theta deployment needs.

The practical gain is placement. A Theta lens is far smaller than a conventional camera body, so it goes where a camera would be intrusive or simply would not fit — a retail ceiling, a discreet entry, a display case. The hub carries the processor, the network connection and the power, and connects to the lens over a single cable, one of which is included.

Processing is a quad-core Arm Cortex-A53 running advanced AI: person detection and licence plate reading, with Ubiquiti noting that plate recognition specifically requires the Long-Distance or Wide-Angle lens rather than any Theta lens. Image controls are the standard Protect set — colour, brightness, sharpness, contrast, white balance, exposure and noise reduction. A 0.96" colour display on the hub itself shows device status and configuration without a laptop.

Ports are one GbE RJ45, one Theta lens port and one Theta audio port, the last for the optional AI Theta Audio module which adds two-way audio. Power is PoE at 37–57V DC drawing up to 12.5W, and the hub supplies 5V DC at 1A per port to what it drives. The body is aluminium alloy, 140 x 70 x 38 mm and 330 g, with a 35 g aluminium wall or ceiling mount included. Operating range is -20 to 40°C at 10 to 90% non-condensing humidity, certified FCC, IC and CE. Australian stock from ARC IP Networks.

Frequently Asked Questions

What does the AI Theta Hub do?

It is the processing and connectivity unit for an AI Theta deployment. The lens captures the view; the hub runs the AI, handles the network connection and supplies power.

Do I need a lens as well?

Yes. The hub connects to an AI Theta lens, sold separately, and one lens cable is included. It supports both Standard and Professional Theta lenses.

Which lenses support licence plate recognition?

Ubiquiti specifies plate recognition with the Long-Distance and Wide-Angle lenses.

How many devices can one hub drive?

It has one video port for a lens and one audio port for the optional AI Theta Audio module.

How is it powered?

PoE at 37–57V DC, drawing a maximum of 12.5W. It supplies 5V DC at 1A per port to connected devices.

Does it support two-way audio?

Through the optional AI Theta Audio module, which connects to the dedicated Theta audio port.

What is the display for?

A 0.96" colour display on the hub shows device status and configuration information locally.

What are its operating conditions?

-20 to 40°C at 10 to 90% non-condensing humidity. Certifications are FCC, IC and CE.

Ubiquiti UVC-AI-Theta-Hub: UniFi Protect modular camera system

The AI Theta Hub is a UniFi Protect modular camera system.

Remote processing hub for any AI Theta deployment, compatible with any AI Theta Lens and AI Theta Audio.

Imaging and video

SpecificationValue
Image settingsColor, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay

Build, weatherproofing and mounting

MountingWall, ceiling mount (Included)
EnclosureAluminum alloy
Dimensions140 x 70 x 38 mm (5.5 x 2.8 x 1.5”)
WeightUVC-AI-Theta-Hub: 330 g (11.6 oz) UVC-AI-Theta-Hub Mount: 35 g (1.2 oz)
Operating temperature-20 to 40° C (-4 to 104° F)
Operating humidity10 to 90% noncondensing

Rated for -20 to 40° C (-4 to 104° F), which covers Australian conditions in every state.

Power and network

Power methodPoE
Max. power consumption12.5W
Supported voltage range37—57V DC
Network interfaceGbE RJ45 port Theta audio port Theta lens port
ProcessorQuad-core Arm® Cortex®-A53 based chip
Buttons(1) Factory reset
CertificationsFCC, IC, CE

The UVC-AI-Theta-Hub is powered over Ethernet (PoE, up to 12.5W), so a single cable carries both data and power. Budget that draw on the switch — PoE budget is shared across all powered ports. See the UniFi switch range for a switch with enough headroom.

Who the UVC-AI-Theta-Hub suits

  • Sites deploying the AI Theta modular camera platform
  • Installs where one hub feeds several lens heads
  • Multi-angle coverage from a single cable run

What the UVC-AI-Theta-Hub needs to record

Every UniFi Protect camera records to a UniFi Protect console — a Network Video Recorder, or a Cloud Gateway or Dream Machine that runs Protect. The camera does not record to the cloud and there is no subscription: footage stays on the drive you supply.

If you are still choosing a recorder, our UniFi Protect NVR comparison covers the range, and the storage sizing guide works out how much disk you need for the number of cameras and retention you want. The full shopping list covers the drives, switch and cabling that go with it, and putting the feed on a TV covers live wall displays.

Browse the whole UniFi Protect camera range, or read the Australian camera range guide to compare models.

ARC IP Networks, authorised Ubiquiti reseller in Australia — Australian stock, manufacturer warranty, fast shipping, trade pricing.
ARC IP Networks is an authorised Ubiquiti reseller in Australia — Australian stock, full manufacturer warranty, fast shipping and trade pricing. Call 1300 100 440 or read more about buying from an authorised reseller.

Buy the Ubiquiti UVC-AI-Theta-Hub in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying the UVC-AI-Theta-Hub from Australian stock, with full manufacturer warranty and fast shipping nationwide.

  • Authorised Ubiquiti reseller — genuine Australian stock, not grey import
  • Full manufacturer warranty with local RMA support
  • Competitive Australian pricing, monitored against the local market daily
  • Fast dispatch Australia-wide, or collect from our warehouse
  • Trade and project pricing for installers, integrators and multi-site rollouts

Browse the full UniFi Protect camera range, plus PoE switches to power them and cloud gateways to run Protect. More on buying from an authorised Ubiquiti reseller in Australia.
