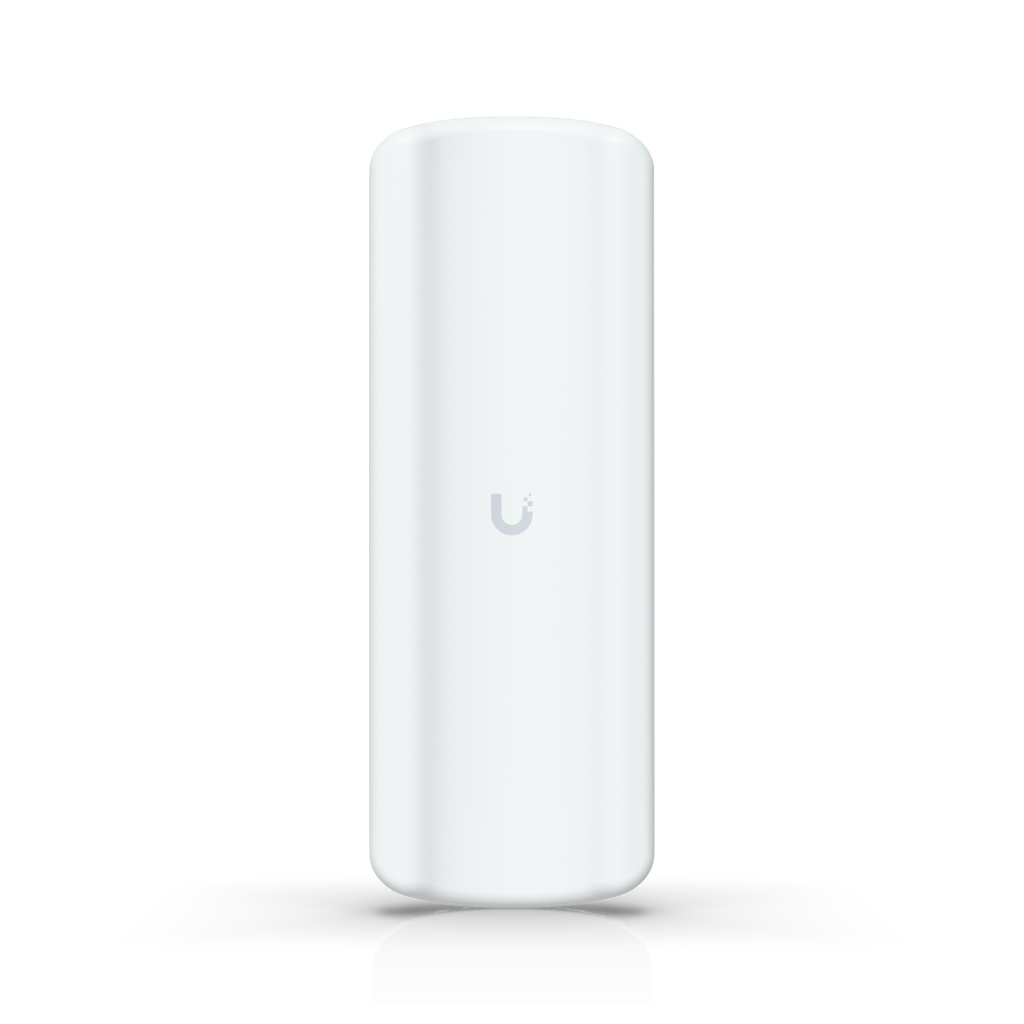

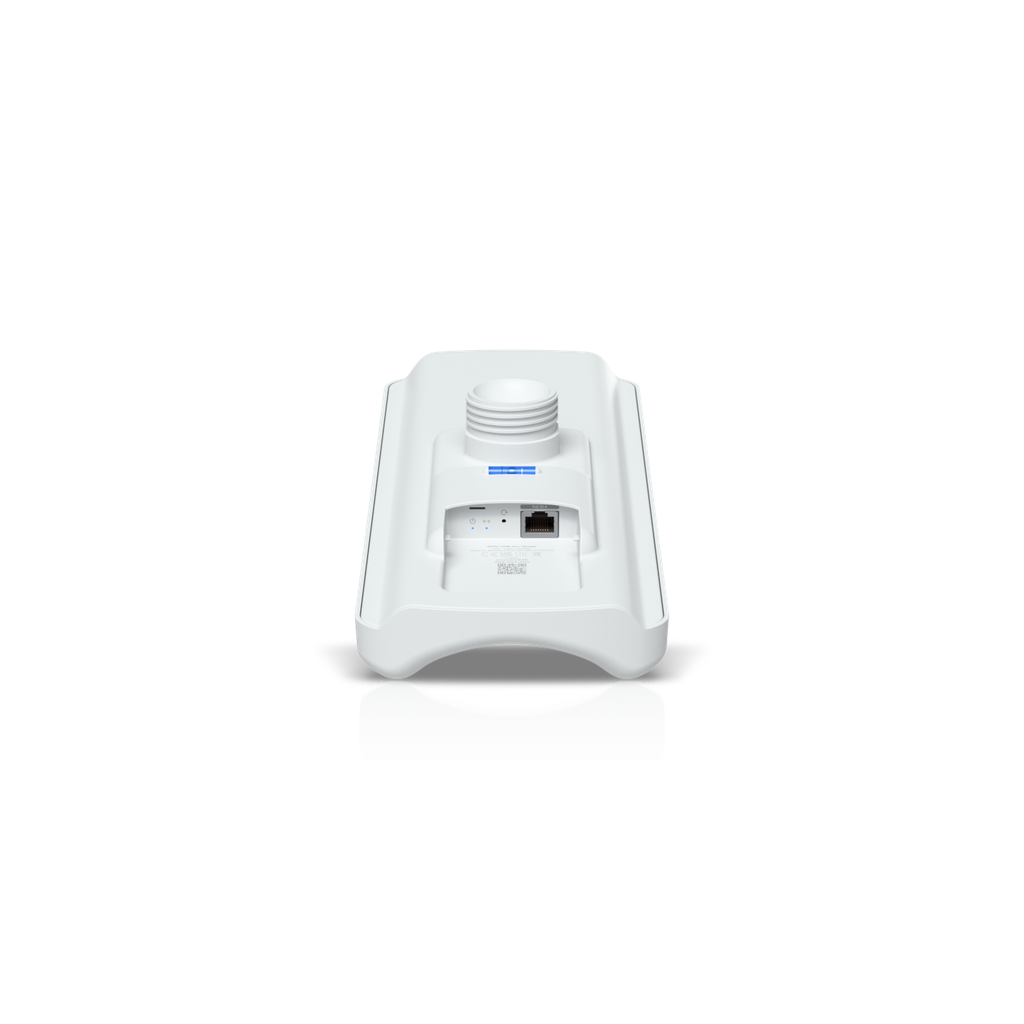

Ubiquiti UDB-Pro-Sector Unifi Device Bridge Pro Sector - 2Yr Warr

https://arcip.com.au/web/image/product.template/3956/image_1920?unique=256363b
The Ubiquiti UDB-Pro-Sector is a WiFi 5 single-band access point with 2 spatial streams, covering 5 km (3.1 mi). 5 GHz point-to-multipoint access point that wirelessly bridges 50+ Device Bridge Pro clients at 5+ km distances.

397.10 397.1 AUD 397.10 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • WiFi Standard
  • Frequency Band
  • Max Throughput
  • PoE Requirement
  • Coverage Area
  • AP Features

This combination does not exist.

Indoor UniFi Access Point PoE Ubiquiti Ceiling Mount MU-MIMO WiFi 5
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UDB-Pro-Sector
Tags
UDB-Pro-Sector
Ubiquiti UniFi Device Bridge Pro Sector — WiFi 5 Access Point
UDB-Pro-Sector
UDB-Pro-Sector

Features

  • Enables Point-to-Multi-Point (PtMP connectivity) with 50+ UDB-Pro clients
  • 90° sector coverage
  • Powered using PoE

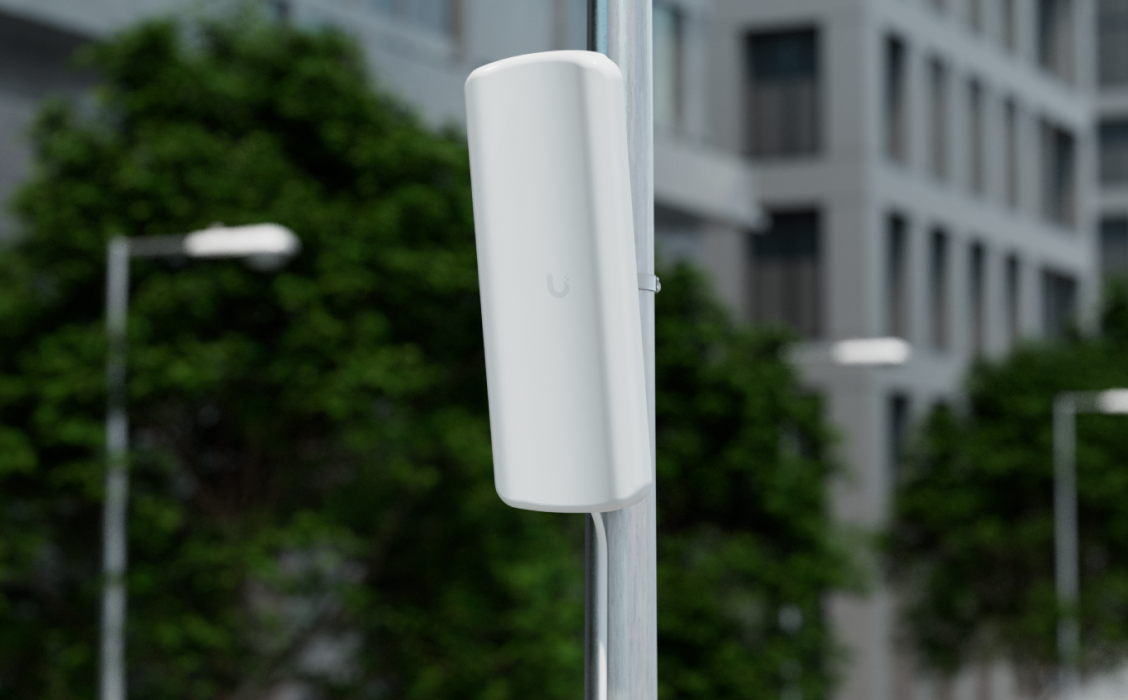

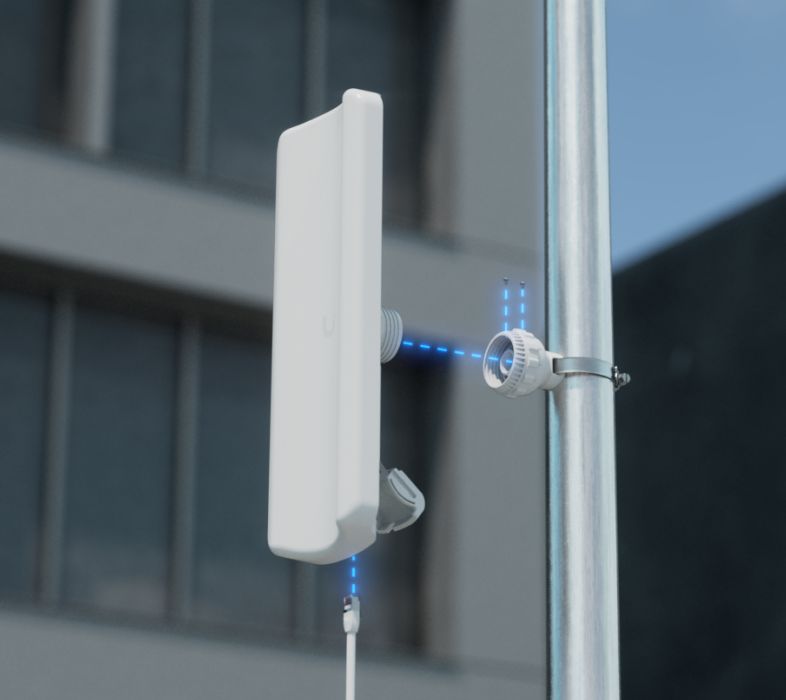

  • Pole mounting
  • Weatherproof (outdoor exposed)

Specifications

Overview
Dimensions360.9 x 129.6 x 71.4 mm / (14.2 x 5.1 x 2.8”)
WiFi StandardWiFi 5
Spatial Streams2
Coverage Area5 km (3.1 mi)
Mounting LocationsPole
WeatherproofingIPX6
Power MethodPoE
Performance
5 GHz2 x 2
5 GHz400 Mbps (BW40)
5 GHz17 dBi
5 GHz25 dBm
Max. Conducted TX Power25 dBm (Combined)
802.11ac (WiFi 5)6.5 Mbps to 400 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40)
802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless SecurityWPA2 AES
Hardware
Max. Power Consumption6W
Supported Voltage Range42.5–57V DC
Networking Interface(1) GbE RJ45 port
AntennasInternal
ManagementEthernet / WiFi
Channel Bandwidth20/40 MHz
Wind Loading128.2N at 200 km/h
WeightDevice: 782 g / With mount: 835 g
Enclosure MaterialUV-stabilized polycarbonate
Mount MaterialUV-stabilized polycarbonate, stainless steel
Pole Mount Diameter0.9—2.4" (24—60 mm)
Button(1) Factory reset
SystemPower, Ethernet
CertificationsCE, FCC, IC, Anatel: 05978-25-08356
Operating FrequencyUS/CA: / U-NII-1 5150 - 5250 MHz / U-NII-2A 5250 - 5350 MHz / U-NII-2C 5470 - 5725 MHz / U-NII-3 5725 - 5850 MHz / / Worldwide: / 5150 - 5875 MHz
Ambient Operating Temperature-40 to 60° C (-40 to 140° F)
Ambient Operating Humidity5 to 95% noncondensing

Professional Overview

The Ubiquiti UDB-Pro-Sector is a WiFi 5 access point with 2 spatial streams, designed for 5 km (3.1 mi) coverage. 5 GHz point-to-multipoint access point that wirelessly bridges 50+ Device Bridge Pro clients at 5+ km distances.

On 5 GHz, the UDB-Pro-Sector delivers 400 Mbps (BW40).

The UDB-Pro-Sector features a uplink and is powered via PoE. It integrates seamlessly with the UniFi Network ecosystem for centralised management, zero-touch provisioning, and seamless roaming.

Weighing Device: 782 g / With mount: 835 g with dimensions of 360.9 x 129.6 x 71.4 mm / (14.2 x 5.1 x 2.8”), the UDB-Pro-Sector is built for reliable 24/7 operation. Australian stock, fast shipping from ARC IP Networks.

Brand UBIQUITI
Form Factor Ceiling Mount
WiFi Standard WiFi 5 (802.11ac)
Frequency Band Single-Band (5 GHz)
Max Throughput 400 Mbps (BW40)
PoE Requirement PoE
Coverage Area 5 km (3.1 mi)
AP Features Mesh, Band Steering, MU-MIMO
