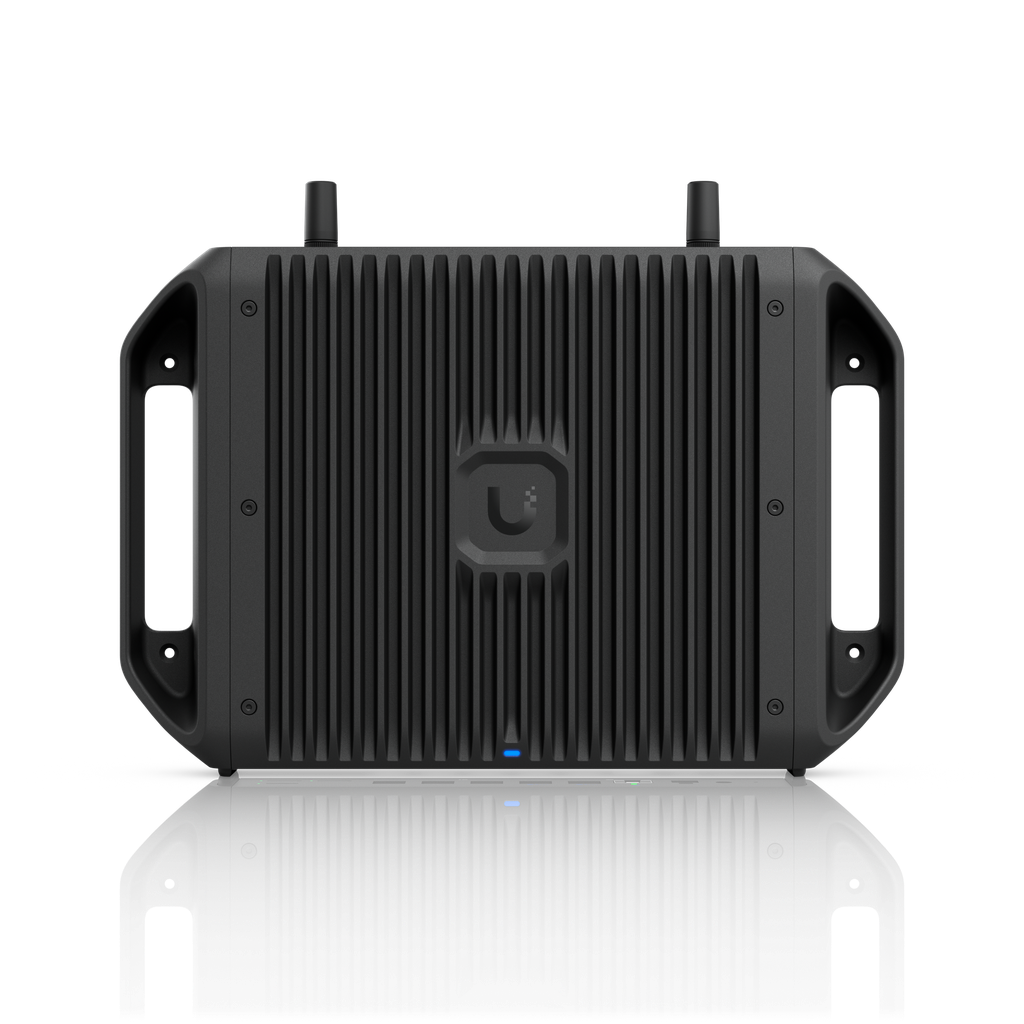

Ubiquiti UCG-Industrial Cloud Gateway Industrial

https://arcip.com.au/web/image/product.template/7936/image_1920?unique=323e838
Cloud Gateway Industrial. Ruggedized, fanless 10 GbE UniFi Cloud Gateway delivering 350W of total system power for high-density PoE deployments, with advanced routing capabilities and microSD storage for full UniFi application support. Australian stock. Available for store pickup or shipping.

1,011.45 1011.45 AUD 1,011.45 incl. GST

Not Available For Sale


  • Brand
  • Ports
  • IDS/IPS Throughput
  • Built-in WiFi
  • WAN Ports

This combination does not exist.

UniFi Gateway Ubiquiti Ubiquiti New Releases
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UCG-Industrial
Barcode
810177162810
Tags
UCG-Industrial
Cloud Gateway Industrial

UCG-Industrial

UCG-Industrial

UCG-Industrial

UCG-Industrial

UCG-Industrial

UCG-Industrial

Specifications

Grid overview
IDS/IPS5 Gbps
Max. Client Count500
Overview
DimensionsDevice: 307.9 x 203.5 x 43.7 mm / (12.1 x 8 x 1.7") / Table stand: 203.5 x 100.2 x 21.9 mm / (8 x 3.9 x 0.9")
Managed UniFi Devices50+
Managed Cameras(15) HD / (8) 2K / (5) 4K
Managed Access Hubs50
Simultaneous Users Connected500+
Max. WAN Port Count5
Default WAN Ports(1) 10G SFP+ / (1) 10 GbE RJ45 / (1) 2.5 GbE RJ45
2.5 GbE RJ454 (2 PoE+++, 2 PoE+) / (2.5G/1G/100M)
10 GbE RJ451 (PoE+++) / (10G/5G/2.5G/1G/100M)
10G SFP+1 / (10G/1G)
IDS/IPS Throughput5 Gbps
Form FactorWall-mounted / Compact desktop (Table stand included) / Rack mount (Accessory sold separately)
Coverage Area115 m² (1,250 ft²)
Security
IDS/IPS Signatures55,000+ with CyberSecure
Networking
MAC Address Table Size4,000
Integrated WiFi
WiFi Standard802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
5 GHz4.3 Gbps
2.4 GHz688 Mbps
5 GHz2 x 2 (DL/UL MU-MIMO)
2.4 GHz2 x 2 (DL/UL MU-MIMO)
5 GHzStub antenna: 5 dBi / Terminal (Omni) antenna: 6 dBi
2.4 GHzStub antenna: 3 dBi / Terminal (Omni) antenna: 6 dBi
5 GHz26 dBm
2.4 GHz23 dBm
802.11be (WiFi 7)7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b1, 2, 5.5, 11 Mbps
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
Hardware
NVR StoragePre-installed 128 GB microSD for NVR
Expansion SlotMicroSD Card
PoE BudgetDC input: 270W / ATX power: 75W
PoE+30W
PoE+++90W
Voltage Range PoE Mode50-57V
Max. Power Consumption28W (Excluding PoE output)
Power Method(1) DC Input (350W PSU) / (1) ATX power (48V)
Power Supply54V DC, 350W (Adapter included) / ATX power (48V)
Supported Voltage Range100–240V AC
Heat Dissipation95 BTU/hr (Excluding PoE output)
ProcessorQuad-core ARM® Cortex®-A73 at 2.2 GHz
System Memory3 GB
WeightDevice: 2.4 kg (5.3 lb) / Table stand: 321 g (11.3 oz)
Enclosure MaterialDevice: Polycarbonate, aluminium alloy / Table stand: Polycarbonate, galvanized steel, silicone rubber
ManagementEthernet / Bluetooth
Button(1) Factory reset / (2) Handle release buttons
ESD/EMP ProtectionAir: ± 8kV, contact: ± 4kV
Ambient Operating Temperature-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsCE, FCC, IC
Software
Mobile AppUniFi iOS™: Version 10.32.0 and later / UniFi Android™: Version 10.35.0 and later

Professional Overview

The Ubiquiti UCG-Industrial is Ruggedized, fanless 10 GbE UniFi Cloud Gateway delivering 350W of total system power for high-density PoE deployments, with advanced routing capabilities and microSD storage for full UniFi application support..

Performance specifications include IDS/IPS throughput of 5 Gbps, support for 300 concurrent clients, ids/ips throughput of 5 Gbps, coverage of 115 m² (1,250 ft²), IDS/IPS throughput of 55,000+ with CyberSecure.

The UCG-Industrial integrates seamlessly with the Ubiquiti UniFi ecosystem, enabling centralized management through the UniFi Network application.

Built to Ubiquiti's commercial-grade standards with a weight of Device: 2.4 kg (5.3 lb) / Table stand: 321 g (11.3 oz), featuring operating temperature range of -30 to 50° C (-22 to 122° F), CE, FCC, IC. Australian stock from ARC IP Networks with fast nationwide shipping and local support.

Part of our Ubiquiti UniFi Routers range — browse and compare the full range of UniFi gateways, Dream Machines and routers.

Ubiquiti UCG-Industrial: rugged gateway, switch and WiFi 7 in one

The UniFi Cloud Gateway Industrial is Ubiquiti's hardened all-in-one. It combines 5 Gbps IDS/IPS routing, a 270W PoE budget, integrated WiFi 7 and UniFi Protect recording — in a fanless enclosure rated -30 to 50° C.

That temperature range is the point. Where a desktop gateway tops out at 40°C, this one keeps running from -30 to 50° C — a plant room in an Australian summer, an unconditioned warehouse, a roadside cabinet or a cold store.

It runs the same Quad-core ARM® Cortex®-A73 at 2.2 GHz as the UCG-Fiber, supports 500+ clients and 50+ UniFi devices.

PoE: 270W and 90W per port

This is the headline capability and what separates it from every other cloud gateway. The UCG-Industrial is a PoE switch in its own right, with high-power ports capable of driving equipment that ordinary PoE cannot.

ItemSpecification
PoE budget270W (DC input) / 75W (ATX power)
PoE+++ per port90W
PoE+ per port30W
2.5 GbE RJ454 (2 PoE+++, 2 PoE+) (2.5G/1G/100M)
10 GbE RJ451 (PoE+++) (10G/5G/2.5G/1G/100M)
10G SFP+1 (10G/1G)
PoE voltage range50-57V

Three of its ports deliver 90W PoE+++, including the 10 Gigabit copper port. That is enough for PTZ cameras, high-power access points, floodlights or a downstream switch — loads that a standard 30W PoE+ port cannot carry.

Note the budget depends on how you power it: 270W on the included DC supply, or 75W on ATX power. The 350W supply is included. Our access point comparison lists the draw of each AP if you are planning the load.

Three WAN options and built-in WiFi 7

The UCG-Industrial has an unusually flexible WAN side — (1) 10G SFP+ (1) 10 GbE RJ45 (1) 2.5 GbE RJ45 are all available as defaults, with up to 5 WAN ports configurable for failover or load balancing.

It also includes its own access point, which no other cloud gateway at this power class does:

BandMax rateStreams
5 GHz4.3 Gbps2 x 2 (DL/UL MU-MIMO)
2.4 GHz688 Mbps2 x 2 (DL/UL MU-MIMO)

Standard is 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7), covering roughly 115 m² (1,250 ft²). One thing to be clear about: this is a dual-band radio — 5 GHz and 2.4 GHz only. There is no 6 GHz band, so if you need the uncongested 6 GHz spectrum you will want a separate WiFi 7 access point alongside it.

Antenna options are covered in the specifications: stub antennas or terminal omni antennas, which matters for a wall or cabinet mount.

Mounting, power and build

Form factorWall-mounted Compact desktop (Table stand included) Rack mount (Accessory sold separately)
DimensionsDevice: 307.9 x 203.5 x 43.7 mm (12.1 x 8 x 1.7") Table stand: 203.5 x 100.2 x 21.9 mm (8 x 3.9 x 0.9")
WeightDevice: 2.4 kg (5.3 lb) Table stand: 321 g (11.3 oz)
EnclosureDevice: Polycarbonate, aluminium alloy Table stand: Polycarbonate, galvanized steel, silicone rubber
Power method(1) DC Input (350W PSU) (1) ATX power (48V)
Power supply54V DC, 350W (Adapter included) ATX power (48V)
Appliance draw28W (Excluding PoE output)
Heat dissipation95 BTU/hr (Excluding PoE output)
Operating temperature-30 to 50° C (-22 to 122° F)
Buttons(1) Factory reset (2) Handle release buttons

It ships with a table stand and can be wall-mounted; a rack-mount kit is a separate accessory. The two handle release buttons and the aluminium alloy body are aimed at field installs rather than a tidy comms room.

The ATX power input is worth noting for anyone integrating it into existing plant — it can run from 48V ATX power instead of the supplied 350W DC adapter, though the PoE budget drops to 75W on ATX.

Camera recording

UniFi Protect runs on a pre-installed 128 GB microSD for NVR, with a microsd card slot for a larger card. It records (15) HD (8) 2K (5) 4K streams and manages 50 UniFi Access hubs.

Given the PoE headroom, this is a sensible platform for a handful of cameras at a remote or industrial site — the gateway powers them and records them. For larger camera counts, see the Protect NVR comparison and the Protect camera range.

Who the UCG-Industrial is for

  • Harsh or unconditioned environments — plant rooms, warehouses, cold stores, roadside cabinets, workshops. The -30 to 50° C range is the reason to choose it.
  • High-power PoE loads — PTZ cameras, heaters, floodlights or downstream switches needing 90W per port.
  • Remote sites needing one box — routing, PoE switching, WiFi and camera recording without a rack.
  • Multi-WAN sites using fibre, copper 10G and a backup service across 5 configurable WAN ports.
  • Wall or cabinet mounting where a desktop gateway has nowhere to sit.

Indoor and temperature-controlled? The UCG-Fiber gives the same 5 Gbps routing for less, and the UCG-Max less again. Full range in the cloud gateway comparison. Deploying several? See enterprise deal registration.

Frequently Asked Questions

What makes the UCG-Industrial 'industrial'?

Its operating temperature range of -30 to 50° C (-22 to 122° F), a fanless aluminium alloy enclosure, and wall or cabinet mounting. Standard cloud gateways are rated to 40°C and are desktop devices.

How much PoE does the UCG-Industrial provide?

270W on DC input, or 75W on ATX power. Individual ports deliver up to 90W on PoE+++ or 30W on PoE+.

What is PoE+++?

Ubiquiti's label for its highest-power PoE ports, delivering 90W per port. Three ports on the UCG-Industrial support it, including the 10 Gigabit copper port, which is enough for PTZ cameras, high-power access points or a downstream switch.

How fast is the UCG-Industrial firewall?

5 Gbps of IDS/IPS throughput with 55,000+ with CyberSecure threat signatures — the same routing performance as the UCG-Fiber.

How many clients does it support?

500+ simultaneous clients and 50+ managed UniFi devices.

Does the UCG-Industrial have built-in WiFi?

Yes, 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7), covering approximately 115 m² (1,250 ft²). It is dual-band — 5 GHz and 2.4 GHz only, with no 6 GHz band.

Does it support 6 GHz WiFi?

No. The integrated radio covers 5 GHz and 2.4 GHz. For 6 GHz you would add a separate WiFi 7 access point, which the gateway will manage.

What WAN ports does it have?

(1) 10G SFP+ (1) 10 GbE RJ45 (1) 2.5 GbE RJ45 are all available as default WAN ports, and up to 5 WAN ports can be configured.

Can the UCG-Industrial be rack mounted?

Yes, but the rack-mount kit is a separate accessory. A table stand is included, and it can also be wall mounted.

Can it record security cameras?

Yes. It ships with a 128 GB microSD for NVR and records (15) HD (8) 2K (5) 4K streams via UniFi Protect. The microSD slot accepts a larger card.

How is it powered?

(1) DC Input (350W PSU) (1) ATX power (48V). The 54V DC, 350W (Adapter included) ATX power (48V) adapter is included. Appliance draw is 28W (Excluding PoE output).

Is there a subscription or licence fee?

No. UniFi has no recurring licence costs. CyberSecure is the one optional paid add-on, which expands the threat signature set.

Is the UCG-Industrial available in Australia?

Yes. ARC IP Networks is an authorised Ubiquiti reseller holding Australian stock with full manufacturer warranty and fast domestic shipping.

ARC IP Networks, authorised Ubiquiti reseller in Australia — Australian stock, manufacturer warranty, fast shipping, trade pricing.
ARC IP Networks is an authorised Ubiquiti reseller in Australia — Australian stock, full manufacturer warranty, fast shipping and trade pricing. Call 1300 100 440 or read more about buying from an authorised reseller.

Buy the Ubiquiti UCG-Industrial in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying the Cloud Gateway Industrial from Australian stock, with full manufacturer warranty and fast shipping nationwide.

  • Authorised Ubiquiti reseller — genuine Australian stock, not grey import
  • Full manufacturer warranty with local RMA support
  • Competitive pricing, monitored against the Australian market daily
  • Fast dispatch Australia-wide, or collect from our warehouse
  • Project pricing and deal registration for multi-site rollouts

Compare with the UCG-Fiber and UCG-Max, or browse UniFi cloud gateways, routers, switches, access points and the Protect camera range. More on buying from an authorised Ubiquiti reseller in Australia.

Brand UBIQUITI
Ports 5
IDS/IPS Throughput 5 Gbps
Built-in WiFi 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
WAN Ports 5
