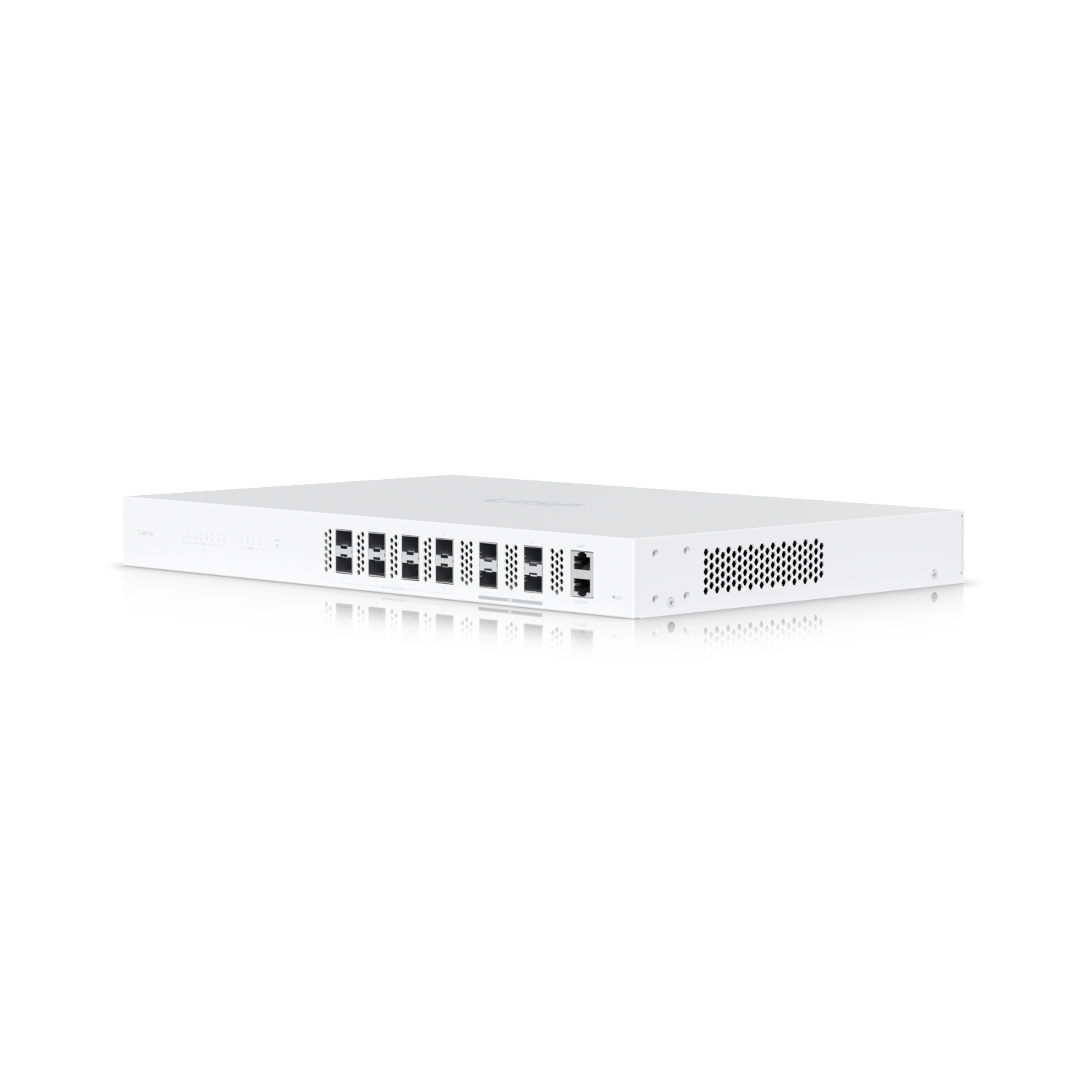

Ubiquiti UISP-FIBER-OLT-XGS UISP Fiber 8 Port 10Gbps 2000 Subscribers

https://arcip.com.au/web/image/product.template/3981/image_1920?unique=4c3f075

An eight-port optical line terminal that can deliver 10 Gbps uplink/downlink speeds to over 2,000 subscribers.

4,948.35 4948.35 AUD 4,948.35 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

UISP Ubiquiti
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UISP-FIBER-OLT-XGS
Barcode
810084691175
Tags
UISP-FIBER-OLT-XGS
Ubiquiti UISP Fiber OLT XGS — 8-Port 10 Gbps OLT for 2,000+ Subscribers
UISP-FIBER-OLT-XGS

Features

  • XGS-PON 10 Gbps bi-directional capacity
  • 2048 Client capacity (8 ports)
  • (4) 25G SFP28 uplink ports
  • 1U rack mount
  • AC/DC power module redundancy support

Specifications

Mechanical
Dimensions442.4 x 285.6 x 43.7 mm (17.4 x 11.2 x 1.7")
Weight5.29 kg (11.7 lb)
Enclosure materialSGCC steel
Hardware
Networking interface(8) XGS/XG/GPON ports / (4) 1/10/25G SFP28 ports* / *The four SFP28 ports don't support mixed speed at 25 Gbps mode. Once one of the SFP28 ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. The SFP28 ports only support mixed speed when all ports are at 1 Gbps or 10 Gbps.
Management interfaceEthernet out-of-band / Ethernet in-band / RJ45 serial console port / Bluetooth
Memory512 MB DDR3
Onboard flash storage64 MB NOR + 512 MB NAND
Power method(1) Universal AC input, 100-240V AC, 50/60 Hz
Power supply(2) Hotswap AC/DC PSU
Supported voltage range100–240V AC
Max. power consumption70W
Button(1) Factory reset
Ambient operating temperature-10 to 45° C (14 to 113° F)
Ambient operating humidity10 to 95% non-condensing
CertificationsCE, FCC, IC
LEDs
SystemSlow blinking white: system is booting / Fast blinking white: reset to default / Blinking white/blue: system is upgrading / Slow blinking blue: system is connecting to UISP / Fast blinking blue: locate system / Steady white: system is ready / Steady blue: system is ready and connected to UISP
MGMT port(1) White, steady on after link is up
PON ports(8) Steady white: PON link
SFP28 ports(4) White, steady on after link is up
NDAA CompliantYes

Professional Overview

The Ubiquiti UISP Fiber OLT XGS is an eight-port optical line terminal capable of delivering 10 Gbps symmetric (XGS-PON) speeds to over 2,000 subscribers. It is the core infrastructure device for WISP and ISP operators building fiber-to-the-premises (FTTP) networks using the UISP Fiber platform.

With (4) 25G SFP28 uplink ports, the OLT provides high-speed aggregation to your core network. Each of the 8 PON ports supports up to 256 subscribers, enabling massive scale from a single 1U rack-mounted device. XGS-PON delivers 10 Gbps bi-directional capacity per port, shared among connected CPE devices.

The OLT supports AC/DC power module redundancy for mission-critical deployments where uptime is essential. Managed through the UISP application, it provides centralised subscriber management, bandwidth allocation, and monitoring across your entire fiber network.

Designed for 1U rack mounting in a central office or equipment room, the UISP Fiber OLT XGS is Ubiquiti's answer to carrier-grade PON infrastructure at ISP-friendly pricing. Australian stock from ARC IP Networks.
