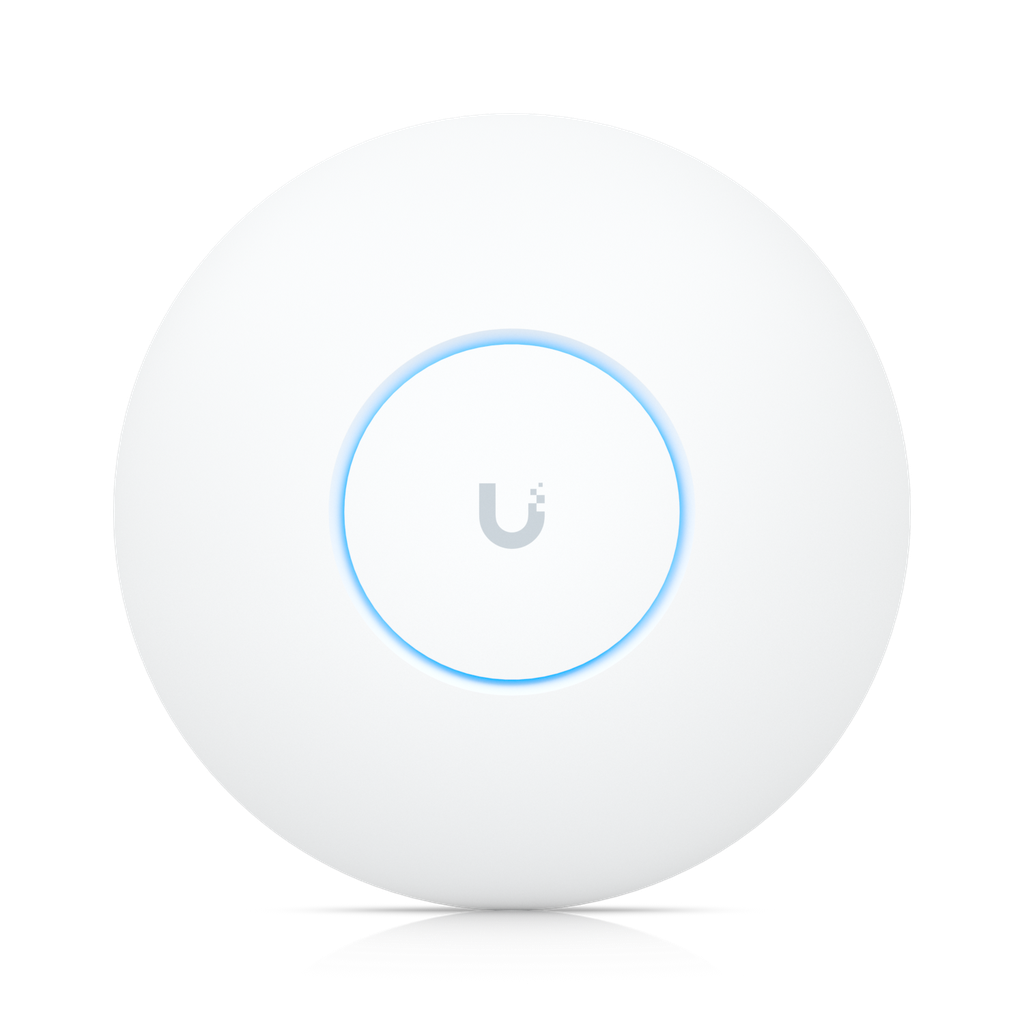

Ubiquiti UAP-XG Unifi 1500 Client Capacity, 10 Gbps, Enterprise Wi-Fi Access Point

https://arcip.com.au/web/image/product.template/3941/image_1920?unique=328b124
The UAP-XG is a UniFi device. Ceiling-mounted WiFi 5 AP with 8 spatial streams designed to support very high client density environments.

1,344.20 1344.2 AUD 1,344.20 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

UniFi Access Point Ubiquiti
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UAP-XG
Barcode
817882021418
Tags
UAP-XG
Ubiquiti UniFi Access Point XG — WiFi 5, 8 Spatial Streams

Features

  • WiFi 5
  • 8 spatial streams
  • 140 m² coverage
  • 1,500+ connected devices
  • Powered using PoE++*
  • (1) GbE and (1) 10 GbE uplink
  • *PoE power adapter included with single unit purchases.

Specifications

Overview
Dimensions⌀228 x 50 mm / (⌀9 x 2")
WiFi StandardWiFi 5
Spatial Streams8
Coverage Area140 m²
MountingCeiling, Wall / (Pro Mount Included)
Power MethodGigabit PoE++ adapter 50V DC, 1.2A
Performance
5 GHz4 x 4
2.4 GHz4 x 4
5 GHz1733 Mbps
2.4 GHz800 Mbps
5 GHz8 dBi
2.4 GHz6 dBi
5 GHz25 dBm
2.4 GHz25 dBm
Max. BSSIDsUp to 8 per radio
802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) / 58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160)
802.11n6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
Hardware
Max. Power Consumption31W
Networking Interface(1) GbE RJ45 port / (1) 1/10 GbE ICM Ethernet port
WeightWithout mount: 1.2 kg / With mount: 1.4 kg
SystemR/G/B
CertificationsCE, FCC, IC, Anatel: 00569-19-08356
Ambient Operating Temperature-10 to 60° C (14 to 140° F)
Ambient Operating Humidity5 to 95% noncondensing
Software
UniFi NetworkVersion 6.0.45 and later

Professional Overview

The Ubiquiti UAP-XG is a UniFi network device. Ceiling-mounted WiFi 5 AP with 8 spatial streams designed to support very high client density environments.

Weighing Without mount: 1.2 kg / With mount: 1.4 kg, the UAP-XG is built for reliable 24/7 operation. Australian stock, fast shipping from ARC IP Networks.

Part of our Ubiquiti UniFi Access Points range — browse and compare the full range of WiFi 7 and WiFi 6 access points.

Ubiquiti UAP-XG: WiFi 5 access point

The Access Point XG is a UniFi WiFi 5 access point with 8 spatial streams, a rated coverage area of 140 m² (1,500 ft²) and 1,500 concurrent clients.

On the wired side the uplink is GbE/10 GbE, it is powered by Gigabit PoE++ adapter 50V DC, 1.2A, and draws at most 31W.

This is an indoor access point. It carries no ingress rating, so for a veranda, a carport, a warehouse dock or anywhere else exposed to weather, use a unit that is rated for it.

Radios and throughput

BandMIMOMax. throughputAntenna gainMax. TX power
5 GHz4 x 41733 Mbps8 dBi25 dBm
2.4 GHz4 x 4450 Mbps6 dBi25 dBm
Spatial streams8
WiFi standardWiFi 5
Max. BSSIDsUp to 8 per radio

Supported data rates

802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) 58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160)
802.11n6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)

These are modulation-coding-scheme ceilings measured at the radio, not speeds a client will see. Real throughput depends on the client's own radio, the channel width you can actually use, distance and how much of the band your neighbours are already occupying. Our UniFi access point comparison puts the range side by side.

Uplink and power

UplinkGbE/10 GbE
Networking interface(1) GbE RJ45 port (1) 1/10 GbE ICM Ethernet port
Power methodGigabit PoE++ adapter 50V DC, 1.2A
Max. power consumption31W

Power comes down the Ethernet run as Gigabit PoE++ adapter 50V DC, 1.2A, drawing up to 31W. On a switch that shares one PoE budget across every port, add up the draw of every AP before you commit — the UniFi switch range lists the total availability for each model.

The GbE/10 GbE uplink is there for a reason: a WiFi 7 radio can move more than a gigabit, and on a 1 GbE port the switch becomes the bottleneck before the radio does. It will negotiate down to 1 GbE and work, but you lose the headroom you paid for.

Who the UAP-XG suits

  • Very high density venues — auditoriums, stadiums and lecture halls
  • Sites with 10G uplinks already cabled to the AP position
  • Existing UniFi estates extending capacity in a problem area

Physical and mounting

Dimensions⌀228 x 50 mm (⌀9 x 2")
WeightWithout mount: 1.2 kg (2.7 lb) With mount: 1.4 kg (3 lb)
MountingCeiling, Wall (Pro Mount Included)
Status LEDR/G/B
Operating temperature-10 to 60° C (14 to 140° F)
Operating humidity5 to 95% noncondensing
CertificationsCE, FCC, IC, Anatel: 00569-19-08356

The mounting hardware listed above is supplied in the box.

Rated for -10 to 60° C (14 to 140° F). Worth checking against a roof space in an Australian summer, which routinely runs hotter than an occupied room.

Management and requirements

UniFi Network versionVersion 6.0.45 and later

Like every UniFi access point, the UAP-XG is adopted and managed by a UniFi controller — a Cloud Gateway or Dream Machine, a Cloud Key, or UniFi hosting. The AP does not run the controller itself, and it is not a standalone router: it provides the WiFi, while routing, firewall and VLANs live on the gateway.

It requires UniFi Network 6.0.45 and later. An older controller will not adopt it until you update.

Frequently Asked Questions

What is the UAP-XG?

The Access Point XG is a UniFi WiFi 5 access point with 8 spatial streams and a rated coverage area of 140 m² (1,500 ft²).

How many devices can the UAP-XG handle?

Ubiquiti rates it at 1,500 concurrent clients. That is a ceiling under favourable conditions, not a design target — for dense environments size on the number of devices actually active at once and add APs rather than pushing one to its limit.

What area does the UAP-XG cover?

140 m² (1,500 ft²) is the published figure. Coverage in a real building depends on what the signal has to pass through: plasterboard costs little, double brick, foil-backed insulation and concrete cost a great deal.

How is the UAP-XG powered?

Gigabit PoE++ adapter 50V DC, 1.2A over the Ethernet run, drawing up to 31W.

What uplink speed does the UAP-XG have?

GbE/10 GbE. It will negotiate down to 1 GbE, but on a multi-gigabit radio that makes the switch port the bottleneck.

Can the UAP-XG be used outdoors?

No. It carries no ingress rating and is an indoor access point. For covered outdoor areas choose a weatherproof model.

How is the UAP-XG mounted?

Ceiling, Wall (Pro Mount Included).

Does the UAP-XG need a UniFi controller?

Yes. UniFi access points are adopted and managed by a controller — a Cloud Gateway, Dream Machine, Cloud Key or UniFi hosting. The AP supplies the WiFi; routing, firewall and VLANs live on the gateway.

What UniFi Network version does it require?

UniFi Network 6.0.45 and later.

Is the UAP-XG available in Australia?

Yes. ARC IP Networks is an authorised Ubiquiti reseller holding Australian stock with full manufacturer warranty and fast domestic shipping.

ARC IP Networks, authorised Ubiquiti reseller in Australia — Australian stock, manufacturer warranty, fast shipping, trade pricing.
ARC IP Networks is an authorised Ubiquiti reseller in Australia — Australian stock, full manufacturer warranty, fast shipping and trade pricing. Call 1300 100 440 or read more about buying from an authorised reseller.

Buy the Ubiquiti UAP-XG in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying the UAP-XG from Australian stock, with full manufacturer warranty and fast shipping nationwide.

  • Authorised Ubiquiti reseller — genuine Australian stock, not grey import
  • Full manufacturer warranty with local RMA support
  • Competitive Australian pricing, monitored against the local market daily
  • Fast dispatch Australia-wide, or collect from our warehouse
  • Trade and project pricing for installers, MSPs and multi-site rollouts

Browse the full UniFi access point range, plus cloud gateways, switches and the Protect camera range. New to UniFi? Start with the complete UniFi buying guide, or compare the APs directly in our access point comparison. More on buying from an authorised Ubiquiti reseller in Australia.
