Ubiquiti UniFi U7 Pro Max — WiFi 7 Ceiling Access Point (8 Streams, 6 GHz, 2.5 GbE)

Price:

562.65


Yealink RT30 DECT Phone Repeater for W70B / W80B / W90B Base Stations
Yealink RT30 DECT Phone Repeater for W70B / W80B / W90B Base Stations
206.75
206.75

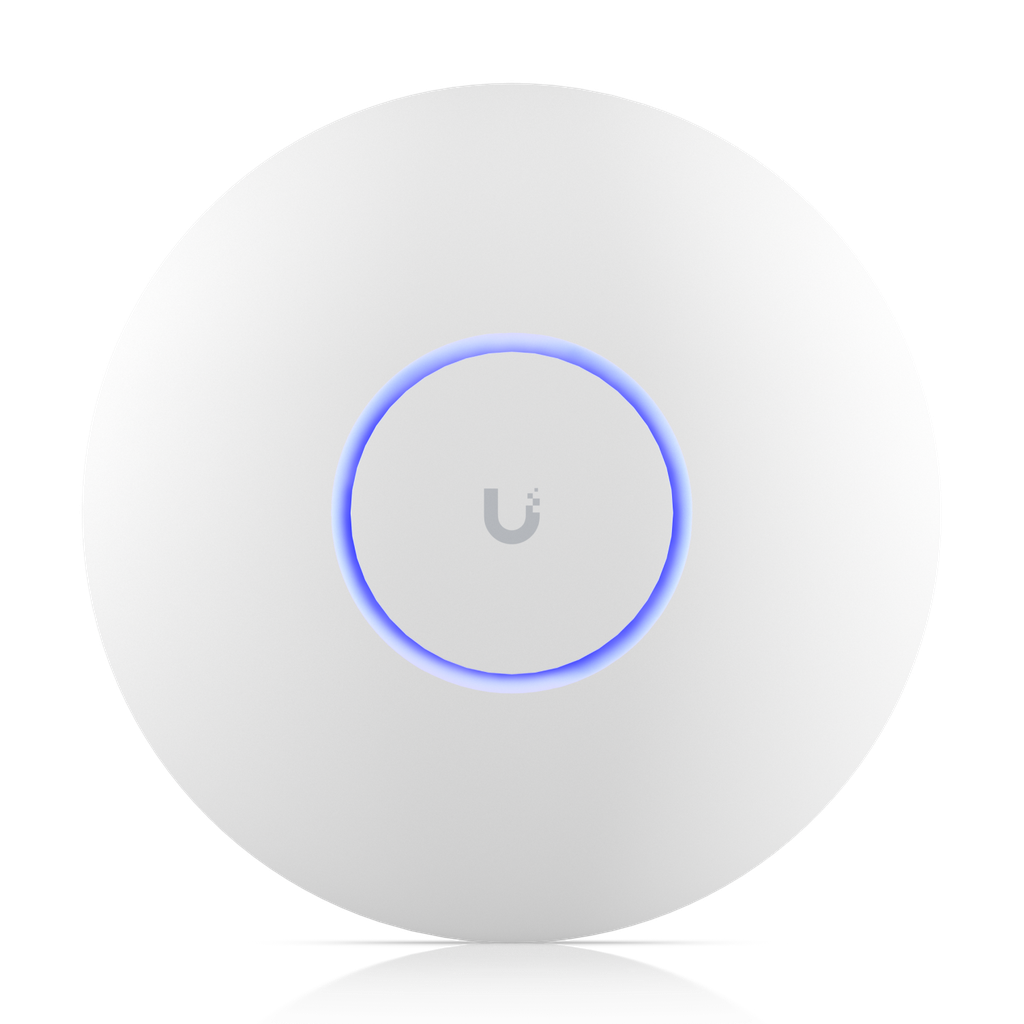

Ubiquiti UniFi U7 Pro Max — WiFi 7 Ceiling Access Point (8 Streams, 6 GHz, 2.5 GbE)

https://arcip.com.au/web/image/product.template/9623/image_1920?unique=5bc11a5
Flagship UniFi WiFi 7 ceiling AP with 8 spatial streams across 6/5/2.4 GHz, dedicated spectral scanning engine for interference-free channel selection, and a 2.5 GbE uplink. Delivers up to 5.8 Gbps on 6 GHz (BW320) and 8.6 Gbps on 5 GHz (BW240). Powered by PoE+, covers 160 m² for 500+ concurrent devices. Pro Mount included. Australian stock with full Ubiquiti Australia warranty from ARC IP Networks.

562.65 562.65 AUD 562.65 incl. GST

Not Available For Sale


  • Brand
  • WiFi Standard
  • Frequency Band
  • Max Throughput
  • MIMO Configuration
  • PoE Requirement
  • Max Clients
  • Coverage Area
  • Form Factor
  • AP Features

This combination does not exist.

WiFi 7 2.5GbE Indoor UniFi Access Point 6 GHz Ubiquiti Ceiling Mount PoE+ Tri-Band Enterprise High Density
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
U7-Pro-Max

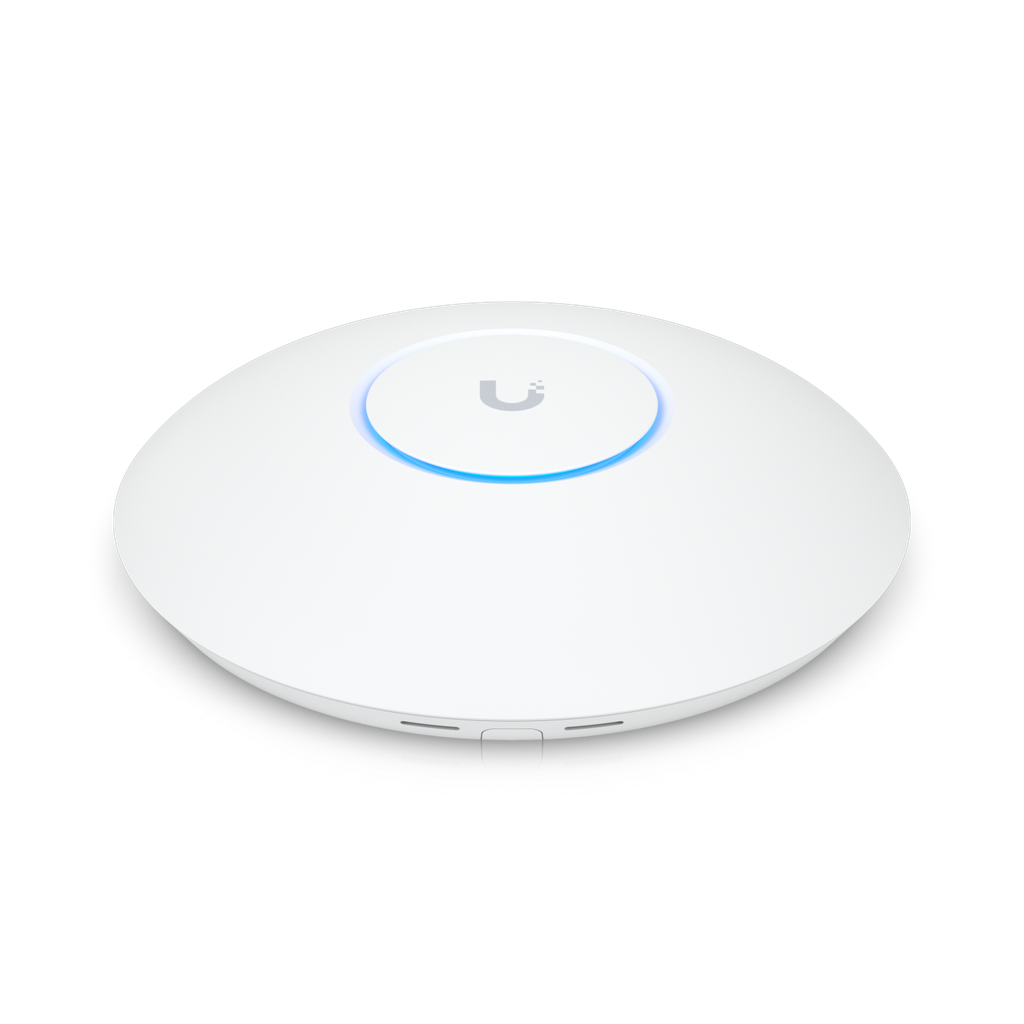

Ubiquiti UniFi U7 Pro Max — WiFi 7 Tri-Band Ceiling Access Point with 8 Spatial Streams, 6 GHz, and 2.5 GbE Uplink

U7-Pro-Max

U7-Pro-Max

U7-Pro-Max

U7-Pro-Max

U7-Pro-Max

U7-Pro-Max

Features

  • WiFi 7 with 6 GHz support
  • 8 spatial streams
  • Real-time spectral analysis for enhanced channel selection*
  • 160 m² (1,750 ft²) coverage
  • 500+ connected devices
  • Powered using PoE+
  • 2.5 GbE uplink
  • Tri-band radio: 6 GHz (BW320) + 5 GHz (BW240) + 2.4 GHz
  • 8 spatial streams across 6/5/2.4 GHz bands

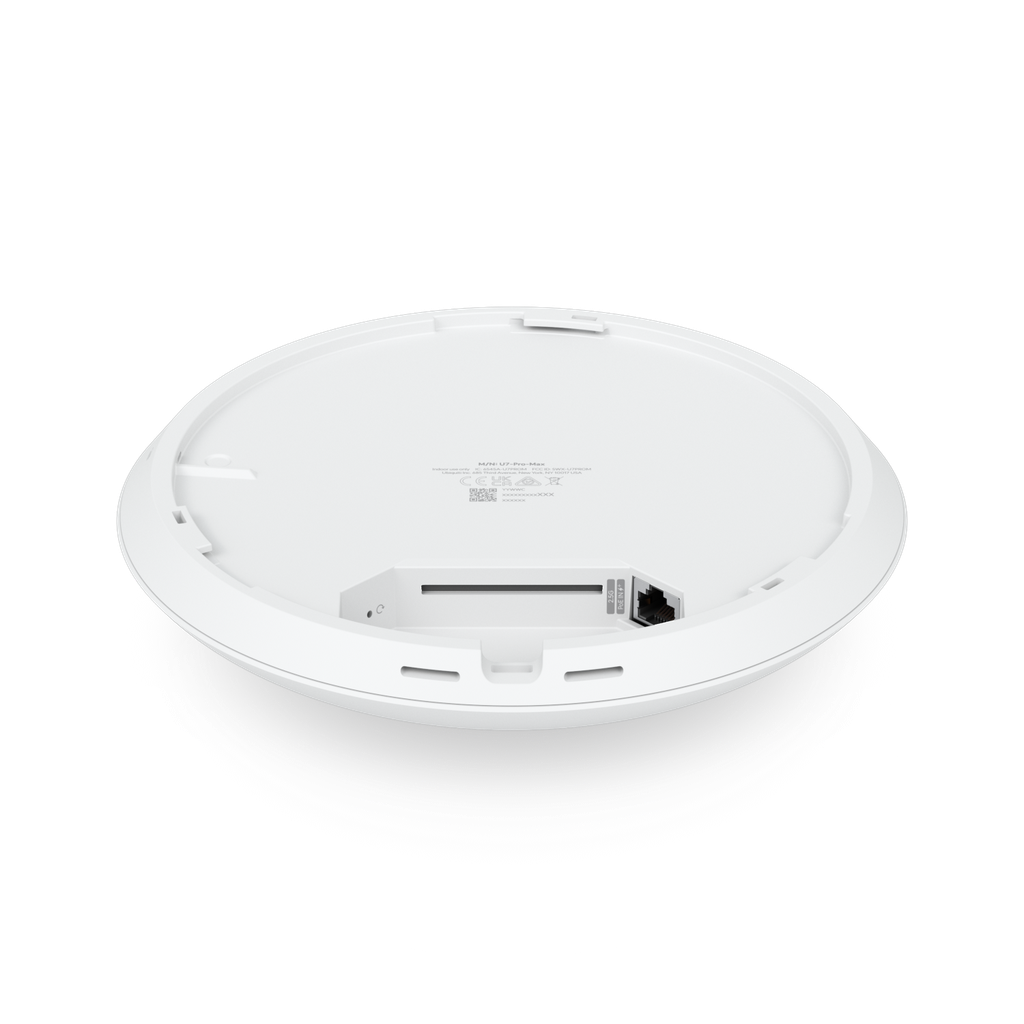

  • 1 x 1/2.5 GbE RJ45 uplink port
  • Powered by PoE+ (802.3at), 25W max consumption

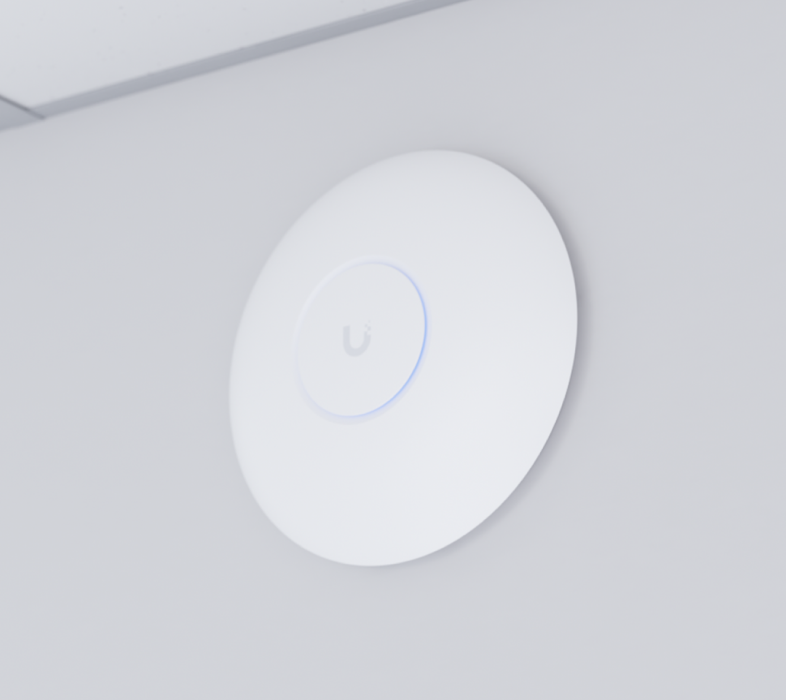

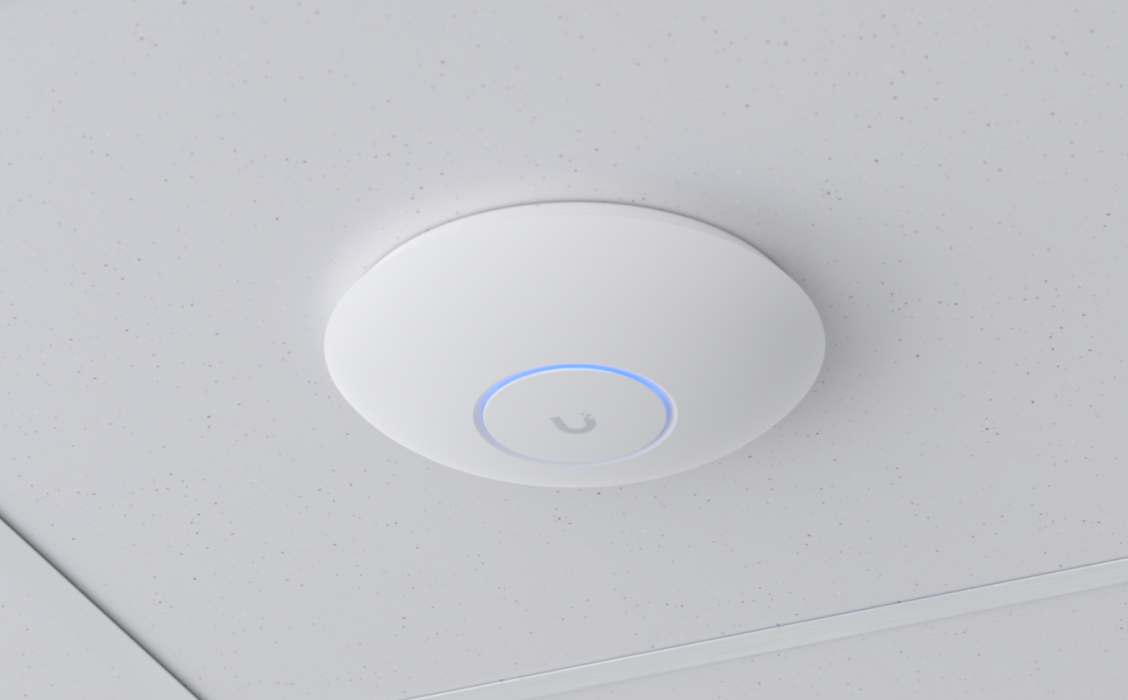

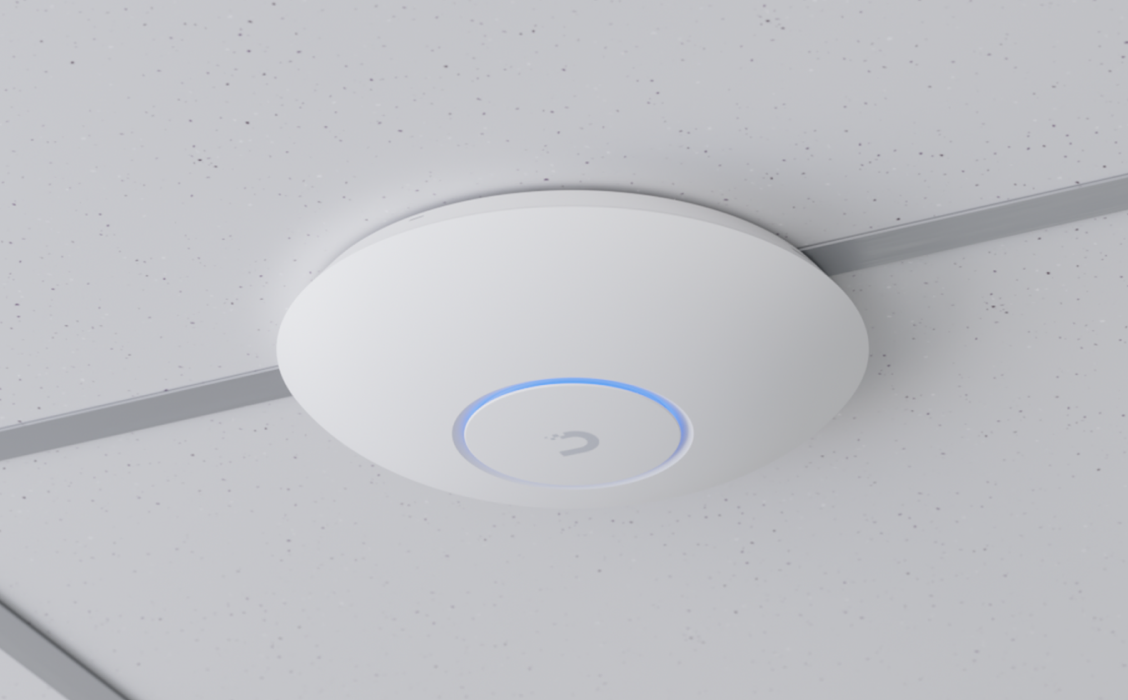

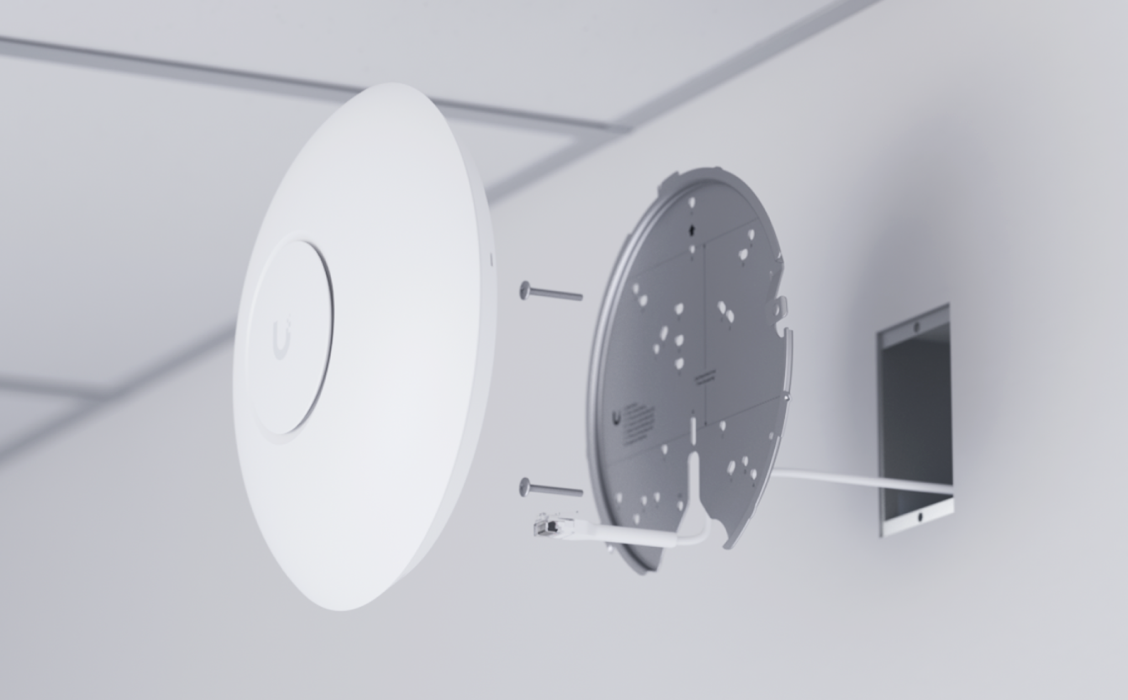

  • Includes Pro Mount for ceiling or wall mounting
  • 160 m² coverage area for 500+ concurrent clients

Specifications

Overview
Dimensions⌀206 x 46 mm / ()
WiFi StandardWiFi 7
Spatial Streams8
Coverage Area160 m²
Max. Client Count500+
Uplink2.5 GbE
MountingCeiling, Wall / (Pro Mount Included)
Power MethodPoE+
Performance
6 GHz2 x 2 (DL/UL MU-MIMO)
5 GHz4 x 4 (DL/UL MU-MIMO)
2.4 GHz2 x 2 (DL/UL MU-MIMO)
6 GHz5.8 Gbps (BW320)
5 GHz8.6 Gbps (BW240)
2.4 GHz688 Mbps (BW40)
6 GHz5.9 dBi
5 GHz6 dBi
2.4 GHz4 dBi
6 GHz23 dBm
5 GHz29 dBm
2.4 GHz23 dBm
Max. BSSIDs8 per Radio
802.11be (WiFi 7)6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) / 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
802.11ax (WiFi 6/6E)7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
Hardware
Max. Power Consumption25W
Supported Voltage Range44–57V DC
Networking Interface(1) 1/2.5 GbE RJ45 port
Weight680 g
ManagementEthernet
Enclosure MaterialPolycarbonate, aluminum
Mount MaterialStainless steel (SUS304), galvanized steel (SGCC)
SystemWhite/Blue
Channel BandwidthHT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
CertificationsCE, FCC, IC, Anatel: 08959-24-08356
Operating FrequencyUS/CA: / 2400 - 2472 MHz / U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz / U-NII-5 to U-NII-8: 5925 - 7125 MHz / / Worldwide: / 2400 - 2483.5 MHz / 5150 - 5850 MHz / 5925 - 7125 MHz
Ambient Operating Temperature-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity5 to 95% noncondensing
Software
UniFi NetworkVersion 8.2.93 and later

Professional Overview

The Ubiquiti UniFi U7 Pro Max is a flagship ceiling-mounted WiFi 7 access point engineered for high-density, large-scale deployments where uncompromising airtime efficiency is required. With eight spatial streams distributed across 6 GHz, 5 GHz, and 2.4 GHz radios, support for 320 MHz channel bandwidth, and a 160 m² coverage footprint rated for 500+ concurrent clients, it is purpose-built for offices, hotels, hospitals, campuses, and retail venues that demand multi-gigabit wireless throughput across hundreds of devices.

Aggregate PHY rates reach 5.8 Gbps on 6 GHz (BW320, 2x2 MU-MIMO), 8.6 Gbps on 5 GHz (BW240, 4x4 MU-MIMO), and 688 Mbps on 2.4 GHz (BW40, 2x2 MU-MIMO). The single 1/2.5 GbE RJ45 uplink delivers 2.5 Gbps backhaul to a UniFi switch, while a maximum draw of 25 W keeps the unit comfortably within the PoE+ (802.3at) budget — no power injector required when paired with any UniFi PoE+ switch.

A defining feature of the U7 Pro Max is its dedicated spectral scanning engine, which provides real-time analysis of the RF environment for enhanced channel selection and interference mitigation (UniFi Network 8.2.93+). Multi-Link Operation (MLO) is on the roadmap and will be enabled via software update, allowing simultaneous aggregation across the 6 GHz and 5 GHz radios for ultra-low-latency clients. Up to 8 BSSIDs per radio support segmented multi-SSID rollouts, and DL/UL MU-MIMO on every band keeps mixed-client networks responsive.

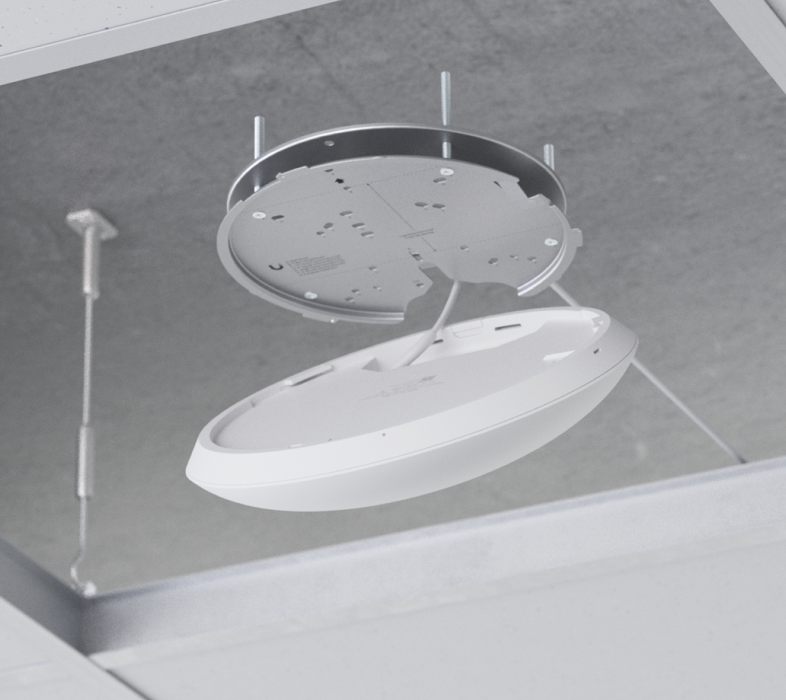

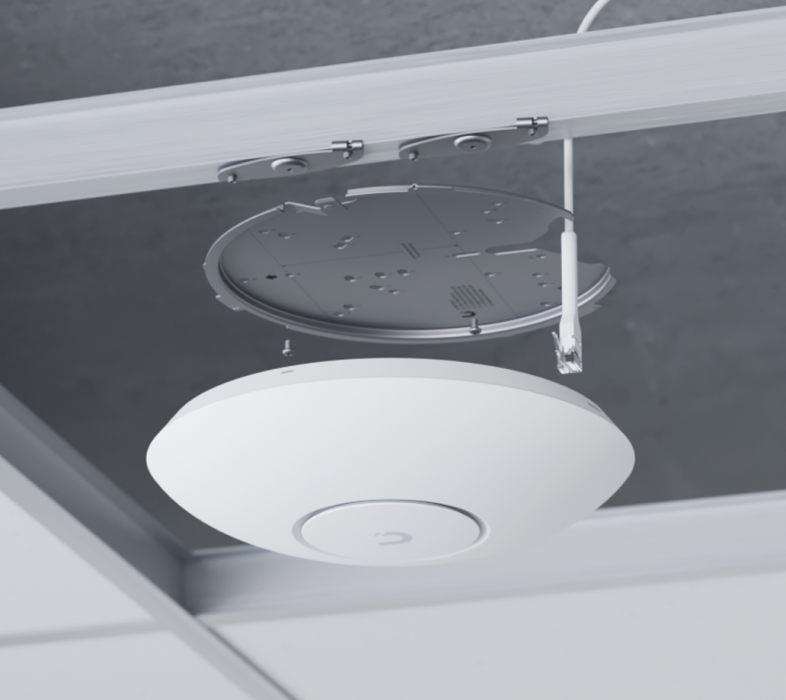

Construction is polycarbonate with an aluminium internal frame and a stainless-steel (SUS304) and galvanised-steel (SGCC) Pro Mount included in the box for clean ceiling or wall installs. Operating range is -30 to 50° C across 5 to 95% non-condensing humidity, and the unit ships with CE, FCC, IC, and Anatel certifications. Centrally managed through any UniFi Network controller (Cloud Key, Dream Machine, or self-hosted), the U7 Pro Max is available as Australian stock from ARC IP Networks.

Brand UBIQUITI
WiFi Standard WiFi 7
Frequency Band Tri-Band (2.4/5/6 GHz)
Max Throughput 5.8 Gbps (6 GHz) + 8.6 Gbps (5 GHz) + 688 Mbps (2.4 GHz)
MIMO Configuration 6 GHz: 2x2 / 5 GHz: 4x4 / 2.4 GHz: 2x2 (DL/UL MU-MIMO)
PoE Requirement PoE+ (802.3at)
Max Clients 500+
Coverage Area 160 m²
Form Factor Ceiling Mount
AP Features Spectral Scanning, MLO Ready, 8 BSSIDs/Radio, Pro Mount Included
