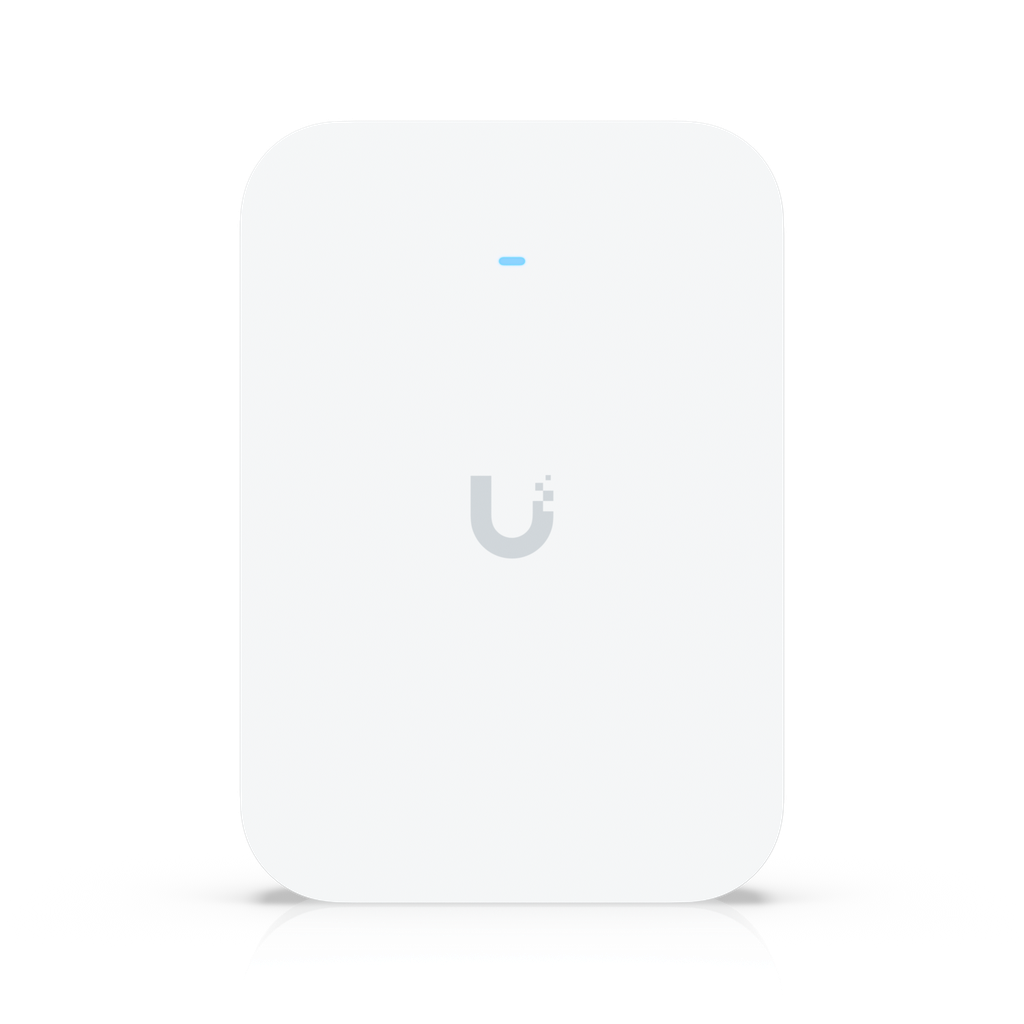

Ubiquiti U7-Pro-XG-Wall Access Point U7 Pro XG Wall

https://arcip.com.au/web/image/product.template/7908/image_1920?unique=a844237
Access Point U7 Pro XG Wall. Wall-mounted 6 GHz-ready WiFi 7 AP with 1/2.5/10 GbE support. Australian stock. Available for store pickup or shipping.

480.01 480.01 AUD 498.30 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • WiFi Standard
  • Frequency Band
  • Coverage Area

This combination does not exist.

In stock online
WiFi 7 Indoor UniFi Access Point Ubiquiti Ubiquiti New Releases
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
U7-Pro-XG-Wall
Barcode
810177165118
Tags
U7-Pro-XG-Wall
Access Point U7 Pro XG Wall

U7-Pro-XG-Wall

U7-Pro-XG-Wall

U7-Pro-XG-Wall

U7-Pro-XG-Wall

Specifications

Grid overview
WiFi7WiFi 7
Radio/Antenna6 GHz Radio
Overview
Dimensions155 x 108 x 33.5 mm / (6.1 x 4.3 x 1.3'')
WiFi StandardWiFi 7
Spatial Streams6
Coverage Area140 m² (1,500 ft²)
Max. Client Count300+
Uplink10 GbE
MountingWall
Power MethodPoE+
Performance
6 GHz2 x 2 (DL/UL MU-MIMO)
5 GHz2 x 2 (DL/UL MU-MIMO)
2.4 GHz2 x 2 (DL/UL MU-MIMO)
6 GHz5.8 Gbps (BW320)
5 GHz4.3 Gbps (BW240)
2.4 GHz688 Mbps (BW40)
6 GHz6 dBi
5 GHz6 dBi
2.4 GHz4 dBi
6 GHz24 dBm
5 GHz26 dBm
2.4 GHz23 dBm
Max. BSSIDs8 per Radio
802.11be (WiFi 7)6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) / 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Hardware
Max. Power Consumption22W
Supported Voltage Range42.5–57V DC
Networking Interface(1) 10 GbE RJ45 port
Weight505 g (1.1 lb)
ManagementEthernet
Enclosure MaterialPolycarbonate, aluminum alloy
Mount MaterialAluminum alloy
SystemW/B
Channel BandwidthHT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
CertificationsCE, FCC, IC
Ambient Operating Temperature-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
Software
UniFi NetworkVersion 10.0 and later
Mobile AppiOS™ version 10.29.3 and later / Android™ version 10.31.1 and later

Professional Overview

The Ubiquiti U7-Pro-XG-Wall is Wall-mounted 6 GHz-ready WiFi 7 AP with 1/2.5/10 GbE support..

Performance specifications include coverage of 140 m² (1,500 ft²), support for 300+ concurrent clients.

The U7-Pro-XG-Wall integrates seamlessly with the Ubiquiti UniFi ecosystem, enabling centralized management through the UniFi Network application.

Built to Ubiquiti's commercial-grade standards with a weight of 505 g (1.1 lb), featuring CE, FCC, IC, operating temperature range of -30 to 40° C (-22 to 104° F). Australian stock from ARC IP Networks with fast nationwide shipping and local support.

Part of our Ubiquiti UniFi Access Points range — browse and compare the full range of WiFi 7 and WiFi 6 access points.

Ubiquiti U7-Pro-XG-Wall: WiFi 7 access point

The Access Point U7 Pro XG Wall is a UniFi WiFi 7 access point with 6 spatial streams, a rated coverage area of 140 m² (1,500 ft²) and 300+ concurrent clients.

On the wired side the uplink is 10 GbE, it is powered by PoE+, and draws at most 22W.

This is an indoor access point. It carries no ingress rating, so for a veranda, a carport, a warehouse dock or anywhere else exposed to weather, use a unit that is rated for it.

In Australia the ACMA class licence opens 5925–6425 MHz to WiFi — the lower 500 MHz of the 6 GHz band, not the full 5925–7125 MHz range the United States allows. There are still more clean channels there than anywhere in 5 GHz, but plan channel width accordingly: a 320 MHz channel consumes most of what is available here.

Radios and throughput

BandMIMOMax. throughputAntenna gainMax. TX power
6 GHz2 x 2 (DL/UL MU-MIMO)5.8 Gbps (BW320)6 dBi24 dBm
5 GHz2 x 2 (DL/UL MU-MIMO)4.3 Gbps (BW240)6 dBi26 dBm
2.4 GHz2 x 2 (DL/UL MU-MIMO)688 Mbps (BW40)4 dBi23 dBm
Spatial streams6
WiFi standardWiFi 7
Channel bandwidthHT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
Max. BSSIDs8 per Radio
Radio / antenna6 GHz Radio

Supported data rates

802.11be (WiFi 7)6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

These are modulation-coding-scheme ceilings measured at the radio, not speeds a client will see. Real throughput depends on the client's own radio, the channel width you can actually use, distance and how much of the band your neighbours are already occupying. Our UniFi access point comparison puts the range side by side.

Uplink and power

Uplink10 GbE
Networking interface(1) 10 GbE RJ45 port
Power methodPoE+
Max. power consumption22W
Supported voltage range42.5–57V DC
ManagementEthernet

Power comes down the Ethernet run as PoE+, drawing up to 22W. On a switch that shares one PoE budget across every port, add up the draw of every AP before you commit — the UniFi switch range lists the total availability for each model.

The 10 GbE uplink is there for a reason: a WiFi 7 radio can move more than a gigabit, and on a 1 GbE port the switch becomes the bottleneck before the radio does. It will negotiate down to 1 GbE and work, but you lose the headroom you paid for.

Who the U7-Pro-XG-Wall suits

  • Hotel rooms, apartments, student accommodation and aged care — one AP per room
  • Wall-plate installs that also need wired ports at the same point
  • Retrofits into an existing single-gang wall box with a cable already run
  • Sites wanting WiFi 7 without a ceiling-mounted dome in every room

Physical and mounting

Dimensions155 x 108 x 33.5 mm (6.1 x 4.3 x 1.3'')
Weight505 g (1.1 lb)
MountingWall
Enclosure materialPolycarbonate, aluminum alloy
Mount materialAluminum alloy
Status LEDW/B
Operating temperature-30 to 40° C (-22 to 104° F)
Operating humidity5 to 95% noncondensing
CertificationsCE, FCC, IC

Rated for -30 to 40° C (-22 to 104° F). Worth checking against a roof space in an Australian summer, which routinely runs hotter than an occupied room.

Management and requirements

UniFi Network versionVersion 10.0 and later
Mobile appiOS™ version 10.29.3 and later Android™ version 10.31.1 and later
ManagementEthernet

Like every UniFi access point, the U7-Pro-XG-Wall is adopted and managed by a UniFi controller — a Cloud Gateway or Dream Machine, a Cloud Key, or UniFi hosting. The AP does not run the controller itself, and it is not a standalone router: it provides the WiFi, while routing, firewall and VLANs live on the gateway.

It requires UniFi Network 10.0 and later. An older controller will not adopt it until you update.

Frequently Asked Questions

What is the U7-Pro-XG-Wall?

The Access Point U7 Pro XG Wall is a UniFi WiFi 7 access point with 6 spatial streams and a rated coverage area of 140 m² (1,500 ft²).

How many devices can the U7-Pro-XG-Wall handle?

Ubiquiti rates it at 300+ concurrent clients. That is a ceiling under favourable conditions, not a design target — for dense environments size on the number of devices actually active at once and add APs rather than pushing one to its limit.

What area does the U7-Pro-XG-Wall cover?

140 m² (1,500 ft²) is the published figure. Coverage in a real building depends on what the signal has to pass through: plasterboard costs little, double brick, foil-backed insulation and concrete cost a great deal.

How is the U7-Pro-XG-Wall powered?

PoE+ over the Ethernet run, drawing up to 22W, within a supported voltage range of 42.5–57V DC.

What uplink speed does the U7-Pro-XG-Wall have?

10 GbE. It will negotiate down to 1 GbE, but on a multi-gigabit radio that makes the switch port the bottleneck.

Does the U7-Pro-XG-Wall support 6 GHz in Australia?

Yes, within the Australian allocation. The ACMA class licence opens 5925 to 6425 MHz to WiFi — the lower 500 MHz of the band, where the United States allows 5925 to 7125 MHz. You get the clean spectrum, with fewer very wide channels to put in it than the US figures imply.

Can the U7-Pro-XG-Wall be used outdoors?

No. It carries no ingress rating and is an indoor access point. For covered outdoor areas choose a weatherproof model.

How is the U7-Pro-XG-Wall mounted?

Wall.

Does the U7-Pro-XG-Wall need a UniFi controller?

Yes. UniFi access points are adopted and managed by a controller — a Cloud Gateway, Dream Machine, Cloud Key or UniFi hosting. The AP supplies the WiFi; routing, firewall and VLANs live on the gateway.

What UniFi Network version does it require?

UniFi Network 10.0 and later.

Is the U7-Pro-XG-Wall available in Australia?

Yes. ARC IP Networks is an authorised Ubiquiti reseller holding Australian stock with full manufacturer warranty and fast domestic shipping.

ARC IP Networks, authorised Ubiquiti reseller in Australia — Australian stock, manufacturer warranty, fast shipping, trade pricing.
ARC IP Networks is an authorised Ubiquiti reseller in Australia — Australian stock, full manufacturer warranty, fast shipping and trade pricing. Call 1300 100 440 or read more about buying from an authorised reseller.

Buy the Ubiquiti U7-Pro-XG-Wall in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying the U7-Pro-XG-Wall from Australian stock, with full manufacturer warranty and fast shipping nationwide.

  • Authorised Ubiquiti reseller — genuine Australian stock, not grey import
  • Full manufacturer warranty with local RMA support
  • Competitive Australian pricing, monitored against the local market daily
  • Fast dispatch Australia-wide, or collect from our warehouse
  • Trade and project pricing for installers, MSPs and multi-site rollouts

Browse the full UniFi access point range, plus cloud gateways, switches and the Protect camera range. New to UniFi? Start with the complete UniFi buying guide, or compare the APs directly in our access point comparison. More on buying from an authorised Ubiquiti reseller in Australia.

Brand UBIQUITI
Form Factor Wall
WiFi Standard WiFi 7
Frequency Band HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
Coverage Area 140 m² (1,500 ft²)
