Teltonika TSW010 Din Rail Switch 5 x 10/100 Ethernet ports

Price:

$ 50.60


PowerShield Centurion 3000VA Online UPS, 2700W, Tower
PowerShield Centurion 3000VA Online UPS, 2700W, Tower
$ 2,315.94
$ 2,522.54 (8% OFF)
Grandstream HT812V2 - 2 Port ATA with Gigabit NAT Router
Grandstream HT812V2 - 2 Port ATA with Gigabit NAT Router
$ 76.52
$ 76.52

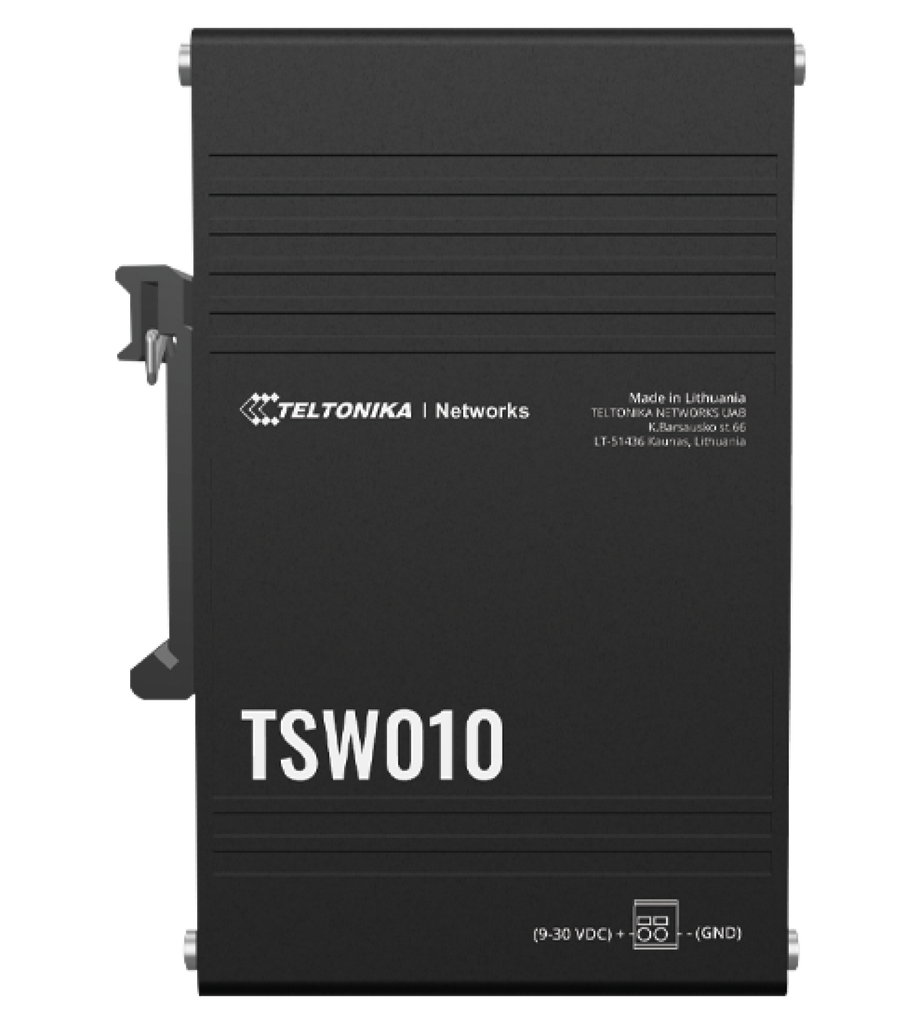

Teltonika TSW010 Din Rail Switch 5 x 10/100 Ethernet ports

https://arcip.com.au/web/image/product.template/3580/image_1920?unique=b1adda0

Teltonika TSW010 plug-and-play DIN rail Ethernet switch. 5 x RJ45 10/100 Mbps ports with auto MDI/MDIX, no additional configuration needed. 2-pin industrial DC power socket, 9-30 VDC input (12-40 VAC on selected order code), or passive PoE input on ETH1. Power consumption 0.3 W idle, 0.9 W max. 1 Gbps non-blocking bandwidth, 2K MAC table. Anodised aluminium housing, IP30, -40 to 75 °C, integrated DIN rail bracket, 146.5 g. No power supply in the standard package. Genuine Teltonika from ARC IP Networks, authorised Teltonika reseller with Australian stock.

$ 50.60 50.6 AUD $ 50.60 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • Operating System

This combination does not exist.

In stock online
Switch Teltonika Industrial RutOS DIN Rail
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TSW010
Barcode
4779051840274
Tags

Teltonika TSW010 at a glance

The Teltonika TSW010 is a plug-and-play DIN rail Ethernet switch with five 10/100 Mbps ports, designed as the most affordable way to extend wired connectivity in industrial settings where high throughput is not required. It runs from 9-30 VDC (or passive PoE on ETH1), draws at most 0.9 W, and has an anodised aluminium IP30 housing rated for -40 °C to 75 °C.

ARC IP Networks is an authorised Teltonika reseller in Australia. We supply the Teltonika TSW010 from Australian stock.

Ports5 x 10/100 Mbps
Power input9-30 VDC, 2-pin
Power draw0.3 W idle / 0.9 W max
Operating temp.-40 °C to 75 °C

Best for

  • Extending network connectivity to multiple Ethernet devices in DIN rail cabinets
  • Industrial applications where high throughput is not required
  • Plug-and-play installs where no configuration is wanted

Key features

5 x RJ45 Ethernet ports, 10/100 Mbps, with auto MDI/MDIX crossover.

Plug and play - no additional configuration needed.

2-pin industrial DC power socket accepting 9-30 VDC; a 12-40 VAC (50/60Hz) version is available by order code.

Can be powered by passive PoE through ETH1 (Mode B, 9-30 VDC); not compatible with IEEE 802.3af/at/bt.

Very low power use: 0.3 W idle, 0.9 W maximum.

1 Gbps non-blocking bandwidth, 2K MAC address table and 2048-byte jumbo frames.

Anodised aluminium housing, IP30, -40 °C to 75 °C and 5% to 95% non-condensing humidity.

Integrated DIN rail bracket; wall and flat surface mounting with an additional kit.

Profinet Class A conformance available with an optional order code.

Teltonika TSW010 specifications

Teltonika TSW010 technical specifications
SpecificationValue
Ethernet
Ethernet ports5 x RJ45, 10/100 Mbps, auto MDI/MDIX
IEEE 802.3 standards802.3i, 802.3u, 802.3x, 802.3az
ProfinetClass A conformance (optional order code)
Performance
Bandwidth (non-blocking)1 Gbps
MAC address table2K entries
Jumbo frames2048 bytes
Power
Connector2-pin industrial DC power socket
Input voltage range9-30 VDC (12-40 VAC, 50/60Hz on selected order code)
Passive PoE inputETH1, Mode B, 9-30 VDC
Power consumptionIdle 0.3 W / max 0.9 W
Physical
Status LEDs1 x Power, 10 x ETH
CasingAnodised aluminium housing and panels
Dimensions (W x H x D)113.1 x 27.4 x 80.5 mm
Weight146.5 g
MountingIntegrated DIN rail bracket; wall and flat surface with additional kit
Operating Environment
Operating temperature-40 °C to 75 °C
Operating humidity5% to 95% non-condensing
Ingress ProtectionIP30

Figures from Teltonika's official product information.

What's in the box

  • TSW010
  • QSG (Quick Start Guide)
  • Packaging box

The Teltonika TSW010 in depth

Affordable network extension

Teltonika positions the TSW010 as the most affordable way to extend network connectivity to multiple Ethernet devices. Its five 10/100 Mbps ports give stable connections for industrial applications where high throughput is not required, with no configuration needed.

Flexible low-power operation

The TSW010 draws only 0.3 W idle and 0.9 W maximum. It is powered through a 2-pin 9-30 VDC socket or by passive PoE on ETH1, and a 12-40 VAC version is available by order code.

Built for the cabinet

An anodised aluminium IP30 housing measuring 113.1 x 27.4 x 80.5 mm and weighing 146.5 g clips onto DIN rail with its integrated bracket and operates from -40 °C to 75 °C.

Frequently asked questions

Straight answers about the Teltonika TSW010 from the ARC IP Networks team. Last reviewed October 2026.

No. The TSW010 has five 10/100 Mbps Ethernet ports. For Gigabit ports see the TSW110.

No power supply is listed in the standard package, which contains the TSW010, Quick Start Guide and packaging box. Power it from 9-30 VDC via the 2-pin socket or by passive PoE on ETH1.

No. It can be powered by passive PoE on ETH1, but it does not supply PoE and is not compatible with IEEE 802.3af/at/bt.

No. It is plug and play with no additional configuration needed.

It has an integrated DIN rail bracket; wall and flat surface mounting need an additional kit.

ARC IP Networks is an authorised Teltonika reseller and supplies the TSW010 from Australian stock.

Explore more Teltonika: Teltonika in Australia · Teltonika

Buy the Teltonika TSW010 in Australia

ARC IP Networks is an authorised Teltonika reseller, supplying Teltonika products to homes, businesses and integrators across Australia.

  • Genuine Teltonika with the full manufacturer's warranty.
  • Australian stock, shipped Australia-wide.
  • Local pre-sales help choosing the right model.
  • Trade and project pricing available.

Need help choosing Teltonika?

Ask ARC IP Networks for project pricing or a quote, or call us to check the right Teltonika model for your site.
