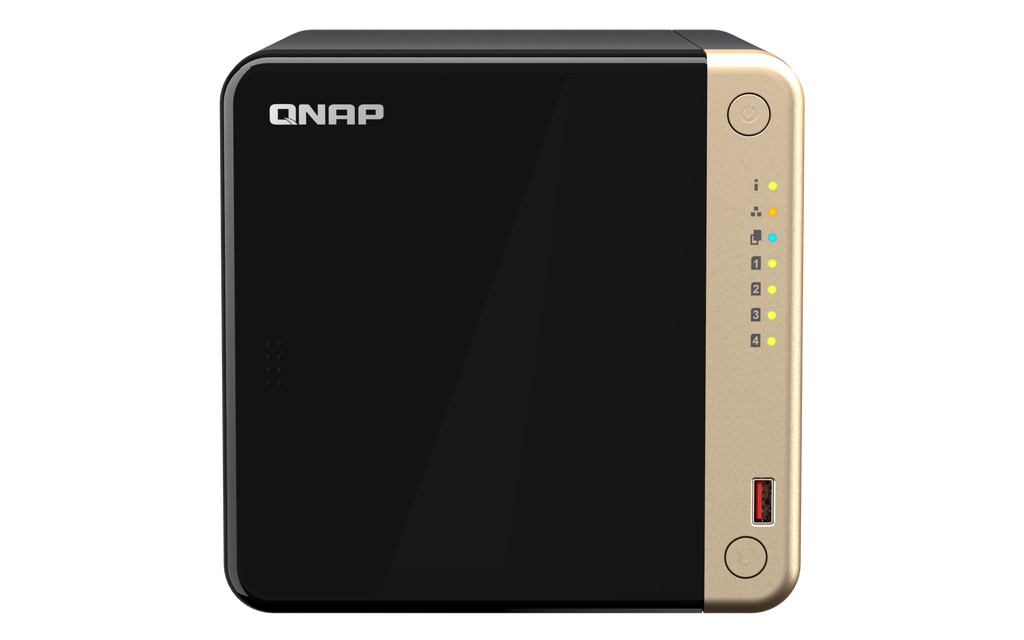

QNAP TS-464-8G 4-Bay 2.5GbE NAS, Intel Celeron N5095 Quad-Core, 8GB DDR4, 2 x M.2 NVMe, PCIe, HDMI 2.1

https://arcip.com.au/web/image/product.template/8346/image_1920?unique=e56dba2

4-bay QNAP NAS with an Intel Celeron N5095 quad-core, 8 GB DDR4 (expandable to 16 GB), two 2.5GbE ports that trunk to 589 MB/s, two M.2 2280 NVMe slots for SSD caching and a PCIe Gen 3 x2 slot for 10GbE. Hardware transcoding, HDMI 2.1 output, snapshots and RAID 0/1/5/6/10 on QTS 5 or QuTS hero. 3-year QNAP warranty.

$ 1,373.90 1373.9 AUD $ 1,373.90 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • Network Connectivity
  • HDD Bays
  • CPU
  • RAM
  • Storage
  • USB
  • Operating System

This combination does not exist.

In stock online
2.5GbE QNAP NAS 4-Bay NAS NVMe Cache Intel Celeron QTS 5 QuTS hero RAID 5 Home NAS Small Business NAS HDMI Output 3-Year Warranty
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout

TS-464-8G at a glance

The QNAP TS-464-8G is a diskless 4-bay 2.5GbE NAS with an Intel Celeron N5095 quad-core, 8 GB DDR4 (max 16 GB), two M.2 NVMe cache slots, a PCIe Gen 3 slot for 10GbE and HDMI 2.1. It runs QTS 5 or QuTS hero and carries a 3-year QNAP warranty.

Bays4 x 3.5" SATA
CPUCeleron N5095, 4-core 2.9 GHz
Memory8 GB DDR4, max 16 GB
Network2 x 2.5GbE, 589 MB/s trunked
M.22 x NVMe Gen 3
ExpansionPCIe Gen 3 x2
Video outHDMI 2.1, 4K60
Warranty3 years

Specifications from qnap.com/en-au. Last reviewed 2026-09-25.

TS-464-8G
QNAP TS-464-8G — 4-Bay 2.5GbE NAS with Intel Celeron N5095, 8 GB DDR4, Dual M.2 NVMe and PCIe Expansion

Features

  • Two 2.5GbE ports (2.5G/1G/100M/10M) with port trunking for up to 589 MB/s, matching a single-port 10GbE NAS
  • Intel Celeron N5095 4-core / 4-thread processor, burst to 2.9 GHz, with AES-NI encryption engine
  • 8 GB DDR4 SODIMM pre-installed (2 slots, 16 GB maximum) - enough to run QuTS hero as well as QTS 5
  • Intel UHD Graphics with hardware-accelerated transcoding for smooth video conversion and streaming

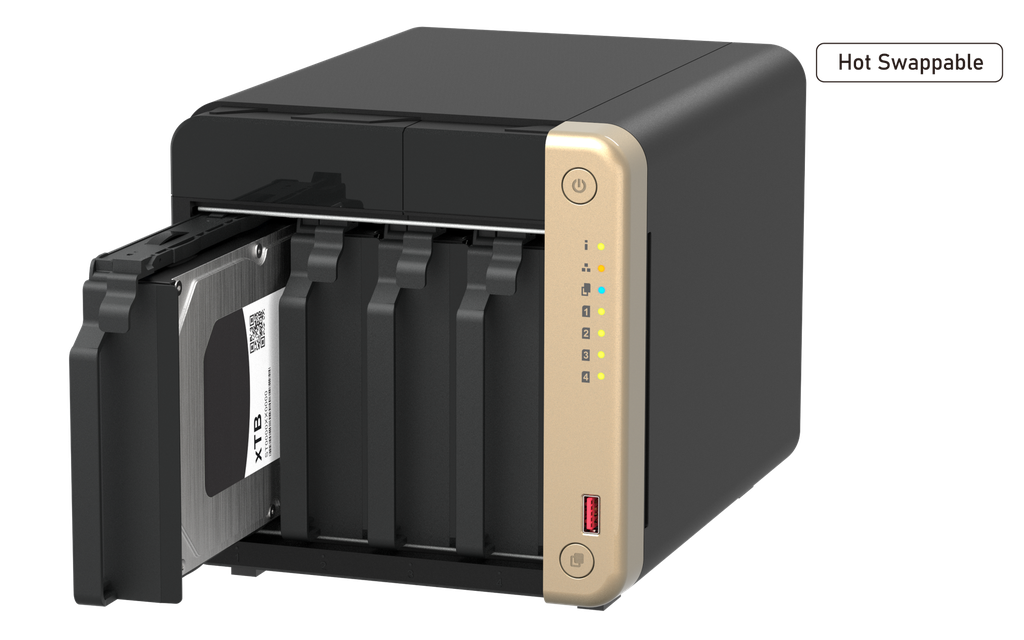

  • 4 x hot-swappable 3.5-inch SATA 6Gb/s bays; also accepts 2.5-inch SATA SSDs
  • 2 x M.2 2280 PCIe Gen 3 x1 slots for NVMe SSD read, write or read-write caching
  • 1 x PCIe Gen 3 x2 slot: add a dual-port 10GbE card (up to 1,647 MB/s), 5GbE, or a QM2 card for more M.2 SSDs
  • HDMI 2.1 output up to 4096 x 2160 at 60 Hz for HD Station and direct playback
  • 2 x USB 3.2 Gen 2 (10Gbps) Type-A ports for fast backup to and from external drives
  • RAID 0, 1, 5, 6, 10, JBOD and Single; RAID migration, expansion, hot spare and scrubbing
  • Volume and LUN snapshots at 5-minute minimum intervals with self-serve recovery and Snapshot Replica
  • Backed by a 3-year QNAP warranty, extendable to 5 years

Specifications

Processor and memory
CPUIntel Celeron N5095, 4-core / 4-thread, burst up to 2.9 GHz
CPU architecture64-bit x86
GraphicsIntel UHD Graphics
Encryption engineAES-NI
Hardware-accelerated transcodingYes
System memory8 GB SODIMM DDR4 (TS-464-8G)
Maximum memory16 GB (2 × 8 GB)
Memory slots2 × SODIMM DDR4
Flash memory4 GB (dual-boot OS protection)
Storage
Drive bays4 × 3.5-inch SATA 6Gb/s, hot-swappable
Drive compatibility3.5-inch SATA HDD, 2.5-inch SATA SSD
M.2 slots2 × M.2 2280 PCIe Gen 3 x1 (not hot-swappable)
SSD cache accelerationYes – read-only, write-only or read-write; cache RAID 0/1/5/6/10
Maximum raw capacityUp to 72 TB with four 24 TB drives in RAID 5 (system shipped without drives)
RAID types (4-bay)JBOD, Single, RAID 0, 1, 5, 6, 10
RAID managementLevel migration, expansion by adding or replacing disks, global/local hot spare, sync/rebuild/scrubbing
Internal file systemEXT4 (QTS); ZFS with QuTS hero
External drive file systemsEXT3, EXT4, NTFS, FAT32, HFS+, exFAT
Network
2.5 Gigabit Ethernet2 × 2.5GbE (2.5G/1G/100M/10M)
5GbE / 10GbEOptional via PCIe expansion card
Port trunking7 modes; up to 589 MB/s with both 2.5GbE ports
Wake on LAN / Jumbo frameYes / Yes
Internet protocolIPv4, IPv6
Virtual switch / VLAN / DHCP server / DDNSYes

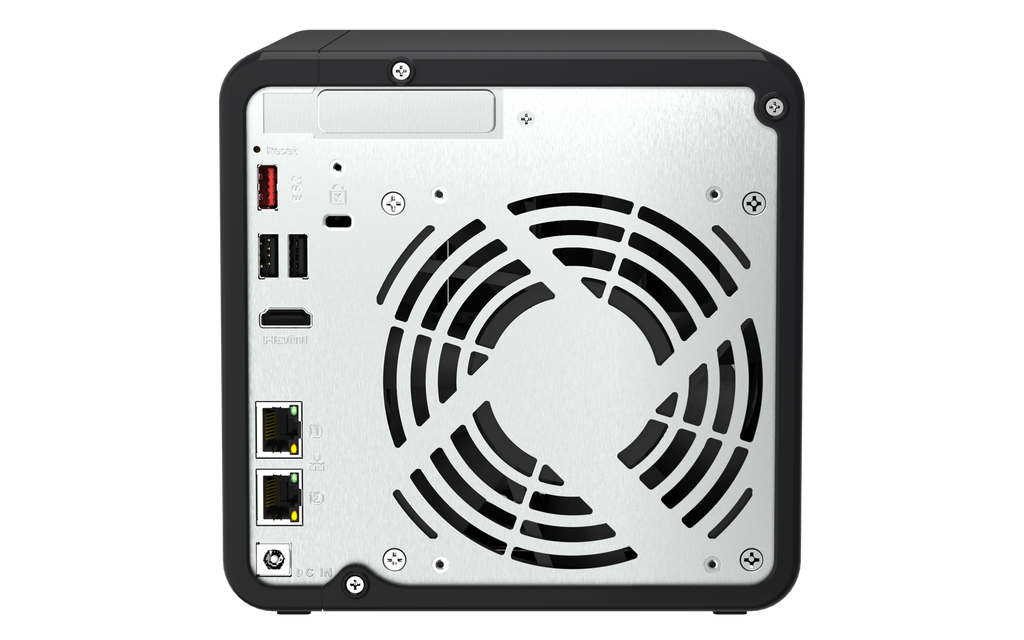

I/O and expansion
PCIe slot1 × PCIe Gen 3 x2 (card up to 190 × 68.9 × 18.76 mm)
USB 3.2 Gen 2 (10Gbps)2 × Type-A
USB 2.02
HDMI output1 × HDMI 2.1, up to 4096 × 2160 @ 60 Hz
IR sensorYes (optional QNAP RM-IR004 remote)
LED indicatorsPower/Status, LAN, USB, HDD 1–4
ButtonsPower, USB one-touch copy, Reset
Kensington security slotYes
Physical
Form factorTower
Dimensions (H × W × D)165 × 170 × 226.5 mm (excluding foot pad)
Fan1 × 120 mm, 12 V DC, smart fan
System warningBuzzer
Power and environment
Power supply90 W external adapter, 100–240 V
Power consumption, disk standby21.6 W
Power consumption, typical operating40.5 W (drives fully populated)
Operating temperature0–40 °C
Storage temperature−20 to 70 °C
Relative humidity5–95% RH non-condensing
Software
Operating systemQTS 5.2 (default); QuTS hero supported (8 GB RAM required)
SnapshotsVolume and LUN snapshots, 5-minute minimum interval, Snapshot Replica/Vault
BackupHybrid Backup Sync (NAS-to-NAS, cloud backup and sync, deduplication, Time Machine), Boxafe for Microsoft 365 and Google Workspace
File servicesSMB/CIFS, AFP, NFS v2/3/4/4.1, FTP/SFTP/FTPS, WebDAV, iSCSI (thick/thin LUNs), Fibre Channel
SecurityAES 256-bit volume encryption (FIPS 140-2 CAVP), 2-step verification, firewall, Security Counselor, Malware Remover
VirtualisationVirtualization Station (up to 4 suggested VMs), Container Station (Docker, LXC/LXD), Linux Station
SurveillanceQVR Pro with 8 free camera channels; QVR Surveillance
MultimediaHD Station, Multimedia Console, QuMagie, Video Station, Music Station, DLNA/media streaming
Remote accessQVPN (PPTP, L2TP/IPsec, OpenVPN, WireGuard, QBelt), myQNAPcloud
Max. concurrent CIFS connections1,500 (with maximum memory)
Warranty and package
Standard warranty3 years (extendable to 5 years)
Package contentsTS-464, AC adapter, power cord, 1 × Ethernet cable, 12 × 3.5-inch drive screws, 12 × 2.5-inch drive screws, quick installation guide

QNAP NAS FAQ — TS-464-8G

Does the QNAP TS-464-8G come with hard drives?

No. The TS-464-8G is a diskless 4-bay NAS: it ships with the enclosure, the 90 W adapter, an Ethernet cable and drive screws, but no drives. You fit up to four 3.5-inch SATA hard drives or 2.5-inch SATA SSDs in the hot-swappable trays. With four 24 TB drives in RAID 5 the TS-464 supports up to 72 TB of storage.

How fast is the TS-464 network connection, and can it do 10GbE?

The TS-464 has two 2.5GbE ports. With port trunking across both ports QNAP rates it at up to 589 MB/s, which is as fast as a single-port 10GbE NAS. For more, the PCIe Gen 3 x2 slot accepts a QNAP dual-port 10GbE card such as the QXG-10G2T, delivering up to 1,647 MB/s.

What is the difference between the TS-464-8G and the TS-464-4G?

Both use the same Intel Celeron N5095 quad-core NAS and 4-bay chassis; the difference is the pre-installed memory. The TS-464-8G ships with 8 GB DDR4 across its two SODIMM slots, the TS-464-4G with 4 GB. Maximum memory on either model is 16 GB, and the 8 GB fitted to the TS-464-8G is the minimum QNAP requires to run the ZFS-based QuTS hero operating system.

Can I use the M.2 slots in the TS-464 as SSD cache or extra storage?

Yes. The two M.2 2280 PCIe Gen 3 x1 slots take NVMe SSDs and can be configured as a read-only, write-only or read-write cache, with the cache itself in RAID 0, 1, 5, 6 or 10. They can also form a separate storage pool for applications that need fast flash. The M.2 slots are not hot-swappable, and QNAP recommends heatsinks no larger than 68 x 20 x 10 mm.

Is the QNAP TS-464 good for Plex and 4K video?

The TS-464 has an Intel UHD Graphics engine with hardware-accelerated transcoding, which QNAP specifies for converting and streaming video to mobile devices. It also has an HDMI 2.1 output up to 4096 x 2160 at 60 Hz, so it can play media directly to a TV through HD Station. Apps such as Plex Media Server are installed from the QNAP App Center; transcoding performance depends on the app licence and the source video.

What warranty does the QNAP TS-464-8G have in Australia?

QNAP backs the TS-464 with a 3-year standard warranty at no extra cost, and a warranty extension to 5 years can be purchased. Bundled accessories such as the power adapter are covered for one year. ARC IP Networks supplies Australian stock with the full manufacturer warranty.

Professional Overview

The QNAP TS-464-8G is a compact 4-bay tower NAS built for home offices, small businesses and prosumers who have outgrown Gigabit networking. Its four hot-swappable 3.5-inch SATA bays take up to 72 TB of drives, two M.2 2280 NVMe slots add SSD caching, and the two 2.5GbE ports mean file transfers, backups and media streaming are no longer capped at roughly 110 MB/s by a Gigabit link. QNAP positions it for file management, backup, collaboration and video conversion.

At its core is the Intel Celeron N5095, a 4-core, 4-thread processor that bursts to 2.9 GHz, paired with 8 GB of DDR4 in the -8G model and expandable to 16 GB across two SODIMM slots. The two 2.5GbE ports support seven port-trunking modes and reach up to 589 MB/s combined, and the PCIe Gen 3 x2 slot accepts a dual-port 10GbE card for up to 1,647 MB/s, a 5GbE card, or a QM2 card that adds further M.2 SSD slots. Two USB 3.2 Gen 2 ports run at 10 Gbps for fast external backups.

Software is where the TS-464 separates itself from basic network drives. It ships with QTS 5.2 and, because it carries 8 GB of memory, also qualifies for the ZFS-based QuTS hero. Either way you get RAID 0, 1, 5, 6 and 10, volume and LUN snapshots down to 5-minute intervals, Hybrid Backup Sync for NAS-to-NAS and cloud jobs, Boxafe for Microsoft 365 and Google Workspace backup, iSCSI and Fibre Channel LUNs, and AES 256-bit volume encryption. Virtualization Station, Container Station and QVR Pro with eight free camera channels turn it into a small application and surveillance server.

The chassis measures 165 x 170 x 226.5 mm, is cooled by a single 120 mm smart fan and draws a typical 40.5 W in operation with drives fitted, dropping to 21.6 W in disk standby. An HDMI 2.1 port drives a display at up to 4K60, and a Kensington slot secures the unit. QNAP covers the TS-464 with a 3-year warranty, extendable to 5 years. Australian stock from ARC IP Networks.

Brand QNAP
Form Factor Tower
Network Connectivity 2 x 2.5GbE (2.5G/1G/100M/10M)
HDD Bays 4 x 3.5-inch SATA 6Gb/s (hot-swappable)
CPU Intel Celeron N5095 4-core, burst to 2.9 GHz
RAM 8 GB DDR4 SODIMM (max 16 GB, 2 slots)
Storage 2 x M.2 2280 PCIe Gen 3 x1 NVMe slots (SSD cache)
USB 2 x USB 3.2 Gen 2 (10Gbps) Type-A + 2 x USB 2.0
Operating System QTS 5 / QuTS hero
