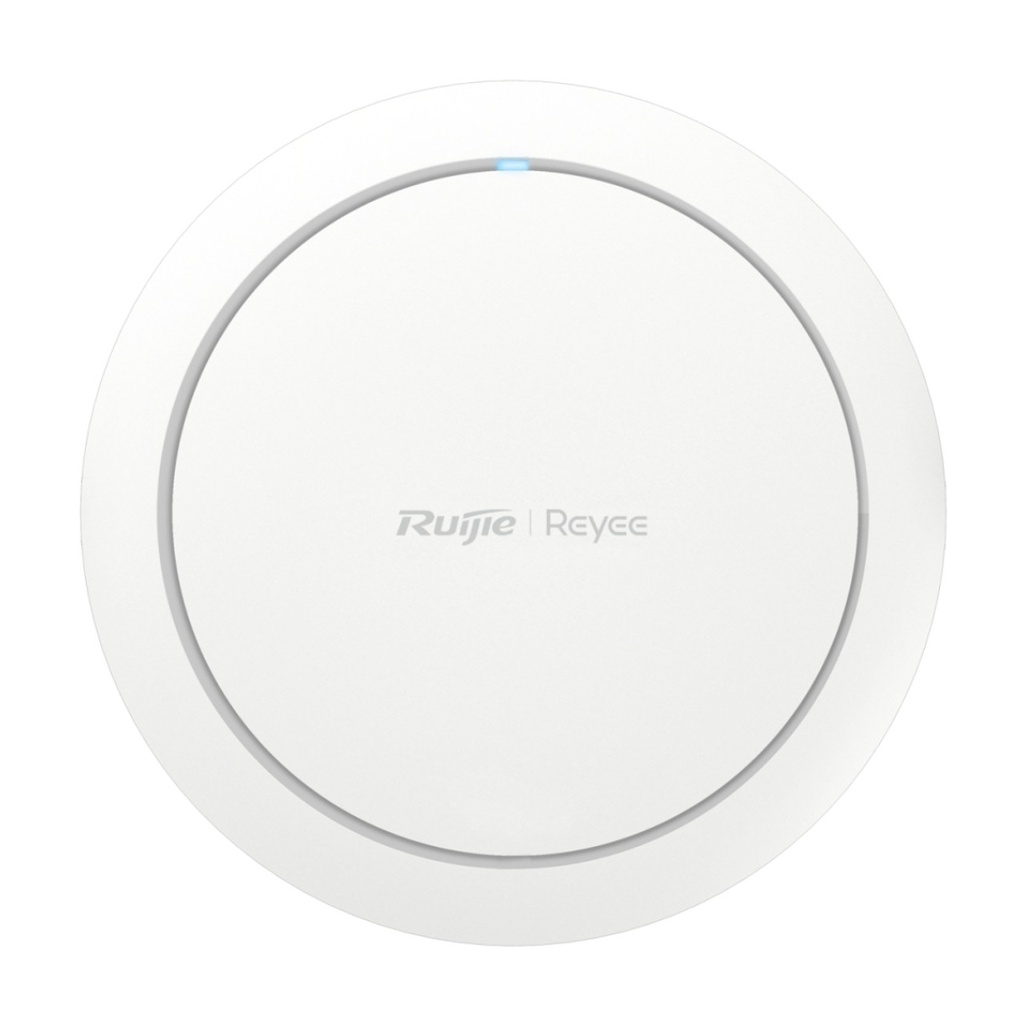

Ruijie RG-RAP2266 Reyee Wi-Fi 6 AX3000 Round Ceiling Access Point, 160 MHz, Gigabit Port

Price:

$ 203.83


Ubiquiti USL-Relay-US UniFi SuperLink Relay
Ubiquiti USL-Relay-US UniFi SuperLink Relay
$ 66.33
$ 72.05 (8% OFF)
Yealink MP54 E2 Teams Microsoft Teams desk phone
Yealink MP54 E2 Teams Microsoft Teams desk phone
$ 341.87
$ 341.87

Ruijie RG-RAP2266 Reyee Wi-Fi 6 AX3000 Round Ceiling Access Point, 160 MHz, Gigabit Port

https://arcip.com.au/web/image/product.template/5650/image_1920?unique=306b97f

Ruijie RG-RAP2266 Reyee Wi-Fi 6 AX3000 dual-band round ceiling access point. 802.11ax with 2x2 MU-MIMO per band and 160 MHz channels on 5 GHz, maximum wireless data rate 2974 Mbps (2401 Mbps 5 GHz, 573 Mbps 2.4 GHz). One Gigabit Ethernet port. Up to 512 associated clients. Reyee Mesh, 802.11k/v/r and AI roaming, WPA3-SAE, OWE, 802.1X, portal authentication, IPv6, SNMP. Powered by 802.3at PoE+ or 12 V DC (not included), 18 W maximum. IP41, Ø220 x 52.6 mm, ceiling or wall mount. Managed via Ruijie Reyee app, eWeb or Ruijie Cloud. Genuine Ruijie from ARC IP Networks, authorised Ruijie reseller with Australian stock.

$ 203.83 203.83 AUD $ 203.83 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • Network Connectivity
  • WiFi Standard
  • Frequency Band
  • Ingress Protection

This combination does not exist.

In stock online
WiFi 6 Indoor Access Point Ruijie Cloud Managed Ceiling Mount WiFi Reyee
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
RG-RAP2266
Barcode
6971693278189
Tags

Ruijie RG-RAP2266 at a glance

The Ruijie RG-RAP2266 is a Reyee Wi-Fi 6 AX3000 dual-band ceiling access point in a round Ø220 mm housing, with a maximum wireless data rate of 2974 Mbps using 160 MHz channels on 5 GHz. It has one Gigabit Ethernet port, supports up to 512 associated clients, Reyee Mesh and WPA3, and runs on PoE/PoE+ or 12 V DC.

ARC IP Networks is an authorised Ruijie reseller in Australia. We supply the genuine Ruijie RG-RAP2266 from Australian stock, with a GST tax invoice on every order.

Wi-FiWi-Fi 6 AX3000, 2974 Mbps
ClientsUp to 512 associated
Port1 x Gigabit Ethernet
PowerPoE/PoE+ or 12 V DC, 18 W max

Best for

  • Hotels and hospitality venues wanting a round AP that suits the décor, as Ruijie designed it
  • Busy rooms and offices needing Wi-Fi 6 with 160 MHz channels
  • Multi-AP sites using Reyee Mesh, 802.11k/v roaming and cloud management

Key features

Wi-Fi 6 (802.11ax) on both bands with 2x2 MU-MIMO per radio and a maximum wireless data rate of 2974 Mbps.

160 MHz channel width on 5 GHz (2401 Mbps), with 573 Mbps on 2.4 GHz.

Up to 512 associated clients, per Ruijie's datasheet.

Round Ø220 x 52.6 mm housing that Ruijie designed to suit hotel décor, with rotate-to-install mounting.

One 10/100/1000BASE-T Ethernet port.

Reyee Mesh, wireless repeater mode and AP load balancing.

802.11k/v, 802.11r, AI roaming and Layer 3 roaming.

WPA3-SAE, OWE, 802.1X and AP portal authentication.

Powered by 802.3at PoE+ or a 12 V, 2 A DC adapter (not included); 802.3af PoE is supported with reduced radio performance.

Managed through Ruijie Cloud, the Reyee app or eWeb, with SNMP support.

Ruijie RG-RAP2266 specifications

Ruijie RG-RAP2266 technical specifications
SpecificationValue
Wi-Fi radio
Standards2.4 GHz: 802.11b/g/n/ax; 5 GHz: 802.11a/n/ac/ax
Radio designDual-radio, 4 spatial streams (2.4 GHz 2x2 MU-MIMO, 5 GHz 2x2 MU-MIMO)
Maximum wireless data rate2974 Mbps
5 GHz data rate2401 Mbps
2.4 GHz data rate573 Mbps
Channel width5 GHz: Auto/20/40/80/160 MHz; 2.4 GHz: Auto/20/40 MHz
Maximum transmit power5 GHz: 29.7 dBm combined; 2.4 GHz: 28 dBm combined (varies by country regulations)
Antennas2.4 GHz: 2 built-in omnidirectional, 3.53 dBi; 5 GHz: 3 built-in omnidirectional, 5.15 dBi
Coverage range145 m² in an ideal unobstructed environment (Ruijie figure)
Ports and power
Ethernet ports1 x 10/100/1000BASE-T
Power supplyIEEE 802.3at PoE+, 802.3af PoE or DC power adapter (DC preferred when both present)
802.3af noteOn 802.3af PoE, radios are limited to 2T2R and the 5 GHz rate is 60% of the original rate
DC input12 V, 2 A (5.5 mm outer, 2.1 mm inner connector)
Power adapter includedNo
Maximum power consumption18 W
WLAN and clients
Maximum associated clients512 (64 on 2.4 GHz, 512 on 5 GHz)
Recommended clients (802.11ax, 160 MHz)110 with both bands enabled
Maximum SSIDs8
Roaming802.11k/v, 802.11r, AI roaming, Layer 2 and Layer 3 roaming, AP load balancing
SecurityWPA/WPA2-PSK, WPA3-SAE, WPA2-PSK/WPA3-SAE, OWE, 802.1X
Reyee MeshYes
Management and software
ManagementRuijie Reyee app, eWeb, Ruijie Cloud, SNMP
ModesAP mode, routing mode, wireless repeater mode
VLANIEEE 802.1Q
IPv6Yes
Maximum managed devices300
Flash / RAM128 MB / 256 MB
Physical and environmental
DimensionsØ220 x 52.6 mm (excluding bracket)
ColourWhite
MountingCeiling or wall
IP ratingIP41
Operating temperature0°C to 40°C
Storage temperature-40°C to +70°C
Operating humidity5% to 95% RH, non-condensing
Surge protectionEthernet port: ±2 kV common mode
MTBF400,000 hours
CertificationCE, FCC, CB, ISED, cTUVus
Package contents
In the box1 x AP, 1 x mounting bracket, 2 x screws, 2 x plastic expansion anchors, user manual, warranty card

Figures from Ruijie's official product page and datasheet.

The Ruijie RG-RAP2266 in depth

AX3000 in a round design

The RG-RAP2266 packs dual-band Wi-Fi 6 with 160 MHz support into a circular Ø220 mm housing that Ruijie styled for hotel interiors. It reaches 2401 Mbps on 5 GHz and 573 Mbps on 2.4 GHz for a 2974 Mbps maximum, and supports up to 512 associated clients.

Simple installation

Ruijie describes installation as rotate-and-done on the supplied bracket, for ceiling or wall mounting. A single Gigabit port carries data and power from an 802.3at PoE+ switch; 802.3af also works with reduced radio performance, or a 12 V DC adapter can be used.

Mesh, roaming and portal

Reyee Mesh and 802.11k/v/r with AI roaming keep guests connected as they move around a site. Portal authentication, WPA3 and 802.1X are supported, with management through the Reyee app, eWeb or Ruijie Cloud.

Frequently asked questions

Straight answers about the Ruijie RG-RAP2266 from the ARC IP Networks team. Last reviewed October 2026.

Ruijie's datasheet lists a maximum wireless data rate of 2974 Mbps: 2401 Mbps on 5 GHz with 160 MHz channels and 573 Mbps on 2.4 GHz.

Both are AX3000 Wi-Fi 6 APs rated at 2974 Mbps with up to 512 clients. The RG-RAP2266 has a round Ø220 mm housing and one Gigabit port, while the RG-RAP2260 is square and has one 2.5GbE plus one Gigabit port.

By 802.3at PoE+ or a 12 V, 2 A DC adapter (not included), with a maximum consumption of 18 W. 802.3af PoE works but limits the radios to 2T2R and the 5 GHz rate to 60%.

Up to 512 associated clients, with 110 recommended when both bands are enabled using 802.11ax and 160 MHz.

Yes. It supports Reyee Mesh, mesh management and wireless repeater mode.

ARC IP Networks is an authorised Ruijie reseller and supplies the RG-RAP2266 from Australian stock with a GST tax invoice.

Explore the full Ruijie range: Ruijie Australia hub · Shop all Ruijie Reyee

Buy the Ruijie RG-RAP2266 in Australia

ARC IP Networks is an authorised Ruijie reseller, supplying Ruijie Reyee access points, switches, routers and wireless bridges to businesses, installers and integrators across Australia.

  • Genuine Ruijie with the full manufacturer's warranty, supplied from Australian stock.
  • Australian stock, shipped Australia-wide.
  • Manufacturer's warranty and local help with warranty claims and choosing the right model.
  • GST tax invoice on every order, with trade and project pricing available.

Planning a Ruijie network?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right Ruijie model for your site.

Brand Ruijie
Form Factor Ceiling Mount
Network Connectivity Wi-Fi
WiFi Standard 802.11ax (Wi-Fi 6)
Frequency Band Dual-Band (2.4 + 5 GHz)
Ingress Protection IP41
