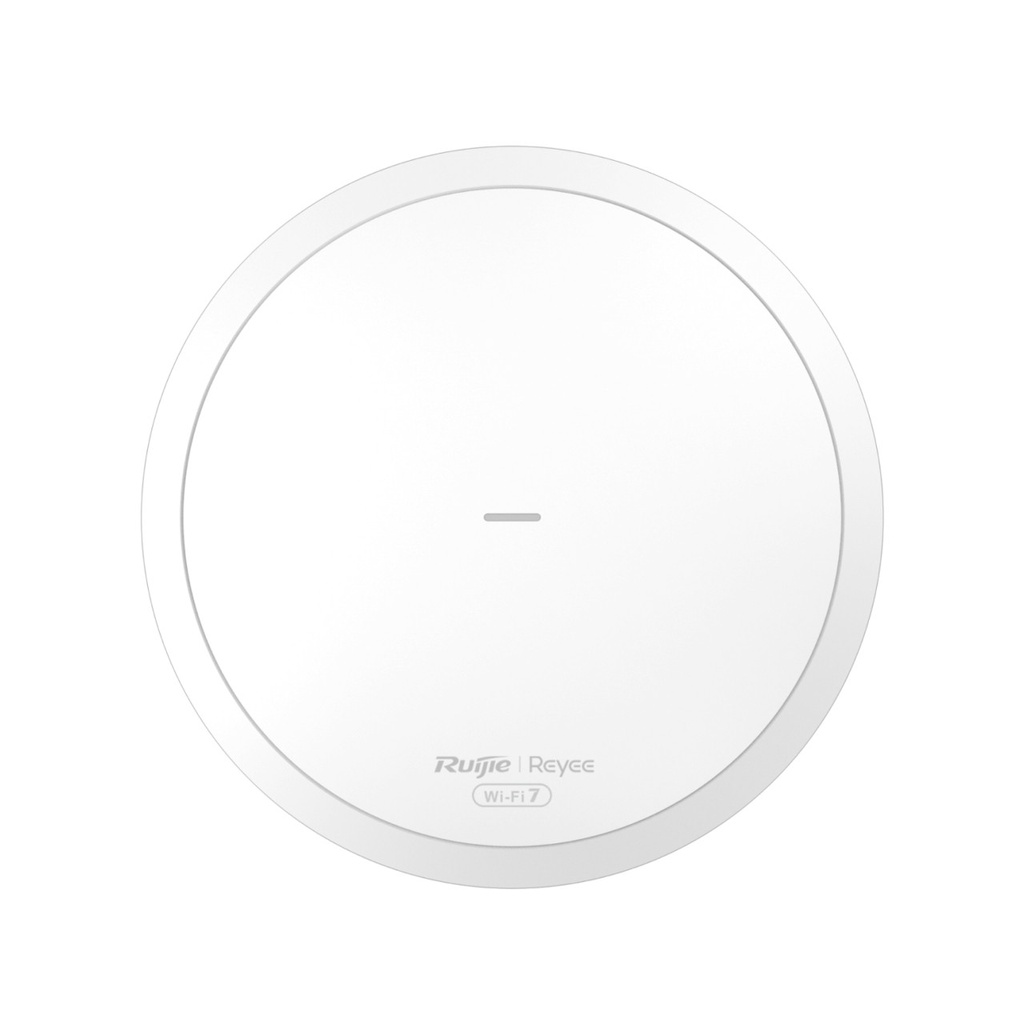

Ruijie RG-RAP72 Reyee Wi-Fi 7 BE3600 Compact Round Ceiling Access Point, 2.5GbE Port, MLO

https://arcip.com.au/web/image/product.template/5653/image_1920?unique=306b97f

Ruijie RG-RAP72 Reyee Wi-Fi 7 BE3600 dual-band compact round ceiling access point. 802.11be with 2x2 MU-MIMO per band, MLO and 160 MHz channels on 5 GHz, maximum wireless data rate 3570 Mbps (2882 Mbps 5 GHz, 688 Mbps 2.4 GHz). One 2.5GbE port. Up to 511 associated clients. WIO 3.0 AI optimisation, Reyee Mesh, 802.11k/v/r and AI roaming, WPA3-SAE, OWE, 802.1X, portal authentication, IPv6, SNMP. Powered by 802.3af PoE, 802.3at PoE+ or 12 V DC (not included), 14 W maximum. IP41, Ø195 x 41 mm. Managed via Ruijie Reyee app, eWeb or Ruijie Cloud. Genuine Ruijie from ARC IP Networks, authorised Ruijie reseller with Australian stock.

$ 251.78 251.78 AUD $ 251.78 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • Network Connectivity
  • PoE Specification
  • WiFi Standard
  • Frequency Band
  • Max Throughput
  • Wireless Standard
  • Product Type
  • Radio design
  • Maximum wireless data rate
  • 6 GHz wireless data rate
  • 5 GHz wireless data rate
  • 2.4 GHz wireless data rate
  • Antenna
  • Color
  • Weight
  • Number of 10/100/1000/2500BASE-T ports
  • Power supply
  • Local power supply
  • Dimensions of the DC connector
  • PoE budget
  • Maximum power consumption
  • Operating temperature
  • Mounting options
  • IP rating
  • Maximum number of associated wireless clients
  • Maximum number of devices that can be managed
  • IPv6
  • Product dimensions (diameter x height)
  • Ingress Protection

This combination does not exist.

In stock online
WiFi 7 Indoor Access Point Ruijie Cloud Managed Ceiling Mount Dual-Band WiFi Reyee
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
RG-RAP72
Barcode
6976915004218
Tags

Ruijie RG-RAP72 at a glance

The Ruijie RG-RAP72 is a compact Reyee Wi-Fi 7 BE3600 dual-band ceiling access point with a maximum wireless data rate of 3570 Mbps, Multi-Link Operation (MLO) and 160 MHz channels on 5 GHz. It has a single 2.5GbE port, runs on 802.3af/at PoE or 12 V DC at up to 14 W, and is managed through the Ruijie Reyee app, eWeb or Ruijie Cloud.

ARC IP Networks is an authorised Ruijie reseller in Australia. We supply the genuine Ruijie RG-RAP72 from Australian stock, with a GST tax invoice on every order.

Wi-FiWi-Fi 7 BE3600, 3570 Mbps
Port1 x 2.5GbE
ClientsUp to 511 associated
PowerPoE/PoE+ or 12 V DC, 14 W max

Best for

  • Offices and hospitality spaces upgrading to Wi-Fi 7 on existing PoE switches
  • Sites with 2.5G switch ports wanting a faster AP uplink
  • Multi-AP networks using Reyee Mesh, AI roaming and standalone portal

Key features

Wi-Fi 7 (802.11be) on both 2.4 GHz and 5 GHz with 2x2 MU-MIMO per radio.

Maximum wireless data rate of 3570 Mbps (2882 Mbps on 5 GHz, 688 Mbps on 2.4 GHz).

Multi-Link Operation (MLO), which can be enabled or disabled, and 160 MHz channels on 5 GHz.

One 10/100/1000/2500BASE-T Ethernet port.

Powered by IEEE 802.3af PoE, 802.3at PoE+ or a 12 V, 1.5 A DC adapter (not included); maximum consumption 14 W.

Up to 511 associated clients, per Ruijie's datasheet.

AI optimisation (WIO 3.0), Reyee Mesh and wireless repeater mode.

802.11k/v, 802.11r, AI roaming, Layer 3 roaming and AP load balancing.

WPA3-SAE, OWE, 802.1X and standalone AP portal authentication.

Compact round Ø195 x 41 mm IP41 housing for ceiling or wall mounting, with security lock key.

Ruijie RG-RAP72 specifications

Ruijie RG-RAP72 technical specifications
SpecificationValue
Wi-Fi radio
Standards2.4 GHz: 802.11b/g/n/ax/be; 5 GHz: 802.11a/n/ac/ax/be
Radio designDual-radio, 4 spatial streams (2.4 GHz 2x2 MU-MIMO, 5 GHz 2x2 MU-MIMO)
Maximum wireless data rate3570 Mbps
5 GHz data rate2882 Mbps
2.4 GHz data rate688 Mbps
Channel width5 GHz: Auto/20/40/80/160 MHz; 2.4 GHz: Auto/20/40 MHz
MLOYes (can be enabled or disabled)
Maximum transmit power5 GHz: 25.7 dBm combined; 2.4 GHz: 25 dBm combined (varies by country regulations)
Antennas2.4 GHz: 2 built-in omnidirectional, 3.23 dBi; 5 GHz: 3 built-in omnidirectional, 4.44 dBi
Coverage range140 m² in an ideal unobstructed environment (Ruijie figure)
Ports and power
Ethernet ports1 x 10/100/1000/2500BASE-T
Power supplyIEEE 802.3af PoE, 802.3at PoE+ or DC power adapter (DC preferred when both present)
DC input12 V, 1.5 A
Power adapter includedNo
Maximum power consumption14 W
WLAN and clients
Maximum associated clients511 (64 on 2.4 GHz, 511 on 5 GHz)
Recommended clients (802.11ax, 160 MHz)100 with both bands enabled
Maximum SSIDs8
Roaming802.11k/v, 802.11r, AI roaming, Layer 2 and Layer 3 roaming, AP load balancing
SecurityWPA/WPA2-PSK, WPA3-SAE, WPA2-PSK/WPA3-SAE, OWE, 802.1X
Reyee MeshYes
Management and software
ManagementRuijie Reyee app, eWeb, Ruijie Cloud, SNMP
ModesAP mode, routing mode, wireless repeater mode
VLANIEEE 802.1Q
IPv6Yes
Maximum managed devices300
Flash / RAM256 MB / 512 MB
Physical and environmental
DimensionsØ195 x 41 mm (excluding bracket)
ColourWhite
MountingCeiling or wall
IP ratingIP41
Operating temperature0°C to 40°C
Storage temperature-40°C to +70°C
Operating humidity5% to 95% RH, non-condensing
Surge protectionEthernet port: ±2 kV common mode
MTBF400,000 hours
CertificationCE, CB, ISED, cTUVus
Package contents
In the box1 x AP, 1 x mounting bracket, 4 x screws, 4 x plastic expansion anchors, user manual, warranty card, security lock key, alignment sticker

Figures from Ruijie's official product page and datasheet.

The Ruijie RG-RAP72 in depth

Wi-Fi 7 in a compact AP

The RG-RAP72 brings 802.11be to both bands in a round Ø195 x 41 mm housing. Its 2x2 radios reach 2882 Mbps on 5 GHz with 160 MHz channels and 688 Mbps on 2.4 GHz, a 3570 Mbps maximum, and MLO lets Wi-Fi 7 clients use both bands together.

2.5G uplink on standard PoE

A single 2.5GbE port carries traffic to the switch, and the AP draws at most 14 W, so it runs from 802.3af PoE, 802.3at PoE+ or a 12 V DC adapter.

Built for business networks

Ruijie pairs the hardware with WIO 3.0 AI optimisation, Reyee Mesh, AI roaming and a standalone portal. WPA3 and 802.1X are supported, with management through the Reyee app, eWeb or Ruijie Cloud.

Frequently asked questions

Straight answers about the Ruijie RG-RAP72 from the ARC IP Networks team. Last reviewed October 2026.

Its maximum wireless data rate is 3570 Mbps: 2882 Mbps on 5 GHz and 688 Mbps on 2.4 GHz.

Yes. Multi-Link Operation is supported and can be enabled or disabled.

One 10/100/1000/2500BASE-T (2.5GbE) Ethernet port.

Yes. It supports 802.3af PoE, 802.3at PoE+ or a 12 V, 1.5 A DC adapter, with a maximum consumption of 14 W.

Ruijie lists up to 511 associated clients, with 100 recommended when both bands are enabled using 802.11ax and 160 MHz.

ARC IP Networks is an authorised Ruijie reseller and supplies the RG-RAP72 from Australian stock with a GST tax invoice.

Explore the full Ruijie range: Ruijie Australia hub · Shop all Ruijie Reyee

Buy the Ruijie RG-RAP72 in Australia

ARC IP Networks is an authorised Ruijie reseller, supplying Ruijie Reyee access points, switches, routers and wireless bridges to businesses, installers and integrators across Australia.

  • Genuine Ruijie with the full manufacturer's warranty, supplied from Australian stock.
  • Australian stock, shipped Australia-wide.
  • Manufacturer's warranty and local help with warranty claims and choosing the right model.
  • GST tax invoice on every order, with trade and project pricing available.

Planning a Ruijie network?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right Ruijie model for your site.

Brand Ruijie
Form Factor Ceiling Mount
Network Connectivity Wi-Fi
PoE Specification PoE-in 802.3at
WiFi Standard 802.11be (WiFi 7)
Frequency Band Dual-Band 2.4/5 GHz
Max Throughput 3.57 Gbps
Wireless Standard 802.11be (Wi-Fi 7)
Product Type Ceiling AP
Radio design Dual-radio4 spatial streams- 2.4 GHz: 2 x 2, MU-MIMO- 5 GHz: 2 x 2, MU-MIMO
Maximum wireless data rate 3570 Mbps
6 GHz wireless data rate No
5 GHz wireless data rate 2882 Mbps
2.4 GHz wireless data rate 688 Mbps
Antenna 2.4 GHz: 2 built-in omnidirectional antennas5 GHz: 3 built-in omnidirectional antennas
Color White
Weight 0.6 kg (1.32 lbs.) (without packaging materials)
Number of 10/100/1000/2500BASE-T ports 1
Power supply - DC power adapter- PoE/PoE+Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
Local power supply Yes, one DC power connector (12 V, 1.5 A)
Dimensions of the DC connector Outer diameter: 5.5 mm (0.22 in.)Inner diameter: 2.1 mm (0.08 in.)Depth: 10 mm (0.39 in.)
PoE budget No
Maximum power consumption 14 W
Operating temperature 0°C to 40°C (32°F to 104°F)
Mounting options Ceiling/Wall
IP rating IP41
Maximum number of associated wireless clients 64 (2.4 GHz)511 (5 GHz)511 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed 300
IPv6 Yes
Product dimensions (diameter x height) Ø195 mm x 41 mm (Ø7.68 in. x 1.61 in.) (excluding the mounting bracket)
Ingress Protection IP41
