Ruijie RG-RAP72Pro-OD Reyee Wi-Fi 7 BE5040 Dual-Band Indoor/Outdoor Access Point, IP65, 2.5G Port, PoE+

https://arcip.com.au/web/image/product.template/5657/image_1920?unique=306b97f

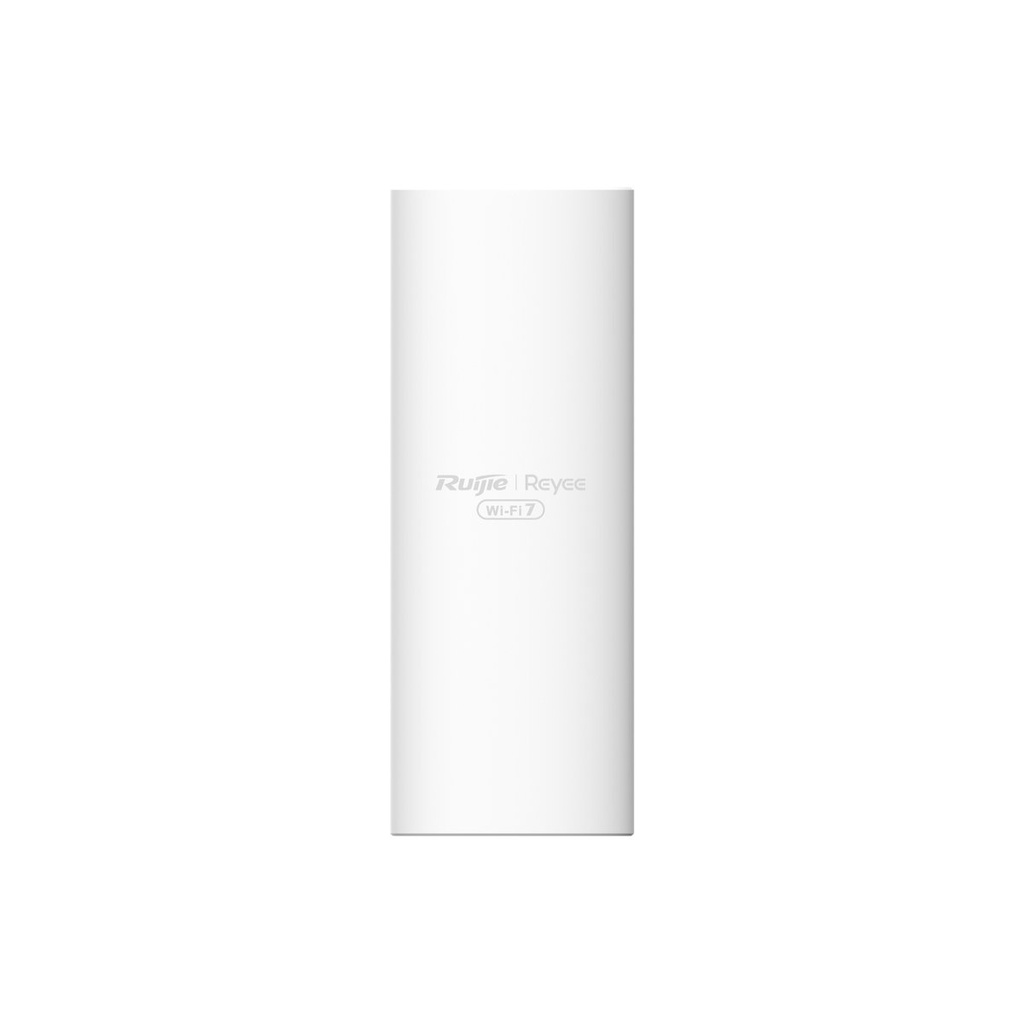

Ruijie RG-RAP72Pro-OD Reyee Wi-Fi 7 BE5040 dual-band indoor/outdoor access point. 5 spatial streams (2x2 at 2.4 GHz, 3x3 at 5 GHz), up to 5011 Mbps (4323 Mbps 5 GHz with 160 MHz, 688 Mbps 2.4 GHz), MLO, 4K-QAM, OFDMA, WPA3. IP65, -30 to 65°C, built-in omni antennas, wall or pole mount. 1 x 2.5G Ethernet port, powered by 802.3af/at PoE, 21 W max. Reyee Mesh, AI roaming, 802.11k/v/r, captive portal, up to 511 clients. Managed by Ruijie Cloud, Reyee app or eWeb. Genuine Ruijie from ARC IP Networks, authorised Ruijie reseller with Australian stock.

$ 402.49 402.49 AUD $ 402.49 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • Network Connectivity
  • PoE Specification
  • WiFi Standard
  • Frequency Band
  • IP Rating
  • Wireless Standard
  • Product Type
  • Radio design
  • Maximum wireless data rate
  • 6 GHz wireless data rate
  • 5 GHz wireless data rate
  • 2.4 GHz wireless data rate
  • Antenna
  • Product dimensions (W x D x H)
  • Color
  • Weight
  • Number of 10/100/1000/2500BASE-T ports
  • Power supply
  • Local power supply
  • Dimensions of the DC connector
  • PoE budget
  • Maximum power consumption
  • Operating temperature
  • Mounting options
  • IP rating
  • Maximum number of associated wireless clients
  • Maximum number of devices that can be managed
  • IPv6
  • Ingress Protection

This combination does not exist.

WiFi 7 Outdoor Access Point Ruijie Cloud Managed WiFi Reyee
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
RG-RAP72Pro-OD
Barcode
6976915002269
Tags

Ruijie RG-RAP72Pro-OD at a glance

The Ruijie RG-RAP72Pro-OD is a Reyee Wi-Fi 7 BE5040 dual-band access point for indoor or outdoor use, rated IP65 with built-in antennas. It reaches a maximum wireless data rate of 5011 Mbps (4323 Mbps at 5 GHz with 160 MHz, 688 Mbps at 2.4 GHz), supports MLO and 4K-QAM, and connects through a 2.5G Ethernet port powered by PoE/PoE+.

ARC IP Networks is an authorised Ruijie reseller in Australia. We supply the genuine Ruijie RG-RAP72Pro-OD from Australian stock, with a GST tax invoice on every order.

Wi-FiWi-Fi 7 BE5040, 5011 Mbps
WeatherproofIP65, -30°C to 65°C
Uplink1 x 2.5G Ethernet
Power802.3af/at PoE, 21 W max

Best for

  • Retail and hospitality sites wanting Wi-Fi 7 in outdoor or semi-outdoor areas
  • Villas and patios needing high-speed coverage with a wall or pole mount
  • Guest Wi-Fi through the standalone portal on a Reyee Mesh network

Key features

Dual-radio Wi-Fi 7 (802.11be) with 5 spatial streams: 2x2 MU-MIMO at 2.4 GHz and 3x3 MU-MIMO at 5 GHz.

Maximum wireless data rate of 5011 Mbps: 4323 Mbps at 5 GHz and 688 Mbps at 2.4 GHz.

Wi-Fi 7 features including MLO, 4096-QAM (4K-QAM), OFDMA and 160 MHz channels at 5 GHz.

One 10/100/1000/2500BASE-T port so the uplink keeps pace with the radios.

IP65 weatherproof rating for indoor or outdoor installation, operating from -30°C to 65°C.

Built-in omnidirectional antennas (5 GHz 6.28 dBi, 2.4 GHz 3.62 dBi).

Powered by 802.3af or 802.3at PoE; maximum power consumption 21 W.

Reyee Mesh, AI roaming, 802.11k/v/r, AP load balancing, WPA3-SAE and AP portal authentication.

Ruijie RG-RAP72Pro-OD specifications

Ruijie RG-RAP72Pro-OD technical specifications
SpecificationValue
Wireless
StandardsIEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7 on both bands)
Radio designDual-radio, 5 spatial streams; 2.4 GHz 2x2 MU-MIMO, 5 GHz 3x3 MU-MIMO
Maximum data rate5011 Mbps (5 GHz 4323 Mbps, 2.4 GHz 688 Mbps)
Channel width5 GHz: 20/40/80/160 MHz; 2.4 GHz: 20/40 MHz
Maximum transmit power5 GHz 27.7 dBm combined; 2.4 GHz 26 dBm combined (varies by country)
Coverage range5 GHz max 300 m, recommended 150 m; 2.4 GHz max 100 m, recommended 50 m (ideal unobstructed environment)
Antenna
TypeBuilt-in omnidirectional
Antenna gain5 GHz 6.28 dBi; 2.4 GHz 3.62 dBi
WLAN features
Max associated clients511 (dual-band)
Recommended clients110 (802.11ax, 160 MHz, dual-band); 80 (802.11ax, 80 MHz, dual-band)
SSIDs8
Wi-Fi 7MLO, 4K-QAM
Roaming802.11k/v, 802.11r, AI roaming, AP load balancing
MeshReyee Mesh (AP Mesh)
SecurityWPA3-SAE, WPA2-PSK, OWE, 802.1X, AP portal authentication
Ports and power
Ethernet1 x 10/100/1000/2500BASE-T
PoE inputIEEE 802.3af (PoE) / 802.3at (PoE+); on 802.3af radios limited to 1T1R at 2.4 GHz and 2T2R at 5 GHz
Local power supplyNo
Maximum power consumption21 W
Power adapter includedNo
Management
InterfacesRuijie Cloud, Ruijie Reyee app, eWeb
SNMPYes
Physical and environmental
Dimensions (W x D x H)90 x 46 x 239 mm (excluding bracket)
ColourWhite
MountingWall / pole
IP ratingIP65
Operating temperature-30°C to 65°C
Surge protectionEthernet port ±4 kV common mode
MTBF400,000 hours
CertificationCE, FCC, CB, ISED, cTUVus
Package contents
In the boxAP, mounting bracket, metal hose clamp, 2 screws, 2 plastic anchors, user manual, warranty card

Figures from Ruijie's official product page and datasheet.

The Ruijie RG-RAP72Pro-OD in depth

Wi-Fi 7 for indoor and outdoor spaces

The RG-RAP72Pro-OD is Ruijie's AI-powered Wi-Fi 7 versatile AP for indoor or outdoor installation. With 3x3 MU-MIMO and 160 MHz at 5 GHz it reaches 4323 Mbps on that band and 5011 Mbps in total, with MLO and 4K-QAM for Wi-Fi 7 clients.

2.5G uplink and IP65 housing

A 2.5G Ethernet port avoids a Gigabit bottleneck, and the IP65 housing with built-in antennas operates from -30°C to 65°C. It mounts on a wall or pole and is powered by PoE, with 802.3at needed for full radio performance.

Made for retail with Reyee Mesh

Reyee Mesh, AI roaming, 802.11k/v/r and the standalone portal suit shops, cafes and villas. Manage it through Ruijie Cloud, the Reyee app or eWeb.

Frequently asked questions

Straight answers about the Ruijie RG-RAP72Pro-OD from the ARC IP Networks team. Last reviewed October 2026.

It is a Wi-Fi 7 (802.11be) BE5040 dual-band AP with a maximum wireless data rate of 5011 Mbps: 4323 Mbps at 5 GHz and 688 Mbps at 2.4 GHz. It does not have a 6 GHz radio.

It has one 10/100/1000/2500BASE-T (2.5G) Ethernet port.

It accepts 802.3af or 802.3at PoE and draws up to 21 W. On 802.3af the radios are limited to 1T1R at 2.4 GHz and 2T2R at 5 GHz, so use 802.3at PoE+ for full performance.

Yes. It is rated IP65, operates from -30°C to 65°C and mounts on a wall or pole; Ruijie also positions it for indoor use.

Ruijie states a 5 GHz maximum of 300 m (150 m recommended) and a 2.4 GHz maximum of 100 m (50 m recommended), in an ideal environment without obstruction.

ARC IP Networks is an authorised Ruijie reseller and supplies the RG-RAP72Pro-OD from Australian stock with a GST tax invoice.

Explore the full Ruijie range: Ruijie Australia hub · Shop all Ruijie Reyee

Buy the Ruijie RG-RAP72Pro-OD in Australia

ARC IP Networks is an authorised Ruijie reseller, supplying Ruijie Reyee access points, switches, routers and wireless bridges to businesses, installers and integrators across Australia.

  • Genuine Ruijie with the full manufacturer's warranty, supplied from Australian stock.
  • Australian stock, shipped Australia-wide.
  • Manufacturer's warranty and local help with warranty claims and choosing the right model.
  • GST tax invoice on every order, with trade and project pricing available.

Planning a Ruijie network?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right Ruijie model for your site.

Brand Ruijie
Form Factor Outdoor
Network Connectivity Wi-Fi
PoE Specification PoE-in 802.3at
WiFi Standard 802.11be (WiFi 7)
Frequency Band Dual-Band (2.4 + 5 GHz)
IP Rating IP65
Wireless Standard 802.11be (Wi-Fi 7)
Product Type Outdoor
Radio design Dual-radio5 spatial streams- 2.4 GHz: 2 x 2, MU-MIMO- 5 GHz: 3 x 3, MU-MIMO
Maximum wireless data rate 5011 Mbps
6 GHz wireless data rate No
5 GHz wireless data rate 4323 Mbps
2.4 GHz wireless data rate 688 Mbps
Antenna 5 GHz: 1 built-in omnidirectional antennaIntegrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas
Product dimensions (W x D x H) 90 mm x 46 mm x 239 mm (3.54 in. x 1.81 in. x 9.41 in.) (excluding the mounting bracket)
Color White
Weight 0.7 kg (1.54 lbs.) (without packaging materials)
Number of 10/100/1000/2500BASE-T ports 1
Power supply PoE/PoE+
Local power supply No
Dimensions of the DC connector No
PoE budget No
Maximum power consumption 21 W
Operating temperature -30°C to +65°C (-22°F to +149°F)
Mounting options Wall/Pole
IP rating IP65
Maximum number of associated wireless clients 64 (2.4 GHz)511 (5 GHz)511 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed 300
IPv6 Yes
Ingress Protection IP65
RG-RAP72Pro-OD_Datasheet_Official_2026-03-11.pdf
