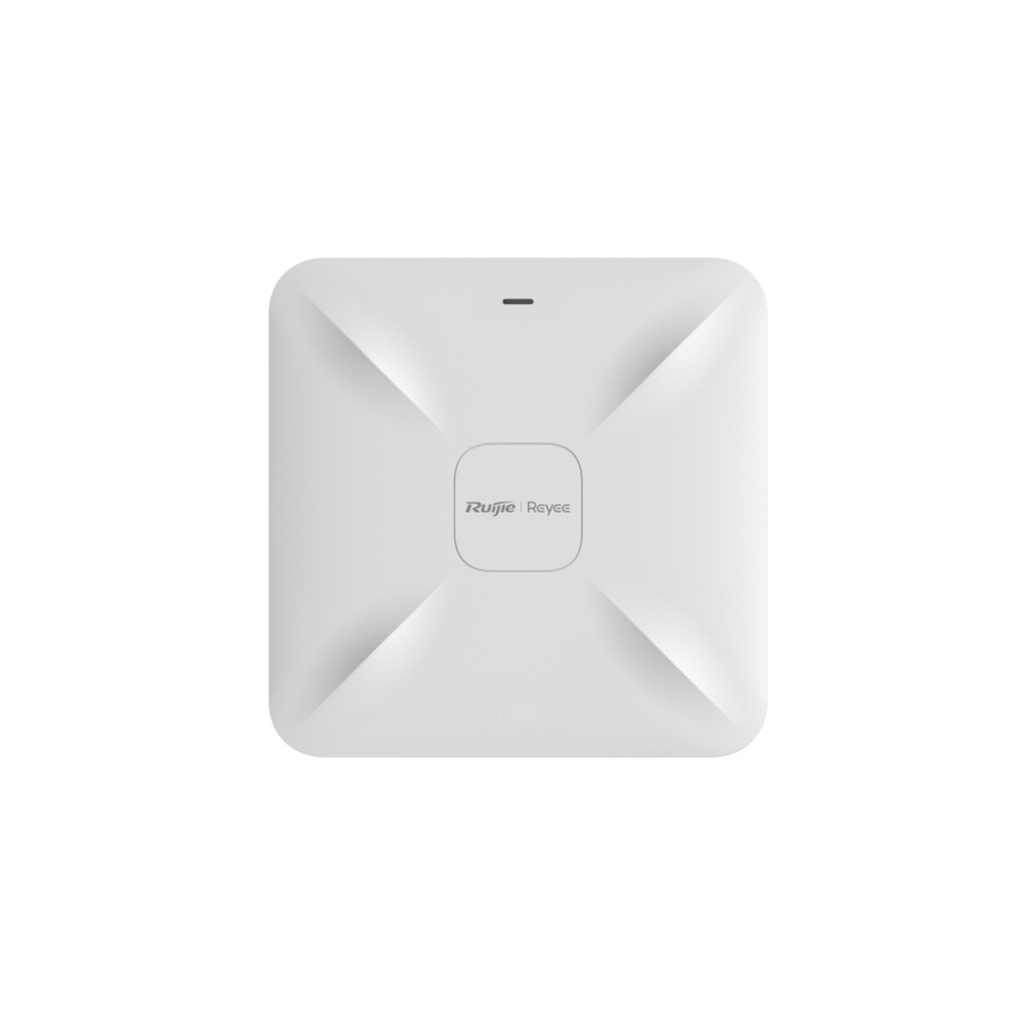

Ruijie RG-RAP2200(F) Reyee Wi-Fi 5 Dual-Band Ceiling Access Point, 1266 Mbps, 2 x 10/100 Ports

https://arcip.com.au/web/image/product.template/5646/image_1920?unique=306b97f

Ruijie RG-RAP2200(F) Reyee Wi-Fi 5 dual-band ceiling access point. Dual-radio 2x2 MIMO design with 802.11ac wave 2 MU-MIMO and a maximum wireless data rate of 1266 Mbps (866 Mbps 5 GHz, 400 Mbps 2.4 GHz). Two 10/100 Mbps Ethernet ports. Powered by 802.3af PoE, 802.3at PoE+ or 12 V DC adapter (not included), 12.95 W maximum. Up to 8 SSIDs, 802.1Q VLAN, Layer 2 and Layer 3 roaming. Managed via Ruijie Reyee app, eWeb or Ruijie Cloud. 194 x 194 x 35 mm, ceiling or wall mount, bracket included, 0 to 40°C operating. Genuine Ruijie from ARC IP Networks, authorised Ruijie reseller with Australian stock.

$ 110.20 110.2 AUD $ 110.20 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • Network Connectivity
  • PoE Specification
  • WiFi Standard
  • Frequency Band
  • Max Throughput
  • Wireless Standard
  • Product Type
  • Radio design
  • Maximum wireless data rate
  • 6 GHz wireless data rate
  • 5 GHz wireless data rate
  • 2.4 GHz wireless data rate
  • Antenna
  • Product dimensions (W x D x H)
  • Color
  • Weight
  • Power supply
  • Local power supply
  • Dimensions of the DC connector
  • PoE budget
  • Maximum power consumption
  • Operating temperature
  • Mounting options
  • IP rating
  • Maximum number of associated wireless clients
  • Maximum number of devices that can be managed
  • IPv6
  • Number of 10/100BASE-T ports

This combination does not exist.

Indoor Access Point Ruijie Cloud Managed Ceiling Mount WiFi 5 WiFi Reyee
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
RG-RAP2200(F)
Barcode
6971693271395
Tags

Ruijie RG-RAP2200(F) at a glance

The Ruijie RG-RAP2200(F) is a Reyee Wi-Fi 5 (802.11ac wave 2) dual-band ceiling access point with a maximum wireless data rate of 1266 Mbps (866 Mbps on 5 GHz plus 400 Mbps on 2.4 GHz). It has two 10/100 Mbps Ethernet ports, is powered by 802.3af/at PoE or a 12 V DC adapter, and is managed through the Ruijie Reyee app, eWeb or Ruijie Cloud.

ARC IP Networks is an authorised Ruijie reseller in Australia. We supply the genuine Ruijie RG-RAP2200(F) from Australian stock, with a GST tax invoice on every order.

Wi-FiWi-Fi 5 dual-band, 1266 Mbps
Ports2 x 10/100 Mbps Ethernet
PowerPoE/PoE+ or 12 V DC, 12.95 W max
ManagementReyee app, eWeb, Ruijie Cloud

Best for

  • Small offices, shops and hospitality rooms needing basic dual-band Wi-Fi 5 coverage
  • Sites on existing 10/100 cabling and PoE switches
  • Networks managed remotely through Ruijie Cloud or the Reyee app

Key features

Dual-radio Wi-Fi 5 design with 2x2 MIMO on both 2.4 GHz and 5 GHz, for a maximum wireless data rate of 1266 Mbps.

802.11ac wave 2 MU-MIMO for better performance when several clients are connected.

Two 10/100 Mbps auto-negotiating Ethernet ports.

Powered by IEEE 802.3af PoE, 802.3at PoE+ or a 12 V, 1.5 A DC adapter (adapter not included); maximum consumption 12.95 W.

Up to 8 SSIDs, 802.1Q VLAN support and different SSIDs on the same VLAN.

Layer 2 and Layer 3 roaming between Reyee access points.

Ruijie Cloud, Reyee app and eWeb management with configuration synchronised between them.

Self-organising network (SON) setup through the Ruijie Cloud app in 3 minutes, per Ruijie.

Slim 194 x 194 x 35 mm white housing for ceiling or wall mounting, bracket included.

Ruijie RG-RAP2200(F) specifications

Ruijie RG-RAP2200(F) technical specifications
SpecificationValue
Wi-Fi radio
Standards2.4 GHz: Wi-Fi 4 (802.11b/g/n); 5 GHz: Wi-Fi 5 (802.11a/n/ac)
Radio designDual-radio, 4 spatial streams (2.4 GHz 2x2 MIMO, 5 GHz 2x2 MIMO)
Maximum wireless data rate1266 Mbps
5 GHz data rate866 Mbps
2.4 GHz data rate400 Mbps
Channel width5 GHz: Auto/20/40/80 MHz; 2.4 GHz: Auto/20/40 MHz
Maximum transmit power5 GHz: 26 dBm combined; 2.4 GHz: 25 dBm combined (varies by country regulations)
Antennas2 built-in omnidirectional per band, 2.00 dBi
Coverage range115 m² in an ideal unobstructed environment (Ruijie figure)
Ports and power
Ethernet ports2 x 10/100BASE-T
Power supplyIEEE 802.3af PoE, 802.3at PoE+ or DC power adapter (DC preferred when both present)
DC input12 V, 1.5 A (5.5 mm outer, 2.1 mm inner connector)
Power adapter includedNo
Maximum power consumption12.95 W
Reset button / LEDs1 reset button; 1 system status LED
WLAN and clients
Maximum associated clients110 (64 on 2.4 GHz, 110 on 5 GHz)
Recommended associated clients48 with both bands enabled (16 on 2.4 GHz, 32 on 5 GHz)
Maximum SSIDs8
RoamingLayer 2 and Layer 3 roaming; 802.11k/v and 802.11r not supported
SecurityWPA-PSK, WPA2-PSK, WPA/WPA2-PSK; WPA3-SAE not supported
Reyee MeshNot supported
Management and software
ManagementRuijie Reyee app, eWeb, Ruijie Cloud
ModesAP mode and routing mode (static IP, DHCP, PPPoE)
VLANIEEE 802.1Q
SNMPNo
IPv6No
Flash / RAM8 MB / 64 MB
Physical and environmental
Dimensions (W x D x H)194 x 194 x 35 mm (excluding bracket)
ColourWhite
MountingCeiling or wall
Operating temperature0°C to 40°C
Storage temperature-40°C to +70°C
Operating humidity5% to 95% RH, non-condensing
Surge protectionEthernet port: ±2 kV common mode
MTBF400,000 hours
CertificationCE, CB
Package contents
In the box1 x AP, 1 x mounting bracket, 2 x screws, 2 x plastic expansion anchors, user manual, warranty card

Figures from Ruijie's official product page and datasheet.

The Ruijie RG-RAP2200(F) in depth

Entry-level dual-band Wi-Fi 5

The RG-RAP2200(F) pairs a 2x2 2.4 GHz radio with a 2x2 5 GHz 802.11ac wave 2 radio for a combined 1266 Mbps maximum data rate. MU-MIMO helps when several clients share the access point, and Ruijie quotes a coverage area of 115 m² in ideal, unobstructed conditions.

Fast Ethernet model

This is the FE version of the RG-RAP2200 range: both Ethernet ports run at 10/100 Mbps. It can be powered by an 802.3af/at PoE switch or injector, or by a 12 V DC adapter purchased separately, and draws a maximum of 12.95 W.

Managed from the cloud or app

The AP can be set up and maintained through the Ruijie Reyee app, its eWeb interface or Ruijie Cloud, with configuration kept in sync. It supports up to 8 SSIDs, 802.1Q VLANs and Layer 2/Layer 3 roaming, but not Reyee Mesh, WPA3 or IPv6.

Frequently asked questions

Straight answers about the Ruijie RG-RAP2200(F) from the ARC IP Networks team. Last reviewed October 2026.

Its maximum wireless data rate is 1266 Mbps: 866 Mbps on 5 GHz and 400 Mbps on 2.4 GHz. Its two Ethernet ports are 10/100 Mbps.

Both are 1266 Mbps Wi-Fi 5 ceiling APs in the same 194 x 194 x 35 mm housing. The (F) has two 10/100 Mbps ports, while the (E) has two 10/100/1000 Mbps ports and adds features such as Reyee Mesh, 802.11k/v/r roaming and IPv6.

By IEEE 802.3af PoE, 802.3at PoE+ or a 12 V, 1.5 A DC adapter. A power adapter is not included, and maximum power consumption is 12.95 W.

Ruijie lists a maximum of 110 associated clients and recommends 48 with both bands enabled.

No. Ruijie's datasheet lists Reyee Mesh and WPA3-SAE as not supported on this model.

ARC IP Networks is an authorised Ruijie reseller and supplies the RG-RAP2200(F) from Australian stock with a GST tax invoice.

Explore the full Ruijie range: Ruijie Australia hub · Shop all Ruijie Reyee

Buy the Ruijie RG-RAP2200(F) in Australia

ARC IP Networks is an authorised Ruijie reseller, supplying Ruijie Reyee access points, switches, routers and wireless bridges to businesses, installers and integrators across Australia.

  • Genuine Ruijie with the full manufacturer's warranty, supplied from Australian stock.
  • Australian stock, shipped Australia-wide.
  • Manufacturer's warranty and local help with warranty claims and choosing the right model.
  • GST tax invoice on every order, with trade and project pricing available.

Planning a Ruijie network?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right Ruijie model for your site.

Brand Ruijie
Form Factor Ceiling Mount
Network Connectivity Wi-Fi
PoE Specification PoE-in 802.3at
WiFi Standard 802.11ac (WiFi 5)
Frequency Band Dual-Band (2.4 + 5 GHz)
Max Throughput 1.267 Gbps
Wireless Standard 802.11be (Wi-Fi 6)
Product Type Ceiling AP
Radio design Dual-radio4 spatial streams- 2.4 GHz: 2 x 2, MIMO- 5 GHz: 2 x 2, MIMO
Maximum wireless data rate 1266 Mbps
6 GHz wireless data rate No
5 GHz wireless data rate 866 Mbps
2.4 GHz wireless data rate 400 Mbps
Antenna 2.4 GHz: 2 built-in omnidirectional antennas5 GHz: 2 built-in omnidirectional antennas
Product dimensions (W x D x H) 194 mm x 194 mm x 35 mm (7.64 in. x 7.64 in. x 1.38 in.) (excluding the mounting bracket)
Color White
Weight 0.45 kg (0.99 lbs.) (without packaging materials)
Power supply - DC power adapter- PoE/PoE+Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
Local power supply Yes, one DC power connector (12 V, 1.5 A)
Dimensions of the DC connector Outer diameter: 5.5 mm (0.22 in.)Inner diameter: 2.1 mm (0.08 in.)Depth: 10 mm (0.39 in.)
PoE budget No
Maximum power consumption 12.95 W
Operating temperature 0°C to 40°C (32°F to 104°F)
Mounting options Ceiling/Wall
IP rating No
Maximum number of associated wireless clients 64 (2.4 GHz)110 (5 GHz)110 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed 150
IPv6 No
Number of 10/100BASE-T ports 2
RG-RAP2200_F__Datasheet_Official_2026-10-27.pdf
