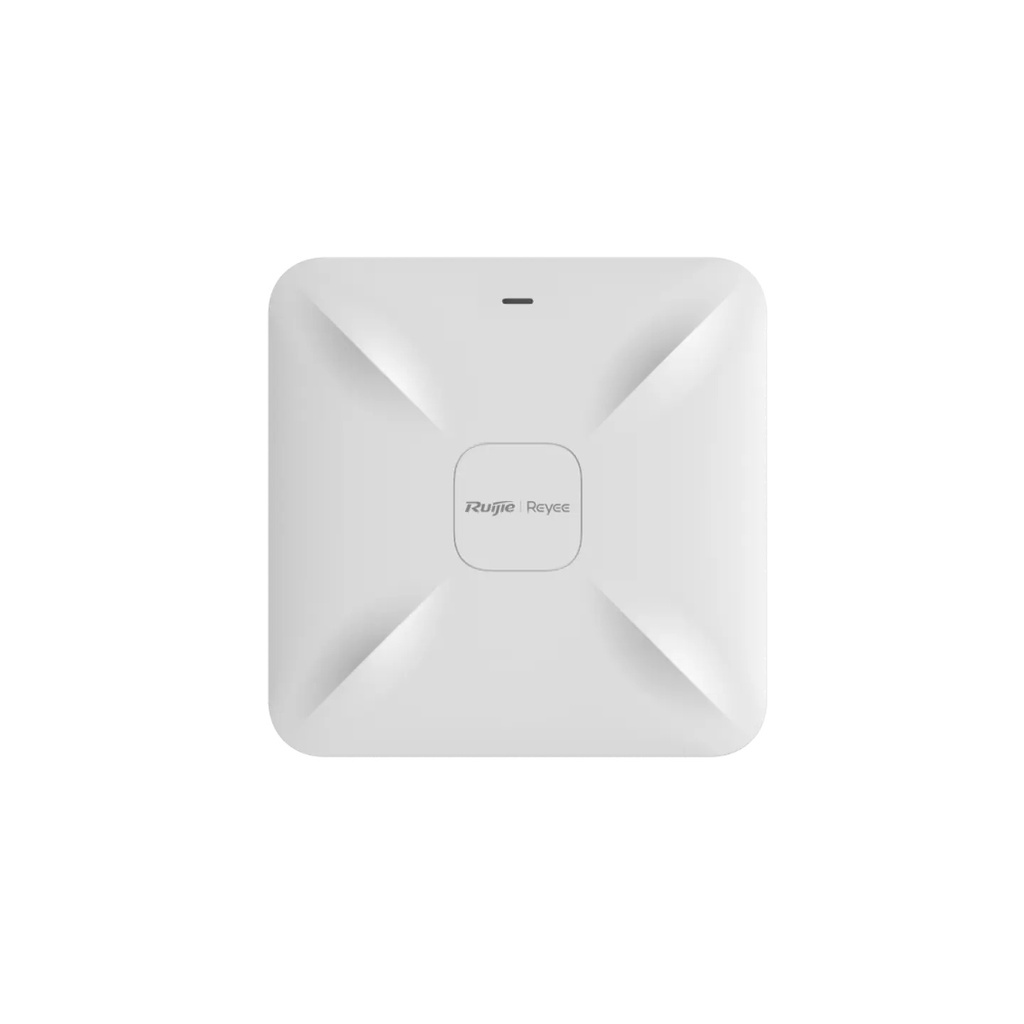

Ruijie RG-RAP2200(E) Reyee Wi-Fi 5 Dual-Band Ceiling Access Point, 1266 Mbps, 2 x Gigabit Ports

https://arcip.com.au/web/image/product.template/5647/image_1920?unique=306b97f

Ruijie RG-RAP2200(E) Reyee Wi-Fi 5 dual-band ceiling access point. 802.11ac wave 2 with 2x2 MIMO per band and MU-MIMO, maximum wireless data rate 1266 Mbps (866 Mbps 5 GHz, 400 Mbps 2.4 GHz). Two 10/100/1000 Mbps Ethernet ports. Powered by 802.3af PoE, 802.3at PoE+ or 12 V DC adapter (not included), 12.95 W maximum. Reyee Mesh, 802.11k/v/r and Layer 3 roaming, one-click optimisation, up to 8 SSIDs, 802.1Q VLAN, 802.1X, IPv6. Managed via Ruijie Reyee app, eWeb or Ruijie Cloud. 194 x 194 x 35 mm, ceiling or wall mount. Genuine Ruijie from ARC IP Networks, authorised Ruijie reseller with Australian stock.

$ 122.19 122.19 AUD $ 122.19 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • Ports
  • Network Connectivity
  • PoE Specification
  • WiFi Standard
  • Frequency Band
  • Max Throughput
  • Wireless Standard
  • Product Type
  • Radio design
  • Maximum wireless data rate
  • 6 GHz wireless data rate
  • 5 GHz wireless data rate
  • 2.4 GHz wireless data rate
  • Antenna
  • Product dimensions (W x D x H)
  • Color
  • Weight
  • Number of 10/100/1000BASE-T ports
  • Power supply
  • Local power supply
  • Dimensions of the DC connector
  • PoE budget
  • Maximum power consumption
  • Operating temperature
  • Mounting options
  • IP rating
  • Maximum number of associated wireless clients
  • Maximum number of devices that can be managed
  • IPv6

This combination does not exist.

In stock online
Indoor Access Point Ruijie Cloud Managed Ceiling Mount WiFi 5 WiFi Reyee
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
RG-RAP2200-E
Barcode
6971693271401
Tags

Ruijie RG-RAP2200(E) at a glance

The Ruijie RG-RAP2200(E) is a Reyee Wi-Fi 5 (802.11ac wave 2) dual-band ceiling access point with a maximum wireless data rate of 1266 Mbps and two 10/100/1000 Mbps Ethernet ports. It supports Reyee Mesh, 802.11k/v/r roaming and one-click network optimisation, and is managed through the Ruijie Reyee app, eWeb or Ruijie Cloud.

ARC IP Networks is an authorised Ruijie reseller in Australia. We supply the genuine Ruijie RG-RAP2200(E) from Australian stock, with a GST tax invoice on every order.

Wi-FiWi-Fi 5 dual-band, 1266 Mbps
Ports2 x Gigabit Ethernet
PowerPoE/PoE+ or 12 V DC, 12.95 W max
ManagementReyee app, eWeb, Ruijie Cloud

Best for

  • Offices, classrooms and retail spaces needing dependable dual-band Wi-Fi 5
  • Extending coverage with Reyee Mesh where running extra cable is difficult
  • Multi-AP sites that need seamless roaming and remote cloud management

Key features

Dual-radio Wi-Fi 5 with 2x2 MIMO on 2.4 GHz and 5 GHz, for a maximum wireless data rate of 1266 Mbps.

802.11ac wave 2 MU-MIMO for better multi-user performance.

Two 10/100/1000 Mbps Ethernet ports.

Powered by IEEE 802.3af PoE, 802.3at PoE+ or a 12 V, 1.5 A DC adapter (not included); maximum consumption 12.95 W.

Reyee Mesh support for adding APs with less cabling.

802.11k/v, 802.11r fast transition, AI roaming and Layer 2/Layer 3 roaming.

One-click network optimisation to tune the whole wireless network.

Up to 8 SSIDs, 802.1Q VLAN, Layer 2 isolation, 802.1X authentication and AP portal authentication.

IPv6 support, plus AP mode and routing mode with static IP, DHCP or PPPoE.

Managed through Ruijie Cloud, the Reyee app or eWeb, with configuration synchronised between them.

Ruijie RG-RAP2200(E) specifications

Ruijie RG-RAP2200(E) technical specifications
SpecificationValue
Wi-Fi radio
Standards2.4 GHz: Wi-Fi 4 (802.11b/g/n); 5 GHz: Wi-Fi 5 (802.11a/n/ac)
Radio designDual-radio, 4 spatial streams (2.4 GHz 2x2 MIMO, 5 GHz 2x2 MIMO)
Maximum wireless data rate1266 Mbps
5 GHz data rate866 Mbps
2.4 GHz data rate400 Mbps
Channel width5 GHz: Auto/20/40/80 MHz; 2.4 GHz: Auto/20/40 MHz
Maximum transmit power5 GHz: 26 dBm combined; 2.4 GHz: 25 dBm combined (varies by country regulations)
Antennas2 built-in omnidirectional per band, 2.00 dBi
Coverage range115 m² in an ideal unobstructed environment (Ruijie figure)
Ports and power
Ethernet ports2 x 10/100/1000BASE-T
Power supplyIEEE 802.3af PoE, 802.3at PoE+ or DC power adapter (DC preferred when both present)
DC input12 V, 1.5 A (5.5 mm outer, 2.1 mm inner connector)
Power adapter includedNo
Maximum power consumption12.95 W
Reset button / LEDs1 reset button; 1 system status LED
WLAN and clients
Maximum associated clients110 (64 on 2.4 GHz, 110 on 5 GHz)
Recommended associated clients80 with both bands enabled (16 on 2.4 GHz, 64 on 5 GHz)
Maximum SSIDs8
Roaming802.11k/v, 802.11r, AI roaming, Layer 2 and Layer 3 roaming
SecurityWPA-PSK, WPA2-PSK, WPA/WPA2-PSK, 802.1X; WPA3-SAE not supported
Reyee MeshYes
One-click network optimisationYes
Management and software
ManagementRuijie Reyee app, eWeb, Ruijie Cloud
ModesAP mode, routing mode, wireless repeater mode
VLANIEEE 802.1Q
IPv6Yes
SNMPNo
Maximum managed devices300
Flash / RAM16 MB / 128 MB
Physical and environmental
Dimensions (W x D x H)194 x 194 x 35 mm (excluding bracket)
ColourWhite
MountingCeiling or wall
Operating temperature0°C to 40°C
Storage temperature-40°C to +70°C
Operating humidity5% to 95% RH, non-condensing
Surge protectionEthernet port: ±2 kV common mode
MTBF400,000 hours
CertificationCE, FCC, CB, ISED, cTUVus
Package contents
In the box1 x AP, 1 x mounting bracket, 2 x screws, 2 x plastic expansion anchors, user manual, warranty card

Figures from Ruijie's official product page and datasheet.

The Ruijie RG-RAP2200(E) in depth

Gigabit Wi-Fi 5 for everyday sites

The RG-RAP2200(E) combines a 2x2 2.4 GHz radio with a 2x2 5 GHz 802.11ac wave 2 radio for a 1266 Mbps maximum data rate, with MU-MIMO for multi-user traffic. Two Gigabit ports avoid the bottleneck of Fast Ethernet uplinks.

Mesh and seamless roaming

Reyee Mesh lets extra APs join the network with less wiring, and 802.11k/v, 802.11r and AI roaming help clients move between APs smoothly, including across Layer 3. One-click optimisation tunes channels across the whole wireless network.

Simple cloud management

Set-up and maintenance run through the Ruijie Reyee app, eWeb or Ruijie Cloud. The AP supports up to 8 SSIDs, VLANs, 802.1X and portal authentication, and IPv6.

Frequently asked questions

Straight answers about the Ruijie RG-RAP2200(E) from the ARC IP Networks team. Last reviewed October 2026.

Its maximum wireless data rate is 1266 Mbps: 866 Mbps on 5 GHz and 400 Mbps on 2.4 GHz. Both Ethernet ports are 10/100/1000 Mbps.

Yes. Ruijie's datasheet lists Reyee Mesh, mesh management and wireless repeater mode as supported.

By IEEE 802.3af PoE, 802.3at PoE+ or a 12 V, 1.5 A DC adapter. No power adapter is included, and maximum consumption is 12.95 W.

Ruijie lists up to 110 associated clients, with 80 recommended when both bands are enabled.

Yes. It supports ceiling or wall mounting, and a mounting bracket, screws and anchors are in the box.

ARC IP Networks is an authorised Ruijie reseller and supplies the RG-RAP2200(E) from Australian stock with a GST tax invoice.

Explore the full Ruijie range: Ruijie Australia hub · Shop all Ruijie Reyee

Buy the Ruijie RG-RAP2200(E) in Australia

ARC IP Networks is an authorised Ruijie reseller, supplying Ruijie Reyee access points, switches, routers and wireless bridges to businesses, installers and integrators across Australia.

  • Genuine Ruijie with the full manufacturer's warranty, supplied from Australian stock.
  • Australian stock, shipped Australia-wide.
  • Manufacturer's warranty and local help with warranty claims and choosing the right model.
  • GST tax invoice on every order, with trade and project pricing available.

Planning a Ruijie network?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right Ruijie model for your site.

Brand Ruijie
Form Factor Ceiling Mount
Ports 1 x GbE
Network Connectivity Wi-Fi
PoE Specification PoE-in 802.3af/at
WiFi Standard 802.11ac (WiFi 5)
Frequency Band Dual-Band (2.4 + 5 GHz)
Max Throughput 1.267 Gbps
Wireless Standard 802.11ax (WiFi 6)
Product Type Ceiling AP
Radio design Dual-radio4 spatial streams- 2.4 GHz: 2 x 2, MIMO- 5 GHz: 2 x 2, MIMO
Maximum wireless data rate 1266 Mbps
6 GHz wireless data rate No
5 GHz wireless data rate 866 Mbps
2.4 GHz wireless data rate 400 Mbps
Antenna 2.4 GHz: 2 built-in omnidirectional antennas5 GHz: 2 built-in omnidirectional antennas
Product dimensions (W x D x H) 194 mm x 194 mm x 35 mm (7.64 in. x 7.64 in. x 1.38 in.) (excluding the mounting bracket)
Color White
Weight 0.45 kg (0.99 lbs.) (without packaging materials)
Number of 10/100/1000BASE-T ports 2
Power supply - DC power adapter- PoE/PoE+Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
Local power supply Yes, one DC power connector (12 V, 1.5 A)
Dimensions of the DC connector Outer diameter: 5.5 mm (0.22 in.)Inner diameter: 2.1 mm (0.08 in.)Depth: 10 mm (0.39 in.)
PoE budget No
Maximum power consumption 12.95 W
Operating temperature 0°C to 40°C (32°F to 104°F)
Mounting options Ceiling/Wall
IP rating No
Maximum number of associated wireless clients 64 (2.4 GHz)110 (5 GHz)110 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed 300
IPv6 Yes
RG-RAP2200_E__Datasheet_Official_2025-12-18.pdf
