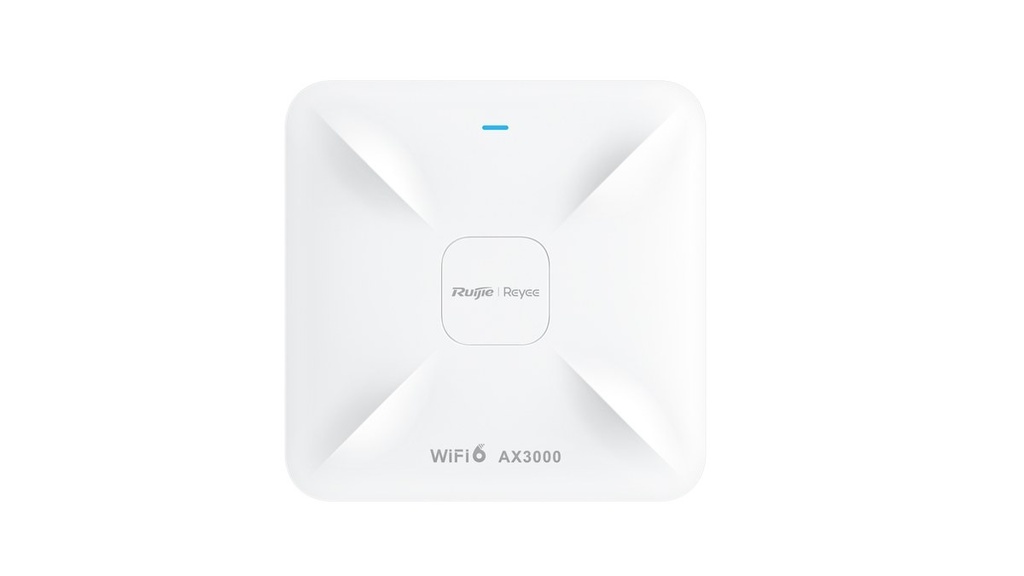

Ruijie RG-RAP2260 Reyee Wi-Fi 6 AX3000 Dual-Band Ceiling Access Point, 2.5GbE Uplink, 160 MHz

https://arcip.com.au/web/image/product.template/5651/image_1920?unique=306b97f

Ruijie RG-RAP2260 Reyee Wi-Fi 6 AX3000 dual-band ceiling access point. 802.11ax on 2.4 GHz and 5 GHz with 2x2 MU-MIMO, maximum wireless data rate 2974 Mbps (2401 Mbps 5 GHz with 160 MHz channels, 573 Mbps 2.4 GHz). One 2.5GbE port and one Gigabit port. Up to 512 associated clients. Reyee Mesh, 802.11k/v/r and AI roaming, WPA3-SAE, OWE, 802.1X, captive portal, IPv6, SNMP. Powered by 802.3at PoE+ or 12 V DC (not included), 18 W maximum. IP41, 194 x 194 x 45.1 mm, ceiling or wall mount. Managed via Ruijie Reyee app, eWeb or Ruijie Cloud. Genuine Ruijie from ARC IP Networks, authorised Ruijie reseller with Australian stock.

$ 248.90 248.9 AUD $ 248.90 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • Network Connectivity
  • PoE Specification
  • WiFi Standard
  • Frequency Band
  • Max Throughput
  • Wireless Standard
  • Product Type
  • Radio design
  • Maximum wireless data rate
  • 6 GHz wireless data rate
  • 5 GHz wireless data rate
  • 2.4 GHz wireless data rate
  • Antenna
  • Product dimensions (W x D x H)
  • Color
  • Weight
  • Number of 10/100/1000BASE-T ports
  • Number of 10/100/1000/2500BASE-T ports
  • Power supply
  • Local power supply
  • Dimensions of the DC connector
  • PoE budget
  • Maximum power consumption
  • Operating temperature
  • Mounting options
  • IP rating
  • Maximum number of associated wireless clients
  • Maximum number of devices that can be managed
  • IPv6
  • Ingress Protection

This combination does not exist.

WiFi 6 Indoor Access Point Ruijie Cloud Managed Ceiling Mount WiFi Reyee
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
RG-RAP2260
Barcode
6971693272972
Tags

Ruijie RG-RAP2260 at a glance

The Ruijie RG-RAP2260 is a Reyee Wi-Fi 6 AX3000 dual-band ceiling access point with a maximum wireless data rate of 2974 Mbps, using 160 MHz channels on 5 GHz. It has one 2.5GbE and one Gigabit Ethernet port, supports up to 512 associated clients, Reyee Mesh and WPA3, and is managed through the Ruijie Reyee app, eWeb or Ruijie Cloud.

ARC IP Networks is an authorised Ruijie reseller in Australia. We supply the genuine Ruijie RG-RAP2260 from Australian stock, with a GST tax invoice on every order.

Wi-FiWi-Fi 6 AX3000, 2974 Mbps
Ports1 x 2.5GbE + 1 x GbE
ClientsUp to 512 associated
PowerPoE+ or 12 V DC, 18 W max

Best for

  • Busy offices, classrooms and hospitality venues with many connected devices
  • Networks with 2.5G switch ports that want a faster AP uplink
  • Multi-AP sites using Reyee Mesh, seamless roaming and cloud management

Key features

Wi-Fi 6 (802.11ax) on both 2.4 GHz and 5 GHz with 2x2 MU-MIMO per radio and a maximum wireless data rate of 2974 Mbps.

160 MHz channel width support on 5 GHz (2401 Mbps), with 573 Mbps on 2.4 GHz.

One 10/100/1000/2500BASE-T port and one 10/100/1000BASE-T port.

Up to 512 associated clients, per Ruijie's datasheet.

Reyee Mesh for adding APs without extra cabling, plus wireless repeater mode.

802.11k/v, 802.11r, AI roaming, Layer 3 roaming and AP load balancing.

WPA3-SAE, OWE, 802.1X and standalone captive portal authentication.

Powered by 802.3at PoE+ or a 12 V, 2 A DC adapter (not included); 802.3af PoE is supported with reduced radio performance.

IP41-rated housing of 194 x 194 x 45.1 mm for ceiling or wall mounting.

Managed through Ruijie Cloud, the Reyee app or eWeb, with SNMP support.

Ruijie RG-RAP2260 specifications

Ruijie RG-RAP2260 technical specifications
SpecificationValue
Wi-Fi radio
Standards2.4 GHz: 802.11b/g/n/ax; 5 GHz: 802.11a/n/ac/ax
Radio designDual-radio, 4 spatial streams (2.4 GHz 2x2 MU-MIMO, 5 GHz 2x2 MU-MIMO)
Maximum wireless data rate2974 Mbps
5 GHz data rate2401 Mbps
2.4 GHz data rate573 Mbps
Channel width5 GHz: Auto/20/40/80/160 MHz; 2.4 GHz: Auto/20/40 MHz
Maximum transmit power5 GHz: 29.7 dBm combined; 2.4 GHz: 28 dBm combined (varies by country regulations)
Antennas2.4 GHz: 2 built-in omnidirectional; 5 GHz: 3 built-in omnidirectional; 3.00 dBi
Coverage range145 m² in an ideal unobstructed environment (Ruijie figure)
Ports and power
Ethernet ports1 x 10/100/1000/2500BASE-T, 1 x 10/100/1000BASE-T
Power supplyIEEE 802.3at PoE+, 802.3af PoE or DC power adapter (DC preferred when both present)
802.3af noteOn 802.3af PoE, radios are limited to 2T2R and the 5 GHz rate is 60% of the original rate
DC input12 V, 2 A (5.5 mm outer, 2.1 mm inner connector)
Power adapter includedNo
Maximum power consumption18 W
WLAN and clients
Maximum associated clients512 (64 on 2.4 GHz, 512 on 5 GHz)
Recommended clients (802.11ax, 160 MHz)110 with both bands enabled
Maximum SSIDs8
Roaming802.11k/v, 802.11r, AI roaming, Layer 2 and Layer 3 roaming, AP load balancing
SecurityWPA/WPA2-PSK, WPA3-SAE, WPA2-PSK/WPA3-SAE, OWE, 802.1X
Reyee MeshYes
Portal authenticationYes
Management and software
ManagementRuijie Reyee app, eWeb, Ruijie Cloud, SNMP
ModesAP mode, routing mode, wireless repeater mode
VLANIEEE 802.1Q
IPv6Yes
Maximum managed devices300
Flash / RAM128 MB / 512 MB
Physical and environmental
Dimensions (W x D x H)194 x 194 x 45.1 mm (excluding bracket)
ColourWhite
MountingCeiling or wall
IP ratingIP41
Operating temperature0°C to 40°C
Storage temperature-40°C to +70°C
Operating humidity5% to 95% RH, non-condensing
Surge protectionEthernet port: ±2 kV common mode
MTBF400,000 hours
CertificationCE, FCC, CB, ISED, cTUVus
Package contents
In the box1 x AP, 1 x mounting bracket, 2 x screws, 2 x plastic expansion anchors, user manual, warranty card, alignment sticker

Figures from Ruijie's official product page and datasheet.

The Ruijie RG-RAP2260 in depth

AX3000 Wi-Fi 6 with 160 MHz

The RG-RAP2260 runs Wi-Fi 6 on both bands with 2x2 MU-MIMO, reaching 2401 Mbps on 5 GHz using 160 MHz channels and 573 Mbps on 2.4 GHz, for a 2974 Mbps maximum. Ruijie rates it for up to 512 associated clients, suiting high-density spaces.

2.5G uplink

A 2.5GbE port lets the AP pass more traffic to the network than a Gigabit uplink, alongside a second Gigabit port. It runs from 802.3at PoE+ or a 12 V DC adapter; 802.3af PoE also works but limits the radios and the 5 GHz rate.

Mesh, roaming and security

Reyee Mesh adds APs without new cabling, and 802.11k/v/r with AI roaming keep clients connected as they move. WPA3, OWE, 802.1X and a standalone captive portal cover common security needs, with management through the Reyee app, eWeb or Ruijie Cloud.

Frequently asked questions

Straight answers about the Ruijie RG-RAP2260 from the ARC IP Networks team. Last reviewed October 2026.

Ruijie's datasheet lists a maximum wireless data rate of 2974 Mbps: 2401 Mbps on 5 GHz (with 160 MHz channels) and 573 Mbps on 2.4 GHz.

One 10/100/1000/2500BASE-T port and one 10/100/1000BASE-T port.

Yes, but on 802.3af the radios are limited to 2T2R and the 5 GHz rate drops to 60% of the original. 802.3at PoE+ or the 12 V DC input gives full performance; maximum consumption is 18 W.

Up to 512 associated clients. Ruijie recommends 110 with both bands enabled when using 802.11ax and 160 MHz.

Yes. It supports WPA3-SAE, OWE and Reyee Mesh.

ARC IP Networks is an authorised Ruijie reseller and supplies the RG-RAP2260 from Australian stock with a GST tax invoice.

Explore the full Ruijie range: Ruijie Australia hub · Shop all Ruijie Reyee

Buy the Ruijie RG-RAP2260 in Australia

ARC IP Networks is an authorised Ruijie reseller, supplying Ruijie Reyee access points, switches, routers and wireless bridges to businesses, installers and integrators across Australia.

  • Genuine Ruijie with the full manufacturer's warranty, supplied from Australian stock.
  • Australian stock, shipped Australia-wide.
  • Manufacturer's warranty and local help with warranty claims and choosing the right model.
  • GST tax invoice on every order, with trade and project pricing available.

Planning a Ruijie network?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right Ruijie model for your site.

Brand Ruijie
Form Factor Ceiling Mount
Network Connectivity Wi-Fi
PoE Specification PoE-in 802.3at
WiFi Standard 802.11ax (WiFi 6)
Frequency Band Dual-Band (2.4 + 5 GHz)
Max Throughput 2.97 Gbps
Wireless Standard 802.11be (Wi-Fi 6)
Product Type Ceiling AP
Radio design Dual-radio4 spatial streams- 2.4 GHz: 2 x 2, MU-MIMO- 5 GHz: 2 x 2, MU-MIMO
Maximum wireless data rate 2974 Mbps
6 GHz wireless data rate No
5 GHz wireless data rate 2401 Mbps
2.4 GHz wireless data rate 573 Mbps
Antenna 2.4 GHz: 2 built-in omnidirectional antennas5 GHz: 3 built-in omnidirectional antennas
Product dimensions (W x D x H) 194 mm x 194 mm x 45.1 mm (7.64 in. x 7.64 in. x 1.78 in.) (excluding the mounting bracket)
Color White
Weight 0.65 kg (1.43 lbs.) (without packaging materials)
Number of 10/100/1000BASE-T ports 1
Number of 10/100/1000/2500BASE-T ports 1
Power supply - DC power adapter- PoE/PoE+Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
Local power supply Yes, one DC power connector (12 V, 2 A)
Dimensions of the DC connector Outer diameter: 5.5 mm (0.22 in.)Inner diameter: 2.1 mm (0.08 in.)Depth: 10 mm (0.39 in.)
PoE budget No
Maximum power consumption 18 W
Operating temperature 0°C to 40°C (32°F to 104°F)
Mounting options Ceiling/Wall
IP rating IP41
Maximum number of associated wireless clients 64 (2.4 GHz)512 (5 GHz)512 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed 300
IPv6 Yes
Ingress Protection IP41
RG-RAP2260_Datasheet_Official_2026-03-11.pdf
