Ruijie RG-RAP2260(E) Reyee Wi-Fi 6 AX3200 Dual-Band Ceiling Access Point, 4x4 MIMO, 2.5GbE Uplink

https://arcip.com.au/web/image/product.template/5652/image_1920?unique=306b97f

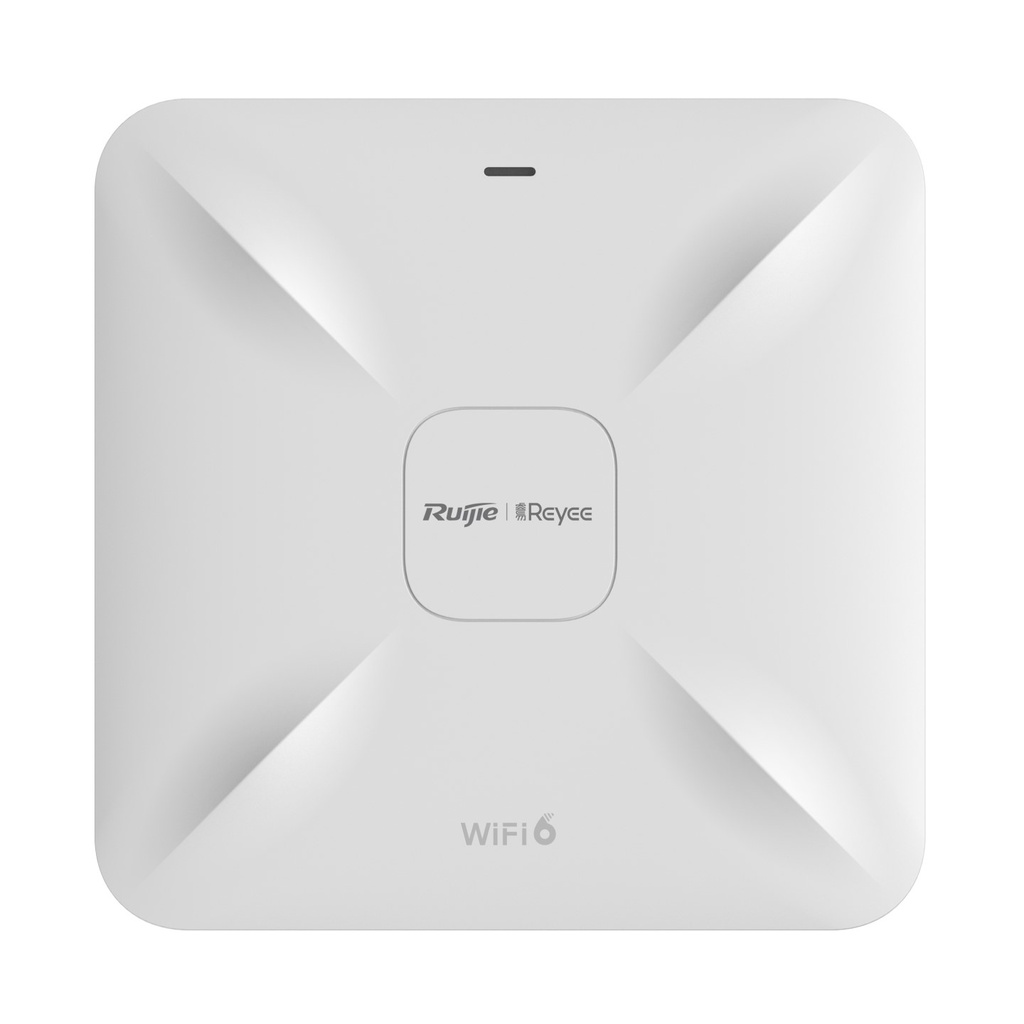

Ruijie RG-RAP2260(E) Reyee Wi-Fi 6 AX3200 dual-band ceiling access point. 4x4 radios on 2.4 GHz and 5 GHz (8 spatial streams), maximum wireless data rate 3201 Mbps (2401 Mbps 5 GHz, 800 Mbps 2.4 GHz). One 2.5GbE port and one Gigabit port. Up to 256 associated clients, 190 m² coverage in ideal conditions per Ruijie. Reyee Mesh, 802.11k/v/r and AI roaming, WPA3-SAE, OWE, 802.1X, portal authentication, IPv6, SNMP. Powered by 802.3at PoE+ or 12 V DC (not included), 25.4 W maximum. IP41, 220 x 220 x 35 mm. Managed via Ruijie Reyee app, eWeb or Ruijie Cloud. Genuine Ruijie from ARC IP Networks, authorised Ruijie reseller with Australian stock.

$ 355.26 355.26 AUD $ 386.62 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • Network Connectivity
  • PoE Specification
  • WiFi Standard
  • Frequency Band
  • Max Throughput
  • Wireless Standard
  • Product Type
  • Radio design
  • Maximum wireless data rate
  • 6 GHz wireless data rate
  • 5 GHz wireless data rate
  • 2.4 GHz wireless data rate
  • Antenna
  • Product dimensions (W x D x H)
  • Color
  • Weight
  • Number of 10/100/1000BASE-T ports
  • Number of 10/100/1000/2500BASE-T ports
  • Power supply
  • Local power supply
  • Dimensions of the DC connector
  • PoE budget
  • Maximum power consumption
  • Operating temperature
  • Mounting options
  • IP rating
  • Maximum number of associated wireless clients
  • Maximum number of devices that can be managed
  • IPv6
  • Ingress Protection

This combination does not exist.

In stock online
WiFi 6 Indoor Access Point Ruijie Cloud Managed Ceiling Mount WiFi Reyee
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
RG-RAP2260(E)
Barcode
6971693272101
Tags

Ruijie RG-RAP2260(E) at a glance

The Ruijie RG-RAP2260(E) is a Reyee Wi-Fi 6 AX3200 dual-band ceiling access point with 4x4 radios on both 2.4 GHz and 5 GHz and a maximum wireless data rate of 3201 Mbps. It has one 2.5GbE and one Gigabit port, is powered by 802.3at PoE+ or 12 V DC, and supports Reyee Mesh, WPA3 and management through the Reyee app, eWeb or Ruijie Cloud.

ARC IP Networks is an authorised Ruijie reseller in Australia. We supply the genuine Ruijie RG-RAP2260(E) from Australian stock, with a GST tax invoice on every order.

Wi-FiWi-Fi 6 AX3200, 3201 Mbps
Radios4x4 on 2.4 GHz and 5 GHz
Ports1 x 2.5GbE + 1 x GbE
PowerPoE+ or 12 V DC, 25.4 W max

Best for

  • Larger rooms and open-plan areas where Ruijie quotes up to 190 m² coverage
  • High-traffic offices, schools and venues with a 2.5G switch uplink
  • Multi-AP networks using Reyee Mesh and cloud management

Key features

Dual-radio design with 8 spatial streams: 4x4 MIMO on 2.4 GHz and 4x4 MU-MIMO on 5 GHz.

Maximum wireless data rate of 3201 Mbps (2401 Mbps on 5 GHz, 800 Mbps on 2.4 GHz).

One 10/100/1000/2500BASE-T port and one 10/100/1000BASE-T port.

Coverage of 190 m² in an ideal unobstructed environment, per Ruijie.

Reyee Mesh and wireless repeater mode for extending coverage without new cabling.

802.11k/v, 802.11r, AI roaming and Layer 3 roaming.

WPA3-SAE, OWE, 802.1X and AP portal authentication.

Powered by IEEE 802.3at PoE+ or a 12 V, 2.5 A DC adapter (not included); maximum consumption 25.4 W.

IP41-rated 220 x 220 x 35 mm housing for ceiling or wall mounting.

Managed through Ruijie Cloud, the Reyee app or eWeb, with SNMP and IPTV transparent transmission.

Ruijie RG-RAP2260(E) specifications

Ruijie RG-RAP2260(E) technical specifications
SpecificationValue
Wi-Fi radio
Standards2.4 GHz: Wi-Fi 4 (802.11b/g/n); 5 GHz: 802.11a/n/ac/ax
Radio designDual-radio, 8 spatial streams (2.4 GHz 4x4 MIMO, 5 GHz 4x4 MU-MIMO)
Maximum wireless data rate3201 Mbps
5 GHz data rate2401 Mbps
2.4 GHz data rate800 Mbps
Channel width5 GHz: Auto/20/40/80 MHz; 2.4 GHz: Auto/20/40 MHz
Maximum transmit power29 dBm combined per band (varies by country regulations)
Antennas4 built-in omnidirectional per band, 3.00 dBi
Coverage range190 m² in an ideal unobstructed environment (Ruijie figure)
Ports and power
Ethernet ports1 x 10/100/1000/2500BASE-T, 1 x 10/100/1000BASE-T
Power supplyIEEE 802.3at PoE+ or DC power adapter (DC preferred when both present)
DC input12 V, 2.5 A (5.5 mm outer, 2.1 mm inner connector)
Power adapter includedNo
Maximum power consumption25.4 W
WLAN and clients
Maximum associated clients256 (64 on 2.4 GHz, 256 on 5 GHz)
Recommended associated clientsUp to 120 with both bands enabled
Maximum SSIDs8
Roaming802.11k/v, 802.11r, AI roaming, Layer 2 and Layer 3 roaming
SecurityWPA/WPA2-PSK, WPA3-SAE, WPA2-PSK/WPA3-SAE, OWE, 802.1X
Reyee MeshYes
Management and software
ManagementRuijie Reyee app, eWeb, Ruijie Cloud, SNMP
ModesAP mode, routing mode, wireless repeater mode
VLAN / IPTVIEEE 802.1Q; IPTV transparent transmission
IPv6Yes
Maximum managed devices300
Flash / RAM16 MB / 256 MB
Physical and environmental
Dimensions (W x D x H)220 x 220 x 35 mm (excluding bracket)
ColourWhite
MountingCeiling or wall
IP ratingIP41
Operating temperature0°C to 40°C
Storage temperature-40°C to +70°C
Operating humidity5% to 95% RH, non-condensing
Surge protectionEthernet port: ±2 kV common mode
MTBF400,000 hours
CertificationCE, CB
Package contents
In the box1 x AP, 1 x mounting bracket, 2 x screws, 2 x plastic expansion anchors, user manual, warranty card

Figures from Ruijie's official product page and datasheet.

The Ruijie RG-RAP2260(E) in depth

Four streams on each band

The RG-RAP2260(E) uses 4x4 radios on both 2.4 GHz and 5 GHz for 8 spatial streams in total, delivering 2401 Mbps on 5 GHz Wi-Fi 6 and 800 Mbps on 2.4 GHz for a 3201 Mbps maximum. Ruijie quotes 190 m² of coverage in ideal conditions.

2.5G uplink and PoE+

A 2.5GbE port carries the AP's traffic to a multi-gig switch, with a second Gigabit port alongside. It needs 802.3at PoE+ or a 12 V, 2.5 A DC supply, and draws up to 25.4 W.

Mesh, roaming and cloud

Reyee Mesh and repeater mode extend coverage without new cabling, and 802.11k/v/r with AI roaming help clients move between APs. Management runs through the Reyee app, eWeb or Ruijie Cloud, with WPA3, 802.1X and portal authentication.

Frequently asked questions

Straight answers about the Ruijie RG-RAP2260(E) from the ARC IP Networks team. Last reviewed October 2026.

Ruijie's datasheet lists a maximum wireless data rate of 3201 Mbps: 2401 Mbps on 5 GHz and 800 Mbps on 2.4 GHz.

The (E) has 4x4 radios on both bands (8 streams) and quotes 190 m² coverage, while the RG-RAP2260 has 2x2 radios with Wi-Fi 6 on both bands and 160 MHz channels on 5 GHz. Both have one 2.5GbE and one Gigabit port.

By IEEE 802.3at PoE+ or a 12 V, 2.5 A DC adapter, which is not included. Maximum power consumption is 25.4 W.

The datasheet lists up to 256 associated clients and recommends up to 120 with both bands enabled.

Yes. It supports Reyee Mesh, mesh management and wireless repeater mode.

ARC IP Networks is an authorised Ruijie reseller and supplies the RG-RAP2260(E) from Australian stock with a GST tax invoice.

Explore the full Ruijie range: Ruijie Australia hub · Shop all Ruijie Reyee

Buy the Ruijie RG-RAP2260(E) in Australia

ARC IP Networks is an authorised Ruijie reseller, supplying Ruijie Reyee access points, switches, routers and wireless bridges to businesses, installers and integrators across Australia.

  • Genuine Ruijie with the full manufacturer's warranty, supplied from Australian stock.
  • Australian stock, shipped Australia-wide.
  • Manufacturer's warranty and local help with warranty claims and choosing the right model.
  • GST tax invoice on every order, with trade and project pricing available.

Planning a Ruijie network?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right Ruijie model for your site.

Brand Ruijie
Form Factor Ceiling Mount
Network Connectivity Wi-Fi
PoE Specification PoE-in 802.3at
WiFi Standard 802.11ax (WiFi 6)
Frequency Band Dual-Band (2.4 + 5 GHz)
Max Throughput 2.5 Gbps
Wireless Standard 802.11be (Wi-Fi 6)
Product Type Ceiling AP
Radio design Dual-radio8 spatial streams- 2.4 GHz: 4 x 4, MIMO- 5 GHz: 4 x 4, MU-MIMO
Maximum wireless data rate 3201 Mbps
6 GHz wireless data rate No
5 GHz wireless data rate 2401 Mbps
2.4 GHz wireless data rate 800 Mbps
Antenna 2.4 GHz: 4 built-in omnidirectional antennas5 GHz: 4 built-in omnidirectional antennas
Product dimensions (W x D x H) 220 mm x 220 mm x 35 mm (8.66 in. x 8.66 in. x 1.38 in.) (excluding the mounting bracket)
Color White
Weight 0.55 kg (1.21 lbs.) (without packaging materials)
Number of 10/100/1000BASE-T ports 1
Number of 10/100/1000/2500BASE-T ports 1
Power supply - DC power adapter- PoE+Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
Local power supply Yes, one DC power connector (12 V, 2.5 A)
Dimensions of the DC connector Outer diameter: 5.5 mm (0.22 in.)Inner diameter: 2.1 mm (0.08 in.)Depth: 10 mm (0.39 in.)
PoE budget No
Maximum power consumption 25.4 W
Operating temperature 0°C to 40°C (32°F to 104°F)
Mounting options Ceiling/Wall
IP rating IP41
Maximum number of associated wireless clients 64 (2.4 GHz)256 (5 GHz)256 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed 300
IPv6 Yes
Ingress Protection IP41
RG-RAP2260_E__Datasheet_Official_2026-03-11.pdf
