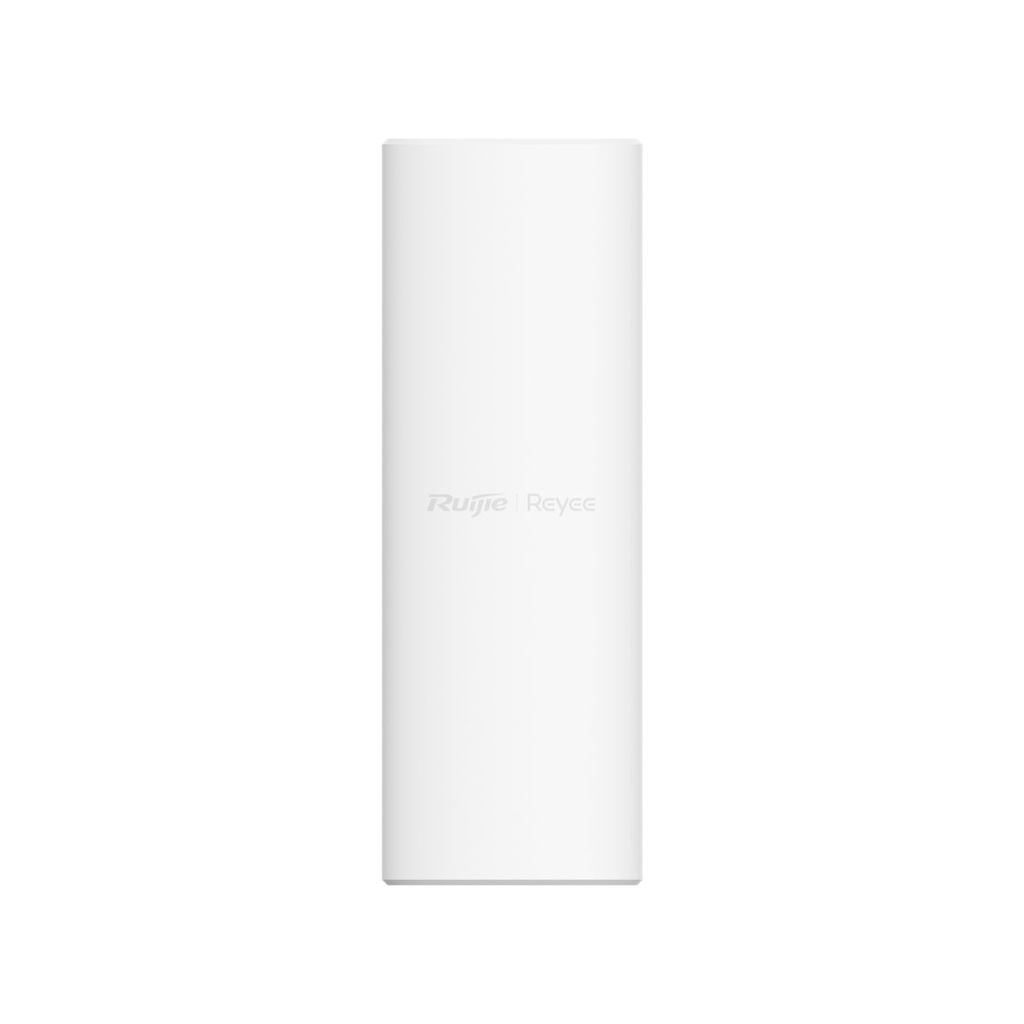

Ruijie RG-RAP62-OD Reyee Wi-Fi 6 AX3000 Dual-Band Indoor/Outdoor Access Point, IP65, 160 MHz, PoE

https://arcip.com.au/web/image/product.template/5656/image_1920?unique=306b97f

Ruijie RG-RAP62-OD Reyee Wi-Fi 6 AX3000 dual-band indoor/outdoor access point. Dual radio, 2x2 MU-MIMO per band, up to 2974 Mbps (2401 Mbps 5 GHz with 160 MHz, 573 Mbps 2.4 GHz), OFDMA, WPA3. IP65 weatherproof, -30 to 65°C, wall or pole mount, built-in omnidirectional antennas. 1 x Gigabit Ethernet, powered by 802.3af/at PoE, 16 W max. Reyee Mesh, AI roaming, 802.11k/v/r, 8 SSIDs, captive portal, up to 512 clients. Managed by Ruijie Cloud, Reyee app or eWeb. Genuine Ruijie from ARC IP Networks, authorised Ruijie reseller with Australian stock.

$ 171.56 171.56 AUD $ 171.56 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • Network Connectivity
  • PoE Specification
  • WiFi Standard
  • Frequency Band
  • IP Rating
  • Wireless Standard
  • Product Type
  • Radio design
  • Maximum wireless data rate
  • 6 GHz wireless data rate
  • 5 GHz wireless data rate
  • 2.4 GHz wireless data rate
  • Antenna
  • Product dimensions (W x D x H)
  • Color
  • Weight
  • Number of 10/100/1000BASE-T ports
  • Power supply
  • Local power supply
  • Dimensions of the DC connector
  • PoE budget
  • Maximum power consumption
  • Operating temperature
  • Mounting options
  • IP rating
  • Maximum number of associated wireless clients
  • Maximum number of devices that can be managed
  • IPv6
  • Ingress Protection

This combination does not exist.

In stock online
WiFi 6 Outdoor Access Point Ruijie Cloud Managed WiFi Reyee
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
RG-RAP62-OD
Barcode
6976915001293
Tags

Ruijie RG-RAP62-OD at a glance

The Ruijie RG-RAP62-OD is a Reyee Wi-Fi 6 AX3000 dual-band access point for indoor or outdoor use, with an IP65 weatherproof rating and built-in antennas. It reaches a maximum wireless data rate of 2974 Mbps (2401 Mbps at 5 GHz with 160 MHz channels, 573 Mbps at 2.4 GHz), runs on 802.3af/at PoE and supports Reyee Mesh and AI roaming.

ARC IP Networks is an authorised Ruijie reseller in Australia. We supply the genuine Ruijie RG-RAP62-OD from Australian stock, with a GST tax invoice on every order.

Wi-FiWi-Fi 6 AX3000, 2974 Mbps
WeatherproofIP65, -30°C to 65°C
Power802.3af/at PoE, 16 W max
ClientsUp to 512 associated

Best for

  • Villas and homes needing Wi-Fi 6 coverage in outdoor areas
  • Retail businesses offering guest Wi-Fi through a standalone portal
  • Indoor or outdoor Reyee Mesh extensions on a wall or pole

Key features

Dual-radio Wi-Fi 6 (802.11ax) with 2x2 MU-MIMO on each band and 4 spatial streams.

Maximum wireless data rate of 2974 Mbps: 2401 Mbps at 5 GHz and 573 Mbps at 2.4 GHz.

160 MHz channel support at 5 GHz, OFDMA and 1024-QAM modulation.

IP65 weatherproof rating for indoor or outdoor installation, operating from -30°C to 65°C.

Built-in omnidirectional antennas (5 GHz 6.50 dBi, 2.4 GHz 4.00 dBi).

Powered by 802.3af or 802.3at PoE; maximum power consumption 16 W.

Reyee Mesh, AI roaming, 802.11k/v/r and load balancing for seamless roaming.

WPA3-SAE, 802.1X, AP portal authentication and up to 8 SSIDs, managed via Ruijie Cloud, Reyee app or eWeb.

Ruijie RG-RAP62-OD specifications

Ruijie RG-RAP62-OD technical specifications
SpecificationValue
Wireless
StandardsIEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6 on both bands)
Radio designDual-radio, 4 spatial streams; 2x2 MU-MIMO per band
Maximum data rate2974 Mbps (5 GHz 2401 Mbps, 2.4 GHz 573 Mbps)
Channel width5 GHz: 20/40/80/160 MHz; 2.4 GHz: 20/40 MHz
Maximum transmit power5 GHz 27.7 dBm combined; 2.4 GHz 26 dBm combined (varies by country)
Coverage range5 GHz max 300 m, recommended 150 m; 2.4 GHz max 100 m, recommended 50 m (ideal unobstructed environment)
Antenna
TypeBuilt-in omnidirectional
Antenna gain5 GHz 6.50 dBi; 2.4 GHz 4.00 dBi
WLAN features
Max associated clients512 (dual-band)
Recommended clients110 (802.11ax, 160 MHz, dual-band); 80 (802.11ax, 80 MHz, dual-band)
SSIDs8
Roaming802.11k/v, 802.11r, Layer 2/3 roaming, AI roaming, AP load balancing
MeshReyee Mesh (AP Mesh), wireless repeater mode
SecurityWPA3-SAE, WPA2-PSK, OWE, 802.1X, AP portal authentication, Layer 2 isolation
OtherOFDMA, beamforming, WMM, DFS, 802.1Q VLAN, IPv6
Ports and power
Ethernet1 x 10/100/1000BASE-T
PoE inputIEEE 802.3af (PoE) / 802.3at (PoE+); on 802.3af radios limited to 2T2R at 2.4 GHz and 2T3R at 5 GHz, with the 5 GHz rate at 60%
Passive PoE24 V passive PoE injector supported
Maximum power consumption16 W
Power adapter includedNo
Management
InterfacesRuijie Cloud, Ruijie Reyee app, eWeb
ModesAP mode, routing mode
SNMPYes
Physical and environmental
Dimensions (W x D x H)70 x 35 x 200 mm (excluding bracket)
ColourWhite
MountingWall / pole
IP ratingIP65
Operating temperature-30°C to 65°C
Surge protectionEthernet port ±4 kV common mode
MTBF400,000 hours
CertificationCE, FCC, CB, ISED, cTUVus
Package contents
In the boxAP, mounting bracket, cable tie, 2 screws, 2 plastic anchors, user manual, warranty card

Figures from Ruijie's official product page and datasheet.

The Ruijie RG-RAP62-OD in depth

Wi-Fi 6 for indoor and outdoor spaces

The RG-RAP62-OD is a versatile AX3000 Wi-Fi 6 AP that can be installed indoors or outdoors. With 160 MHz channels at 5 GHz it reaches 2401 Mbps on that band, plus 573 Mbps at 2.4 GHz, for a maximum of 2974 Mbps.

Built for the weather

An IP65 rating and an operating range of -30°C to 65°C suit patios, gardens and shopfronts. The antennas are built in, and the AP mounts on a wall or pole with the supplied bracket.

Reyee Mesh for retail and villas

Reyee Mesh, AI roaming and 802.11k/v/r keep devices connected between APs, and the standalone portal handles guest Wi-Fi without extra hardware. Manage it from Ruijie Cloud, the Reyee app or eWeb.

Frequently asked questions

Straight answers about the Ruijie RG-RAP62-OD from the ARC IP Networks team. Last reviewed October 2026.

It is a Wi-Fi 6 AX3000 AP with a maximum wireless data rate of 2974 Mbps: 2401 Mbps at 5 GHz and 573 Mbps at 2.4 GHz.

Yes. Ruijie describes it as a versatile indoor/outdoor AP, rated IP65 and operating from -30°C to 65°C.

It accepts IEEE 802.3af or 802.3at PoE and draws up to 16 W. On 802.3af the radios are limited to 2T2R at 2.4 GHz and 2T3R at 5 GHz and the 5 GHz rate drops to 60%, so 802.3at is needed for full performance.

Ruijie states a 5 GHz maximum of 300 m (150 m recommended) and a 2.4 GHz maximum of 100 m (50 m recommended) in an ideal environment without obstruction.

Yes. It supports WPA3-SAE and WPA2-PSK/WPA3-SAE mixed mode, plus OWE (Enhanced Open).

ARC IP Networks is an authorised Ruijie reseller and supplies the RG-RAP62-OD from Australian stock with a GST tax invoice.

Explore the full Ruijie range: Ruijie Australia hub · Shop all Ruijie Reyee

Buy the Ruijie RG-RAP62-OD in Australia

ARC IP Networks is an authorised Ruijie reseller, supplying Ruijie Reyee access points, switches, routers and wireless bridges to businesses, installers and integrators across Australia.

  • Genuine Ruijie with the full manufacturer's warranty, supplied from Australian stock.
  • Australian stock, shipped Australia-wide.
  • Manufacturer's warranty and local help with warranty claims and choosing the right model.
  • GST tax invoice on every order, with trade and project pricing available.

Planning a Ruijie network?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right Ruijie model for your site.

Brand Ruijie
Form Factor Outdoor
Network Connectivity Wi-Fi
PoE Specification PoE-in 802.3at
WiFi Standard 802.11ax (WiFi 6)
Frequency Band Dual-Band (2.4 + 5 GHz)
IP Rating IP65
Wireless Standard 802.11be (Wi-Fi 7)
Product Type Outdoor AP
Radio design Dual-radio4 spatial streams- 2.4 GHz: 2 x 2, MU-MIMO- 5 GHz: 2 x 2, MU-MIMO
Maximum wireless data rate 2974 Mbps
6 GHz wireless data rate No
5 GHz wireless data rate 2401 Mbps
2.4 GHz wireless data rate 573 Mbps
Antenna 5 GHz: 1 built-in omnidirectional antennaIntegrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas
Product dimensions (W x D x H) 70 mm x 35 mm x 200 mm (2.76 in. x 1.38 in. x 7.87 in.) (excluding the mounting bracket)
Color White
Weight 0.4 kg (0.88 lbs.) (without packaging materials)
Number of 10/100/1000BASE-T ports 1
Power supply PoE/PoE+
Local power supply No
Dimensions of the DC connector No
PoE budget No
Maximum power consumption 16 W
Operating temperature -30°C to +65°C (-22°F to +149°F)
Mounting options Wall/Pole
IP rating IP65
Maximum number of associated wireless clients 64 (2.4 GHz)512 (5 GHz)512 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed 300
IPv6 Yes
Ingress Protection IP65
RG-RAP62-OD_Datasheet_Official_2026-05-10.pdf
