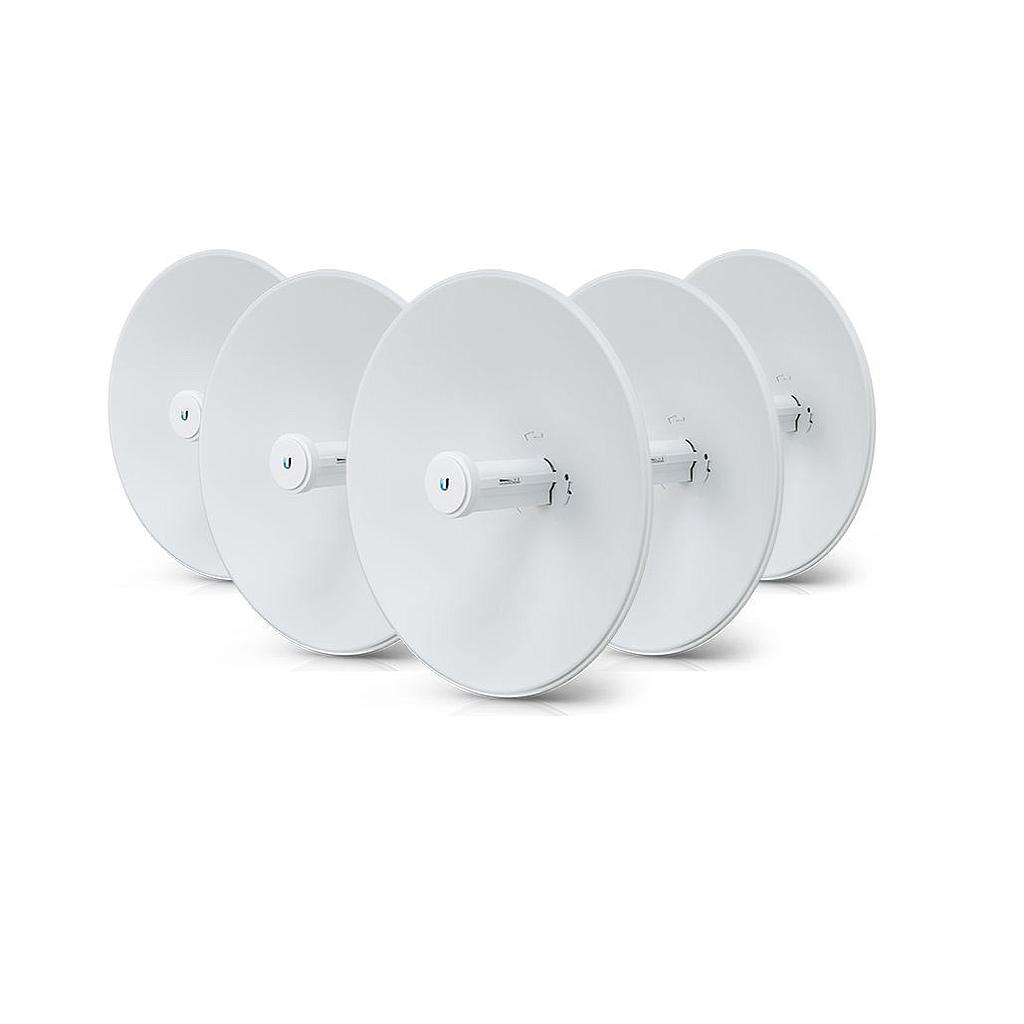

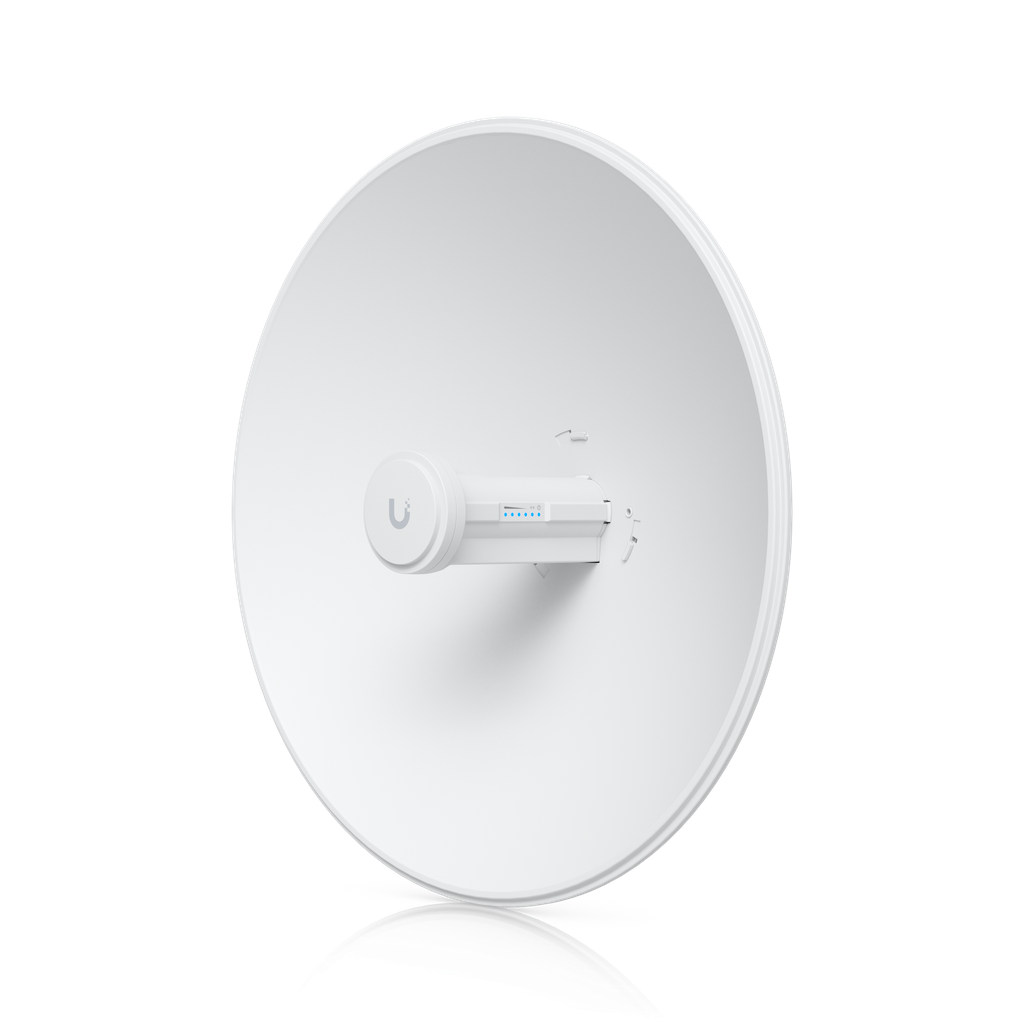

Ubiquiti PBE-5AC-Gen2-5 5 GHz PowerBeam AC, Gen2, 420 mm 5-Pack

https://arcip.com.au/web/image/product.template/2767/image_1920?unique=8867584
The Ubiquiti PBE-5AC-Gen2-5 PowerBeam AC 5-Pack offers a cost-effective solution for large-scale deployments, providing five high-performance 5 GHz airMAX AC CPEs. Each unit delivers superior throughput and enhanced noise immunity for robust Point-to-Point and Point-to-MultiPoint wireless links.

973.50 973.5 AUD 973.50 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

Ubiquiti airMAX
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
PBE-5AC-Gen2-5
Barcode
817882020749
Tags
PBE-5AC-Gen2-5
Ubiquiti PBE-5AC-Gen2-5 5 GHz PowerBeam AC, Gen2, 420 mm 5-Pack

Features (Per Unit)

  • Cost-effective 5-Pack for Volume Deployments
  • Integrated 420mm Reflector Dish for Focused 5 GHz Performance (25 dBi Gain)
  • airMAX ac Gen2 Technology for High Throughput and Scalability
  • Improved Noise Immunity and RF Isolation with InnerFeed Technology
  • Dedicated Management Wi-Fi Radio for Easy Setup via UMobile App
  • Robust Mechanical Design for Enhanced Wind Loading and Durability
  • Supports Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) Client Modes
  • Passive 24V PoE Support (Gigabit PoE Adapter Included per unit)
  • Enhanced ESD Protection for Reliable Outdoor Operation

Specifications (Per Unit)

Wireless
Frequency Band5 GHz
Wireless Standard802.11ac (airMAX ac)
Gain25 dBi
Max. Throughput450+ Mbps
Max. TX Power25 dBm
MIMO2x2
Beamwidth8° (Single Pol.)
System
ProcessorMIPS 74Kc
Memory64 MB DDR2
Networking Interface1x 10/100/1000 Ethernet Port
Power
Power Supply24V, 0.5A Gigabit PoE Adapter (Included per unit)
Power MethodPassive PoE (Pairs 4, 5+; 7, 8 Return)
Max. Power Consumption8.5W
ESD/EMP ProtectionAir: ±24 kV, Contact: ±24 kV
Physical/Environmental
Enclosure MaterialOutdoor UV Stabilized Plastic, Powder Coated Steel (Reflector)
MountingPole-Mount (Included per unit)
Wind Loading380 N @ 200 km/h (85.4 lbf @ 125 mph)
Wind Survivability200 km/h (125 mph)
Operating Temperature-40 to 70° C (-40 to 158° F)
Operating Humidity5 to 95% Non-Condensing
Dimensions⌀420 x 420 x 275 mm (⌀16.54 x 16.54 x 10.83")
Weight2.22 kg (4.9 lb)

Professional Overview

The Ubiquiti PBE-5AC-Gen2-5 5 GHz PowerBeam AC, Gen2, 420 mm 5-Pack offers a comprehensive and cost-effective solution for large-scale wireless network deployments. This multi-pack provides five integrated radio and antenna units, meticulously engineered for high-performance Point-to-Point (PtP) and demanding Point-to-MultiPoint (PtMP) client applications. Leveraging Ubiquiti's advanced airMAX ac Gen2 technology, each unit combines a powerful 5 GHz radio with a precision-engineered 420mm reflector dish, resulting in a formidable 25 dBi directional gain. This highly focused beamwidth not only extends wireless link distances significantly but also dramatically enhances noise immunity, making it an indispensable tool for Wireless Internet Service Providers (WISPs) and network integrators operating in congested 5 GHz frequency environments.

At its core, each PowerBeam AC Gen2 unit utilizes Ubiquiti's proprietary InnerFeed™ technology, which seamlessly integrates the radio into the antenna's feedhorn. This design eliminates the need for RF cables, thereby minimizing cable losses and significantly improving overall system performance and spectral efficiency. Coupled with the airMAX ac protocol, each PBE-5AC-Gen2 delivers impressive real-world TCP/IP throughput exceeding 450 Mbps, ensuring ample bandwidth for demanding applications such as high-speed internet access, high-resolution video surveillance backhauls, and other data-intensive services. Its advanced airOS ac software suite offers features like airView for spectrum analysis and airMagic for intelligent channel optimization, providing robust tools for network management and interference mitigation across all five deployed units.

Designed for professional outdoor deployment, each PBE-5AC-Gen2 unit features a robust mechanical design with an enhanced pole-mount system, ensuring exceptional resilience against high wind loading and harsh weather conditions. Their durable, UV-stabilized plastic and powder-coated steel construction protect internal components from extreme temperatures, moisture, and prolonged environmental exposure, guaranteeing long-term reliability and consistent performance. Installation and alignment are streamlined by a dedicated management Wi-Fi radio on each unit, allowing technicians to quickly configure and fine-tune devices using the convenient UMobile app on a smartphone, drastically reducing setup time and complexity in the field for multiple installations.

For network professionals seeking a reliable, high-performance, and cost-effective solution for rapidly expanding their wireless infrastructure in the 5 GHz band, the Ubiquiti PBE-5AC-Gen2-5 PowerBeam AC 5-Pack stands out. It provides an optimal balance of reach, throughput, and durability, enabling efficient deployment of multiple links. This multi-pack is a strategic investment for building scalable WISP networks, establishing critical long-distance links for various sites, or extending reliable wireless coverage in challenging industrial or commercial settings, ensuring a robust and future-proof communication backbone.
