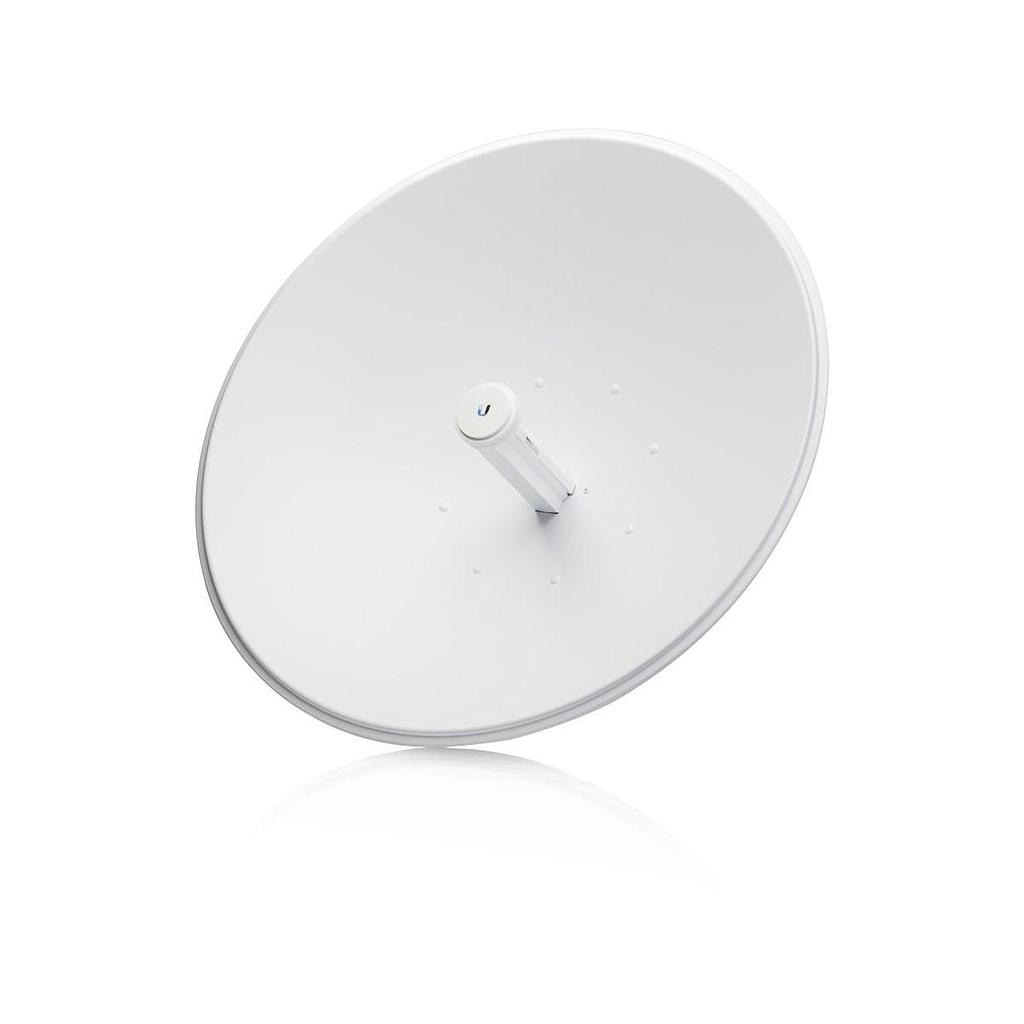

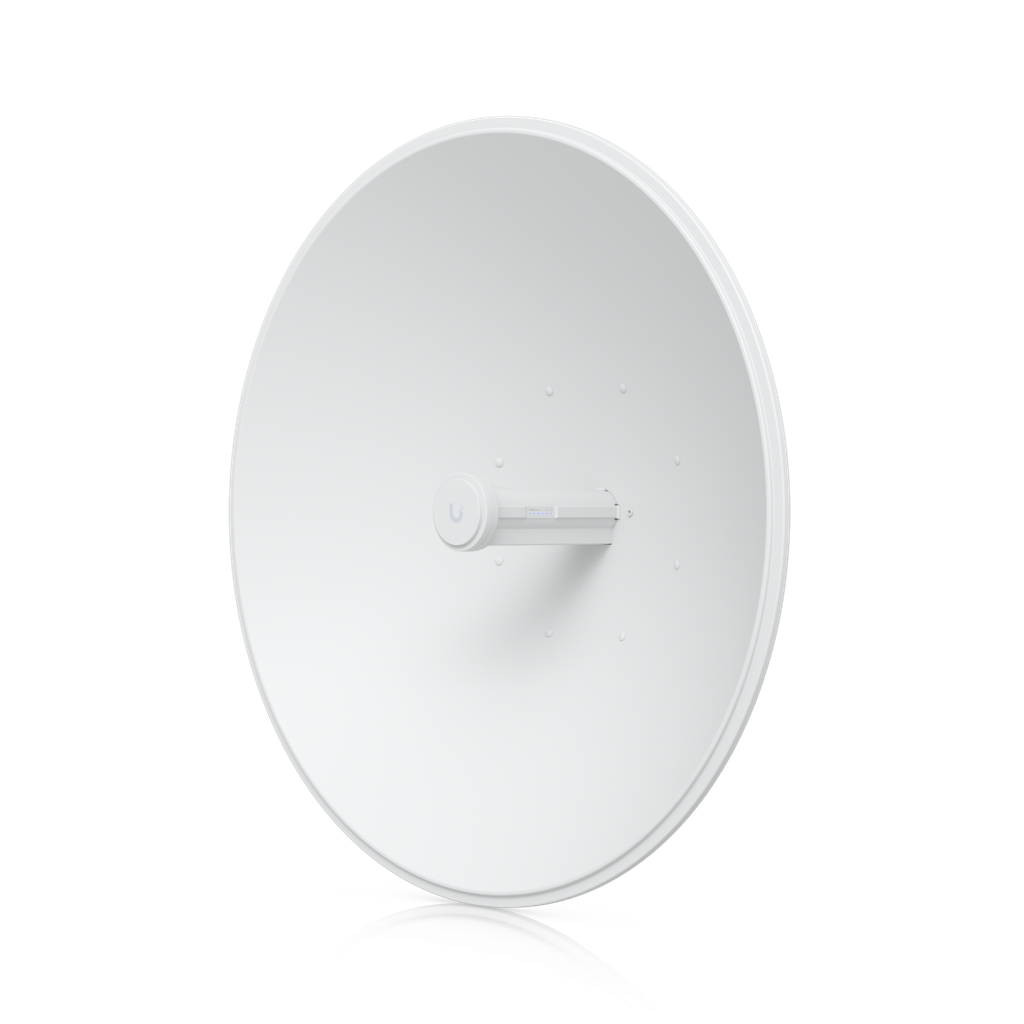

Ubiquiti PBE-5AC-620 5GHz PowerBeam AC, 620mm

Price:

$ 393.25


Hikvision iDS-7216HUHI-M2/XT AcuSense 16-Channel Turbo HD DVR, H.265 Pro+, Facial Recognition, 2 HDD Bays
Hikvision iDS-7216HUHI-M2/XT AcuSense 16-Channel Turbo HD DVR, H.265 Pro+, Facial Recognition, 2 HDD Bays
$ 1,105.79
$ 1,105.79
Cambium Networks MXTX2028GFPA10 Intelligent Ethernet PoE Switch, Cambium Sync,  16 x 1gbps, 8 x SFP, and 4 SFP+, Removeable Power Supply  (not included)
Cambium Networks MXTX2028GFPA10 Intelligent Ethernet PoE Switch, Cambium Sync,  16 x 1gbps, 8 x SFP, and 4 SFP+, Removeable Power Supply  (not included)
$ 3,991.77
$ 3,991.77

Ubiquiti PBE-5AC-620 5GHz PowerBeam AC, 620mm

https://arcip.com.au/web/image/product.template/3797/image_1920?unique=33b3369

The Ubiquiti PBE-5AC-620 (airMAX PowerBeam 5AC 620 mm Bridge) is a 5 GHz WiFi bridge with a 29 dBi antenna and 450+ Mbps real TCP/IP throughput. It supports 25+ km link range with a dedicated spectral analysis radio and a dedicated WiFi management radio, plus improved mounting via the included pole mount. It runs on 24V passive PoE with the gigabit PoE adapter included. Ubiquiti advises buying it in pairs to form links; the optional ISO-Beam-620 accessory is sold separately. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 393.25 393.25 AUD $ 393.25 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

UISP Ubiquiti
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
PBE-5AC-620
Barcode
810354025259
Tags

Ubiquiti PBE-5AC-620 at a glance

The Ubiquiti PBE-5AC-620 (airMAX PowerBeam 5AC 620 mm Bridge) is a 5 GHz WiFi bridge with a 450+ Mbps Real TCP/IP throughput rate and a 25+ km link range. It has a 29 dBi antenna and a (1) GbE RJ45 port, and is powered by the included 24V, 0.5A gigabit PoE adapter. It should be purchased in pairs to form links.

ARC IP Networks is an authorised Ubiquiti reseller in Australia. We supply the genuine airMAX PowerBeam 5AC 620 mm Bridge from Australian stock with the full manufacturer's warranty.

Frequency5 GHz (5150 - 5875 MHz)
Link range25+ km
Throughput450+ Mbps
Antenna gain29 dBi
Interface(1) GbE RJ45 port
PowerPassive PoE, 24V 0.5A adapter included
Weight6.4 kg
Operating temp-40 to 70° C

Best for

  • Long-range 5 GHz point-to-point links
  • Outdoor bridge deployments in harsh conditions
  • Link pairs needing spectral analysis and a dedicated management radio

Consider instead

Key features

5 GHz, 25+ km link range

450+ Mbps throughput

Improved mounting

Dedicated spectral analysis radio

Dedicated WiFi management radio

Ubiquiti PBE-5AC-620 specifications

Mechanical

Dimensions620 x 620 x 386 mm / (24.4 x 24.4 x 15.2")
Weight6.4 kg (14.1 lb)
Enclosure MaterialsOutdoor UV-stabilized polycarbonate
MountingPole Mount (Included)
Wind LoadingWithout radome: / 1510 N at 200 km/h (340 lbf at 125 mph) / With radome: / 1830 N at 200 km/h (411 lbf at 125 mph)
Wind Survivability200 km/h (125 mph)

Hardware

Networking Interface(1) GbE RJ45 port
Power MethodPassive PoE 2-pair (4, 5+; 7, 8 return)
Power Supply24V, 0.5A gigabit PoE adapter (Included)
Supported Voltage Range20-27V DC
Max. Power Consumption8.5W
ESD ProtectionAir/contact: ± 24 kV
Ambient Operating Temperature-40 to 70° C (-40 to 158° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsFCC, IC, CE, RoHS

Qualifications

Salt Fog TestIEC 68-2-11 (ASTM B117) / Equivalent: MIL-STD-810 G method 509.5
Temperature shock testIEC 68-2-14
UV testIEC 68-2-5 at 40° C (104° F) / Equivalent: ETS 300 019-1-4
Vibration testIEC 68-2-6
Wind-Driven Rain TestETS 300 019-1-4 / Equivalent: MIL-STD-810 G method 506.5

Software

Operating ModesAccess Point / Station
QoSWMM packet classification with user-level priority: High, Medium, Low

System

Channel BandwidthPtP Mode: 10/20/30/40/50/60/80 MHz / PtMP Mode: 10/20/30/40 MHz
Antenna Gain29 dBi
Max. VSWR1.6:1
PolarizationDual-Linear

Radio Frequency

Worldwide5150 - 5875 MHz
US/CAU-NII-1: 5150 – 5250 MHz / U-NII-2A: 5250 – 5350 MHz / U-NII-2C: 5470 – 5725 MHz / U-NII-3: 5725 – 5850 MHz

Specifications from Ubiquiti's official product data for the PBE-5AC-620, checked October 2026.

The airMAX PowerBeam 5AC 620 mm Bridge in depth

Long-range 5 GHz bridging

The PBE-5AC-620 is a 5 GHz WiFi bridge with a 450+ Mbps Real TCP/IP throughput rate and a 25+ km link range. Its 29 dBi dual-linear polarised antenna covers 5150 - 5875 MHz worldwide. In PtP mode, channel bandwidths of 10/20/30/40/50/60/80 MHz are supported, and PtMP mode supports 10/20/30/40 MHz. Because the product is designed to form links, it should be purchased in pairs.

Radios and management

The bridge includes a dedicated spectral analysis radio and a dedicated WiFi management radio. It operates in Access Point or Station mode and uses WMM packet classification with user-level priority of High, Medium or Low for QoS. The record also lists improved mounting, with a pole mount included.

Built for the outdoors

The enclosure is outdoor UV-stabilised polycarbonate. The unit measures 620 x 620 x 386 mm and weighs 6.4 kg. Wind survivability is 200 km/h, and the ambient operating temperature range is -40 to 70° C. Qualification tests include salt fog, temperature shock, UV, vibration and wind-driven rain. ESD protection is air/contact ± 24 kV.

Power and connectivity

The PBE-5AC-620 has a (1) GbE RJ45 port and is powered by passive PoE 2-pair (4, 5+; 7, 8 return). A 24V, 0.5A gigabit PoE adapter is included. The supported voltage range is 20-27V DC and maximum power consumption is 8.5W. An optional ISO-Beam-620 accessory is sold separately.

Frequently asked questions

Straight answers about the airMAX PowerBeam 5AC 620 mm Bridge from the ARC IP Networks team. Last reviewed October 2026.

The Ubiquiti PBE-5AC-620 is the airMAX PowerBeam 5AC 620 mm Bridge, a 5 GHz WiFi bridge with a 450+ Mbps Real TCP/IP throughput rate and a 25+ km link range.

It uses passive PoE 2-pair (4, 5+; 7, 8 return). A 24V, 0.5A gigabit PoE adapter is included, and the supported voltage range is 20-27V DC.

Yes, a pole mount is included. An optional ISO-Beam-620 accessory is sold separately.

The ambient operating temperature is -40 to 70° C and humidity is 5 to 95% noncondensing. Wind survivability is 200 km/h, and the enclosure is outdoor UV-stabilised polycarbonate.

ARC IP Networks is an authorised Ubiquiti reseller and supplies the PBE-5AC-620 from Australian stock with the full manufacturer's warranty.

Related Ubiquiti products

Ubiquiti LBE-5AC-Gen2

5GHz LiteBeam AC Gen2 23dBi

Ubiquiti NS-5AC

5 GHz NanoStation AC

Ubiquiti R5AC-Lite

Rocket, AC, Lite
