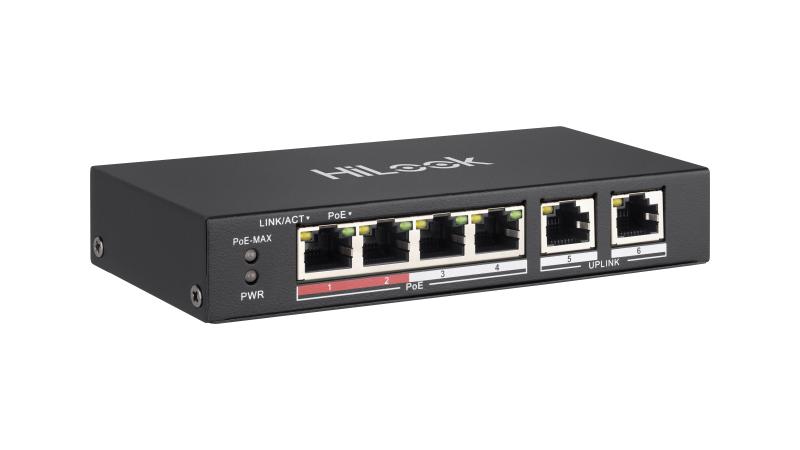

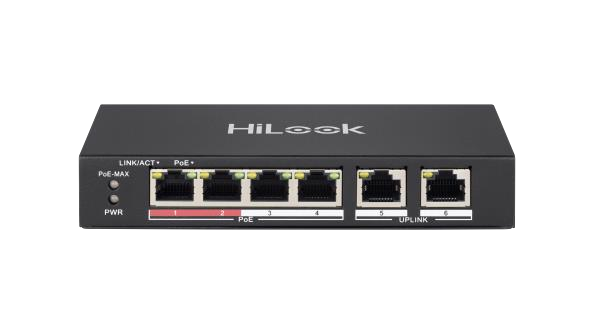

HiLook by Hikvision NS-0106P-35 4-Port Fast Ethernet Unmanaged PoE Switch, 2 Uplinks, 35 W

https://arcip.com.au/web/image/product.template/11264/image_1920?unique=d825bc3
  • 4 x 10/100 Mbps PoE ports + 2 x 10/100 Mbps RJ45 uplinks
  • 35 W PoE budget, up to 30 W per port (802.3af/at)
  • Extend DIP switch: up to 250 m on ports 1-4
  • 6 kV surge protection, high-priority ports 1-2
  • Unmanaged, fan-free metal housing, 48 VDC

$ 69.67 69.67 AUD $ 69.67 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • Network Layer
  • Form Factor
  • Port Speed
  • Ports
  • Uplink
  • PoE Specification

This combination does not exist.

In stock online
Hikvision HiLook PoE Switch Network Switch
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
NS-0106P-35
Tags
NS-0106P-35
HiLook by Hikvision NS-0106P-35 – 4-Port Fast Ethernet Unmanaged PoE Switch with 2 RJ45 Uplinks, 35 W PoE Budget, 250 m Long-Range Mode
At a glance

The HiLook NS-0106P-35 is a compact layer 2 unmanaged PoE switch with four 10/100 Mbps PoE ports and two 10/100 Mbps RJ45 uplink ports. The PoE ports share a 35 W budget (up to 30 W on any one port, IEEE 802.3af/at), a DIP switch enables an Extend mode for runs up to 250 m, and the PoE ports have 6 kV surge protection. Two uplinks let you connect both an NVR and a router, or daisy-chain another switch. Plug-and-play, 48 VDC powered. Hikvision Australia now lists this model as discontinued.

Device type
Unmanaged PoE switch
Ports
4 × 100 Mbps PoE + 2 × 100 Mbps uplink
PoE budget
35 W total
PoE standard
IEEE 802.3af / 802.3at
Max per port
30 W
Long-range mode
Up to 250 m (ports 1–4)
Surge protection
6 kV on PoE ports
Housing
Metal, fan-free

Key features

  • 4 × 10/100 Mbps PoE ports + 2 × 10/100 Mbps RJ45 uplinks – power four IP cameras and connect the switch to both an NVR and a router, or cascade to another switch.
  • 35 W shared PoE budget with up to 30 W on a single port for one PoE+ (802.3at) device alongside 802.3af cameras.
  • IEEE 802.3af / 802.3at PoE – powers standards-compliant PoE cameras, access points and IP phones from any brand.
  • DIP-switch Extend mode up to 250 m on ports 1–4 – more than double the standard 100 m Ethernet distance.
  • High-priority ports 1 and 2 – for the cameras that matter most.
  • 6 kV surge protection on the PoE ports, plus a rear grounding terminal for outdoor cable runs.
  • 8-core power supply – Ethernet pairs 1/2/3/6 and 4/5/7/8 supply power simultaneously.
  • Store-and-forward, wire-speed forwarding – 1.6 Gbps switching capacity, 0.8928 Mpps forwarding rate, 768 Kbits cache and a 4K MAC address table.
  • PoE-MAX indicator on the front panel warns when the PoE budget is nearly or fully used.
  • Solid metal shell, fan-free – silent operation for desks, shelves and cabinets.

Specifications

Network
Port number4 × 10/100 Mbps PoE ports, 2 × 10/100 Mbps RJ45 ports
Port typeRJ45, full duplex, MDI/MDI-X adaptive
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding modeStore-and-forward switching
High-priority portsPorts 1 and 2
Long-distance portsPorts 1 to 4 (up to 250 m, Extend DIP switch)
MAC address table4K
Switching capacity1.6 Gbps
Packet forwarding rate0.8928 Mpps
Internal cache768 Kbits
PoE
PoE standardPorts 1 to 4: IEEE 802.3af, IEEE 802.3at
PoE portsPorts 1 to 4
Max. power per port30 W
PoE power budget35 W
PoE power pinsPairs 1/2/3/6 and 4/5/7/8 supply power simultaneously
Surge protection6 kV on PoE ports
General
HousingMetal, fan-free design
Power input48 VDC, 0.8 A
Power consumption< 5 W idle; 38 W max.
Operating temperature−10 °C to 40 °C
Storage temperature−40 °C to 85 °C
Operating / storage humidity5% to 95% (non-condensing)
Dimensions145 × 68.45 × 25.6 mm
Net weight0.265 kg
ManagementUnmanaged (plug and play)
Approvals
EMCFCC Part 15 Subpart B; CE-EMC; RCM (AS/NZS CISPR 32); IC (ICES-003)
SafetyUL 60950-1; CB; CE-LVD
ChemistryCE-RoHS; WEEE; REACH

Specifications are from Hikvision’s official Australian NS-0106P-35 product page and datasheet (attached). Hikvision Australia marks this model as discontinued. This is an unmanaged switch with Fast Ethernet (100 Mbps) ports only.

Best for

  • Four-camera IP CCTV systems that need both an NVR link and a router or internet link.
  • Cascading a small camera switch off an existing network using the second uplink.
  • Reaching a far-end camera up to 250 m away in Extend mode.
  • Powering cameras, a PoE access point or IP phones from one compact unit.
  • Silent desk, shelf or ceiling-space installs.

Who it’s for

Security installers

A low-cost 4-camera PoE switch with two uplinks for tidy NVR and router connections.

Small businesses

Power cameras in a shop, cafe or office without extra power points.

Homeowners

Add IP cameras to a home network or an existing NVR system.

Farms & rural sites

Run cameras out to sheds or gates up to 250 m away.

Electricians

No configuration – install and leave.

Property managers

Cost-effective coverage of entries and car parks.

HiLook PoE Switch FAQ – NS-0106P-35

The two 10/100 Mbps RJ45 uplinks (ports 5 and 6) let you connect the switch to an NVR and a router at the same time, or cascade to another switch, while ports 1–4 power cameras.

It has four PoE ports sharing a 35 W budget, up to 30 W on any one port. Keep the total maximum draw of your devices under 35 W; the PoE-MAX indicator lights when the limit is near.

No. All six ports are 10/100 Mbps Fast Ethernet, which is ample for typical camera streams. Choose a gigabit switch for PCs, NAS units or heavy traffic.

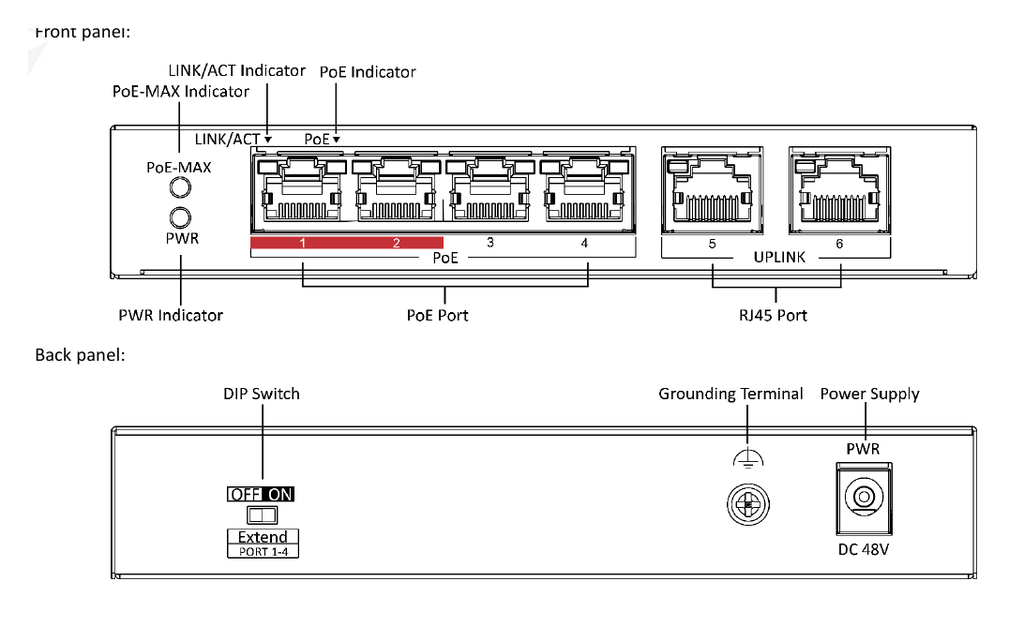

Set the Extend DIP switch on the rear panel to ON. Ports 1–4 then support data and PoE up to 250 m. Use quality solid-copper Cat5e or Cat6 cable.

Yes. The PoE ports follow IEEE 802.3af and 802.3at, so standards-compliant devices from any brand are supported.

It runs from 48 VDC, 0.8 A, using under 5 W at idle and up to 38 W at full load.

Yes. Use one of the two uplink ports on the first switch to connect to an uplink port on the second. This is a simple way to add cameras at a second location, as long as the total traffic stays within the Fast Ethernet (100 Mbps) uplink.

Indoors in a dry, ventilated spot such as a comms cupboard, shelf or ceiling space. The operating range is −10 °C to 40 °C, so avoid hot roof spaces in summer. Connect the rear grounding terminal where cables run outdoors to make the most of the surge protection.

Hikvision Australia lists it as discontinued. It remains a fully specified HiLook product; the specifications here are from Hikvision’s official page and datasheet.

Professional overview

The HiLook by Hikvision NS-0106P-35 is a layer 2 unmanaged PoE switch for small IP surveillance systems. It combines four 10/100 Mbps PoE ports with two 10/100 Mbps RJ45 uplink ports in a compact, fan-free metal shell, so four cameras can be powered and networked while the switch connects to both a recorder and a router.

PoE follows IEEE 802.3af and 802.3at, with up to 30 W per port and a 35 W total budget. Store-and-forward switching with 1.6 Gbps capacity, 0.8928 Mpps forwarding, 768 Kbits of cache and a 4K MAC table keeps every port at wire speed. Ports 1 and 2 are high-priority ports, and power is fed over both cable pairs for broad device compatibility.

A rear DIP switch turns on Extend mode, letting ports 1 to 4 carry data and power up to 250 m. The PoE ports have 6 kV surge protection and the rear panel has a grounding terminal. Front-panel PWR, PoE-MAX, link and PoE indicators make it easy to check status at a glance.

The switch runs from 48 VDC, 0.8 A, uses under 5 W at idle and measures 145 × 68.45 × 25.6 mm. Hikvision Australia lists it as discontinued. It comes with the full manufacturer’s warranty. Australian stock from ARC IP Networks.

Brand HiLook
Switching Capacity 1.6 Gbps
Network Layer Unmanaged
Form Factor Compact desktop
Port Speed Fast Ethernet
Ports 6 Ports
Uplink 2 x 10/100 RJ45
PoE Specification Up to PoE+ / 35W Budget
NS-0106P-35_Datasheet.pdf
