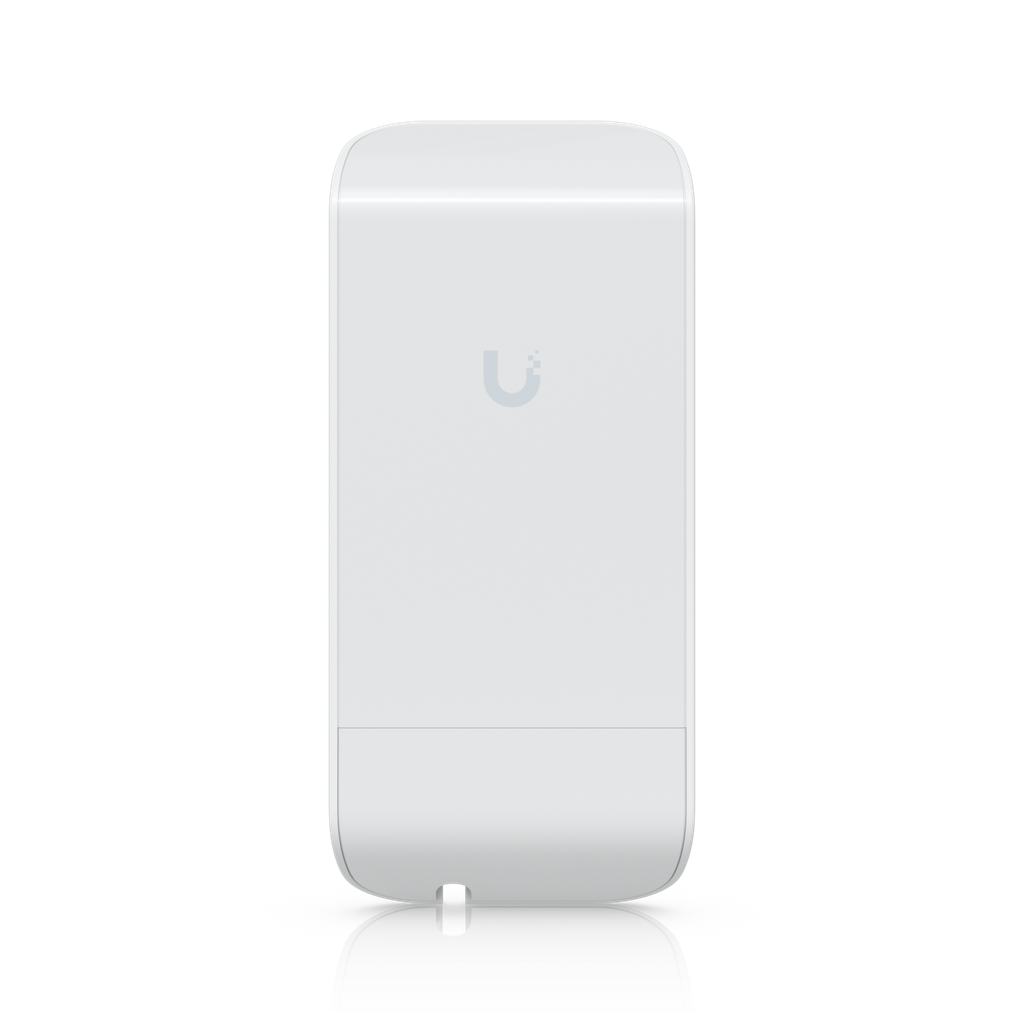

Ubiquiti LOCOM5 5GHz NanoStation Loco MIMO, AirMax AU

https://arcip.com.au/web/image/product.template/2756/image_1920?unique=ad721bf

The Ubiquiti LocoM5 (airMAX NanoStation M5 loco) is a low-cost, efficient 5 GHz broadband CPE with a 13 dBi dual-linear antenna and 45° beamwidth. It has one 10/100 MbE RJ45 port, runs on 24V passive PoE with the 24V, 0.5A PoE adapter included, draws 5.5W max and comes with a pole mount. The outdoor UV-stabilised polycarbonate enclosure weighs 180 g. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 107.91 107.91 AUD $ 117.70 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
UISP Ubiquiti
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
LocoM5
Barcode
817882023252
Tags

Ubiquiti LocoM5 at a glance

The Ubiquiti LocoM5 (airMAX NanoStation M5 loco) is a 5 GHz broadband CPE with an integrated 13 dBi dual-linear antenna. It has a 10/100 MbE RJ45 port, is powered by passive PoE (24V, 0.5A PoE adapter included) and draws a maximum of 5.5W. The enclosure is outdoor UV-stabilized polycarbonate.

ARC IP Networks is an authorised Ubiquiti reseller in Australia. We supply the genuine airMAX NanoStation M5 loco from Australian stock with the full manufacturer's warranty.

Frequency5 GHz band
Antenna gain13 dBi, dual-linear
Beamwidth45° H / 45° V / 45° elevation
Network port(1) 10/100 MbE RJ45
PowerPassive PoE, 24V 0.5A adapter included
Max. consumption5.5W
Operating temp.-30 to 75° C
Size / weight161 x 31 x 80 mm, 180 g

Best for

  • 5 GHz CPE deployments with airMAX antennas
  • Outdoor installations on a pole
  • Cost-effective, high-performance broadband links

Consider instead

  • Ubiquiti NSM5: the indoor/outdoor airMAX NanoStation M5 5 GHz CPE
  • Ubiquiti Loco5AC: an updated airMAX AC chipset with 450+ Mbps throughput and a 10+ km link range
  • Ubiquiti NS-5AC: a 15+ km link range, 450+ Mbps throughput and a secondary LAN with PoE out support

Key features

5 GHz frequency band

Cost-effective, high-performance

Plug-and-play integration with airMAX antennas

Ubiquiti LocoM5 specifications

Mechanical

Dimensions161 x 31 x 80 mm / (6.3 x 1.2 x 3.2")
Weight180 g (6.4 oz)
Enclosure MaterialsOutdoor UV-stabilized polycarbonate
MountingPole Mount (Included)

Hardware

Networking Interface(1) 10/100 MbE RJ45 port
Power MethodPassive PoE 2-pair (4, 5+; 7, 8 return)
Power Supply24V, 0.5A PoE adapter (Included)
Supported Voltage Range22–27V DC
Max. Power Consumption5.5W
Ambient Operating Temperature-30 to 75° C (-22 to 167° F)
Ambient Operating Humidity5 to 95% noncondensing
Shock and Vibration CertificationETSI300-019-1.4
CertificationsFCC, IC, CE, RoHS

System

Antenna Gain13 dBi
PolarizationDual-Linear
Antenna beamwidth45° (H-pol) / 45° (V-pol) / 45° (Elevation)
Cross-Pol Isolation20 dB Min.

Specifications from Ubiquiti's official product data for the LocoM5, checked October 2026.

The airMAX NanoStation M5 loco in depth

Compact 5 GHz airMAX CPE

The airMAX NanoStation M5 loco is a low-cost and efficient broadband CPE for the 5 GHz frequency band. It is described as cost-effective and high-performance, and it integrates plug-and-play with airMAX antennas. The unit measures 161 x 31 x 80 mm and weighs 180 g, and a pole mount is included.

Antenna and radio characteristics

The integrated antenna delivers 13 dBi of gain with dual-linear polarization. Beamwidth is 45° in the horizontal, vertical and elevation planes, with a minimum cross-pol isolation of 20 dB. These figures suit a focused 5 GHz link to an airMAX base station or access point.

Power and durability

The LocoM5 is powered over passive PoE 2-pair (pins 4, 5+; 7, 8 return) and ships with a 24V, 0.5A PoE adapter. It accepts 22–27V DC and draws up to 5.5W. The outdoor UV-stabilized polycarbonate enclosure is rated for -30 to 75° C and 5 to 95% noncondensing humidity, with ETSI300-019-1.4 shock and vibration certification.

Frequently asked questions

Straight answers about the airMAX NanoStation M5 loco from the ARC IP Networks team. Last reviewed October 2026.

The Ubiquiti LocoM5 is the airMAX NanoStation M5 loco, a low-cost and efficient broadband 5 GHz CPE. It has an integrated 13 dBi antenna and a 10/100 MbE RJ45 port.

It uses passive PoE 2-pair (4, 5+; 7, 8 return) and supports 22–27V DC. A 24V, 0.5A PoE adapter is included, and maximum power consumption is 5.5W.

A pole mount is included. The unit measures 161 x 31 x 80 mm and weighs 180 g.

Ambient operating temperature is -30 to 75° C and humidity is 5 to 95% noncondensing. The enclosure is outdoor UV-stabilized polycarbonate.

The record lists FCC, IC, CE and RoHS certifications, plus ETSI300-019-1.4 shock and vibration certification.

ARC IP Networks is an authorised Ubiquiti reseller and supplies the LocoM5 from Australian stock with the full manufacturer's warranty.

Buy the Ubiquiti LocoM5 in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying UniFi networking, WiFi, camera and access products to businesses, schools, MSPs and installers across Australia.

  • Genuine Ubiquiti: sourced through Ubiquiti's authorised Australian distribution.
  • Australian stock with the correct AU power supply where one is included.
  • Full manufacturer's warranty and local pre-sales and after-sales support.
  • Trade and project pricing available.

ARC IP Networks, authorised Ubiquiti reseller in Australia — Australian stock, manufacturer warranty, fast shipping, trade pricing.

Planning a 5 GHz airMAX deployment with the LocoM5?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right model for your site.
