MikroTik LAMP 5G R16 (LAMPGM&RG520F-EU) IP67 Outdoor 5G Router

Price:

581.90


MikroTik HS-85DLC05D 1G/2.5G Multimode SFP Module (550m, 850nm)
MikroTik HS-85DLC05D 1G/2.5G Multimode SFP Module (550m, 850nm)
29.15
29.15
MikroTik S+2733LC10D Pair of 10G BiDi SFP+ Modules (10km, 1270/1330nm)
MikroTik S+2733LC10D Pair of 10G BiDi SFP+ Modules (10km, 1270/1330nm)
219.45
219.45

MikroTik LAMP 5G R16 (LAMPGM&RG520F-EU) IP67 Outdoor 5G Router

https://arcip.com.au/web/image/product.template/9971/image_1920?unique=9d5d422
Rugged outdoor 5G router powered by the Quectel RG520F 5G R16 modem. Omnidirectional antennas auto-connect to the best available tower, with LTE Cat 20 (2 Gbps down / 200 Mbps up), built-in eSIM plus Micro SIM, GNSS (GPS/Galileo/BeiDou/QZSS), and a single Gigabit Ethernet port with PoE-in. IP67 EN 60945 maritime-rated enclosure with stainless-steel bracket, RouterOS v7, -40 to 70C operation.

581.90 581.9 AUD 581.90 incl. GST

Not Available For Sale


  • Form Factor
  • Ports
  • CPU
  • RAM
  • RouterOS License
  • IP Rating
  • LTE Category
  • SIM Slots

This combination does not exist.

Outdoor MikroTik RouterOS LTE Router 5G IP67 eSIM
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
LAMPGM&RG520F-EU
Tags
LAMPGM&RG520F-EU

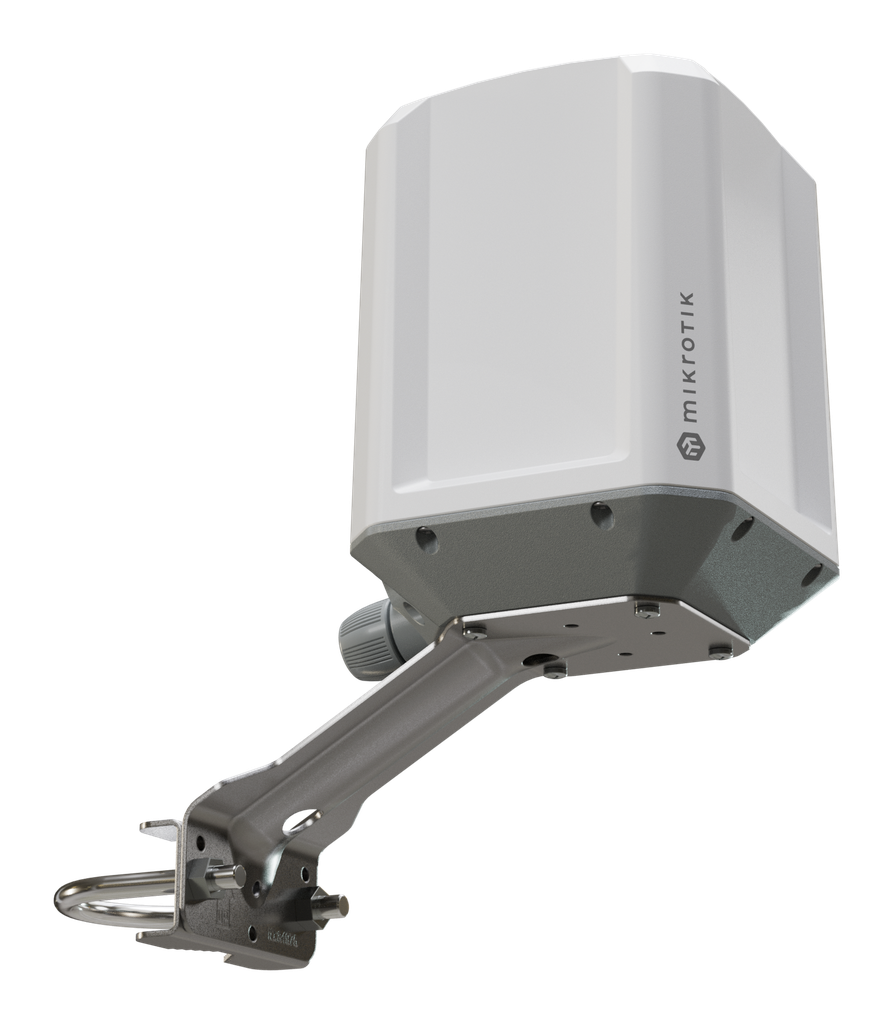

MikroTik LAMP 5G R16 — Rugged IP67 Outdoor 5G Router with Omnidirectional Antennas, Built-in eSIM, GNSS and PoE-in

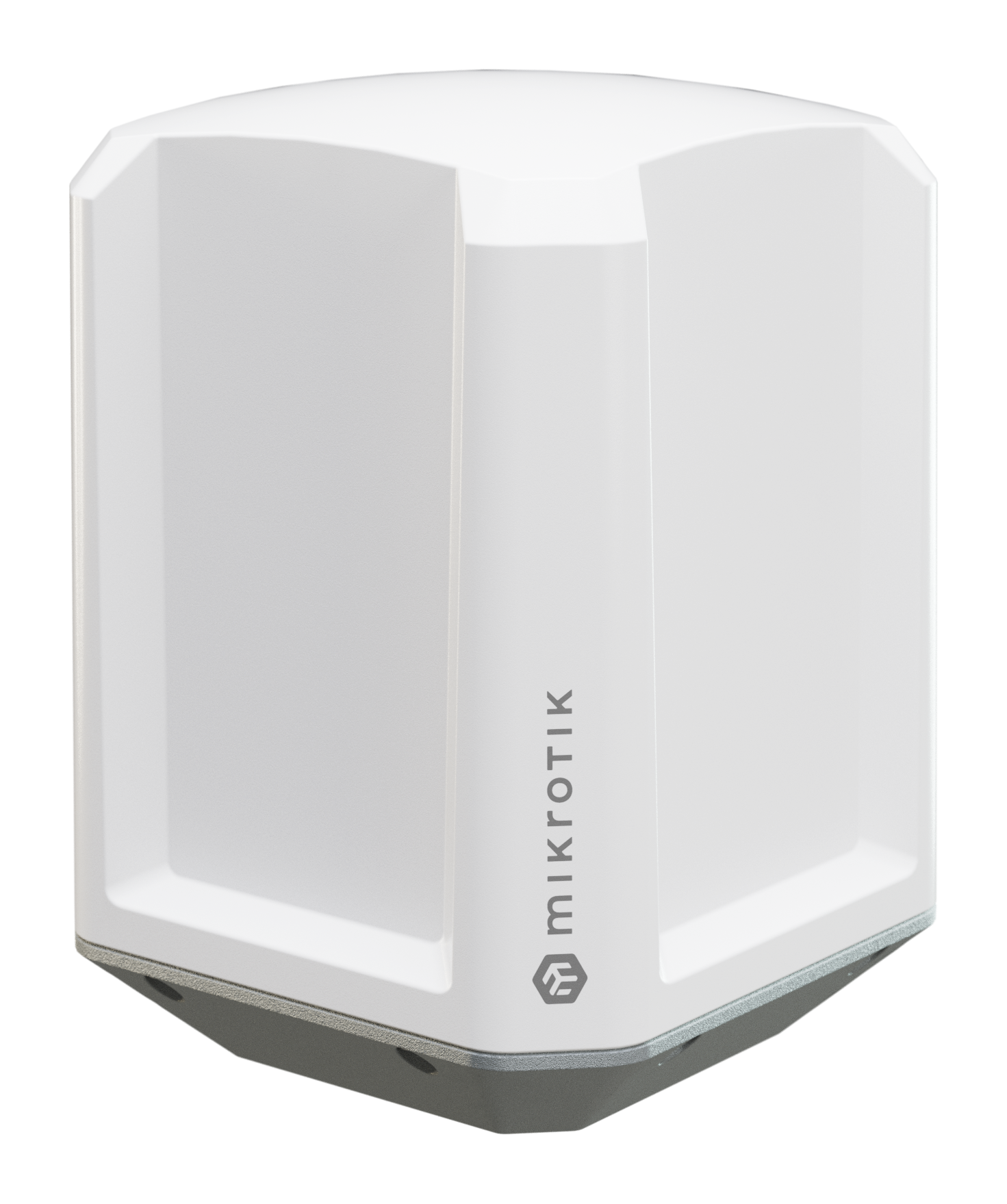

MikroTik LAMP 5G R16 outdoor 5G router

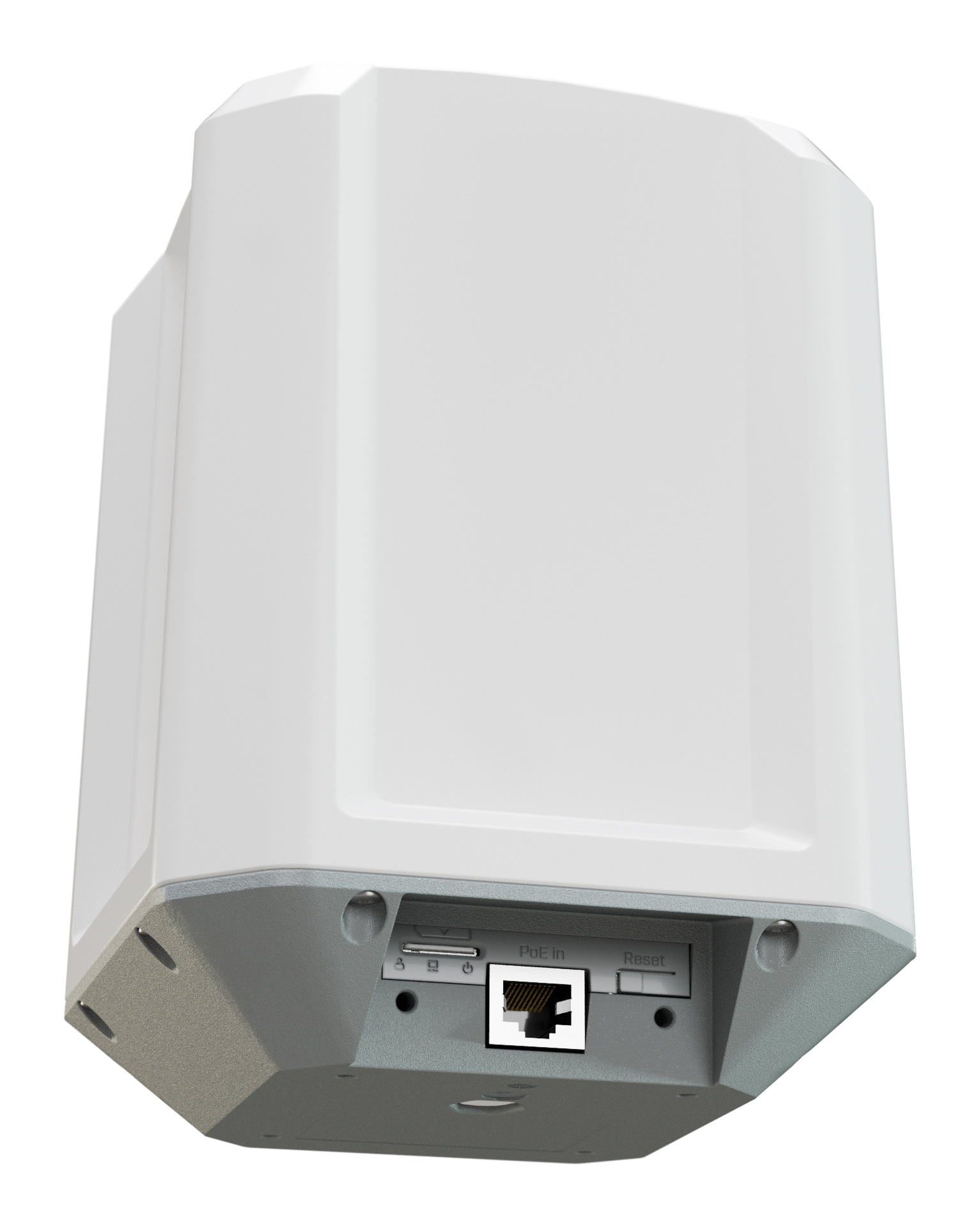

MikroTik LAMP 5G R16 IP67 maritime enclosure

Features

  • 5G R16 modem (Quectel RG520F): 5G NR Standalone and Non-Standalone plus LTE Category 20 — up to 2.0 Gbps downlink and 200 Mbps uplink.
  • Omnidirectional antenna system: connects to the best available tower in any direction — no antenna alignment and no realignment when network conditions change.
  • Built-in eSIM: activate data plans remotely, bring installations online in minutes, and switch between multiple third-party operator profiles without swapping physical SIMs.
  • MikroTik Connectivity ready: compatible with MikroTik's pre-activated data service for fast provisioning; a Micro SIM slot is also provided.
  • IP67 rugged enclosure: sealed against dust and water for demanding outdoor deployment.
  • EN 60945 maritime compliant: designed for salt-air, ports, marinas, coastal infrastructure and vessels, with a stainless-steel mounting bracket.
  • GNSS positioning: GPS, Galileo, BeiDou and QZSS support for fleet management, asset tracking and location-aware applications.
  • Gigabit Ethernet with Reverse PoE (PoE-in): single 10/100/1000 port powered over 802.3af/at, 12–56 V input.
  • RouterOS v7 (Level 3): full firewall, VPN, QoS and routing on an ARM 64-bit dual-core 800 MHz CPU with 512 MB RAM.
  • Wide operating range: tested -40°C to 70°C, passive cooling, MTBF approx. 200,000 hours at 25°C.

Specifications

General
Product codeLAMPGM&RG520F-EU
ArchitectureARM 64-bit
CPU88F3720, 2 cores / 2 threads @ 800 MHz
Operating SystemRouterOS v7 (License Level 3)
RAM512 MB
Storage32 MB FLASH
MTBFApprox. 200,000 hours at 25°C
Tested ambient temperature-40°C to 70°C
Cellular (5G / LTE)
Modem5G R16 (Quectel RG520F)
LTE CategoryCategory 20 (DL: 2.0 Gbps; UL: 200 Mbps)
5G modes5G NR SA and NSA (FDD + TDD)
MIMODL 4x4, UL 2x2
3G CategoryR8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
5G NSA/SA TDD bandsn38, n40, n41, n75, n76, n77, n78
5G NSA/SA FDD bandsn1, n3, n5, n7, n8, n20, n28
LTE FDD bands1, 3, 5, 7, 8, 20, 28, 32
LTE TDD bands38, 40, 41, 42, 43
Ethernet & Powering
Ethernet ports1 x 10/100/1000 (Gigabit) with Reverse PoE (PoE-in)
DC inputs1 (PoE-IN)
PoE in802.3af/at
PoE in input voltage12-56 V
Max power consumption10 W
Cooling typePassive
Peripherals & Other
SIM slots1 (Micro SIM)
eSIMYes (built-in, third-party eSIM supported)
M.2 slots1
GNSSGPS, Galileo, BeiDou, QZSS
Certification & Approvals
CertificationCE, EAC, RoHS
Maritime standardEN 60945 compliant
IP ratingIP67

Professional Overview

The MikroTik LAMP 5G R16 (LAMPGM&RG520F-EU) is a rugged outdoor 5G router built around the Quectel RG520F 5G Release 16 modem and an omnidirectional antenna system. Rather than locking onto a single base station, its omnidirectional design connects to the best available tower in any direction, maintaining reliable service in cities, ports, industrial sites and transport hubs without antenna alignment or realignment when conditions change. A single Gigabit Ethernet port with Reverse PoE-in delivers both data and power over one cable.

Cellular performance is led by LTE Category 20 with up to 2.0 Gbps downlink and 200 Mbps uplink, DL 4x4 and UL 2x2 MIMO, and full 5G NR support in both Standalone and Non-Standalone modes across FDD and TDD bands (n1/n3/n5/n7/n8/n20/n28 and n38/n40/n41/n75/n76/n77/n78). Routing runs on an ARM 64-bit dual-core 88F3720 CPU at 800 MHz with 512 MB of RAM and 32 MB of FLASH, under RouterOS v7 at License Level 3.

A built-in eSIM lets operators activate data plans remotely and bring new installations online in minutes, with full support for MikroTik Connectivity and third-party eSIM profiles so multiple operator plans can be stored and switched on a single device. A Micro SIM slot and an M.2 slot are also provided. Integrated GNSS supports GPS, Galileo, BeiDou and QZSS for positioning, fleet management and asset tracking (positioning and non-critical location-aware use only, not certified for safety-critical navigation).

The IP67-rated enclosure is EN 60945 maritime compliant and ships with a stainless-steel mounting bracket, making it suitable for marinas, coastal infrastructure and vessels exposed to rain, dust, heat, cold and salt air. It is tested from -40°C to 70°C, is passively cooled, draws a maximum of 10 W, and carries an MTBF of approximately 200,000 hours at 25°C. The device ships with a 24 V 0.5 A power adapter, LAMP mount and Gigabit PoE injector. Australian stock from ARC IP Networks.

Form Factor Outdoor
Ports 1 x Gigabit Ethernet (PoE-in)
CPU ARM Dual-Core 800 MHz
RAM 512 MB
RouterOS License Level 3
IP Rating IP67
LTE Category CAT20 (5G R16)
SIM Slots 1 Micro SIM + built-in eSIM
