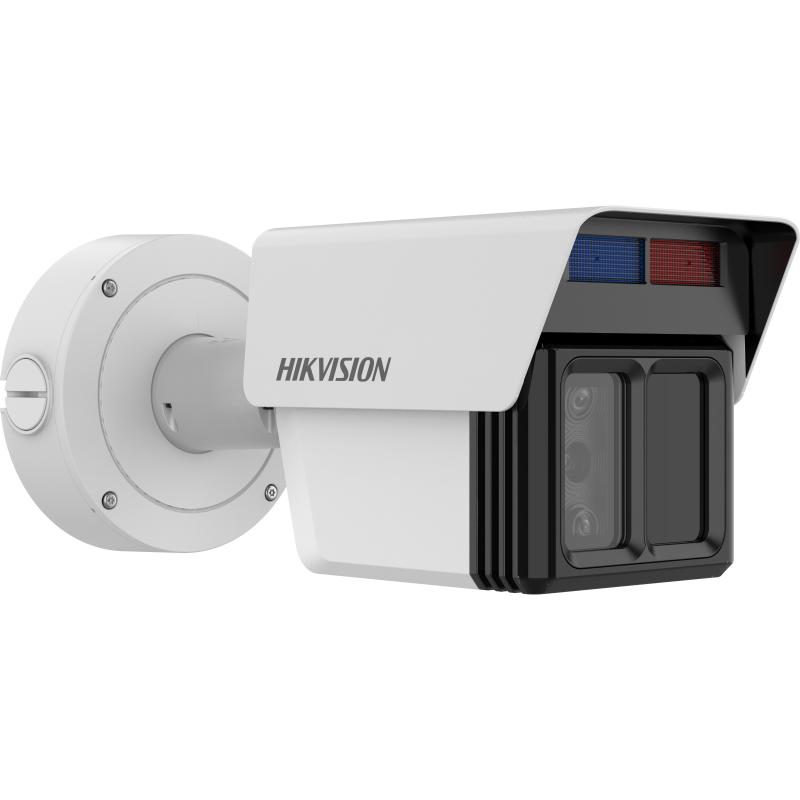

Hikvision iDS-2CD7T46G2/VX3-IHSY DeepinViewX Triple-Lens Bullet Network Camera, 4 MP + 2 × 2 MP, 4/12/25 mm, IR 120 m, Guanlan AI

https://arcip.com.au/web/image/product.template/11150/image_1920?unique=d95db27
  • Three fixed lenses — 4, 12 and 25 mm — for near, mid and far coverage
  • 4 MP + 2 × 2 MP channels from one housing
  • Guanlan AI perimeter protection, person & vehicle detection up to 120 m*
  • DarkFighter 2.0, IR up to 120 m, red/blue LED + audible warning
  • PoE+ or 12 VDC, IP67/IK10, NEMA 4X, heater, TPM 2.0

$ 1,325.14 1325.14 AUD $ 1,325.14 incl. GST

Not Available For Sale


  • Brand
  • Network Connectivity
  • Night Vision
  • Resolution
  • Camera Type
  • Lens
  • Smart Features
  • Ingress Protection
  • Power
  • IR Range
  • Audio / Alarm
  • Deep Learning Features

This combination does not exist.

In stock online
Hikvision IP Camera Bullet DeepinView Perimeter Protection DarkFighter 4MP Multi-Sensor
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
IDS-2CD7T46G2-VX3-IHSY-4-12-25
Tags

Key Features

Three Lenses: 4 / 12 / 25 mm
4+2+2
4 MP + 2 × 2 MP
Guanlan AI Perimeter Protection
Person & Vehicle to 120 m
DarkFighter 2.0 · IR 120 m
Red/Blue LED & Audible Warning
TPM 2.0
IP67 · IK10 · NEMA 4X
At a glance

The Hikvision iDS-2CD7T46G2/VX3-IHSY is a DeepinViewX triple fixed lens bullet built for perimeter protection. Three lenses — 4 mm, 12 mm and 25 mm — watch near, mid and far zones at once (a 4 MP channel plus two 2 MP channels), while Hikvision’s Guanlan large-scale AI model detects people and vehicles up to 120 m. Red/blue LEDs and an audible warning deter intruders. Part of the Hikvision DeepinView range.

Lenses
4 mm + 12 mm + 25 mm
Resolution
4 MP + 2 × 2 MP
AI
Guanlan perimeter protection
Detection range
Person & vehicle to 120 m*
IR range
Up to 120 m
Deterrence
Red/blue LED + audible warning
Protection
IP67 · IK10 · NEMA 4X
Power
PoE+ (802.3at) / 12 VDC

Why choose the iDS-2CD7T46G2/VX3-IHSY

Long fences and open perimeters are where single-lens cameras compromise: a wide lens sees the whole area but can’t resolve a person at 100 m, while a telephoto lens sees far but leaves the foreground blind. The iDS-2CD7T46G2/VX3-IHSY solves that with three fixed lenses in one housing — 4 mm (82.5°), 12 mm (25.4°) and 25 mm (13.0°) — covering near, mid and long range simultaneously. Hikvision rates identification at up to 33.1 m and detection at up to 331 m on the 25 mm channel.

Detection is driven by Hikvision’s dedicated Guanlan large-scale AI model for perimeter protection, which Hikvision says reduces false alarms by 90% compared with conventional AI cameras and detects people and vehicles up to 120 m (results based on Hikvision’s standard setup and test environment). DarkFighter 2.0 Sharpmotion and IR up to 120 m cover the night, red/blue alarm LEDs and an audible warning through the built-in speaker deter in real time, and motorised tilt (−10° to 10°) simplifies aiming. The -IHSY build adds a heater for −40 °C starts, RS-485, a 12 VDC power output and NEMA 4X corrosion resistance, with TPM 2.0 for cyber security.

Best for

  • Long fence lines: near, mid and far zones watched at once from one pole — no blind foreground.
  • Cutting false alarms on perimeters: Guanlan AI focuses alarms on people and vehicles, with Hikvision citing 90% fewer false alarms than conventional AI cameras.
  • Deterring before entry: red/blue alarm LEDs and an audible warning through the built-in speaker.
  • Harsh and cold sites: heater for −40 °C operation, IP67, IK10 and NEMA 4X (-Y) protection.
  • Reducing camera count: three fixed views from a single mount, cable and PoE+ port.

Who it’s for

Solar & utility sites

Long perimeter fences watched near-to-far with AI person/vehicle alarms.

Logistics & yards

Cover depots, laydown areas and gates where intruders approach from distance.

Industrial & mining

Rugged, heated, NEMA 4X build for exposed and cold sites.

Construction sites

Active red/blue light and audible deterrence for after-hours intrusion.

Critical infrastructure

TPM 2.0 cyber security and long-range perimeter detection.

Integrators & monitoring centres

Fewer nuisance alarms to verify; works with HikCentral and Hikvision NVRs.

iDS-2CD7T46G2/VX3-IHSY (4/12/25 mm)
DeepinViewX 4 MP Triple Fixed Lens Bullet Camera for Perimeter Protection — 4 MP + 2 × 2 MP, 4 / 12 / 25 mm, IR 120 m, Guanlan AI, IP67 / IK10 / NEMA 4X

Professional Overview

The Hikvision iDS-2CD7T46G2/VX3-IHSY is a DeepinViewX triple fixed lens bullet camera designed for perimeter protection. Three 1/2.7″ progressive-scan CMOS sensors sit behind 4 mm (F1.6), 12 mm (F1.6) and 25 mm (F2.8) lenses, delivering one 2688 × 1520 (4 MP) channel and two 1920 × 1080 (2 MP) channels at up to 25 fps (50 Hz) or 30 fps (60 Hz). Horizontal fields of view are 82.5°, 25.4° and 13.0°, giving staggered near, mid and long-range coverage from a single mounting point.

Hikvision publishes DORI distances for each lens: 4 mm — detect 77.6 m, identify 7.8 m; 12 mm — detect 171 m, identify 17.1 m; 25 mm — detect 331 m, identify 33.1 m. Low-light imaging uses DarkFighter 2.0 Sharpmotion, with 850 nm smart IR reaching up to 120 m and 0 lux operation with IR. Digital WDR, EIS, BLC, HLC, 3D DNR, distortion correction and defog handle difficult scenes.

Perimeter protection — line crossing, intrusion, region entrance and region exiting — runs on Hikvision’s dedicated Guanlan large-scale AI model, which Hikvision states reduces false alarms by 90% versus conventional AI cameras and detects people and vehicles up to 120 m (based on standard setup and test environment). Alarms can trigger the red/blue alarm LEDs and an audible warning through the built-in speaker. Further smart events include loitering, people gathering, fast moving, parking, unattended baggage, object removal, scene change, defocus and audio exception detection.

Interfaces include two built-in microphones, a built-in speaker, 2 audio inputs and 1 output (3.5 mm), 2 alarm inputs and 2 alarm outputs, RS-485 and a 12 VDC output (-Y), and microSD storage up to 1 TB. Power is PoE+ (IEEE 802.3at, Type 2, Class 4, max. 25.5 W) or 12 VDC. The all-metal body is rated IP67 and IK10, the -Y build adds NEMA 4X and a heater, and with the -H heater the camera operates from −40 °C to 65 °C. TPM 2.0 (FIPS 140-2 level 2) secures keys and credentials. Australian stock from ARC IP Networks.

Features

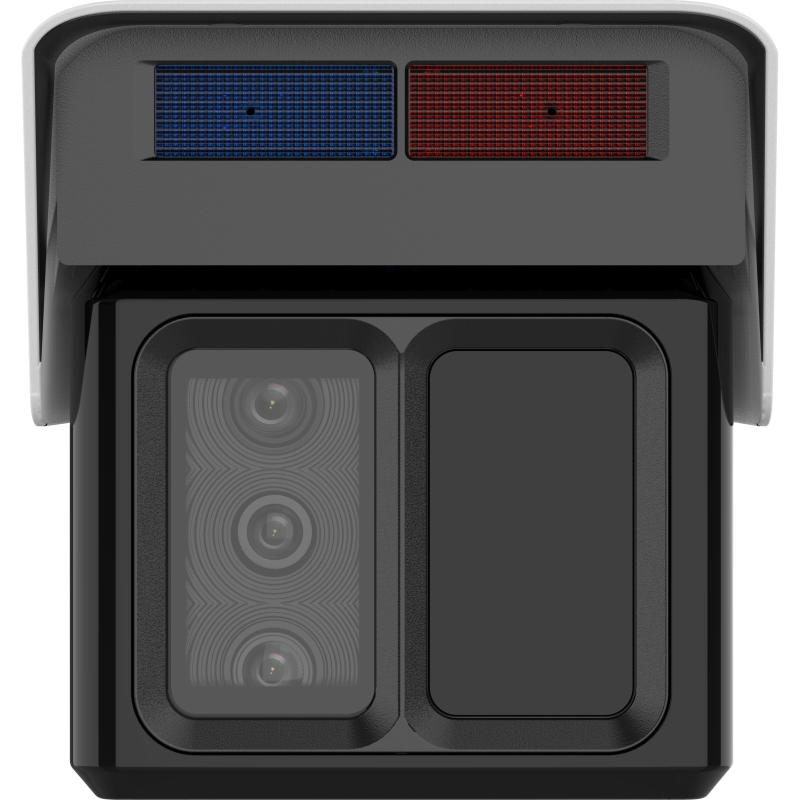

  • Triple fixed lens design: 4 mm, 12 mm and 25 mm in one housing
  • Channel resolutions: 4 MP (2688 × 1520) + 2 × 2 MP (1920 × 1080)
  • Dedicated Guanlan large-scale AI model for perimeter protection*
  • Person and vehicle detection up to 120 m*
  • DarkFighter 2.0 Sharpmotion low-light imaging
  • Smart IR up to 120 m (850 nm)
  • Red/blue alarm LEDs and audible warning (built-in speaker)
  • Motorised tilt adjustment from −10° to 10°
  • TPM 2.0 (FIPS 140-2 level 2) for cyber security
  • 2 built-in microphones; 2 audio in / 1 out; 2 alarm in / 2 out; RS-485 (-Y)
  • microSD up to 1 TB
  • PoE+ (802.3at) or 12 VDC
  • IP67, IK10; NEMA 4X and heater (-Y); −40 °C operation (-H)

Specifications

Camera
Image Sensor1/2.7″ Progressive Scan CMOS
Max. ResolutionChannel 1: 2688 × 1520; Channel 2: 1920 × 1080; Channel 3: 1920 × 1080
Min. IlluminationCh 1: colour 0.005 lux, B/W 0.002 lux @ (F1.2, AGC ON); Ch 2 & 3: colour 0.005 lux, B/W 0.0002 lux @ (F1.2, AGC ON); 0 lux with IR
Shutter Time1 s to 1/100,000 s
Tilt AdjustmentMotorised, −10° to 10°
Lens
Focal Length & FOV4 mm: H 82.5°, V 45.3°, D 96.1°
12 mm: H 25.4°, V 14.4°, D 29.1°
25 mm: H 13.0°, V 7.4°, D 14.9°
Aperture4 mm F1.6; 12 mm F1.6; 25 mm F2.8
Iris TypeFixed
DORI4 mm: D 77.6 m, O 30.8 m, R 15.5 m, I 7.8 m
12 mm: D 171 m, O 67.9 m, R 34.2 m, I 17.1 m
25 mm: D 331 m, O 131.4 m, R 66.2 m, I 33.1 m
Illuminator
TypeIR, 850 nm, smart supplement light
RangeUp to 120 m
Video
Main StreamCh 1: 25/30 fps up to 2688 × 1520; Ch 2 & 3: 25/30 fps up to 1920 × 1080
Video CompressionMain: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264/MJPEG; Third: H.265/H.264
Video Bit Rate32 Kbps to 8 Mbps
Region of Interest8 fixed regions per stream
WDRDigital WDR
Image EnhancementBLC, HLC, 3D DNR, distortion correction, defog
Image StabilisationEIS
SNR≥ 52 dB
Deep Learning
Perimeter ProtectionLine crossing, intrusion, region entrance, region exiting; human / vehicle target triggering; dedicated Guanlan large-scale AI model (Hikvision: 90% fewer false alarms vs conventional AI cameras*)
VCA RangeUp to 120 m*
Smart EventsScene change, audio exception, defocus, unattended baggage, object removal, fast moving, parking, people gathering, loitering
LinkageUpload to FTP/NAS/memory card, notify surveillance centre, email, alarm output, recording, capture, audible warning
Interface
Ethernet1 × RJ45 10/100 Mbps
On-board StoragemicroSD/SDHC/SDXC, up to 1 TB
Audio2 built-in microphones, 1 built-in speaker; 2 line in, 1 line out (3.5 mm)
Alarm2 inputs, 2 outputs (max. 24 VDC, 1 A)
RS-485 (-Y)1 (half duplex)
Power Output (-Y)12 VDC, max. 50 mA
Alarm ExpansionSupports DS-FM2466 alarm box on the LAN (+6 inputs / +6 outputs)
Network & Security
APIONVIF (Profile S, G, T, M), ISAPI, SDK, ISUP
ClientsiVMS-4200, Hik-Connect, HikCentral
SecurityTPM 2.0 (FIPS 140-2 level 2), TLS 1.2/1.3, AES128/256, HTTPS, 802.1X
General
Power12 VDC ± 20%, 2.1 A, max. 25.2 W; PoE IEEE 802.3at, Type 2, Class 4, max. 25.5 W
MaterialMetal front cover, body and bracket

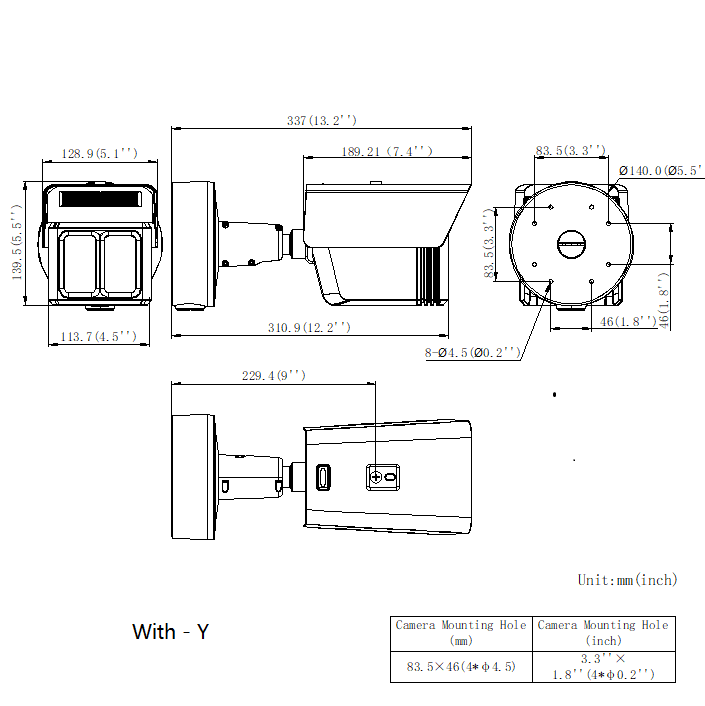

Dimensions128.9 × 139.5 × 337 mm
Weight (-Y)Approx. 2500 g
Heater (-Y)Yes
Operating ConditionsWith -H: −40 °C to 65 °C, humidity 95% or less (non-condensing)
ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
Anti-Corrosion (-Y)NEMA 4X (NEMA 250-2018) — moderate protection

Specifications from the official Hikvision iDS-2CD7T46G2/VX3-I(H)S(Y) datasheet for the IHSY (4/12/25 mm) model. *Hikvision: result based on standard setup and test environment. The datasheet is attached below for download.

See the Technology in Action

Watch how DarkFighter low-light technology — used in the iDS-2CD7T46G2/VX3-IHSY as DarkFighter 2.0 Sharpmotion — keeps images clear in very low light. Official Hikvision video.

Hikvision DarkFighter Technology

How it compares

Choosing a long-range DeepinView bullet? Here’s how the triple-lens iDS-2CD7T46G2/VX3-IHSY compares with two DeepinView siblings.

FeatureiDS-2CD8A46G2-XZHSYDual-sensoriDS-2CD7T46G2/VX3-IHSYThis cameraiDS-2CD7A46G2/P-IZHSYANPR · 2.8–12 mm
Sensors / channels231
Resolution2 × 4 MP4 MP + 2 × 2 MP4 MP
Lenses8–32 mm motorised + 4 mm4 mm + 12 mm + 25 mm fixed2.8–12 mm motorised
Supplement lightHybrid IR/white; ch 1 up to 100 m, ch 2 up to 40 mIR up to 120 mIR, 60 m
Main AI jobLPR, face & perimeterGuanlan AI perimeter protectionANPR & perimeter
ProtectionIP67, IK10; NEMA 4X (-Y)IP67, IK10; NEMA 4X (-Y)IP67, IK10; NEMA 4X (-Y)
PoE802.3at, max. 24 W802.3at, max. 25.5 W802.3at, max. 22.6 W
Best forGates: plates + overviewLong fences & open perimetersCar-park entries & ANPR

Figures from each model’s official Hikvision datasheet. Model names link to full specs and live pricing.

Complete your system

Every Hikvision IP camera records to a network video recorder (NVR). The iDS-2CD7T46G2/VX3-IHSY streams three video channels (one per lens), so allow three recorder channels per camera, and power it from a full PoE+ (IEEE 802.3at, Class 4) port — it draws up to 25.5 W — or 12 VDC. For larger perimeter systems, a Hikvision DeepinMind or enterprise NVR with HikCentral provides centralised alarm handling.

Browse all Hikvision NVRs →

Works with your system

Three views, one cable. H.265+ compression keeps three simultaneous channels manageable on bandwidth and storage, and the 1 TB microSD slot can back-fill recordings after a network interruption via ANR.

Hikvision NVRs

Records all three channels; DeepinMind recorders for large AI deployments.

HikCentral

Enterprise VMS for perimeter alarm handling across sites.

Hik-Connect app

Live view, playback and alarm notifications on iOS & Android.

ONVIF Profile S/G/T/M

Integrates with compatible third-party NVRs and VMS platforms.

Alarm I/O + DS-FM2466

2/2 alarm I/O on board, expandable by 6 inputs / 6 outputs with the DS-FM2466 alarm box.

Part of the Hikvision range

Genuine Australian Hikvision stock from ARC IP Networks — explore the range, technology and guides:

DeepinView camerasBullet camerasActive deterrenceNVR recordersWhere to buy

Frequently asked questions

Three. It has 4 mm, 12 mm and 25 mm fixed lenses, each with its own 1/2.7″ sensor, producing one 4 MP (2688 × 1520) channel and two 2 MP (1920 × 1080) channels.

DeepinViewX is Hikvision’s name for this camera line. It runs a dedicated Guanlan large-scale AI model for perimeter protection (line crossing, intrusion, region entrance and exiting), which Hikvision states reduces false alarms by 90% compared with conventional AI cameras, based on its standard setup and test environment.

Hikvision specifies person and vehicle detection up to 120 m (VCA range, based on standard setup and test environment). For image detail, DORI on the 25 mm lens is 331 m detect, 131.4 m observe, 66.2 m recognise and 33.1 m identify.

Yes. It uses DarkFighter 2.0 Sharpmotion low-light imaging and 850 nm smart IR with a range of up to 120 m, operating down to 0 lux with IR.

Yes. It has red/blue alarm LEDs and an audible warning through its built-in speaker, which can be linked to perimeter alarms. It also has two built-in microphones.

Per the datasheet, -H adds a heater for −40 °C to 65 °C operation, and -Y adds RS-485, a 12 VDC power output, a heater and NEMA 4X corrosion resistance. The -S model has the audio and alarm interfaces.

By PoE+ (IEEE 802.3at, Type 2, Class 4, max. 25.5 W) or 12 VDC (max. 25.2 W). Make sure your NVR or PoE switch port can supply full 802.3at power.

Three — one for each lens — so allow three recorder channels per camera.
Brand Hikvision
Network Connectivity Wired (RJ45 100M)
Night Vision IR (DarkFighter 2.0 Sharpmotion)
Resolution 4 MP + 2 × 2 MP (3 channels)
Camera Type Bullet (Triple-Lens)
Lens 4 mm + 12 mm + 25 mm fixed
Smart Features DeepinView Perimeter Protection (Guanlan AI)
Ingress Protection IP67, IK10, NEMA 4X
Power PoE 802.3at / 12 VDC
IR Range Up to 120 m
Audio / Alarm 2 mics + speaker + audio 2 in/1 out + 2×2 alarm I/O + RS-485
Deep Learning Features Line Crossing / Intrusion / Region Entrance & Exit
iDS-2CD7T46G2_VX3-IHSY_Datasheet.pdf
Download

Accurate Shipping Costs

Our online shipping calculator is designed to provide a final, accurate shipping cost based on the items in your cart and your delivery postcode. Shipping costs are calculated at checkout based on your order and delivery postcode. The final cost is calculated based on several factors which are automatically accounted for by our system, including:

  • The stock location of the item(s) across our warehouses.
  • Orders with multiple items that may require special packaging.
  • The weight and dimensions of the order (including heavy or oversized items).
  • The delivery courier servicing your specific region.

Delivery Times




Standard Processing


Most orders placed by 2pm AEDT are dispatched for next working day delivery. Larger orders may require 1-2 additional business days for processing. If timing is critical, please contact us to discuss expedited options (additional charges may apply).


Delivery Timeframes


Region

Processing Time

Express Delivery

Standard Delivery

VIC, NSW, SA, QLD Metro, TAS

1-2 business days

1-2 business days

2-4 business days

NT, WA, QLD Rural

1-2 business days

1-2 business days

3-5 business days

New Zealand

1-2 business days

2-3 business days

4-10 business days

Please note: Processing times may extend during peak periods such as Christmas and end of financial year.

Free Warehouse Pickup



Save on shipping costs with free pickup from our ARC IP Networks Blackburn warehouse. Simply place your order online or by phone, and collect during business hours (Monday to Friday). Please allow time for picking and packing. For urgent orders, call 1300 100 440 to confirm your order is ready.

ARC IP Networks Pickup Address: 6 George Street, Blackburn, VIC 3130


Insurance & Tracking



All ARC IP Networks shipments are fully insured and trackable. Once dispatched, you'll receive an email with your tracking number and courier website details. If your item is confirmed lost or damaged by our courier, we'll arrange a replacement in consultation with you.


International Shipping



ARC IP Networks ships to New Zealand. Please note:


  • Import duties and taxes vary by country
  • Buyers are responsible for all customs charges
  • Contact your local customs authority before ordering
  • We'll provide required documentation for smooth customs clearance
  • Buyers cover all shipping costs for returns due to refused duties/taxes


Delivery Requirements


Signature Required


All deliveries must be signed for. If you won't be home, contact our Sales Support team to arrange Authority to Leave. Important: Authority to Leave voids shipping insurance if parcels are lost or stolen.


Delivery Restrictions


We do not deliver to PO Boxes or Parcel Lockers as our couriers cannot access them. Orders sent to these addresses will be returned, incurring redelivery fees.


Shipping Issue Resolution


ARC IP Networks works closely with our shipping partners to resolve any delivery issues quickly and fairly:


  1. Confirmation: We verify expected delivery dates with our shipping partners
  2. Investigation: Issues outside normal timeframes trigger formal investigations
  3. Communication: We keep you updated throughout the resolution process
  4. Resolution: Confirmed lost items are replaced or refunded after investigation completion


Please note: Refunds for lost, missing, or delayed orders cannot be processed until shipping partner investigations are complete. This does not affect your rights under the Australian Consumer Law, and refunds or replacements will be provided where required once loss or damage is confirmed.

Warranty & Faulty Products

ARC IP Networks complies with the Australian Consumer Law (ACL).

If a product is faulty, damaged, not of acceptable quality, or does not perform as advertised, you are entitled to a repair, replacement, or refund in accordance with ACL.

Manufacturer Warranty Returns

For faults developing after 14 days within the warranty period:

  • Contact ARC IP Networks first at info@arcip.com.au or 1300 100 440
  • We will assess the issue and coordinate with manufacturers, authorised service centres, or distributors on your behalf
  • Where required, a manufacturer RMA may be arranged
  • ARC IP Networks manages the return process and next steps

Dead on Arrival (DOA)

Products that arrive faulty or damaged must be reported within 14 days of delivery.

ARC IP Networks will arrange assessment, replacement, or refund as appropriate.

Change of Mind & Non-Faulty Returns

Change-of-mind returns must be requested within 14 days of delivery. For change-of-mind returns, the product must be unused, unopened, in its original packaging, and returned with all accessories and documentation. These conditions apply only to change-of-mind returns and do not limit or exclude your rights under the Australian Consumer Law. Some products are not eligible for change-of-mind returns, including:

  • Ex-demo products
  • Clearance or markdown items
  • Special-order items
  • Products clearly marked “No Change-of-Mind Returns”

Important

This does not affect your rights under Australian Consumer Law.

If a product is faulty, not of acceptable quality, or does not meet advertised specifications, it remains eligible for return regardless of category.

Refunds & Processing Timeframes

  • Approved refunds are processed within 7 business days of receiving returned goods
  • Refunds are issued to the original payment method, unless otherwise agreed
  • Replacement or repair may be offered where appropriate
  • Store credit may be offered only with customer consent

Handling fees and non-returnable service charges may not be refundable where permitted by law.


Restocking Fees

For approved change-of-mind or non-faulty returns, a 15% restocking fee applies.

  • Any applicable restocking fee will be clearly communicated prior to return approval
  • The fee will be deducted from the refund amount
  • Restocking fees do not apply to returns made under the Australian Consumer Law, including faulty, damaged, or misrepresented goods.

Return Shipping Costs

  • Change-of-mind returns: The customer is responsible for return shipping costs.
  • Faulty or defective products: ARC IP Networks covers return shipping under Australian Consumer Law.

Non-Warranty Repairs

For issues not covered by warranty:

  • ARC IP Networks will provide a quote before proceeding
  • Customers are responsible for all shipping and service costs
  • No repairs are undertaken without customer approval

Return Methods

Returns may be made:

  • In-store at ARC IP Networks – 6 George Street, Blackburn VIC 3130
  • Or by shipment as instructed by our support team

Proof of purchase is required for all returns.

Enquire About this Product


Any questions about this product? Fill out the form below, and we'll get back to you soon!

Similar Products
Accessory Products
