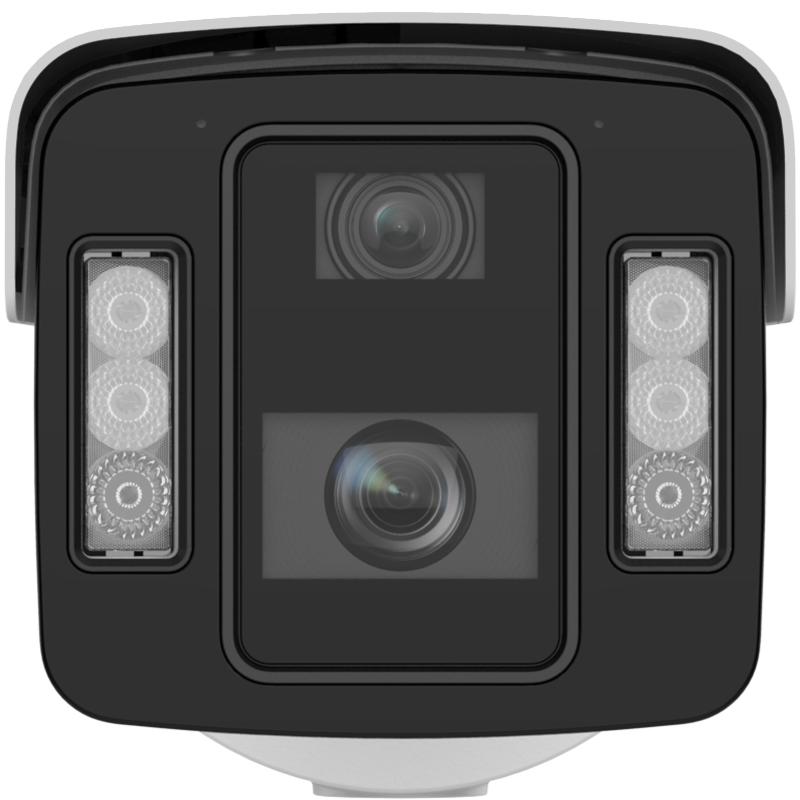

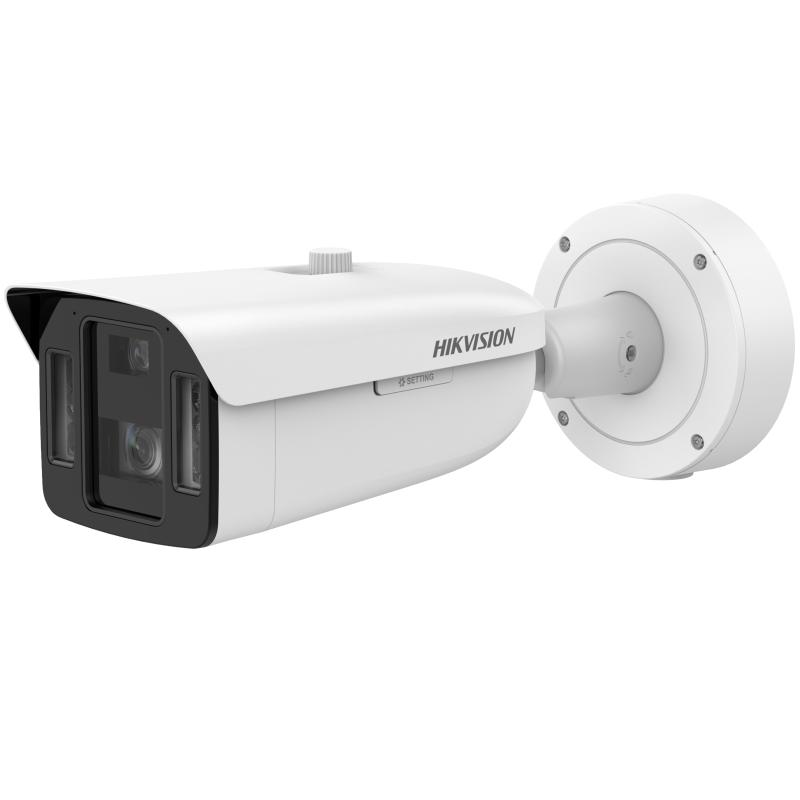

Hikvision IDS-2CD8A46G2-XZHSY-0832 DeepinView 4 MP Dual-Sensor Bullet Network Camera, 8–32 mm Varifocal + 4 mm, DarkFighter 2.0, LPR

Price:

2,251.21


Hikvision DS-2CD3H86G2H-LIZSUY-SL Smart Hybrid Light AcuSense 8 MP Turret Network Camera, 2.7-13.5mm Motorized Varifocal, 40m IR & White Light, Active Deterrence
Hikvision DS-2CD3H86G2H-LIZSUY-SL Smart Hybrid Light AcuSense 8 MP Turret Network Camera, 2.7-13.5mm Motorized Varifocal, 40m IR & White Light, Active Deterrence
814.63
814.63
Hikvision IDS-2CD8A86G2-XZHSY-1050 DeepinView 8+4 MP Dual-Sensor Bullet Network Camera, Varifocal 10-50 mm + Fixed 4 mm, DarkFighter 2.0 with Face Capture & LPR
Hikvision IDS-2CD8A86G2-XZHSY-1050 DeepinView 8+4 MP Dual-Sensor Bullet Network Camera, Varifocal 10-50 mm + Fixed 4 mm, DarkFighter 2.0 with Face Capture & LPR
2,755.50
2,755.50

Hikvision IDS-2CD8A46G2-XZHSY-0832 DeepinView 4 MP Dual-Sensor Bullet Network Camera, 8–32 mm Varifocal + 4 mm, DarkFighter 2.0, LPR

https://arcip.com.au/web/image/product.template/9778/image_1920?unique=12e6e76
The Hikvision IDS-2CD8A46G2-XZHSY-0832 is a professional-grade 4 MP DeepinView dual-channel bullet camera designed for demanding traffic and perimeter applications. Channel 1 delivers a 4 MP 2688 × 1520 image through an 8–32 mm varifocal P-iris lens with a 400 m tele DORI detection range, while Channel 2 provides a simultaneous 89° wide-angle panoramic view at 4 MP resolution. DarkFighter 2.0 technology achieves colour imaging down to 0.0005 lux, complemented by a hybrid IR/white-light supplement light system reaching up to 100 m on Channel 1 and 40 m on Channel 2. On-board deep-learning AI enables licence-plate recognition (≥98% accuracy), face capture of up to 120 faces simultaneously, multi-target-type detection and perimeter protection – all in a single vandal-proof IP67/IK10 aluminium alloy housing rated for −40 °C to +60 °C operation. The -Y suffix denotes NEMA 4X moderate anti-corrosion protection suitable for coastal and industrial environments.

2,251.21 2251.21 AUD 2,251.21 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • Resolution
  • Power
  • IR Range
  • Lens Type
  • Focal Length
  • WDR
  • Camera Series
  • Protection Rating
  • Smart Feature

This combination does not exist.

In stock online
Bullet Camera Hikvision IP Camera DeepinView DarkFighter 4MP LPR Camera
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
IDS-2CD8A46G2-XZHSY-0832
Hikvision IDS-2CD8A46G2-XZHSY-0832 — 4 MP DeepinView Dual-Sensor Bullet Camera, 8–32 mm Varifocal + 4 mm Wide-Angle, DarkFighter 2.0 with LPR

Key Features

  • Dual 4 MP sensors — both channels deliver 2688 × 1520 resolution for simultaneous detail and panoramic coverage.
  • DarkFighter 2.0 — Channel 1 achieves full-colour imaging at 0.0005 lux (F1.2) and 0 lux with supplemental light active; Channel 2 reaches 0.0003 lux (F1.0).
  • 140 dB Wide Dynamic Range — delivers clear images in extreme backlit or mixed-lighting scenarios such as covered car parks and building entrances.
  • Hybrid IR and white-light illumination — smart supplement light switches automatically; Channel 1 up to 100 m, Channel 2 up to 40 m; 850 nm IR wavelength.
  • 8–32 mm motorised varifocal P-iris lens (Ch1, constant F1.6) paired with a fixed 4 mm F1.0 wide-angle lens (Ch2) covering 89° horizontal FOV.
  • ShotN technology — captures sharp images of vehicles and pedestrians moving at different speeds without motion blur.
  • Licence-plate recognition ≥98% accuracy — blocklist/allowlist up to 10,000 records; supports motorcycles in checkpoint mode.
  • Face capture & comparison — detects up to 120 faces simultaneously; up to 10 face libraries with 150,000 faces total; swing range −60° to +60°.
  • Multi-target-type detection — simultaneously detects and classifies human body, face, motor vehicle and non-motor vehicle; 7 face + 13 body + 2 vehicle attributes.
  • Perimeter protection on both channels — line crossing, intrusion, region entrance/exit with human/vehicle target filtering to suppress false alarms.
  • IP67 and IK10 — fully dust-tight, jet-water-resistant and vandal-proof; aluminium alloy body; NEMA 4X (-Y model) for coastal/industrial environments.
  • H.265+ compression — up to 5 independent streams per channel; microSD/microSDHC/microSDXC slot up to 256 GB on-board storage; PoE IEEE 802.3at Class 4.

Specifications

Camera
Image SensorChannel 1: 1/1.8" Progressive Scan CMOS
Channel 2: 1/1.8" Progressive Scan CMOS
Max. ResolutionChannel 1: 2688 × 1520
Channel 2: 2688 × 1520
Min. Illumination Ch1: Colour 0.0005 lux (F1.2, AGC ON), 0 lux with light; B/W 0.0001 lux
Ch2: Colour 0.0003 lux (F1.0, AGC ON), 0 lux with light; B/W 0.0001 lux
Shutter Time1 s to 1/100,000 s
Day & NightIR cut filter; Blue glass module (less ghost phenomenon)
Wide Dynamic Range140 dB
Angle AdjustmentPan 0°–355°, Tilt 0°–90°, Rotate 0°–360°
Lens
Focal Length & FOV (Ch1)8–32 mm; Horizontal FOV 42.5°–15.2°, Vertical 23.4°–8.7°, Diagonal 49.7°–17.3°
Focal Length & FOV (Ch2)4 mm; Horizontal FOV 89°, Vertical 45°, Diagonal 107°
Focus (Ch1)Auto, semi-auto, manual
Iris TypeChannel 1: P-iris — Constant F1.6 throughout zoom range
Channel 2: Fixed F1.0
Illuminator
Supplement Light TypeHybrid (IR and White Light)
Supplement Light RangeChannel 1: up to 100 m
Channel 2: up to 40 m
Smart Supplement LightYes
IR Wavelength850 nm
DORI
Channel 1 — WideDetection 150.3 m, Observation 59.7 m, Recognition 30.1 m, Identification 15 m
Channel 1 — TeleDetection 400 m, Observation 158.7 m, Recognition 80 m, Identification 40 m
Channel 2Detection 77 m, Observation 30.5 m, Recognition 15.4 m, Identification 7.7 m
Smart Features & Deep Learning
Multi-Target-Type Detection (Ch1)Up to 60 targets simultaneously; human body, face, motor vehicle, non-motor vehicle; 7 face / 13 body / 2 vehicle attributes
Face Capture (Ch1)Up to 120 faces simultaneously; swing −60° to +60°; uploads full-frame + close-up
Face Comparison (Ch1)Up to 10 face libraries, 30,000 faces/library, 150,000 total; face library encryption
Road Traffic & LPR (Ch1)LPR ≥98% accuracy; blocklist/allowlist up to 10,000 records; vehicle attribute detection (type, colour, brand); motorcycle support
Perimeter ProtectionBoth channels: Line crossing, intrusion, region entrance/exit; human & vehicle target filtering
ShotN TechnologyCaptures vehicles and humans at different speeds without motion blur
General / Environmental
Power 12 VDC ±20%, 1.89 A, max. 22.6 W
24 VAC ±20%, 1.48 A, max. 22.2 W
PoE IEEE 802.3at, Type 2, Class 4 — 42.5–57 V, max. 24 W
MaterialAluminium alloy body
ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002), NEMA 4X (NEMA 250-2018 — -Y model)
Operating Temperature−40 °C to +60 °C; Humidity 95% or less (non-condensing)
Heater / DemistYes / Yes
On-Board StorageMicroSD/microSDHC/microSDXC up to 256 GB
Network Interface1 × RJ45 10/100/1000 Mbps self-adaptive
Audio I/O2 built-in microphones; 1 built-in speaker; 3.5 mm line-in + line-out
Alarm I/O2 inputs, 2 outputs (max. 24 VDC, 1 A)
Video CompressionH.265+/H.265/H.264+/H.264 main stream; 5 streams per channel
ApprovalsCE, RCM (AS/NZS CISPR 32:2015), UL 62368-1, CE-RoHS, WEEE

Frequently Asked Questions

What is the IDS-2CD8A46G2-XZHSY-0832 and what does the -0832 suffix mean?

The IDS-2CD8A46G2-XZHSY-0832 is a Hikvision 4 MP DeepinView dual-channel bullet network camera. The -0832 suffix specifies the lens configuration: Channel 1 uses an 8–32 mm motorised varifocal P-iris lens, while Channel 2 uses a fixed 4 mm wide-angle lens. The -Y suffix denotes NEMA 4X moderate anti-corrosion protection suitable for coastal and industrial environments approximately 2 kilometres from coastlines.

What DeepinView AI capabilities does this camera offer?

The Hikvision DeepinView IDS-2CD8A46G2-XZHSY-0832 integrates multiple deep-learning functions on-board: licence-plate recognition with ≥98% accuracy (blocklist/allowlist up to 10,000 records), face capture of up to 120 faces simultaneously across 10 face libraries totalling 150,000 faces, multi-target-type detection (60 targets simultaneously with human body/face/vehicle classification), perimeter protection with human and vehicle target filtering on both channels, and ShotN technology for blur-free capture of fast-moving subjects.

How does the dual-channel design benefit traffic and perimeter monitoring?

The dual-channel design pairs a long-range 8–32 mm varifocal lens (Channel 1 DORI detection up to 400 m at tele) with a simultaneous 89° wide-angle panoramic view (Channel 2), effectively replacing two separate cameras. Channel 1 handles licence-plate capture and face recognition at distance, while Channel 2 provides contextual situational awareness. Both channels independently support perimeter protection events. All footage streams via a single RJ45 PoE connection at up to 50 fps per channel (Ch1) or 25 fps per channel (Ch2) at 4 MP resolution.

What are the low-light and illumination specifications?

DarkFighter 2.0 technology enables Channel 1 to capture full-colour images at 0.0005 lux (F1.2, AGC ON) and 0 lux when the built-in supplement light is active. Channel 2 achieves 0.0003 lux (F1.0, AGC ON). The hybrid supplement light system combines 850 nm IR and white light, with smart switching that selects the optimal mode automatically. Illumination range reaches 100 m on Channel 1 and 40 m on Channel 2. B/W sensitivity is 0.0001 lux for both channels.

Is the IDS-2CD8A46G2-XZHSY-0832 suitable for outdoor use in harsh environments?

Yes. The camera carries an IP67 rating (fully dust-tight and protected against high-pressure water jets) and IK10 vandal resistance, housed in an aluminium alloy body. The -Y model additionally holds NEMA 4X certification for moderate anti-corrosion protection, suitable for coastal areas approximately 2 km from coastlines and areas subject to acid rain. A built-in heater and demist function ensure reliable operation from −40 °C to +60 °C. RCM certification (AS/NZS CISPR 32:2015) confirms compliance with Australian electromagnetic compatibility requirements.

What power options and storage does this camera support?

The IDS-2CD8A46G2-XZHSY-0832 supports three power input methods: 12 VDC (±20%, max. 22.6 W), 24 VAC (±20%, max. 22.2 W), and PoE IEEE 802.3at Type 2 Class 4 (42.5–57 V, max. 24 W) — making single-cable PoE installation straightforward. On-board storage uses a microSD/microSDHC/microSDXC slot supporting up to 256 GB for edge recording and Auto Network Replenishment (ANR) to fill gaps during network outages. NAS (NFS, SMB/CIFS) network storage is also supported.

Professional Overview

The Hikvision iDS-2CD8A46G2-XZHSY-0832 represents the flagship of Hikvision's DeepinView multi-sensor bullet series, engineered specifically for intelligent traffic monitoring, critical infrastructure protection, and high-security perimeter surveillance. Its dual-channel architecture — combining a long-range 8–32 mm P-iris varifocal channel with an 89° wide-angle panoramic channel — eliminates the need for separate detail and overview cameras at a single installation point, reducing both hardware costs and cabling complexity. The constant F1.6 aperture maintained throughout the varifocal range ensures optimal image quality at every zoom setting without the exposure drift common in conventional iris designs.

DarkFighter 2.0 technology, inherited from Hikvision's premium imaging heritage, pairs 1/1.8" Progressive Scan CMOS sensors with a hybrid IR and white-light supplement system to deliver usable colour footage in conditions approaching complete darkness. The 140 dB Wide Dynamic Range processor handles extreme contrast scenes — such as vehicle entrances under direct sunlight — that would saturate or shadow-clip conventional sensors. Three-dimensional digital noise reduction (3D DNR) further enhances image clarity during night-time and adverse weather operation, and the built-in heater with demist function extends reliable service from polar −40 °C winters to tropical +60 °C summers without additional enclosures.

The on-board deep-learning engine processes both channels simultaneously, running licence-plate recognition at ≥98% accuracy with a 10,000-record blocklist/allowlist, face capture across up to 120 simultaneous subjects with a 150,000-face comparison library, and multi-attribute vehicle detection covering type, colour, and brand. ShotN technology specifically addresses the challenge of mixed-speed traffic — motorcycles, cyclists, and pedestrians alongside vehicles — by selecting the optimal shutter parameters per target in real time. Perimeter protection rules apply independently to both channels with intelligent human and vehicle target filtering, dramatically reducing false alarms from environmental triggers such as leaves, lights, and animals. H.265+ compression delivers up to 5 independent streams per channel over a single Gigabit PoE link, while the microSD slot provides up to 256 GB of local edge recording for ANR continuity.

Certified to RCM (AS/NZS CISPR 32:2015) for the Australian market and carrying IP67, IK10, and NEMA 4X (-Y) environmental ratings, the IDS-2CD8A46G2-XZHSY-0832 is purpose-built for demanding outdoor deployments including road intersections, car parks, toll plazas, logistics hubs, and coastal industrial facilities. It integrates natively with Hikvision iVMS-4200 and Hik-Connect platforms and supports open-standard ONVIF Profile S/G/T, SDK, and ISAPI for third-party VMS integration. Australian stock from ARC IP Networks.

Brand Hikvision
Form Factor Bullet
Resolution 4 MP (2688×1520)
Power PoE IEEE 802.3at
IR Range Up to 100 m
Lens Type Motorised Varifocal
Focal Length 8–32 mm + 4 mm
WDR 140 dB
Camera Series DeepinView
Protection Rating IP67 / IK10
Smart Feature License Plate Recognition
IDS-2CD8A46G2-XZHSY-0832_Datasheet.pdf
