Hikvision iDS-2CD7A46G2-IZHSY – 4 MP DeepinView Motorised Varifocal Bullet, 2.8–12 mm, DarkFighter 2.0, IR 60 m, 150 dB WDR, 2.5 TOPS AI, IP67, IK10, NEMA 4X
At a glance

The Hikvision iDS-2CD7A46G2-IZHSY is a 4 MP DeepinView motorised varifocal bullet camera with a 2.8–12 mm lens, DarkFighter 2.0 low-light imaging, 150 dB WDR and IR up to 60 m. Its 2.5 TOPS deep-learning engine handles multi-target detection of people, faces and vehicles (including licence plate recognition), face capture and comparison, people counting, PPE detection and perimeter protection. High frame rates up to 4 MP @ 60 fps and 2 MP @ 120 fps, ShotN technology and EIS keep fast-moving targets sharp.

Resolution
4 MP, 2688 × 1520
Lens
2.8–12 mm motorised, P-iris
IR range
Up to 60 m
WDR
150 dB
AI
2.5 TOPS DeepinView
Frame rate
4 MP @ 60 fps, 2 MP @ 120 fps
Protection
IP67, IK10, NEMA 4X
Power
PoE 802.3at / 12 VDC / 24 VAC

Key features

  • DeepinView multi-target detection – simultaneous detection and capture of people, faces and vehicles, with 7 face features, 13 vehicle features, 2 body features and licence plate recognition.
  • 4 MP with high frame rates – 2688 × 1520 from a 1/1.8″ progressive scan CMOS, up to 60 fps at 4 MP and 120 fps at 2 MP in monitoring mode.
  • DarkFighter 2.0 – colour down to 0.0005 lux @ (F1.2, AGC ON), with a blue glass module to reduce ghosting.
  • 2.8–12 mm motorised varifocal lens – 106° to 41.8° horizontal field of view, P-iris and auto/semi-auto/manual focus.
  • IR up to 60 m – 850 nm infrared with Smart Supplement Light.
  • 150 dB WDR – handles car headlights, tunnel entries and bright entrances.
  • ShotN and EIS – captures fast-moving people and vehicles clearly, with electronic image stabilisation.
  • Face capture and comparison – detects up to 120 faces at once and stores up to 10 face libraries (150,000 faces in total).
  • Business and safety analytics – people counting, queue management, heat map, regional people counting, smoking and phone-call detection, and hard hat / reflective clothing (PPE) detection.
  • Open platform – 2.5 TOPS with HEOP 2.0 for third-party and custom AI models.
  • Built for harsh outdoor sites – IP67, IK10 and NEMA 4X, built-in heater and demist, G-sensor for vibration detection and a power meter for voltage exception alarms; operates from −40 °C to 65 °C.

Specifications

Camera
Image sensor1/1.8″ progressive scan CMOS
Max. resolution2688 × 1520
Min. illuminationColour: 0.0005 lux @ (F1.2, AGC ON); B/W: 0.0001 lux @ (F1.2, AGC ON); 0 lux with IR
Shutter time1 s to 1/100,000 s
Day & nightIR cut filter, blue glass module
Lens (this product: 2.8–12 mm)
Focal length2.8 to 12 mm, motorised varifocal
Field of viewHorizontal 106° to 41.8°, vertical 55.4° to 23.6°, diagonal 130° to 48.1°
ApertureF1.38 to F2.53
IrisP-iris
FocusAuto, semi-auto, manual
Pixel density (wide / tele)Overview 75 m / 186.2 m; Perceive 12 m / 29.8 m; Validate 3 m / 7.4 m (IEC/EN 62676-4)
Illuminator
Supplement light typeIR
Range (2.8–12 mm)Up to 60 m
IR wavelength850 nm
Smart supplement lightYes
Video
Main stream (monitoring mode)50 Hz: up to 50 fps (2688 × 1520), 100 fps (1920 × 1080); 60 Hz: up to 60 fps (2688 × 1520), 120 fps (1920 × 1080)
Main stream (smart mode)25/30 fps (2688 × 1520)
Streams5 streams
Video compressionMain: H.265+/H.265/H.264+/H.264; sub/fourth/fifth: H.265/H.264/MJPEG
Video bit rate32 Kbps to 8 Mbps
E-PTZPatrol and auto tracking
Image stabilisationEIS
WDR150 dB
Image enhancementBLC, HLC, 3D DNR, distortion correction, defog
SNR≥ 52 dB
Privacy mask8 programmable polygon masks
Deep Learning & AI
Computing power2.5 TOPS (HEOP 2.0 open platform)
Multi-target-type detectionHuman body, face and vehicle; licence plate recognition; dynamic mosaic mask; ShotN
Face captureUp to 120 faces simultaneously; up to 10 face pictures per second
Face comparisonUp to 10 libraries, 30,000 faces each, 150,000 total
Perimeter protectionLine crossing, intrusion, region entrance, region exiting with human/vehicle filtering
AnalyticsPeople counting, queue management, heat map, regional people counting, on/off duty, activity analysis (smoking, phone calls), PPE detection (hard hat, reflective clothing)
AcuSeekFeature search for humans, plates, vehicles and animals with AcuSeek NVR/servers
Audio eventsGlass break, scream, gunshot/explosion, crying detection
Network & Interface
Ethernet1 × RJ45 10/100/1000 Mbps
APIONVIF (Profile S, G, T, M), ISAPI, SDK, ISUP, OTAP
Simultaneous live viewUp to 20 channels
On-board storagemicroSD/SDHC/SDXC up to 1 TB
Alarm2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
Audio1 line in, 1 line out (3.5 mm)
RS-4851 (half duplex)
Power output12 VDC, max. 100 mA
SecurityTLS 1.3, TPM 2.0 (FIPS 140-2 level 2), 802.1X, AES128/256; IEC 62443-4-1 ML2, CC EAL3
General
Power12 VDC ±20%, max. 22.56 W; 24 VAC ±20%, max. 21.5 W; PoE IEEE 802.3at Type 2 Class 4, max. 22.6 W
MaterialAluminium alloy body

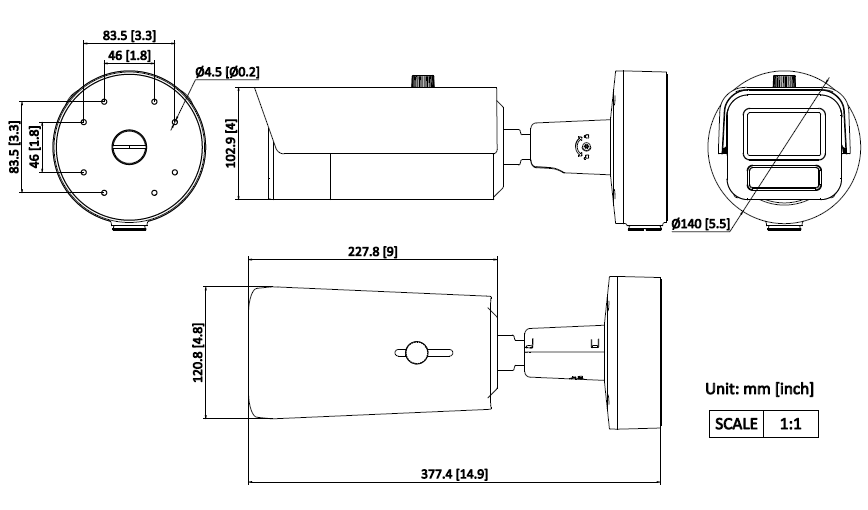

DimensionsØ140 × 377.4 mm
WeightApprox. 2330 g
Operating conditions−40 °C to 65 °C, humidity 95% or less (non-condensing)
ProtectionIP67, IK10
Anti-corrosionNEMA 4X (NEMA 250-2018)
OtherHeater, demist, G-sensor, power meter; EN 50121-4; PVC free

Specifications are from Hikvision’s official product page and datasheet for the iDS-2CD7A46G2-IZHSY. Values shown are for the 2.8–12 mm model.

Best for

  • Site entries and car parks that need people, face and vehicle capture from one camera.
  • Industrial and construction sites that need hard hat and reflective clothing (PPE) alerts.
  • Retail and venue entrances needing people counting, queue management and heat maps.
  • Roads, tunnels, rail corridors and transport hubs where 150 dB WDR and high frame rates matter.
  • Exposed outdoor locations needing IP67, IK10, NEMA 4X and a built-in heater.

Who it’s for

Systems integrators

HEOP 2.0 open platform and ONVIF Profile S/G/T/M for custom AI and VMS integration.

Enterprise security

Face capture and comparison with AcuSeek feature search.

Mining & construction

PPE detection for hard hats and hi-vis clothing.

Retail & venues

People counting, queue management and heat maps.

Transport & councils

Licence plate recognition and multi-target capture at entries.

Critical infrastructure

IEC 62443-4-1 ML2 and CC EAL3 cyber-security certification.

DeepinView FAQ – iDS-2CD7A46G2-IZHSY

It is a 4 MP DeepinView motorised varifocal bullet camera with a 2.8–12 mm lens, DarkFighter 2.0, 150 dB WDR, IR up to 60 m and a 2.5 TOPS deep-learning engine for multi-target detection, face capture, licence plate recognition and business analytics.

The /P model is Hikvision’s dedicated ANPR version. The iDS-2CD7A46G2-IZHSY is a general-purpose DeepinView camera with multi-target-type detection (people, faces, vehicles and plates), face comparison, people counting and PPE detection.

Hikvision lists up to 60 m for the 2.8–12 mm model (the 8–32 mm version reaches 100 m).

It accepts PoE IEEE 802.3at (Class 4, max. 22.6 W), 12 VDC or 24 VAC. Use a PoE+ switch or NVR port; a standard 802.3af port does not provide enough power.

Yes. Built-in models detect people not wearing a hard hat or reflective clothing and trigger an alarm. Supported hat colours include red, orange, yellow, blue and white.

Yes. It has a microSD slot for cards up to 1 TB, plus NAS, ANR and cloud storage support.

Hikvision’s datasheet shows the -Y version without an integrated connector panel, with a Ø140 × 377.4 mm body and EN 50121-4 railway approval. It is rated NEMA 4X for corrosion resistance.

Professional overview

The Hikvision iDS-2CD7A46G2-IZHSY is a 4 MP bullet camera from the DeepinView series, Hikvision’s range of deep-learning cameras for demanding projects. A 1/1.8″ progressive scan CMOS and a 2.8–12 mm motorised varifocal lens with P-iris give a horizontal field of view from 106° to 41.8°, so the same camera can cover a wide car park or zoom in on a gate or doorway.

DarkFighter 2.0 keeps colour down to 0.0005 lux, 150 dB WDR handles headlights and bright doorways, and IR reaches up to 60 m. In monitoring mode the camera runs at up to 60 fps at 4 MP or 120 fps at 2 MP, and ShotN technology with EIS keeps fast-moving people and vehicles sharp.

The 2.5 TOPS engine runs multi-target-type detection of people, faces and vehicles including licence plate recognition, face capture of up to 120 faces at once, face comparison against up to 150,000 faces, people counting, queue management, heat maps and PPE detection. HEOP 2.0 lets integrators load custom AI models, and AcuSeek feature search works with Hikvision AcuSeek NVRs and servers.

The aluminium alloy body is rated IP67, IK10 and NEMA 4X, with a built-in heater, demist, G-sensor and power meter, and it operates from −40 °C to 65 °C. Power comes from 802.3at PoE+, 12 VDC or 24 VAC, and the camera supports ONVIF Profile S, G, T and M. It comes with the full Hikvision manufacturer’s warranty. Australian stock from ARC IP Networks.

Brand Hikvision
Network Connectivity Wired (RJ45 1000M)
Night Vision IR (DarkFighter 2.0)
Resolution 4 MP
Camera Type Bullet
Lens 2.8–12 mm motorised varifocal
Smart Features DeepinView Multi-Target Detection, Face Capture, LPR, PPE
Ingress Protection IP67, IK10, NEMA 4X
Power PoE 802.3at / 12 VDC / 24 VAC
IR Range 60 m
Audio / Alarm Audio in/out + 2×2 alarm I/O + RS-485
iDS-2CD7A46G2-IZHSY_Datasheet.pdf
