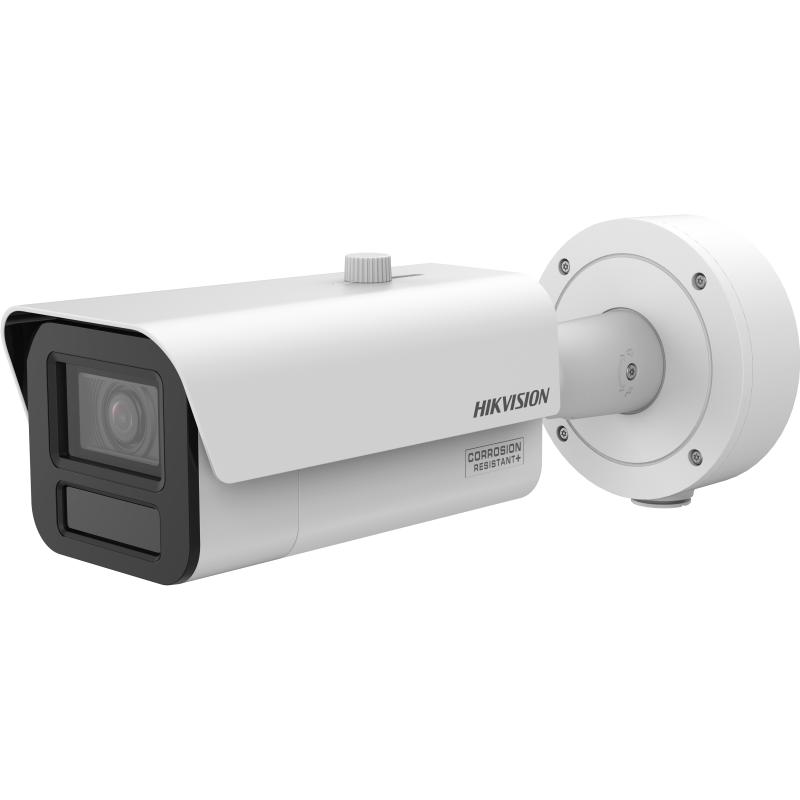

Hikvision iDS-2CD7A45G2/P-IZHSY DeepinView 4 MP ANPR Motorised Varifocal Bullet Network Camera, 4.7–118 mm, IR 200 m, NEMA 4X

https://arcip.com.au/web/image/product.template/11229/image_1920?unique=d825bc3
  • 4 MP DeepinView ANPR bullet, on-camera plate recognition
  • 4.7–118 mm motorised super-long lens, 55.8° to 2.8°
  • IR up to 200 m, DarkFighter 2.0, 150 dB WDR
  • Allow/block lists (50,000), vehicle attributes, parking management
  • Heater, de-icing, IP67, IK10, NEMA 4X, PoE 802.3at

$ 1,776.74 1776.74 AUD $ 1,776.74 incl. GST

Not Available For Sale


  • Brand
  • Network Connectivity
  • Night Vision
  • Resolution
  • Camera Type
  • Lens
  • Smart Features
  • Ingress Protection
  • Power
  • IR Range
  • Audio / Alarm
  • Deep Learning Features

This combination does not exist.

In stock online
Hikvision IP Camera Bullet DeepinView ANPR DarkFighter Varifocal 4MP LPR
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
IDS-2CD7A45G2-P-IZHSY-4.7-118M
Tags
iDS-2CD7A45G2/P-IZHSY (4.7–118 mm)
Hikvision iDS-2CD7A45G2/P-IZHSY – 4 MP DeepinView ANPR Motorised Varifocal Bullet Camera, 4.7–118 mm Super-Long Lens, IR 200 m, NEMA 4X
At a glance

The Hikvision iDS-2CD7A45G2/P-IZHSY is a 4 MP DeepinView ANPR bullet with a 4.7–118 mm motorised super-long lens and IR up to 200 m. On-board deep learning reads licence plates of cars and motorcycles, classifies vehicle type, colour, brand and direction, and checks plates against an allow/block list of up to 50,000 records. DarkFighter 2.0, 150 dB WDR, a heater with de-icing and IP67/IK10/NEMA 4X protection suit site entrances, boom gates, car parks and long perimeters.

Resolution
4 MP, 2688 × 1520
Lens
4.7–118 mm motorised
Field of view
55.8° to 2.8° H
IR range
Up to 200 m
AI
ANPR + vehicle attributes
WDR
150 dB
Protection
IP67, IK10, NEMA 4X
Power
PoE 802.3at / 12 VDC / 24 VAC

Key features

  • Licence plate recognition on the camera – reads plates of vehicles and motorcycles in checkpoint scenarios, covering 4 regions including Asia-Pacific and more than 124 countries/regions.
  • High accuracy – Hikvision quotes a plate recognition rate of ≥98%, capture rate of ≥99% and driving direction accuracy of ≥98% under recommended conditions.
  • Allow and block lists – up to 50,000 records, with separate alarm triggering for listed plates.
  • Vehicle attribute detection – vehicle type, colour, brand and driving direction, plus vehicle and non-vehicle counting.
  • 4.7–118 mm super-long motorised lens – 55.8° to 2.8° horizontal view with P-iris and auto/semi-auto/manual focus.
  • IR up to 200 m – 850 nm IR with Smart Supplement Light.
  • DarkFighter 2.0 and 150 dB WDR – colour down to 0.005 lux, and clear images against headlights and strong backlight.
  • Parking management and perimeter protection – parking space status, parking timeout and vacant space alarms, plus human/vehicle-filtered line crossing and intrusion.
  • High frame rate – up to 4 MP at 60 fps in monitoring mode, and 5 video streams.
  • Built for the roadside – heater, de-icing, G-sensor vibration detection, IP67, IK10, NEMA 4X, Wiegand output and RS-485.

Specifications

Camera
Image sensor1/2.7″ progressive scan CMOS
Max. resolution2688 × 1520
Min. illuminationColour: 0.005 lux @ (F1.6, AGC ON); B/W: 0.0018 lux @ (F1.6, AGC ON); 0 lux with IR
Shutter time1 s to 1/100,000 s
Day & nightIR cut filter; blue glass module (less ghosting)
WDR150 dB
SNR≥ 52 dB
Image enhancementBLC, HLC, 3D DNR, distortion correction, defog; EIS
Lens
Lens typeMotorised varifocal, 4.7 to 118 mm
Field of viewHorizontal 55.8° to 2.8°, vertical 32.3° to 1.6°, diagonal 63.3° to 3.2°
ApertureF1.6 to F3.8, P-iris
FocusAuto, semi-auto, manual
OODPCVS (IEC/EN 62676-4:2025)Wide: Overview 133.3 m, Discern 33.3 m, Validate 5.3 m; tele: Overview 2750 m, Discern 687.5 m, Validate 110 m
Illuminator
Supplement light typeIR
Supplement light rangeUp to 200 m
Smart supplement lightYes
IR wavelength850 nm
Video & Audio
Main stream (monitoring mode)Up to 50 fps (50 Hz) / 60 fps (60 Hz) at 2688 × 1520, 1920 × 1080, 1280 × 720
Main stream (smart mode)25 fps (50 Hz) / 30 fps (60 Hz)
Additional streamsSub, third, fourth and fifth streams
Video compressionMain: H.265+/H.265/H.264+/H.264; sub: H.265/H.264/MJPEG
Video bit rate32 Kbps to 8 Mbps
Audio compressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Road Traffic & Deep Learning
Licence plate recognitionVehicles and motorcycles (checkpoint scenario); 4 regions, 124+ countries/regions
AccuracyRecognition ≥98%, capture ≥99%, direction ≥98% (recommended conditions)
Vehicle capture speedFront installation up to 120 km/h; side installation up to 80 km/h
Vehicle attributesType, colour, brand, driving direction; vehicle and non-vehicle counting
ListsAllow list and block list, up to 50,000 records
Parking managementDistant view: up to 40 spaces; close view: up to 4 spaces with plate recognition
Perimeter protectionLine crossing, intrusion, region entrance, region exiting; human/vehicle filter
Audio eventsCrying, gunshot/explosion, scream and glass break detection
HEOP2.5 TOPS, HEOP 2.0 OpendevSDK
Network & Interface
Ethernet1 × RJ45 10/100/1000 Mbps
APIONVIF (Profile S, G, T, M), ISAPI, SDK, ISUP, OTAP
Simultaneous live viewUp to 20 channels
StoragemicroSD/SDHC/SDXC up to 1 TB; NAS; ANR; cloud storage
Alarm2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
Audio1 line in, 1 line out (3.5 mm)
RS-485 / Wiegand1 RS-485; 1 Wiegand output (-Y model)
SecurityTPM 2.0 (FIPS 140-2 level 2), TLS 1.2/1.3, AES128/256
General
Power (-Y)12 VDC ±20%, max. 22.2 W; 24 VAC ±20%, max. 21.7 W; PoE IEEE 802.3at Type 2 Class 4, max. 24.2 W
MaterialAluminium alloy body

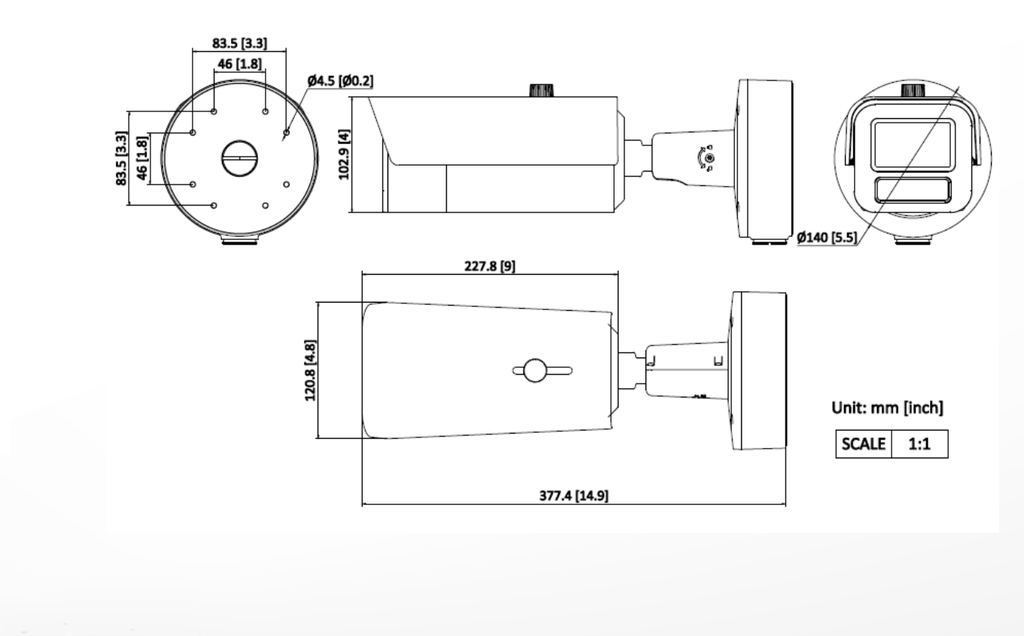

Dimensions (-Y)Ø 140 × 377.4 mm
WeightApprox. 2350 g
Operating conditions−40 °C to 65 °C, humidity 95% or less (non-condensing)
Heater / de-icingYes / Yes
ProtectionIP67, IK10
Anti-corrosionNEMA 4X (-Y), moderate protection
Rail standardEN 50121-4

Specifications are from Hikvision’s official Australian product page and datasheet for the iDS-2CD7A45G2/P-IZHS(Y). This product is the -Y (NEMA 4X) model with the 4.7–118 mm lens, listed by Hikvision Australia as iDS-2CD7A45G2/P-IZHSY(4.7-118mm)/HIK AUS. Recognition figures are Hikvision reference values under recommended installation and lighting.

Best for

  • Site entrances and boom gates where the camera reads plates and checks them against allow and block lists.
  • Long driveways, access roads and perimeters that need a 118 mm telephoto end and IR to 200 m.
  • Car parks that want parking space status, overstay and vacancy alerts.
  • Industrial, mining and logistics sites that need vehicle type, colour and direction data.
  • Coastal or harsh sites that need a heater, de-icing and NEMA 4X corrosion resistance.

Who it’s for

Car park operators

Plate capture, parking status and vacancy alarms from one camera.

Security integrators

On-board ANPR without a separate server, with Wiegand output for access control.

Councils & road authorities

Vehicle counting and attribute data for traffic insight.

Mining & industrial sites

Long-range vehicle monitoring with rugged, heated housing.

Logistics yards

Track trucks in and out with allow/block list alarms.

Gated communities

Recognise resident and visitor vehicles at the gate.

DeepinView ANPR FAQ – iDS-2CD7A45G2/P-IZHSY

It is a 4 MP DeepinView ANPR motorised varifocal bullet camera with a 4.7–118 mm super-long lens and IR up to 200 m. It recognises licence plates on the camera, detects vehicle attributes and supports parking management and perimeter protection.

Hikvision lists licence plate recognition across 4 regions, including Asia-Pacific, covering more than 124 countries/regions. Recognition is designed for checkpoint scenarios, with a quoted recognition rate of ≥98% under recommended installation and lighting.

Hikvision quotes vehicle capture at up to 120 km/h with front installation in a checkpoint scenario and up to 80 km/h with side installation.

The horizontal field of view ranges from 55.8° at 4.7 mm to 2.8° at 118 mm. That lets one camera cover a wide gate area or zoom in on a point far down an access road. The lens is motorised with P-iris and auto focus.

The 850 nm IR reaches up to 200 m with this lens, and Smart Supplement Light balances exposure on nearer targets.

The camera has 2 alarm outputs, a Wiegand output (-Y model) and RS-485, and allow/block lists of up to 50,000 records with separate alarm triggering, so it can be integrated with gate controllers and access control systems.

It runs on PoE 802.3at (max. 24.2 W), 12 VDC or 24 VAC. It is rated IP67 and IK10, has NEMA 4X anti-corrosion protection, a heater and de-icing, and operates from −40 °C to 65 °C.

Professional overview

The Hikvision iDS-2CD7A45G2/P-IZHSY is a 4 MP ANPR bullet camera from the DeepinView range, fitted with a 4.7–118 mm motorised super-long lens. A 1/2.7″ progressive scan CMOS records 2688 × 1520 video at up to 60 fps in monitoring mode, while the lens spans 55.8° down to 2.8° horizontally. It is designed for site entrances, boom gates, access roads, car parks, logistics yards and industrial sites where vehicles need to be identified and logged.

Licence plate recognition runs on the camera itself, covering vehicles and motorcycles across four regions and more than 124 countries/regions. Hikvision quotes a recognition rate of ≥98% and capture rate of ≥99% under recommended conditions, with capture speeds up to 120 km/h for front installation. Allow and block lists of up to 50,000 records trigger separate alarms, and vehicle attribute detection reports type, colour, brand and driving direction. Parking management adds space status, overstay and vacancy alarms.

For night operation, DarkFighter 2.0 keeps colour down to 0.005 lux, 150 dB WDR handles headlight glare, and 850 nm IR reaches up to 200 m. Deep-learning perimeter protection, audio event detection (gunshot, glass break, scream, crying) and the HEOP 2.0 open platform with 2.5 TOPS extend the camera beyond ANPR. AcuSeek search is available when paired with AcuSeek NVRs or servers.

The aluminium alloy housing is rated IP67 and IK10 with NEMA 4X anti-corrosion protection, includes a heater and de-icing, and operates from −40 °C to 65 °C. Interfaces include Gigabit Ethernet, 2 alarm inputs and outputs, audio in/out, RS-485 and Wiegand, with power from 802.3at PoE+, 12 VDC or 24 VAC. It supports ONVIF Profile S, G, T and M. It comes with the full Hikvision manufacturer’s warranty. Australian stock from ARC IP Networks.

Brand Hikvision
Network Connectivity Wired (RJ45 1000M)
Night Vision IR (DarkFighter 2.0)
Resolution 4 MP
Camera Type Bullet
Lens 4.7–118 mm motorised varifocal
Smart Features DeepinView ANPR + Vehicle Attributes
Ingress Protection IP67, IK10, NEMA 4X
Power PoE 802.3at / 12 VDC / 24 VAC
IR Range Up to 200 m
Audio / Alarm Audio in/out + 2/2 alarm I/O + RS-485 + Wiegand
Deep Learning Features ANPR / Vehicle Attributes / Parking / Perimeter
iDS-2CD7A45G2_P-IZHSY_Datasheet.pdf
Download
