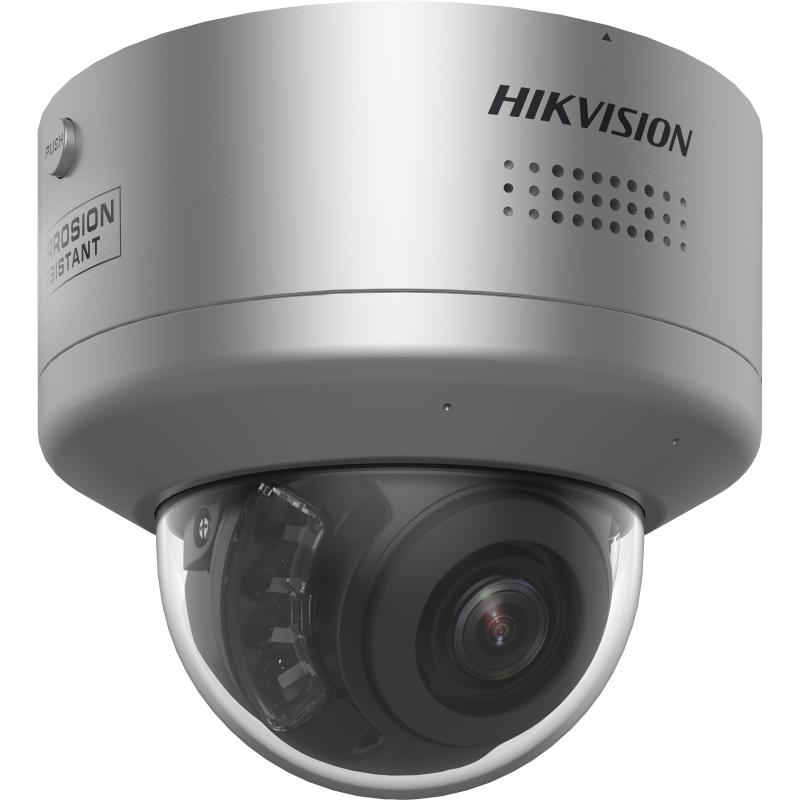

Hikvision iDS-2CD7586G2-XZHSY – 8 MP DeepinView PTRZ Motorised Varifocal Dome Camera, 2.8–12 mm, IR 40 m, 5 TOPS AI, NEMA 4X
At a glance

The Hikvision iDS-2CD7586G2-XZHSY is an 8 MP (3840 × 2160) DeepinView dome camera with a motorised 2.8–12 mm lens and a PTRZ mount for fast aiming on walls or ceilings. Its 5 TOPS AI engine runs face capture and comparison, people counting, queue management, hard-hat/PPE detection, perimeter protection and multi-target detection, with ShotN capture and up to 8 MP @ 60 fps. DarkFighter 2.0, 140 dB WDR, IR and white light up to 40 m, and an IP67/IK10/NEMA 4X anti-corrosion build complete the package.

Resolution
8 MP, 3840 × 2160
Lens
2.8–12 mm motorised, P-iris
Field of view
112.3° to 41.2° horizontal
Night vision
IR + white light 40 m
AI compute
5 TOPS, HEOP 2.0
Frame rate
8 MP @ 60 fps, 2 MP @ 120 fps
Protection
IP67, IK10, NEMA 4X
Power
PoE 802.3at / 12 VDC

Key features

  • 8 MP DarkFighter 2.0 imaging – 1/1.8″ progressive scan CMOS, colour to 0.0005 lux and B/W to 0.0001 lux at F1.2.
  • Motorised 2.8–12 mm varifocal lens with P-iris – 112.3° to 41.2° horizontal view, auto/semi-auto/manual focus.
  • PTRZ dome design – pan 0–355°, tilt 0–85°, rotate 0–355° for wall or ceiling mounting without extra adaptors.
  • Multi-function deep learning – face capture and comparison (up to 10 libraries, 150,000 faces), multi-target-type detection, people counting with de-duplication, queue management, regional people counting, heat map, on/off-duty detection and perimeter protection.
  • PPE detection – built-in models detect hard hats and reflective clothing and alarm when they are not worn.
  • ShotN technology and high frame rate – capture vehicles and people at different speeds clearly; up to 8 MP @ 60 fps and 2 MP @ 120 fps in monitoring mode.
  • AI Open Platform with 5 TOPS (HEOP 2.0) for custom detection, classification and OCR models.
  • Audio analytics and talk-down – 2 built-in microphones and a built-in speaker, with glass break, scream, gunshot/explosion and crying sound detection.
  • Built-in G-sensor and power meter for vibration detection and historical power statistics.
  • Hardened and certified – IP67, IK10, NEMA 4X anti-corrosion, heater, −40 °C to 65 °C, IEC 62443-4-1 ML2 and CC EAL3 cyber security.

Specifications

Camera
Image sensor1/1.8″ progressive scan CMOS
Max. resolution3840 × 2160 (8 MP)
Min. illuminationColour: 0.0005 lux @ (F1.2, AGC ON); B/W: 0.0001 lux; 0 lux with IR
Shutter time1 s to 1/100,000 s
Day & nightIR cut filter; blue glass module (less ghosting)
Angle adjustmentPan 0° to 355°, tilt 0° to 85°, rotate 0° to 355°
WDR140 dB
Image enhancementBLC, HLC, 3D DNR, distortion correction, defog, EIS
Lens (2.8–12 mm model)
Focal length2.8 to 12 mm, motorised varifocal
Field of viewHorizontal 112.3° to 41.2°, vertical 58.1° to 23.1°, diagonal 137.4° to 47.3°
ApertureF1.47 to F2.53, P-iris
FocusAuto, semi-auto, manual
OODPCVS wideOverview 108.8 m, Discern 27.2 m, Characterise 8.7 m, Validate 4.4 m
OODPCVS teleOverview 270 m, Discern 67.5 m, Characterise 21.6 m, Validate 10.8 m
Illuminator
Supplement light typeIR + white light
RangeUp to 40 m (2.8–12 mm model)
Smart supplement lightYes
IR wavelength850 nm
AI Platform
Computing power5 TOPS
Open capabilityHEOP 2.0 OpendevSDK; Caffe, PyTorch, TensorFlow; C/C++
AI Open PlatformUp to 3 models: detection, classification, mixed; OCR and picture comparison
Built-in modelsPPE detection (hard hat and reflective clothing)
Concurrent smart apps2 at the same time, with scheduled switching
Video & Audio
Main stream (monitoring mode)Up to 50/60 fps at 3840 × 2160; up to 100/120 fps at 1920 × 1080
Main stream (smart mode)25/30 fps at 3840 × 2160 down to 1280 × 720
Streams5
Video compressionMain: H.265+/H.265/H.264+/H.264; sub: H.265/H.264/MJPEG
Video bit rate32 Kbps to 16 Mbps
Guanlan AI encodingYes
Audio compressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Smart / Deep Learning
Face captureUp to 120 faces detected simultaneously; best shot and quick shot
Face comparisonUp to 10 libraries, 30,000 faces each, 150,000 in total; library encryption
Multi-target-type detectionHuman body, face and vehicle; licence plate recognition supported
People countingMulti-dimension counting with face de-duplication; daily/weekly/monthly/annual reports
Queue & regionQueue management, regional people counting, heat map, on/off-duty detection
Perimeter protectionLine crossing, intrusion, region entrance, region exiting with human/vehicle filter
Activity analysisSmoking and phone-call detection
Audio eventsGlass break, scream, gunshot and explosion, crying sound detection
Network & Interface
Ethernet1 × RJ45 10/100/1000 Mbps
Protocols / APIONVIF (Profile S, G, T, M), ISAPI, SDK, ISUP, OTAP
StoragemicroSD/SDHC/SDXC up to 1 TB; NAS; ANR; cloud storage
Alarm2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
Audio2 built-in microphones, 1 built-in speaker, 1 line in, 1 line out
RS-485 / power outRS-485 (half duplex); 12 VDC max. 100 mA
ClientsiVMS-4200, Hik-Connect, HikCentral
General
Power12 VDC ±20%, 2 A, max. 24 W; PoE IEEE 802.3at Type 2 Class 4, max. 24 W
MaterialAluminium alloy body
ProtectionIP67, IK10; NEMA 4X anti-corrosion (-Y, moderate protection)
HeaterYes
Cyber securityIEC 62443-4-1 ML2, EUCC, CC EAL3
Operating conditions−40 °C to 65 °C, humidity 95% or less (non-condensing)

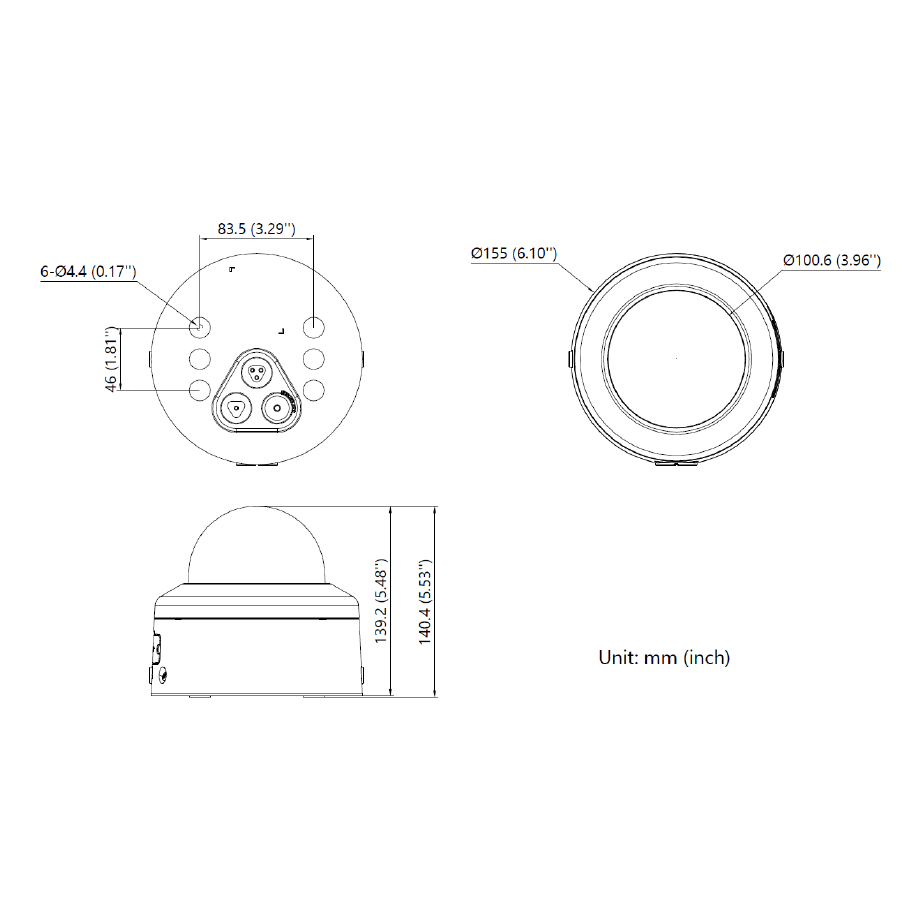

Camera dimensionsØ 155 × 140.4 mm
Camera weightApprox. 1300 g

Specifications are from Hikvision’s official iDS-2CD7586G2-XZHS(Y) datasheet. Figures shown are for this product’s 2.8–12 mm lens; the 8–32 mm model has different FOV, IR and range values. Hikvision recommends -Y anti-corrosion brackets for -Y cameras.

Best for

  • Building entries, lobbies and corridors where face capture, people counting and adjustable framing are needed from one dome.
  • Retail stores and service counters needing queue management, heat maps and multi-dimension people counting.
  • Construction, mining and industrial sites that must enforce hard hats and high-visibility clothing.
  • Car-park entries and laneways where ShotN and high frame rates capture fast-moving people and vehicles.
  • Coastal, industrial and outdoor locations that need NEMA 4X anti-corrosion and a vandal-resistant dome.

Who it’s for

Security integrators

One dome that covers face capture, counting, PPE and perimeter jobs, set up remotely with motorised zoom.

Retail & shopping centres

Footfall, queue and dwell-time analytics alongside high-quality 8 MP evidence.

Industrial & construction

PPE compliance alerts and vibration detection for harsh sites.

Corporate & government

Face library comparison and strong cyber-security certifications.

Education & healthcare

Audio analytics for screams, glass break and aggression events.

System developers

HEOP 2.0 and 5 TOPS for custom AI applications.

DeepinView FAQ – iDS-2CD7586G2-XZHSY

It is an 8 MP DeepinView PTRZ motorised varifocal dome camera. This model has the 2.8–12 mm lens, IR and white light up to 40 m, 2 microphones and a speaker, a heater and NEMA 4X anti-corrosion protection.

It runs face capture and face comparison, multi-target-type detection (face, body, vehicle, licence plate), multi-dimension people counting, queue management, regional people counting, heat map, on/off-duty detection, perimeter protection, smoking/phone-call detection and PPE (hard hat and reflective clothing) detection. Two smart applications can run at the same time.

Yes. Built-in PPE models detect people not wearing a hard hat (red, orange, yellow, blue, white and other colours) or reflective clothing and trigger an alarm.

The horizontal field of view adjusts from 112.3° to 41.2°, with remote auto, semi-auto or manual focus. The PTRZ mount allows pan 0–355°, tilt 0–85° and rotate 0–355°.

IR and white light reach up to 40 m on the 2.8–12 mm model, and DarkFighter 2.0 gives colour down to 0.0005 lux.

ShotN helps the camera capture vehicles and people moving at different speeds clearly. Combined with high-frame-rate modes up to 8 MP @ 60 fps and 2 MP @ 120 fps, it improves evidence quality on fast-moving targets.

It runs from PoE 802.3at (max. 24 W) or 12 VDC (max. 24 W). Use a PoE+ switch or NVR port rated for 802.3at.

Professional overview

The Hikvision iDS-2CD7586G2-XZHSY is an 8 MP DeepinView dome camera that combines a motorised 2.8–12 mm varifocal lens, a PTRZ mounting design and a 5 TOPS AI engine in a vandal-resistant, anti-corrosion housing. It records 3840 × 2160 video from a 1/1.8″ progressive scan CMOS and is designed for entrances, lobbies, retail floors, car parks and industrial sites where one camera needs to deliver both high-quality evidence and business analytics.

Low-light performance comes from DarkFighter 2.0, with colour down to 0.0005 lux, plus 140 dB WDR, blue glass optics and IR and white light up to 40 m on this lens version. The P-iris lens zooms from a 112.3° to a 41.2° horizontal view and can be focused remotely. In monitoring mode the camera reaches 8 MP @ 60 fps and 2 MP @ 120 fps, and ShotN technology keeps fast-moving people and vehicles sharp. Five streams, H.265+ and Guanlan AI Encoding manage bandwidth and storage.

On the analytics side, the camera supports face capture and comparison with up to 150,000 faces across 10 libraries, multi-target-type detection including licence plate recognition, multi-dimension people counting with face de-duplication, queue management, regional people counting, heat maps, on/off-duty and activity analysis, perimeter protection and PPE detection for hard hats and reflective clothing. Audio analytics detect glass break, screams, gunshots and explosions, and the AI Open Platform with HEOP 2.0 allows custom models.

The aluminium alloy dome is rated IP67 and IK10 with NEMA 4X anti-corrosion protection and a heater, operating from −40 °C to 65 °C. It includes 2 microphones and a speaker, 2 alarm inputs and outputs, RS-485, a built-in G-sensor and power meter, and carries IEC 62443-4-1 ML2 and CC EAL3 cyber-security certifications. It is powered by 802.3at PoE or 12 VDC and comes with the full Hikvision manufacturer’s warranty. Australian stock from ARC IP Networks.

Brand Hikvision
Network Connectivity Wired (RJ45 1000M)
Night Vision IR + White Light (DarkFighter 2.0)
Resolution 8 MP (4K)
Camera Type Dome
Lens 2.8–12 mm motorised varifocal
Smart Features DeepinView Multi-Function AI (5 TOPS)
Ingress Protection IP67, IK10, NEMA 4X
Power PoE 802.3at / 12 VDC
IR Range 40 m
Audio / Alarm 2 mics + speaker + audio in/out + 2×2 alarm I/O + RS-485
Deep Learning Features Face Capture / People Counting / Queue / PPE / Perimeter
