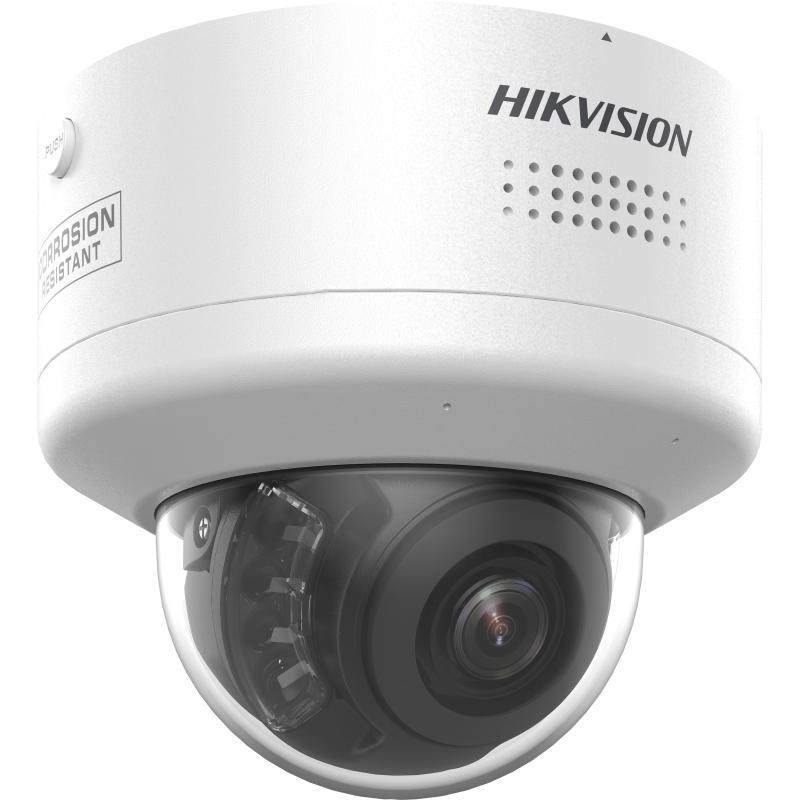

Hikvision iDS-2CD7546G2-XZHSY DeepinView 4 MP PTRZ Motorised Varifocal Dome Network Camera, 2.8–12 mm, IR 40 m, NEMA 4X

https://arcip.com.au/web/image/product.template/11230/image_1920?unique=d825bc3
  • 4 MP DeepinView PTRZ dome, 2.8–12 mm motorised lens
  • DarkFighter 2.0, 150 dB WDR, IR + white light up to 40 m
  • Face capture, people counting, queue, PPE and perimeter AI
  • 2 mics + speaker, sound event detection
  • IP67, IK10, NEMA 4X, heater, PoE 802.3at

$ 1,451.59 1451.59 AUD $ 1,451.59 incl. GST

Not Available For Sale


  • Brand
  • Network Connectivity
  • Night Vision
  • Resolution
  • Camera Type
  • Lens
  • Smart Features
  • Ingress Protection
  • Power
  • IR Range
  • Audio / Alarm
  • Deep Learning Features

This combination does not exist.

In stock online
Hikvision IP Camera DeepinView DarkFighter Varifocal Dome 4MP
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
IDS-2CD7546G2-XZHS-Y
Tags
iDS-2CD7546G2-XZHSY (2.8–12 mm)
Hikvision iDS-2CD7546G2-XZHSY – 4 MP DeepinView PTRZ Motorised Varifocal Dome Camera, 2.8–12 mm, IR & White Light 40 m, Speaker, NEMA 4X
At a glance

The Hikvision iDS-2CD7546G2-XZHSY is a 4 MP DeepinView PTRZ dome that combines remote pan, tilt, rotate and zoom with a broad deep-learning toolkit. DarkFighter 2.0 delivers colour down to 0.0005 lux, 150 dB WDR handles harsh backlight, and IR plus white light reach up to 40 m on the 2.8–12 mm lens. Face capture, multi-target-type detection, people counting, queue management, PPE detection and perimeter protection run on the camera, while two microphones and a built-in speaker support talk-down. It is rated IP67, IK10 and NEMA 4X.

Resolution
4 MP, 2688 × 1520
Lens
2.8–12 mm motorised, PTRZ
Field of view
114.6° to 41.8° H
Light range
IR + white light 40 m
AI
Face, people, PPE, perimeter
WDR
150 dB
Protection
IP67, IK10, NEMA 4X
Power
PoE 802.3at / 12 VDC

Key features

  • PTRZ installation – pan, tilt, rotate and zoom the camera remotely, so wall, ceiling or angled mounts can be aimed without returning to the ladder.
  • DarkFighter 2.0 – colour down to 0.0005 lux and black and white down to 0.0001 lux at F1.2.
  • 150 dB WDR – clear images against strong backlight at entrances and glazed facades.
  • IR and white light up to 40 m – on the 2.8–12 mm model, with Smart Supplement Light.
  • Face capture and comparison – detects up to 120 faces at once and supports up to 150,000 faces across 10 libraries.
  • Multi-target-type detection – captures human body, face and vehicle together, with licence plate recognition and ShotN for clearer capture of moving targets.
  • Business and safety analytics – multi-dimension people counting, queue management, regional people counting, heat maps, on/off-duty detection, activity analysis (smoking and phone calls) and PPE detection for hard hats and reflective clothing.
  • Perimeter protection – line crossing, intrusion, region entrance and region exiting filtered to humans and/or vehicles.
  • Two-way audio and sound events – 2 microphones, a built-in speaker, and detection of glass break, scream, gunshot/explosion and crying sounds.
  • AI Open Platform and HEOP 2.0 – up to 3 custom models and 2.5 TOPS of computing power; Guanlan AI encoding for efficient storage.

Specifications

Camera
Image sensor1/1.8″ progressive scan CMOS
Max. resolution2688 × 1520
Min. illuminationColour: 0.0005 lux @ (F1.2, AGC ON); B/W: 0.0001 lux @ (F1.2, AGC ON); 0 lux with IR
Shutter time1 s to 1/100,000 s
Day & nightIR cut filter; blue glass module (less ghosting)
Angle adjustmentPan 0° to 355°, tilt 0° to 85°, rotate 0° to 355° (PTRZ)
WDR150 dB
SNR≥ 52 dB
Image enhancementBLC, HLC, 3D DNR, distortion correction, defog; EIS
Lens (2.8–12 mm model)
Focal length2.8 to 12 mm, motorised
Field of viewHorizontal 114.6° to 41.8°, vertical 59.3° to 23.6°, diagonal 141.3° to 48.1°
ApertureF1.47 to F2.53, P-iris
FocusAuto, semi-auto, manual
OODPCVS (IEC/EN 62676-4:2025)Wide: Overview 75 m, Discern 18.8 m, Validate 3 m; tele: Overview 186.2 m, Discern 46.6 m, Validate 7.4 m
Illuminator
Supplement light typeIR, white light
Supplement light rangeMonitoring: up to 40 m (2.8–12 mm model)
Smart supplement lightYes
IR wavelength850 nm
Video & Audio
Main stream (monitoring mode)Up to 50/60 fps at 2688 × 1520; up to 100/120 fps at 1920 × 1080
Main stream (smart mode)25 fps (50 Hz) / 30 fps (60 Hz)
Additional streamsSub, third, fourth and fifth streams
Video compressionMain: H.265+/H.265/H.264+/H.264; sub: H.265/H.264/MJPEG
Video bit rate32 Kbps to 8 Mbps
Guanlan AI encodingYes
Audio compressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Environment noise filteringYes
Deep Learning
Face captureUp to 120 faces detected; up to 40 captured per frame; best shot and quick shot
Face comparisonUp to 10 libraries, 30,000 faces each, 150,000 in total
Multi-target-type detectionHuman body, face and vehicle; ShotN; licence plate recognition; dynamic mosaic mask
People analyticsMulti-dimension people counting, queue management, regional people counting, heat map, on/off duty detection
Activity analysisSmoking and phone-call detection
PPE detectionHard hat and reflective clothing
Perimeter protectionLine crossing, intrusion, region entrance, region exiting; human/vehicle filter
Sound detectionGlass break, scream, gunshot/explosion, crying
AI Open Platform / HEOPUp to 3 models; HEOP 2.0, 2.5 TOPS
Network & Interface
Ethernet1 × RJ45 10/100/1000 Mbps
APIONVIF (Profile S, G, T, M), ISAPI, SDK, ISUP, OTAP
Simultaneous live viewUp to 20 channels
StoragemicroSD/SDHC/SDXC up to 1 TB; NAS; ANR; cloud storage
Audio2 built-in microphones; 1 built-in speaker; 1 line in, 1 line out (3.5 mm)
Alarm2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
RS-4851 (half duplex; HIKVISION, Pelco-P, Pelco-D)
SecurityTPM 2.0 (FIPS 140-2 level 2), TLS 1.2/1.3, AES128/256
General
Power12 VDC ±20%, 1.87 A, max. 22.4 W; PoE IEEE 802.3at Type 2 Class 4, max. 22.4 W
MaterialAluminium alloy body

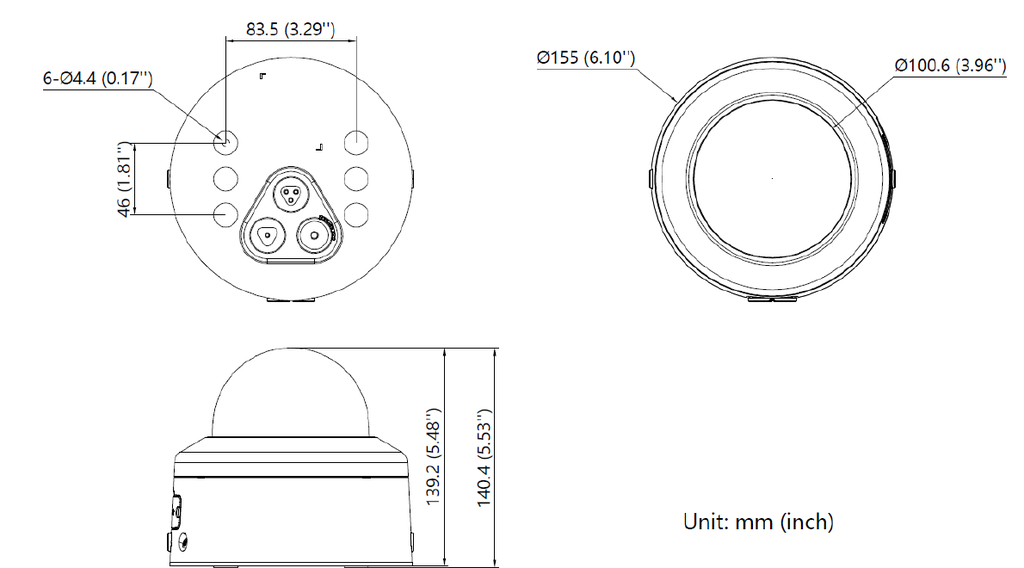

DimensionsØ 155 × 140.4 mm
WeightApprox. 1300 g
Operating conditions−40 °C to 65 °C, humidity 95% or less (non-condensing)
HeaterYes
ProtectionIP67, IK10
Anti-corrosionNEMA 4X (-Y), moderate protection

Specifications are from Hikvision’s official Australian product page and datasheet for the iDS-2CD7546G2-XZHS(Y). This product is the -Y (NEMA 4X) model with the 2.8–12 mm lens; the 8–32 mm version has different field of view and light range figures.

Best for

  • Entrances, lobbies and car-park ramps where PTRZ lets one dome be aimed from a wall or ceiling.
  • Retail and hospitality venues that want people counting, queue and heat-map data from the security camera.
  • Construction sites, warehouses and plants that need hard hat and reflective-clothing (PPE) alerts.
  • Sites that need audible talk-down through the built-in speaker when an intrusion rule triggers.
  • Coastal or exposed locations that need IP67, IK10, NEMA 4X and operation down to −40 °C.

Who it’s for

Security integrators

PTRZ and remote zoom shorten installs, and one model covers many scenarios.

Retail chains

Footfall, queue and dwell analytics alongside face capture.

Safety managers

PPE, smoking and phone-use detection for compliance.

Monitoring centres

Human/vehicle alarms with live audio intervention.

Transport & car parks

Licence plate recognition and vehicle capture with ShotN.

System designers

ONVIF Profile S/G/T/M, ISAPI and RS-485 for integration.

DeepinView PTRZ FAQ – iDS-2CD7546G2-XZHSY

It is a 4 MP DeepinView PTRZ motorised varifocal dome camera with a 2.8–12 mm lens, IR and white light up to 40 m, DarkFighter 2.0, 150 dB WDR and a wide set of deep-learning functions including face capture, people counting, PPE detection and perimeter protection.

PTRZ stands for pan, tilt, rotate and zoom. The camera module can be moved remotely (pan 0–355°, tilt 0–85°, rotate 0–355°) and the lens zoomed and focused, so the view can be set after the dome is mounted on a wall or ceiling.

On the 2.8–12 mm model, IR and white light reach up to 40 m in monitoring mode. DarkFighter 2.0 keeps colour down to 0.0005 lux before the lights are needed.

Yes. Built-in PPE detection checks for hard hats and reflective clothing and triggers an alarm when they are not worn. It also supports smoking and phone-call detection.

Yes. It has 2 built-in microphones and a built-in speaker, plus line in and line out, so operators can issue live warnings and the camera can play an audible warning on an event.

It runs on PoE IEEE 802.3at (Class 4), max. 22.4 W, or 12 VDC (max. 22.4 W). Use a PoE+ switch or NVR port.

Yes. The -Y model adds NEMA 4X anti-corrosion protection, rated by Hikvision as moderate protection for areas about 2 km from the coastline, on top of IP67 and IK10. It operates from −40 °C to 65 °C and has a heater.

Professional overview

The Hikvision iDS-2CD7546G2-XZHSY is a 4 MP PTRZ dome from the DeepinView range that brings a large set of deep-learning functions into a flexible, easy-to-aim housing. A 1/1.8″ progressive scan CMOS records 2688 × 1520 video through a 2.8–12 mm motorised lens with P-iris, covering 114.6° to 41.8° horizontally. Remote pan, tilt, rotate and zoom make it straightforward to frame entrances, corridors, car parks, retail floors and work areas from a wall or ceiling mount.

DarkFighter 2.0 delivers colour down to 0.0005 lux, and 150 dB WDR handles bright doorways and glazed facades. IR and white light reach up to 40 m on this lens. In monitoring mode the camera can stream 4 MP at up to 60 fps, or 1080p at up to 120 fps, and ShotN helps capture moving people and vehicles clearly. Guanlan AI encoding and H.265+ keep storage and bandwidth in check across five streams.

The analytics cover security, operations and safety. Face capture detects up to 120 faces at once and compares against up to 150,000 enrolled faces. Multi-target-type detection captures bodies, faces and vehicles, with licence plate recognition. People counting, queue management, heat maps and on/off-duty detection give operational insight, while PPE detection, activity analysis and human/vehicle-filtered perimeter protection support compliance and intrusion response. Sound detection, two microphones and a built-in speaker add audio awareness and talk-down.

The aluminium alloy dome is rated IP67 and IK10, the -Y model adds NEMA 4X corrosion resistance, and a heater supports operation from −40 °C to 65 °C. It offers Gigabit Ethernet, 2 alarm inputs and outputs, RS-485, microSD up to 1 TB and TPM 2.0, and runs on 802.3at PoE+ or 12 VDC. It supports ONVIF Profile S, G, T and M. It comes with the full Hikvision manufacturer’s warranty. Australian stock from ARC IP Networks.

Brand Hikvision
Network Connectivity Wired (RJ45 1000M)
Night Vision IR + White Light (DarkFighter 2.0)
Resolution 4 MP
Camera Type Dome
Lens 2.8–12 mm motorised varifocal
Smart Features DeepinView Multi-Function AI (2.5 TOPS)
Ingress Protection IP67, IK10, NEMA 4X
Power PoE 802.3at / 12 VDC
IR Range 40 m
Audio / Alarm 2 mics + speaker + audio in/out + 2×2 alarm I/O + RS-485
Deep Learning Features Face Capture / People Counting / Queue / PPE / Perimeter
iDS-2CD7546G2-XZHSY_Datasheet.pdf
