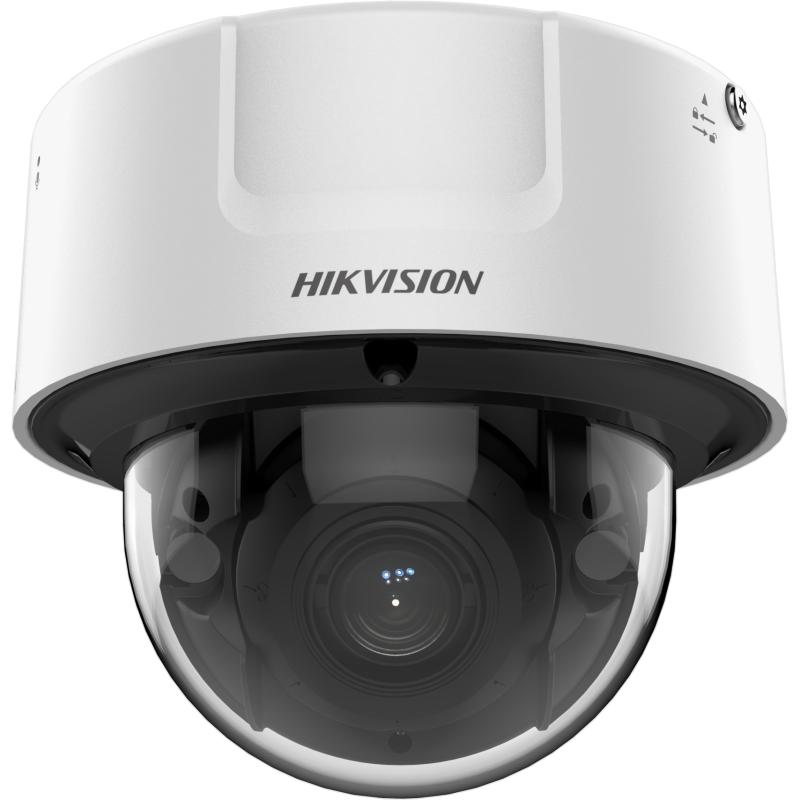

Hikvision iDS-2CD7186G0-IZS DeepinView 8 MP Motorised Varifocal Dome Network Camera, 2.8–12 mm, IR 30 m, Face Capture & People Counting

https://arcip.com.au/web/image/product.template/11225/image_1920?unique=d825bc3
  • 8 MP (3840 × 2160) 1/1.8″ sensor, DarkFighter
  • 2.8–12 mm motorised lens, F1.2, IR up to 30 m
  • Face capture & comparison (150,000 faces), multi-target detection
  • People counting, queue management, heat map, hard hat detection
  • IK10, Gigabit, PoE 802.3at / 12 VDC / 24 VAC

$ 1,194.70 1194.7 AUD $ 1,194.70 incl. GST

Not Available For Sale


  • Brand
  • Network Connectivity
  • Night Vision
  • Resolution
  • Camera Type
  • Lens
  • Smart Features
  • Ingress Protection
  • Power
  • IR Range
  • Audio / Alarm
  • Deep Learning Features

This combination does not exist.

In stock online
Hikvision IP Camera 4K 8MP DeepinView DarkFighter Varifocal Dome
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
IDS-2CD7186G0-IZS
Tags
iDS-2CD7186G0-IZS (2.8–12 mm)
Hikvision iDS-2CD7186G0-IZS – 8 MP DeepinView Motorised Varifocal Dome Camera, 2.8–12 mm, IR 30 m, Face Capture, People Counting & Queue Management
At a glance

The Hikvision iDS-2CD7186G0-IZS is an 8 MP (4K) DeepinView varifocal dome that packs a full set of deep-learning analytics into one camera: face capture and comparison, multi-target-type detection, perimeter protection, multi-dimension people counting, queue management, heat maps, on/off-duty detection and hard hat detection. A 1/1.8″ sensor with DarkFighter and an F1.2 motorised 2.8–12 mm lens record sharp detail in low light, with IR up to 30 m. It is IK10 vandal resistant and is aimed at retail, banking, transport and commercial interiors.

Resolution
8 MP, 3840 × 2160
Lens
2.8–12 mm motorised, F1.2
Field of view
112.3° to 41.2° H
IR range
Up to 30 m
AI
Face, people counting, queues
WDR
120 dB
Protection
IK10
Power
PoE 802.3at / 12 VDC / 24 VAC

Key features

  • 8 MP (4K) imaging – 3840 × 2160 from a 1/1.8″ progressive scan CMOS at up to 25/30 fps.
  • DarkFighter low-light performance – colour down to 0.002 lux and black and white down to 0.0002 lux at F1.2, and 0 lux with IR.
  • Face capture and comparison – detects up to 120 faces at once, best-shot or quick-shot capture, and up to 10 face libraries with 30,000 faces each (150,000 in total).
  • Multi-target-type detection – detects and captures human body, face and vehicle in the same scene, with 7 face, 13 body and 2 vehicle features.
  • Retail and operations analytics – multi-dimension people counting with face-based de-duplication, queue management, regional people counting, heat maps and on/off-duty detection.
  • Perimeter protection – line crossing, intrusion, region entrance and region exiting, filtered to humans and/or vehicles, with combined event alarms.
  • Hard hat detection – raises an alarm when a person in the defined region is not wearing a hard hat.
  • 2.8–12 mm motorised lens with P-iris – 112.3° to 41.2° horizontal view, adjusted remotely with auto, semi-auto or manual focus.
  • AI Open Platform – load up to 4 custom detection, classification or mixed models.
  • Integration ready – Gigabit Ethernet, built-in microphone, audio in/out, alarm 1/1, RS-485, microSD up to 1 TB and ONVIF Profile S/G/T/M.

Specifications

Camera
Image sensor1/1.8″ progressive scan CMOS
Max. resolution3840 × 2160
Min. illuminationColour: 0.002 lux @ (F1.2, AGC ON); B/W: 0.0002 lux @ (F1.2, AGC ON); 0 lux with IR
Shutter time1 s to 1/100,000 s
Day & nightIR cut filter; blue glass module to reduce ghosting
Angle adjustmentPan 0° to 355°, tilt 0° to 75°, rotate 0° to 355°
WDR120 dB
SNR≥ 52 dB
Image enhancementBLC, HLC, 3D DNR, defog; EIS image stabilisation
Lens (2.8–12 mm model)
Focal length2.8 to 12 mm, motorised
Field of viewHorizontal 112.3° to 41.2°, vertical 58° to 23.1°, diagonal 137.3° to 47.3°
ApertureF1.2 to F2.5
Iris typeP-iris
FocusAuto, semi-auto, manual
DORI wideDetect 87 m, Observe 34.5 m, Recognise 17.4 m, Identify 8.7 m
DORI teleDetect 216 m, Observe 85.7 m, Recognise 43.2 m, Identify 21.6 m
Illuminator
Supplement light typeIR
Supplement light rangeUp to 30 m (2.8–12 mm model)
Smart supplement lightYes
IR wavelength850 nm
Video & Audio
Main stream25 fps (50 Hz) / 30 fps (60 Hz) at 3840 × 2160 down to 1280 × 720
Additional streamsSub, third, fourth and fifth streams
Video compressionMain: H.265+/H.265/H.264+/H.264; sub: H.265/H.264/MJPEG
Video bit rate32 Kbps to 16 Mbps
ROI4 fixed regions per stream
Audio compressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Environment noise filteringYes
Deep Learning
Face captureUp to 120 faces detected simultaneously; up to 40 face pictures captured per frame; up to 10 face pictures uploaded per second
Face comparisonUp to 10 face libraries, 30,000 faces each, 150,000 in total; library encryption
Multi-target-type detectionHuman body, face and vehicle detection and capture; line-crossing counting by target type
Perimeter protectionLine crossing, intrusion, region entrance, region exiting; human/vehicle filter; combined event alarm
People countingMulti-dimension people counting, face-based de-duplication, daily/weekly/monthly/annual reports
Queue managementUp to 8 regions; queue length and waiting time detection
OtherRegional people counting, heat map, on/off duty detection, hard hat detection
AI Open PlatformUp to 4 models
Network & Interface
Ethernet1 × RJ45 10/100/1000 Mbps
APIONVIF (Profile S, G, T, M), ISAPI, SDK, ISUP
Simultaneous live viewUp to 20 channels
StoragemicroSD/SDHC/SDXC up to 1 TB; NAS (NFS, SMB/CIFS); ANR
Audio1 built-in microphone; 1 line in, 1 line out (3.5 mm)
Alarm1 input, 1 output (max. 24 VDC, 1 A)
RS-4851 (half duplex; HIKVISION, Pelco-P, Pelco-D)
SecurityTPM 2.0 (FIPS 140-2 level 2), TLS 1.2/1.3, AES128/256
General
Power12 VDC ±20%, max. 12.4 W; 24 VAC ±20%, max. 11.8 W; PoE IEEE 802.3at Type 2 Class 4, max. 12.5 W
MaterialAluminium alloy body

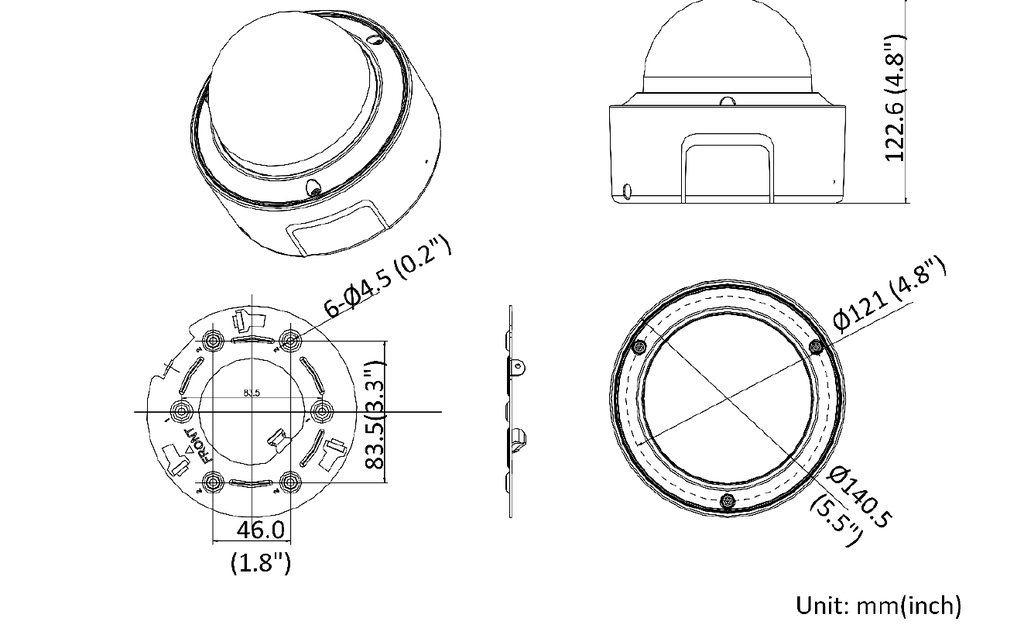

DimensionsØ 140.5 × 122.6 mm
WeightApprox. 875 g
Operating conditions−30 °C to 60 °C, humidity 95% or less (non-condensing)
ProtectionIK10 (IEC 62262:2002)

Specifications are from Hikvision’s official product page and datasheet for the iDS-2CD7186G0-IZS. This product is the 2.8–12 mm lens version; the 8–32 mm version has different field of view and IR figures. Hikvision lists an IK10 rating for this model but no IP rating, so install it indoors or under cover.

Best for

  • Retail stores and shopping centres that want people counting, queue management and heat maps from the security camera itself.
  • Bank branches, service counters and reception areas that need face capture and comparison at the entrance.
  • Transport concourses and lobbies where 8 MP detail and a remotely adjustable lens cover a wide area.
  • Warehouses and plant rooms that want hard hat detection for safety compliance.
  • Commercial interiors and covered entries where an IK10 vandal-resistant dome is needed.

Who it’s for

Retail operators

Footfall, queue length and dwell-time data to plan staffing and layouts.

Banks & financial services

Face capture and up to 150,000 enrolled faces for entrance monitoring.

Security integrators

A single DeepinView dome that covers security and business intelligence.

Facility managers

On/off-duty and hard hat detection for operational compliance.

Transport hubs

Wide 4K coverage with face and body attribute search.

System designers

ONVIF Profile S/G/T/M, ISAPI and RS-485 for integration.

DeepinView FAQ – iDS-2CD7186G0-IZS

It is an 8 MP DeepinView motorised varifocal dome camera with on-board deep learning for face capture and comparison, multi-target-type detection, perimeter protection, people counting, queue management, heat maps, on/off-duty and hard hat detection.

This product is the 2.8–12 mm version. Its horizontal field of view ranges from 112.3° to 41.2°, and at the tele end Hikvision rates identification at 21.6 m. The lens is motorised, so zoom and focus are set remotely.

For the 2.8–12 mm model the IR illuminator reaches up to 30 m. (The 8–32 mm version reaches 50 m.) Smart Supplement Light reduces over-exposure on close subjects.

Yes. It supports multi-dimension people counting with face-based de-duplication, queue management with queue length and waiting-time alarms, regional people counting and heat maps, with daily, weekly, monthly and annual reports.

Up to 10 face libraries of 30,000 faces each – 150,000 faces in total, with library encryption. It detects up to 120 faces at once and uploads up to 10 face pictures per second.

Hikvision lists an IK10 vandal-resistance rating for this model but no IP rating, so it is best suited to indoor or covered locations such as lobbies, shopfronts under awnings and car-park entries.

It accepts PoE IEEE 802.3at (Class 4), max. 12.5 W, 12 VDC (max. 12.4 W) or 24 VAC (max. 11.8 W).

Professional overview

The Hikvision iDS-2CD7186G0-IZS is an 8 MP varifocal dome from the DeepinView range that combines security and business analytics in one device. A 1/1.8″ progressive scan CMOS records 3840 × 2160 video at up to 30 fps through a 2.8–12 mm motorised lens with P-iris, covering 112.3° to 41.2° horizontally. It is well suited to retail stores, bank branches, transport lobbies and commercial interiors that need detailed footage and useful operational data from the same camera.

Image quality is driven by DarkFighter, with colour down to 0.002 lux and black and white down to 0.0002 lux at F1.2, plus 850 nm IR up to 30 m on the 2.8–12 mm model. A 120 dB WDR handles bright entrances and windows, and EIS steadies the image. Five video streams and H.265+ let you record in 4K while viewing and running analytics on lower-resolution streams.

The deep-learning toolset is extensive. Face capture detects up to 120 faces at once and supports comparison against up to 150,000 enrolled faces. Multi-target-type detection captures bodies, faces and vehicles with searchable attributes. For operations, the camera offers multi-dimension people counting with de-duplication, queue management, regional people counting, heat maps and on/off-duty detection, while perimeter protection and hard hat detection cover security and safety. The AI Open Platform can host up to four custom models.

The dome has an aluminium alloy body rated IK10, Gigabit Ethernet, a built-in microphone, audio in/out, alarm I/O, RS-485 and microSD storage up to 1 TB, with TPM 2.0 for hardware security. It runs on PoE 802.3at, 12 VDC or 24 VAC and supports ONVIF Profile S, G, T and M. It comes with the full Hikvision manufacturer’s warranty. Australian stock from ARC IP Networks.

Brand Hikvision
Network Connectivity Wired (RJ45 1000M)
Night Vision IR (DarkFighter)
Resolution 8 MP (4K)
Camera Type Dome
Lens 2.8–12 mm motorised varifocal
Smart Features DeepinView Multi-Function AI
Ingress Protection IK10 (indoor)
Power PoE 802.3at / 12 VDC / 24 VAC
IR Range Up to 30 m
Audio / Alarm Built-in mic + audio in/out + 1/1 alarm I/O + RS-485
Deep Learning Features Face Capture / People Counting / Queue / Hard Hat / Perimeter
iDS-2CD7186G0-IZS_Datasheet.pdf
Download
