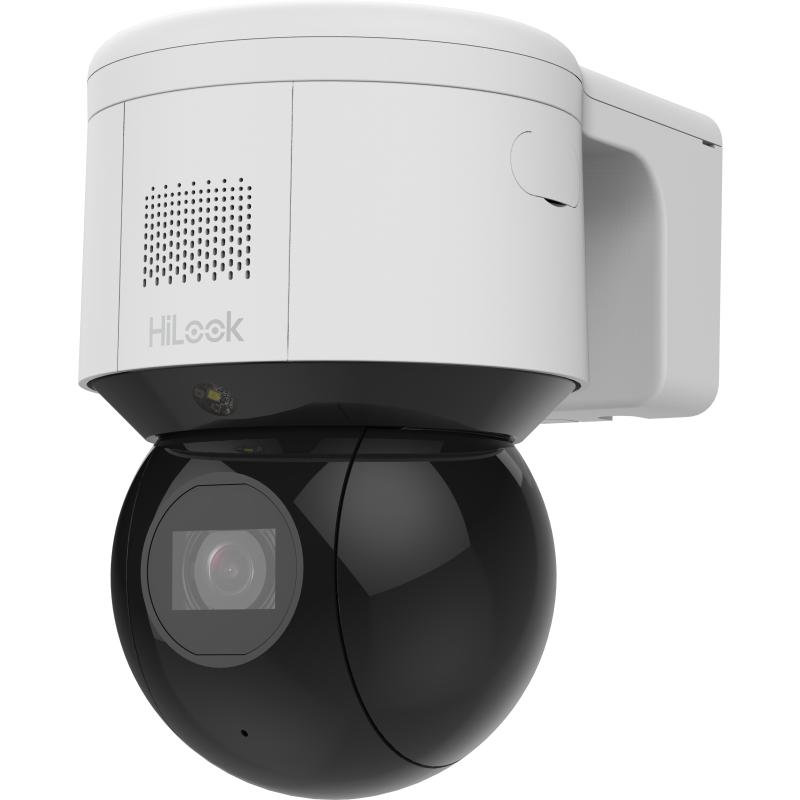

HiLook PTZ-N3404LIU-SL-TRIO 4MP ColorVu PTZ Camera 3-Pack Bundle

Price:

834.90


HiLook HA-KIT-IP1 2MP IP Video Intercom Kit, 7-Inch Touch, Wi-Fi, Surface Mount
HiLook HA-KIT-IP1 2MP IP Video Intercom Kit, 7-Inch Touch, Wi-Fi, Surface Mount
310.20
310.20
HiLook HA-KIT-IP2 IP Video Intercom Kit, Door Station + 7” Monitor
HiLook HA-KIT-IP2 IP Video Intercom Kit, Door Station + 7” Monitor
369.60
369.60

HiLook PTZ-N3404LIU-SL-TRIO 4MP ColorVu PTZ Camera 3-Pack Bundle

https://arcip.com.au/web/image/product.template/9792/image_1920?unique=12e6e76
Buy three HiLook PTZ-N3404LIU/SL 4MP ColorVu PTZ cameras in one value bundle. Each camera features 4MP resolution, Smart Hybrid Light (IR 50m + white light 6m), 4× optical zoom (2.8–12mm, F1.5), full 350° pan / 90° tilt, AI auto-tracking for humans and vehicles, built-in microphone and 2W speaker, H.265+, PoE+ or 12VDC, and IP66 weatherproofing. Ideal for commercial sites needing coordinated multi-zone PTZ coverage.

834.90 834.9 AUD 834.90 incl. GST

Not Available For Sale


  • Brand
  • Audio
  • Zoom
  • IP Rating
  • Resolution
  • Smart Features
  • Power
  • IR Range
  • Illuminator
  • Compression

This combination does not exist.

In stock online
PoE PTZ Camera IP66 ColorVu HiLook 4MP Auto-Tracking Two-Way Audio Bundle PTZ Bundle
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
PTZ-N3404LIU-SL-TRIO
HiLook 4MP ColorVu PTZ Camera – Value 3-Camera Bundle Pack
Pack Contents
Bundle Contents3 × HiLook PTZ-N3404LIU/SL 4MP ColorVu PTZ Network Camera
SKUPTZ-N3404LIU-SL-TRIO
Camera ModelPTZ-N3404LIU/SL
Ideal ForMulti-zone surveillance sites, commercial properties, car parks, warehouses, and large perimeter deployments
Key Features
  • 4MP Full-Colour Night Vision (ColorVu) – Smart Hybrid Light delivers 24/7 full-colour imaging with both IR (up to 50 m) and white-light (up to 6 m) illumination modes; automatic mode selects the best option based on scene conditions
  • 4× Optical Zoom – 2.8–12 mm motorised varifocal lens (F1.5 aperture) with 96.7°–31.6° horizontal field of view, enabling remote zoom from wide-angle to telephoto coverage without repositioning
  • AI-Powered Auto-Tracking – Deep-learning multi-target detection identifies and tracks humans and vehicles automatically; supports line crossing, intrusion, region entrance, and region exiting smart events
  • Full Pan & Tilt Control – 350° pan range and 90° tilt range with configurable speeds (0.1°/s–60°/s pan, 0.1°/s–50°/s tilt); 300 user-defined presets and 8 patrol scans (up to 32 presets per patrol)
  • 120 dB Wide Dynamic Range – Advanced WDR technology ensures clear imaging in high-contrast scenes with bright backgrounds or strong backlight (car parks, entrances, loading docks)
  • Built-In Two-Way Audio – Integrated microphone and 8 Ω / 2 W speaker with G.711/G.722/G.726 compression; max sound pressure 100 dB (10 cm); supports audio exception detection
  • Red & Blue Flashing Alarm Light – Visible deterrent lighting activates on detection events; linkage with preset positions, patrol scans, FTP upload, NAS recording, and email notification
  • MicroSD Local Storage – Built-in microSDXC slot supports up to 256 GB; Auto Network Replenishment (ANR) bridges network outages to eliminate recording gaps
  • H.265+ Compression – Up to 80% bitrate reduction vs H.264, preserving storage and bandwidth at 2560 × 1440 (4MP) resolution at 25 fps (50 Hz) or 30 fps (60 Hz)
  • PoE Powered (IEEE 802.3at) – Single-cable installation via PoE+ switch; also accepts 12 VDC; max 14 W consumption (IR + white light combined)
  • IP66-Rated Weatherproof Housing – Suitable for outdoor perimeter deployment in Australian conditions; operating range –30 °C to 65 °C
  • 3-Camera Value Bundle – Three PTZ-N3404LIU/SL units in a single SKU; ideal for fresh installations or expanding an existing HiLook network camera system
Camera
Image Sensor1/2.8" Progressive Scan CMOS
Max. Resolution2560 × 1440 (4MP)
Min. IlluminationColour: 0.005 Lux @(F1.5, AGC ON)
B/W: 0.001 Lux @(F1.5, AGC ON)
0 Lux with IR
Shutter Speed1 to 1/30,000 s
Day & NightIR Cut Filter
Wide Dynamic Range120 dB
Image EnhancementBLC, HLC, 3D DNR
Privacy Mask24 programmable polygon masks
Lens
Focal Length2.8–12 mm (4× optical zoom)
Max. ApertureF1.5
HFOV (Wide–Tele)96.7°–31.6°
VFOV (Wide–Tele)51.1°–17.7°
DFOV (Wide–Tele)115.1°–36.3°
FocusAuto / Semi-Auto / Manual
Zoom SpeedApprox. 2 s (wide to tele)
Digital Zoom16×
PTZ
Pan Range0°–350°
Tilt Range0°–90°
Pan Speed0.1°/s–60°/s (preset: 60°/s)
Tilt Speed0.1°/s–50°/s (preset: 60°/s)
Presets300
Patrol Scan8 patrols, up to 32 presets each
3D PositioningYes
Power-Off MemoryYes
Proportional PanYes
General
Illuminator RangeIR: up to 50 m; White Light: up to 6 m
CompressionH.265+ / H.265 / H.264+ / H.264 / MJPEG
Max. Bitrate32 Kbps–16 Mbps
On-Board StorageMicroSD/SDHC/SDXC up to 256 GB
PowerPoE (802.3at) 42.5–57 VDC / 12 VDC; Max 14 W
Dimensions (each)179.3 mm × 120.5 mm × 182 mm
Weight (each)Approx. 1.125 kg
Operating Temp.–30 °C to 65 °C
IP RatingIP66
Ethernet1 × RJ45 10M/100M
Frequently Asked Questions
What cameras are included in the PTZ-N3404LIU-SL-TRIO bundle?

The PTZ-N3404LIU-SL-TRIO is a 3-camera value bundle containing three (3) individual HiLook PTZ-N3404LIU/SL 4MP ColorVu PTZ Network Cameras. Each camera is identical and fully independent – they can be deployed on any PoE+ switch or connected via 12 VDC power. This bundle SKU is designed for new installations or for expanding an existing HiLook IP camera network across multiple zones simultaneously.

Does the PTZ-N3404LIU/SL support full-colour recording at night?

Yes. The PTZ-N3404LIU/SL uses HiLook’s ColorVu Smart Hybrid Light technology, which combines infrared illumination (up to 50 m) and a white-light illuminator (up to 6 m) with a wide-aperture F1.5 lens. The camera can be set to IR mode for covert monitoring, white-light mode for full-colour night footage, or smart mode where it automatically switches based on detected activity – for example, activating white light when a person is detected to produce colour evidence footage.

What is the pan and tilt range, and can the cameras be set to auto-track moving subjects?

Each PTZ-N3404LIU/SL has a 350° pan range and 90° tilt range. Auto-tracking is supported via deep-learning AI: once enabled, the camera detects and follows human or vehicle targets automatically using line crossing, intrusion, region entrance, and region exiting detection. Up to 300 presets and 8 patrol scans (32 presets per patrol) allow pre-programmed coverage sequences for unattended monitoring. Auto-tracking can be configured from the camera’s web interface or via iVMS-4200 / HikCentral software.

What power options are available for the PTZ-N3404LIU/SL?

The PTZ-N3404LIU/SL supports Power over Ethernet (IEEE 802.3at PoE+) from 42.5–57 VDC, as well as direct 12 VDC supply. Maximum power consumption is 14 W per camera (including IR and white-light flash). For a 3-camera bundle installation, a PoE+ switch rated at a minimum of 45 W across those ports is recommended. Each camera connects via a single CAT5e/CAT6 cable carrying both power and network data.

Is local storage supported, and how does it handle network outages?

Yes. Each camera has a built-in microSDXC card slot supporting up to 256 GB. The Auto Network Replenishment (ANR) feature allows the camera to record locally to the microSD card when the network connection to the NVR is lost, then automatically synchronises that footage back to the NVR once the connection is restored – eliminating recording gaps. NAS storage (NFS and SMB/CIFS) is also supported for centralised local network recording.

What VMS software is compatible with the PTZ-N3404LIU/SL cameras?

The cameras are compatible with Hikvision’s full software ecosystem including iVMS-4200 (free desktop VMS for Windows), HikCentral Professional (enterprise-grade management platform), and Hik-Connect (remote access app for iOS and Android). Third-party integration is supported via ONVIF Profile S, ISAPI, and SDK. Web browser access is available via Chrome 57+, Firefox 52+, and Safari 12+.

Professional Overview

The HiLook PTZ-N3404LIU-SL-TRIO is a purpose-built value bundle for security installers and system integrators deploying multi-zone PTZ coverage across commercial properties, industrial facilities, retail centres, car parks, and large perimeter areas. By packaging three PTZ-N3404LIU/SL cameras in a single SKU, the bundle simplifies procurement, reduces freight, and ensures price certainty when bidding on projects requiring coordinated camera coverage from multiple vantage points.

Each of the three included cameras delivers 4MP (2560 × 1440) resolution with ColorVu Smart Hybrid Light technology, providing full-colour footage in near-zero-light conditions through an F1.5-aperture varifocal lens with 4× optical zoom. The integrated red & blue flashing alarm light serves as a visible deterrent, with AI-driven auto-tracking ensuring that once a subject is detected – whether human or vehicle – the camera follows automatically, maintaining coverage without operator intervention. A built-in two-way audio system (microphone plus 2 W speaker) further extends the cameras’ deterrent capability and allows remote voice-down when paired with HikCentral or iVMS-4200.

From an installation perspective, each PTZ-N3404LIU/SL connects via a single CAT5e or CAT6 cable using PoE+ (IEEE 802.3at), eliminating the need for separate power runs. The IP66-rated aluminium housing withstands Australian outdoor conditions across a –30 °C to 65 °C operating range. 300 configurable presets, 8 patrol scans, and 3D positioning provide fine-grained control over coverage patterns, while H.265+ compression reduces storage requirements by up to 80% compared to H.264 at equivalent quality settings.

The PTZ-N3404LIU-SL-TRIO bundle is compatible with the full Hikvision ecosystem including HikCentral Professional, iVMS-4200, Hik-Connect, and ONVIF-compliant third-party platforms. MicroSDXC local storage (up to 256 GB per camera) and ANR ensure continuous recording integrity even during network interruptions. Available from Australian stock from ARC IP Networks.

Brand HiLook
Audio Two-Way Audio
Zoom 4× Optical
IP Rating IP66
Resolution 4MP (2560×1440)
Smart Features AI Auto-Tracking, Human & Vehicle Detection
Power PoE+ (802.3at) / 12VDC
IR Range Up to 50m
Illuminator ColorVu Smart Hybrid Light (IR + White Light)
Compression H.265+
Datasheet - HiLook PTZ-N3404LIU/SL
