Hikvision DS-2CD2066G2H-IU Powered by Darkfighter 6 MP Fixed Mini Bullet Network Camera, Fixed Lens 2.8 mm / 4 mm, IR 40 m, Built-in Mic

https://arcip.com.au/web/image/product.template/9768/image_1920?unique=12e6e76
The DS-2CD2066G2H-IU delivers 3200 × 1800 resolution on a 1/2.4″ CMOS sensor at an exceptional F1.0 aperture, achieving colour imaging at 0.001 Lux and 0 Lux B/W with Smart IR to 40 m. On-board deep learning classifies human and vehicle targets for low-false-alarm perimeter protection (line crossing, intrusion, region entrance/exit) and face capture. The built-in microphone records G.711/AAC-LC audio, 120 dB WDR handles backlit scenes, and H.265+ compression keeps storage and bandwidth costs low. IP67-rated all-metal housing supports PoE 802.3af or 12 VDC, microSD up to 512 GB, and ONVIF Profile S/G/T integration.

344.21 344.21 AUD 344.21 incl. GST

Not Available For Sale


  • Brand
  • Network Connectivity
  • Night Vision
  • Resolution
  • Camera Type
  • Lens
  • Smart Features
  • Ingress Protection
  • Power
  • IR Range
  • Audio / Alarm

This combination does not exist.

In stock online
Hikvision IP Camera Bullet 6MP Powered by Darkfighter
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
DS-2CD2066G2H-IU

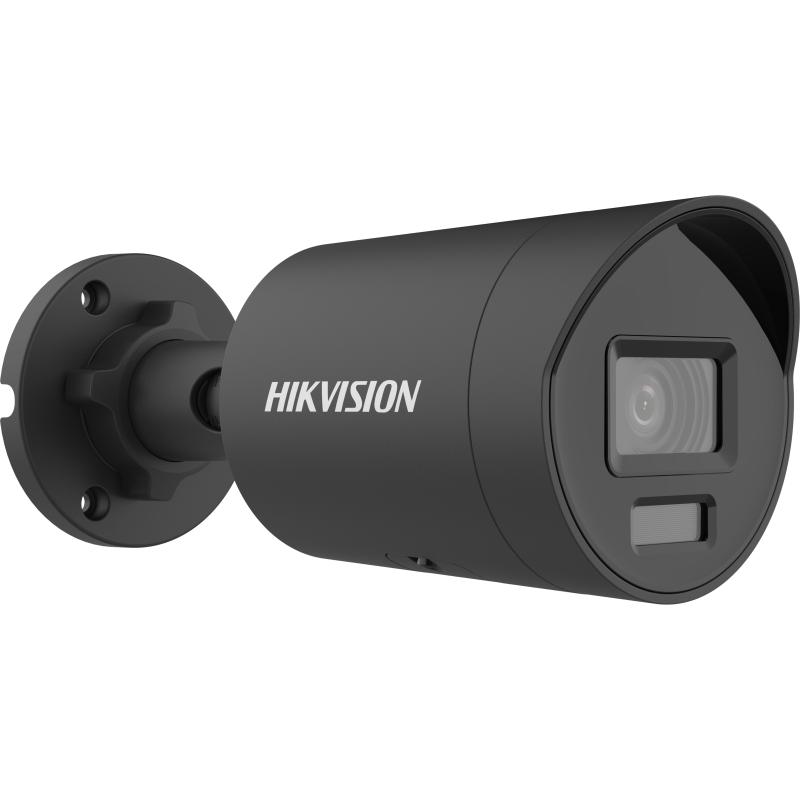

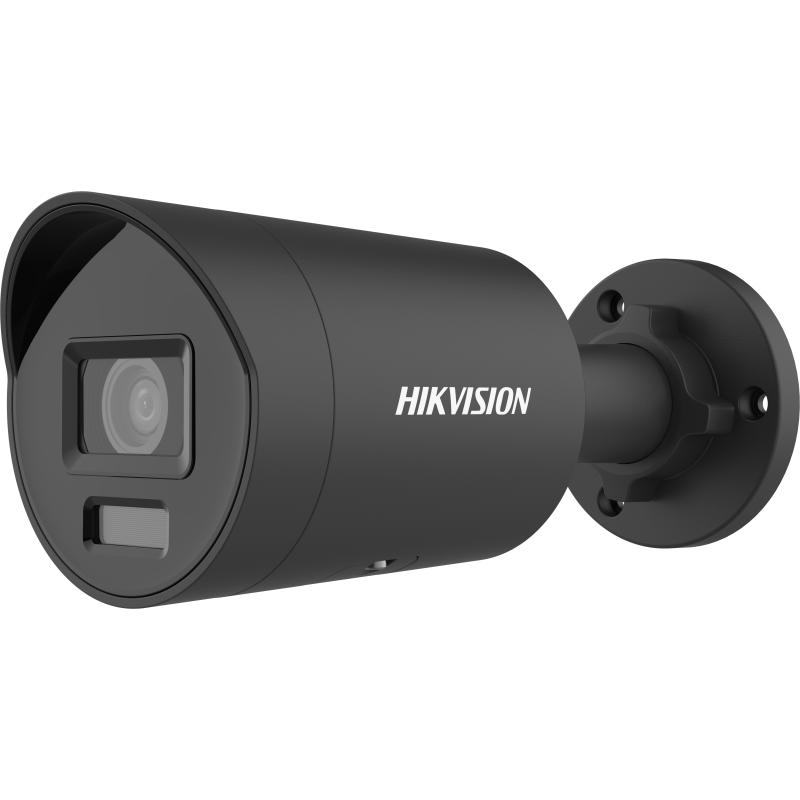

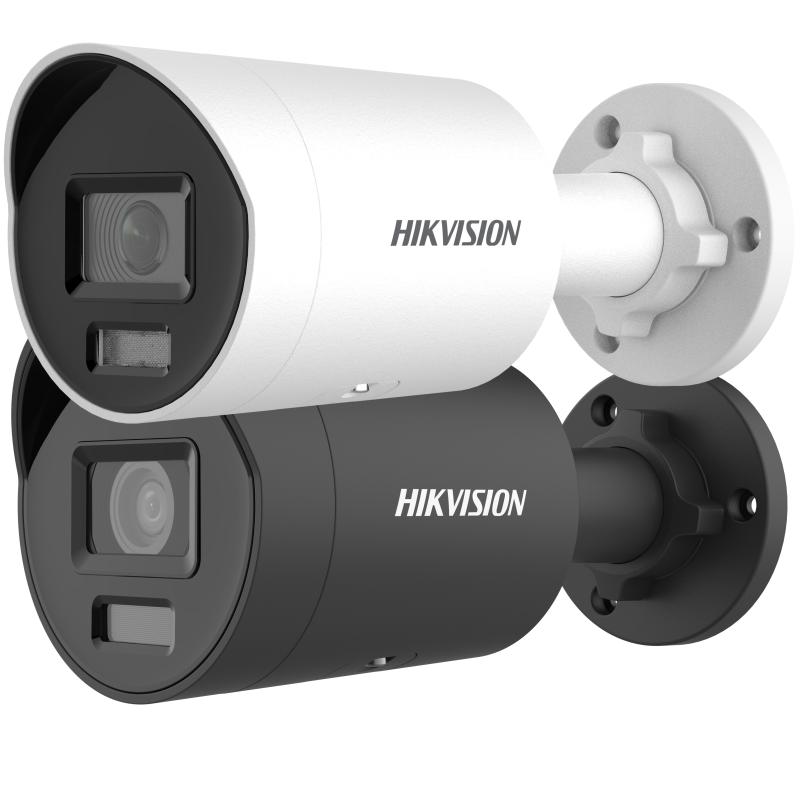

Hikvision DS-2CD2066G2H-IU — 6 MP Powered by Darkfighter Fixed Mini Bullet Network Camera, Fixed Lens 2.8 mm / 4 mm, IR Up to 40 m, Built-in Mic, IP67

Features

  • 6 MP Powered by Darkfighter: 1/2.4″ Progressive Scan CMOS delivers 3200 × 1800 resolution with exceptional low-light clarity, achieving colour imaging at just 0.001 Lux (F1.0, AGC ON) and true 0 Lux operation with IR active.
  • Deep Learning Human & Vehicle Classification: On-board neural network accurately distinguishes people and vehicles from other motion triggers, dramatically reducing false alarms from animals, foliage, and lighting changes.
  • Smart IR Illuminator — Up to 40 m: 850 nm IR LEDs with Smart Supplement Light automatically adjust intensity based on scene distance, preventing over-exposure at close range while maintaining full 40 m reach.
  • 120 dB True Wide Dynamic Range: Simultaneously captures crisp detail in both bright and dark areas of the scene, ideal for entrances, carparks, and retail facades subject to high-contrast lighting.
  • Built-in Microphone (-U): Integrated omni-directional microphone supports G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC audio compression with environment noise filtering, enabling audio-verified verification and two-way audio integration.
  • H.265+ Efficient Compression: Up to 25 fps at full 3200 × 1800 resolution (50 Hz); H.265+ significantly reduces storage and bandwidth compared to H.264, lowering total infrastructure cost.
  • Perimeter Protection Events: Configurable line crossing, intrusion, region entrance, and region exiting detection with target-type filtering (human/vehicle only) eliminate nuisance alerts on busy sites.
  • Face Capture: On-board face detection engine captures and crops face images for post-event search and integration with access control or VMS face databases.
  • MicroSD On-Board Storage: Supports microSD/microSDHC/microSDXC cards up to 512 GB for continuous edge recording, enabling resilient standalone operation or NVR backup redundancy.
  • IP67 All-Weather Protection: Fully sealed against dust ingress and sustained water jets, rated for permanent outdoor installation in all Australian climate zones.
  • Compact Mini Bullet Form Factor: Ø74.4 mm × 179.2 mm housing with full-metal construction (front cover, body, and bracket) suits wall, soffit, and vertical pole mounting via optional DS-1275ZJ-SUS bracket.
  • Broad Protocol Support: ONVIF Profile S/G/T, ISAPI, iVMS-4200, Hik-Connect, Hik-Central, SDK/ISUP for seamless integration with existing VMS infrastructure.

Specifications

Camera
Image Sensor1/2.4″ Progressive Scan CMOS
Max. Resolution3200 × 1800
Min. IlluminationColour: 0.001 Lux @ (F1.0, AGC ON);  B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
SNR≥ 52 dB
Wide Dynamic Range120 dB
Image EnhancementBLC, HLC, 3D DNR

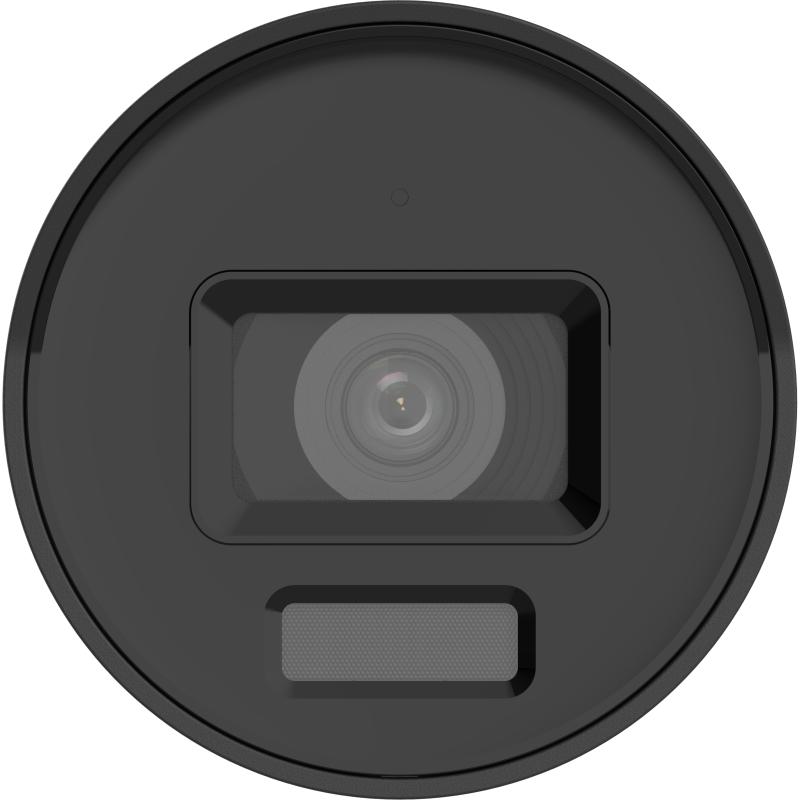

Lens
Lens TypeFixed focal lens, 2.8 mm and 4 mm optional
2.8 mm FOVHorizontal 114.8°, vertical 60°, diagonal 143.5°
4 mm FOVHorizontal 94°, vertical 50.2°, diagonal 112°
Lens MountM12
Iris TypeFixed
ApertureF1.0
Depth of Field2.8 mm: 1.7 m to ∞   4 mm: 2.2 m to ∞
DORI
2.8 mmDetect 64 m, Observe 25 m, Recognise 12 m, Identify 6 m
4 mmDetect 77 m, Observe 30 m, Recognise 15 m, Identify 7 m
Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 40 m
Smart Supplement LightYes
IR Wavelength850 nm
Video & Audio
Main Stream (50 Hz)25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Main Stream (60 Hz)24 fps (3200 × 1800);  30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Video CompressionH.265+/H.265/H.264+/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
Bit Rate ControlCBR, VBR
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Sampling Rate8 kHz / 16 kHz / 32 kHz / 48 kHz
Simultaneous Live ViewUp to 6 channels
Deep Learning & Smart Features
Human & Vehicle ClassificationYes — reduces false alarms by classifying targets via deep learning
Face CaptureYes
Perimeter ProtectionLine crossing, intrusion, region entrance, region exiting (human/vehicle target filtering)
Basic EventsMotion detection (with target-type alarm triggering), video tampering alarm, exception
Smart EventScene change detection
Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, SRTP, SFTP
APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Client SoftwareiVMS-4200, Hik-Connect, Hik-Central
Network StorageNAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
User/HostUp to 32 users, 3 user levels (administrator, operator, user)
Interface & Storage
Ethernet Interface1 × RJ45 10M/100M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, supports microSD/microSDHC/microSDXC up to 512 GB
Built-in MicrophoneYes (DS-2CD2066G2H-IU)
Reset KeyYes
Privacy Mask4 programmable polygon privacy masks
General & Environmental
Power Supply12 VDC ±25%, 0.58 A, max 7.0 W (Ø5.5 mm coaxial); PoE IEEE 802.3af, Class 3, max 8.5 W
MaterialFront cover: Metal; body: Metal; bracket: Metal
DimensionsØ74.4 mm × 179.2 mm (Ø2.9″ × 7.1″)
Operating Temperature−30 °C to 60 °C (−22 °F to 140 °F)
Humidity95% or less (non-condensing)
Ingress ProtectionIP67 (IEC 60529-2013)
ApprovalsRCM (AS/NZS CISPR 32:2015), CE-EMC, CE-LVD, CE-RoHS, WEEE, Reach
Available ModelsDS-2CD2066G2H-IU(2.8mm), DS-2CD2066G2H-IU(4mm)

Powered by Darkfighter FAQ — DS-2CD2066G2H-IU

What does “Powered by Darkfighter” mean on the DS-2CD2066G2H-IU?

The DS-2CD2066G2H-IU uses Hikvision’s Powered by Darkfighter technology, which combines a large-aperture F1.0 fixed lens with a high-sensitivity 1/2.4″ CMOS sensor to achieve colour imaging at just 0.001 Lux and true 0 Lux operation with the 850 nm IR illuminator active. The result is exceptional scene detail in near-total darkness without the washed-out appearance common to lower-sensitivity cameras. The 40 m Smart IR automatically reduces intensity at close range to prevent over-exposure.

How does deep learning reduce false alarms on the DS-2CD2066G2H-IU?

The DS-2CD2066G2H-IU runs a deep learning neural network on-board that classifies detected motion targets as either human or vehicle. Perimeter protection rules (line crossing, intrusion, region entrance, region exiting) can be configured to trigger alarms only when a human or vehicle target is confirmed, eliminating false alerts caused by animals, blowing leaves, shadow changes, or other environmental triggers. Face Capture additionally crops and stores face images from detected persons for post-event review and VMS integration.

What lens options are available for the DS-2CD2066G2H-IU and which should I choose?

The DS-2CD2066G2H-IU is available with either a 2.8 mm fixed lens (horizontal FOV 114.8°, DORI detection range 64 m) or a 4 mm fixed lens (horizontal FOV 94°, DORI detection range 77 m). Choose the 2.8 mm for wide-area coverage of a room or short corridor, or the 4 mm for a narrower but longer field — suitable for longer driveways, carpark aisles, or outdoor perimeters where a tighter angle is needed. Both variants use the same M12 mount and F1.0 aperture, so low-light performance is identical.

Does the DS-2CD2066G2H-IU have audio recording capability?

Yes. The “-U” suffix in DS-2CD2066G2H-IU indicates a built-in omni-directional microphone. It supports G.711, G.722.1, G.726, MP2L2, PCM, MP3, and AAC-LC audio compression at sampling rates of 8 kHz, 16 kHz, 32 kHz, or 48 kHz, and includes environment noise filtering. Audio is recorded alongside video to the connected NVR or microSD card, and can be used for audio-triggered alarms or two-way audio when the VMS supports it.

Can the DS-2CD2066G2H-IU record locally without a network video recorder?

Yes. The camera includes a built-in memory card slot supporting microSD, microSDHC, and microSDXC cards up to 512 GB, allowing continuous local recording at full 6 MP resolution independent of any NVR. It also supports Auto Network Replenishment (ANR), which caches recorded footage locally when the network link drops and automatically uploads the gap to the NVR once connectivity is restored. NAS (NFS/SMB/CIFS) network storage is additionally supported.

What is the IP67 rating on the DS-2CD2066G2H-IU and is it suitable for outdoor Australian conditions?

IP67 (IEC 60529-2013) means the DS-2CD2066G2H-IU is fully protected against dust ingress (6) and against temporary immersion in water up to 1 m depth (7). This makes it entirely suitable for permanent outdoor Australian installations including coastal areas, rooftops, carparks, and building perimeters. The all-metal construction (front cover, body, and bracket) and rated operating temperature of −30 °C to 60 °C mean it withstands both harsh summer heat and cold winter conditions across all Australian states.

Professional Overview

The Hikvision DS-2CD2066G2H-IU is a 6 MP Powered by Darkfighter Fixed Mini Bullet Network Camera designed for demanding outdoor perimeter and access-point surveillance. Built around a 1/2.4″ Progressive Scan CMOS sensor with F1.0 aperture, it delivers 3200 × 1800 resolution at 25 fps (50 Hz) and achieves colour imaging at just 0.001 Lux — making it an outstanding choice for carparks, building entries, driveways, and any site where reliable image quality in poor lighting is critical.

The camera’s 850 nm Smart IR illuminator reaches up to 40 m with automatic intensity adjustment, while the 120 dB true Wide Dynamic Range ensures simultaneous clarity in both sunlit and shadowed zones of the scene. Two fixed-lens variants are available: the 2.8 mm provides a wide 114.8° horizontal field of view (DORI detection 64 m), and the 4 mm delivers a more focused 94° field (DORI detection 77 m), giving installers flexibility for different coverage scenarios without sacrificing aperture or low-light performance.

On-board deep learning enables reliable human and vehicle classification, which drives the perimeter protection suite — line crossing, intrusion, region entrance, and region exiting — with alarm filtering that eliminates false triggers from animals, foliage, and environmental changes. Face Capture adds another layer of intelligence, cropping and storing face images for post-event identification. The built-in microphone (G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC) with environment noise filtering provides real-time audio evidence and supports two-way audio in compatible VMS platforms. H.265+ compression further reduces storage and bandwidth compared to older codec standards, lowering the total cost of the recording infrastructure.

Housed in a compact all-metal body measuring just Ø74.4 mm × 179.2 mm and rated IP67, the DS-2CD2066G2H-IU is built for permanent outdoor deployment across all Australian climate zones. It accepts both PoE (IEEE 802.3af, Class 3, max 8.5 W) and 12 VDC power, integrates with ONVIF Profile S/G/T systems and major VMS platforms via ISAPI/SDK, and supports up to 512 GB edge storage on microSD. Backed by a 3-year Australian warranty, this camera is available in Australian stock from ARC IP Networks.

Brand Hikvision
Network Connectivity Wired
Night Vision Powered by Darkfighter IR
Resolution 6 MP (3200 × 1800)
Camera Type Bullet
Lens 2.8 mm / 4 mm fixed (F1.0)
Smart Features Human & Vehicle Classification, Face Capture, Perimeter Protection
Ingress Protection IP67
Power PoE (802.3af, Class 3) / 12 VDC
IR Range Up to 40 m
Audio / Alarm Built-in microphone
DS-2CD2066G2H-IU_Datasheet.pdf
