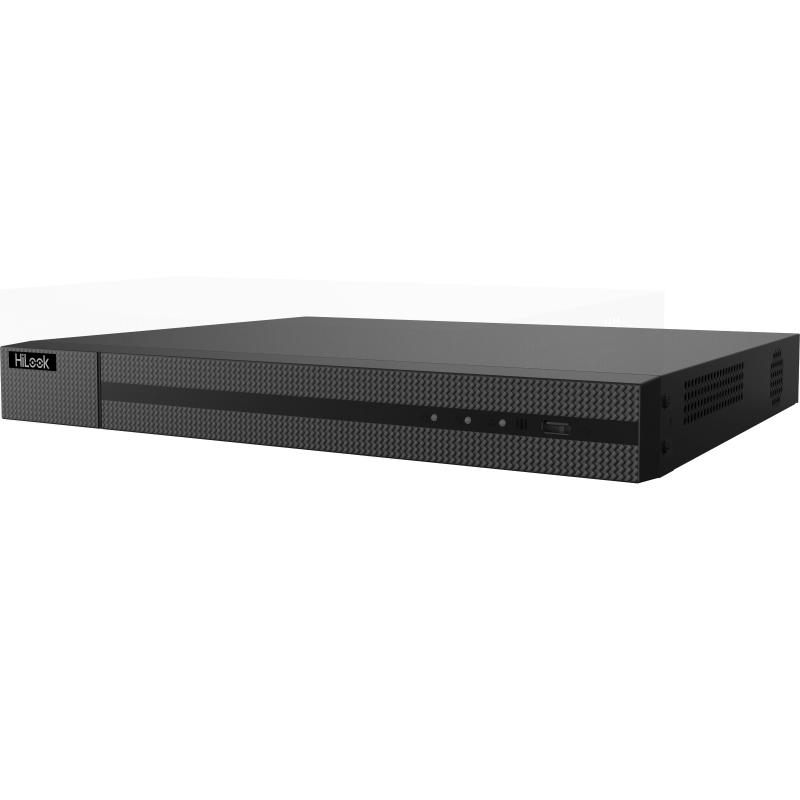

HiLook by Hikvision DVR-216U-M2 16-Channel 5 MP Turbo HD DVR, 2 SATA, Motion Detection 2.0, H.265 Pro+, 4K HDMI

https://arcip.com.au/web/image/product.template/11258/image_1920?unique=d825bc3
  • 16-channel Turbo HD DVR: HDTVI/AHD/CVI/CVBS + IP (up to 32 IP in enhanced mode)
  • Motion Detection 2.0 human/vehicle classification
  • Up to 8 MP @ 8 fps / 5 MP @ 12 fps, H.265 Pro+
  • 2 SATA up to 10 TB each (HDDs not included), 4K HDMI + VGA
  • Gigabit LAN, 12 VDC, no PoE ports

$ 799.99 799.99 AUD $ 799.99 incl. GST

Not Available For Sale


  • Brand
  • HDD Bays
  • Max Resolution
  • Smart Features
  • Power
  • Recorder Type
  • Channels
  • Signal Inputs

This combination does not exist.

In stock online
Hikvision HiLook DVR Turbo HD 16 Channel
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
DVR-216U-M2
Tags
DVR-216U-M2
HiLook by Hikvision DVR-216U-M2 – 16-Channel 5 MP Turbo HD DVR, 2 SATA, Motion Detection 2.0 (Human/Vehicle), H.265 Pro+, 4K HDMI, HDTVI/AHD/CVI/CVBS/IP
At a glance

The HiLook DVR-216U-M2 is a 16-channel Turbo HD digital video recorder in a 1U case for analog HD security cameras. Its 16 BNC inputs accept HDTVI, AHD, CVI and CVBS cameras, and it can also record IP cameras (8 IP channels as standard, up to 24, or up to 32 in enhanced IP mode). Motion Detection 2.0 classifies people and vehicles to cut false alarms. It has two SATA bays (up to 10 TB each, drives not included), a 4K HDMI output plus VGA, and a gigabit network port. This is a DVR for coax (analog) cameras and has no PoE ports; it runs from a 12 VDC supply.

Channels
16 analog (BNC) + IP
Max. IP channels
Up to 24 (32 in enhanced IP mode)
Recording
5 MP @ 12 fps, 8 MP @ 8 fps
Smart
Motion Detection 2.0
HDD
2 × SATA, up to 10 TB each
Video out
HDMI 4K + VGA 1080p
Network
1 × RJ45 10/100/1000
Power
12 VDC, 5 A, ≤ 25 W

Key features

  • 16 analog channels, 5 signal types – every BNC input adapts to HDTVI, AHD, HDCVI or CVBS (PAL/NTSC) cameras, so an existing coax system can be upgraded camera by camera without new cabling.
  • Hybrid IP recording – 8 IP channels as standard, up to 24 when analog inputs are switched to IP; with enhanced IP mode on, 16 IP channels as standard and up to 32, each up to 4 Mbps and up to 8 MP.
  • Motion Detection 2.0 – deep-learning human and vehicle classification, enabled by default on all analog channels, greatly reduces false alarms caused by leaves, insects and changing light.
  • Quick search by target type – filter playback to human or vehicle events instead of scrolling through hours of footage.
  • H.265 Pro+ compression – plus H.265 Pro, H.265, H.264+ and H.264, cutting storage and bandwidth compared with plain H.264.
  • Up to 8 MP @ 8 fps encoding – 5 MP or 3K @ 12 fps, 4 MP @ 15 fps, 8 MP Lite @ 15 fps and 1080p at full frame rate on the main stream.
  • 4K HDMI output – HDMI up to 3840 × 2160 @ 30 Hz, with VGA up to 1920 × 1080 and simultaneous HDMI/VGA output.
  • Audio over coax on all 16 channels – with compatible cameras, plus one RCA audio input and output for two-way audio.
  • Two SATA bays – two 3.5″ SATA drives up to 10 TB each for long retention on a 16-camera site (drives sold separately).
  • Gigabit network and remote access – 10/100/1000 Mbps Ethernet, HiLookVision app and DDNS, up to 128 remote connections, ONVIF for third-party IP cameras.
  • USB 3.0 rear port plus a front USB 2.0 port for fast footage export and backup; Wi-Fi via a USB Wi-Fi dongle.
  • RS-485 serial interface on the rear panel for PTZ control.

Specifications

Smart Function
Motion Detection 2.0Deep-learning human/vehicle classification, enabled by default on all analog channels
SearchQuick search by object or event type
Video Input
Analog video input16-ch, BNC (1.0 Vp-p, 75 Ω), supports coaxitron connection
HDTVI input8 MP (3840 × 2160) @ 12/15 fps, 3K (2960 × 1665) @ 20 fps, 5 MP (2560 × 1944) @ 12/20 fps, 4 MP @ 25/30 fps, 3 MP @ 18 fps, 1080p @ 25/30 fps, 720p @ 25/30 fps
AHD input5 MP @ 12/20 fps, 4 MP @ 25/30 fps, 1080p @ 25/30 fps, 720p @ 25/30 fps
HDCVI input8 MP @ 12/15 fps, 5 MP (2592 × 1944) @ 20 fps, 4 MP @ 25/30 fps, 1080p @ 25/30 fps, 720p @ 25/30 fps
CVBS inputPAL/NTSC
IP video input8-ch (up to 24-ch); enhanced IP mode on: 16-ch (up to 32-ch), each up to 4 Mbps; up to 8 MP; H.265+/H.265/H.264+/H.264 IP cameras
Video & Audio Output
HDMI output1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
VGA output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Output modeHDMI/VGA simultaneous output
Audio input1-ch RCA (2.0 Vp-p, 1 kΩ); 16-ch via coaxial cable
Audio output1-ch RCA (linear, 1 kΩ)
Two-way audio1-ch RCA (using the audio input)
Synchronous playback16-ch
Recording
Video compressionH.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Encoding resolution8 MP / 5 MP / 3K / 4 MP / 3 MP / 1080p / 720p / WD1 / 4CIF / VGA / CIF
Main stream frame rate8 MP @ 8 fps, 3K @ 12 fps, 5 MP @ 12 fps, 4 MP @ 15 fps, 8 MP Lite @ 15 fps, 3 MP @ 18 fps; 1080p/720p/WD1/4CIF/VGA/CIF @ 25 fps (P) / 30 fps (N)
Sub-streamWD1/4CIF/CIF @ 25 fps (P) / 30 fps (N)
Video bit rate32 Kbps to 10 Mbps
Dual-streamSupported
Stream typeVideo, video & audio
Audio compressionG.711u, 64 Kbps
Network
Total bandwidth128 Mbps
Remote connections128
Network interface1 × RJ45 10/100/1000 Mbps self-adaptive
Wi-FiVia Wi-Fi dongle on the USB interface
ProtocolsTCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Storage & Interface
SATA2 × SATA interfaces
CapacityUp to 10 TB per disk (HDDs not included)
USBFront: 1 × USB 2.0; rear: 1 × USB 3.0
SerialRS-485 (rear panel)
General
Power supply12 VDC, 5 A
Power consumption≤ 25 W (without HDD)
Operating temperature−10 °C to +55 °C
Operating humidity10% to 90%

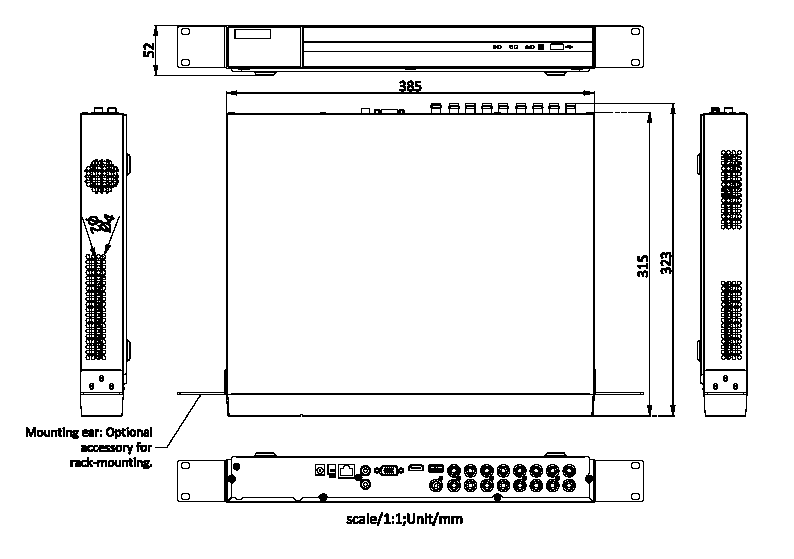

Dimensions (W × D × H)380 × 320 × 48 mm (datasheet); 384 × 315 × 52 mm (product page)
Weight≤ 2 kg (without HDD)
Form factor1U desktop case, optional rack ears

Specifications are from Hikvision’s official DVR-216U-M2 product page and datasheet (attached). Enhanced IP mode may conflict with Motion Detection 2.0 and other smart functions; see the user manual. Hard drives are not included. This recorder has no PoE ports.

Best for

  • Medium coax CCTV systems with up to 16 analog HD cameras on one recorder.
  • Replacing an ageing 16-channel DVR while keeping the existing coax cabling and cameras.
  • Sites that need longer retention: two drive bays allow up to 20 TB of recording space.
  • Mixed systems that combine analog cameras with a growing number of IP cameras.
  • Control rooms and front desks with a 4K monitor for multi-camera live view.

Who it’s for

Security installers

A 16-channel hybrid DVR for upgrades and new coax jobs, with human/vehicle filtering on every analog channel.

Warehouses & factories

Wide coverage of loading docks, aisles and yards with fewer nuisance alerts.

Retail & hospitality

Quick search for people or vehicle events after an incident, across many cameras.

Schools & community sites

Reuse existing coax infrastructure while adding IP cameras where needed.

Strata & property managers

Car parks, entries and common areas on one recorder with remote viewing.

Farms & rural businesses

Sheds, gates and yards covered from a single 1U recorder.

HiLook Turbo HD DVR FAQ – DVR-216U-M2

It is a 16-channel Turbo HD DVR from Hikvision’s HiLook range. It records HDTVI, AHD, CVI and CVBS analog cameras on 16 BNC inputs, can add IP cameras, and provides Motion Detection 2.0 human/vehicle classification, H.265 Pro+ compression, two SATA bays and 4K HDMI output.

It has 16 analog inputs. It supports 8 IP channels as standard, up to 24 when analog inputs are switched to IP; with enhanced IP mode on it supports 16 IP channels as standard and up to 32, each up to 4 Mbps. It has no PoE ports, so IP cameras need a PoE switch or injectors.

The main stream records up to 8 MP @ 8 fps, 5 MP or 3K @ 12 fps, 4 MP @ 15 fps, 8 MP Lite @ 15 fps and 1080p @ 25/30 fps, according to Hikvision’s datasheet.

It has two SATA interfaces, each for a drive up to 10 TB, for up to 20 TB in total. Hard drives are sold separately; use surveillance-rated drives for 24/7 recording.

Yes. The HDMI output supports 4K (3840 × 2160) at 30 Hz, and the VGA output supports up to 1920 × 1080. Both outputs can be used at the same time.

It uses a 12 VDC, 5 A supply and draws up to 25 W without hard drives. Cameras need their own power because this DVR does not supply PoE.

Yes. The DVR supports the HiLookVision app and DDNS for remote live view and playback, with up to 128 remote connections over its gigabit network port. Wi-Fi is possible with a USB Wi-Fi dongle.

Professional overview

The HiLook DVR-216U-M2 is a 16-channel, dual-drive Turbo HD digital video recorder from HiLook, Hikvision’s value brand. It suits warehouses, retail stores, schools, strata buildings and farms with a sizeable coax camera system, and lets installers move to higher-resolution analog HD cameras without re-cabling.

Its 16 BNC inputs adapt to HDTVI, AHD, HDCVI and CVBS cameras, and it can add 8 IP channels as standard, up to 24, or up to 32 in enhanced IP mode. Recording runs up to 8 MP @ 8 fps or 5 MP @ 12 fps with H.265 Pro+ compression to stretch storage, and live video can be shown on a 4K HDMI display or a VGA monitor at the same time.

Motion Detection 2.0 is enabled by default on every analog channel: deep-learning classification of people and vehicles means fewer false alerts from trees, insects or headlights, and quick search finds human or vehicle events in seconds. Audio over coax is supported on all 16 channels with compatible cameras, and an RS-485 port is provided for PTZ control.

The recorder takes two SATA drives up to 10 TB each (sold separately), has a front USB 2.0 and a rear USB 3.0 port for exporting footage, and a gigabit network port for remote viewing through HiLookVision. It runs from 12 VDC at up to 25 W without drives. It has no PoE ports, so plan separate camera power. It comes with the full manufacturer’s warranty. Australian stock from ARC IP Networks.

Brand HiLook
HDD Bays 2 SATA (up to 10 TB each)
Max Resolution 8 MP
Smart Features Motion Detection 2.0 (Human/Vehicle)
Power 12 VDC
Recorder Type Digital Video Recorder (DVR)
Channels 16-Channel
Signal Inputs HD-TVI/AHD/CVI/CVBS/IP
DVR-216U-M2_Datasheet.pdf
